1. تعارف
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Nidec 9664 Permanent Split Capacitor (PSC) Motor. This motor is specifically designed for refrigeration evaporator blower applications. Please read this manual thoroughly before proceeding with installation or operation.
2. حفاظتی معلومات
Improper installation, operation, or maintenance can lead to electric shock, fire, or serious injury. Always adhere to the following safety guidelines:
- Disconnect all power to the motor and connected equipment before installation, maintenance, or servicing.
- All electrical work should be performed by a qualified electrician in accordance with local and national electrical codes.
- یقینی بنائیں کہ موٹر مناسب طریقے سے گراؤنڈ ہے۔
- Do not operate the motor in environments exceeding its specified ambient temperature (40°C).
- آپریشن کے دوران ہاتھوں، اوزاروں اور کپڑوں کو حرکت پذیر حصوں سے صاف رکھیں۔
- تصدیق کریں کہ پاور سپلائی والیومtage موٹر کے والیوم سے میل کھاتا ہے۔tage rating (115V/230V).
- Protect the motor from moisture and corrosive environments unless specifically designed for such conditions.
3. پروڈکٹ ختمview
The Nidec 9664 is a robust Permanent Split Capacitor (PSC) motor featuring automatic overload protection. It is designed for continuous duty in open air over enclosure applications, utilizing Class B insulation. This motor operates at 60 Hertz and is suitable for ambient temperatures up to 40°C. Its primary application is as a refrigeration evaporator blower motor.

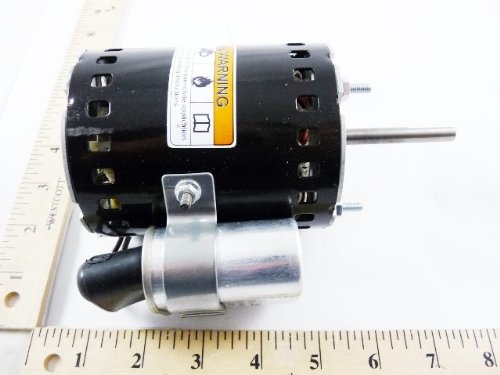

تصویر 1: Nidec 9664 Permanent Split Capacitor Motor. This image displays the motor unit, highlighting its compact design, visible wiring leads, and stud mount for installation.
اہم خصوصیات:
- ہارس پاور: 1/20 - 1/12 hp
- رفتار: 1550 RPM
- رفتار کی ترتیبات: 1-رفتار
- والیومtage: 115/230V
- Amperage: 1.2-0.95 amps
- شافٹ کے طول و عرض: 5/16" قطر x 2 1/2" لمبائی
- گردش: الٹنے والا
- قطر: 3.3"
- Motor Case Length: 4.17"
- لیڈز: 12"
- بیئرنگ: بال بیرنگ
- چڑھنا: سٹڈ ماؤنٹ
4. وضاحتیں
| فیچر | تفصیلات |
|---|---|
| برانڈ | نڈیک |
| ماڈل نمبر | 9664 |
| قسم | مستقل تقسیم کیپیسیٹر (PSC) |
| ہارس پاور | 1/20 - 1/12 hp |
| رفتار | 1550 RPM |
| والیومtage | 115/230V |
| Ampایجری | 1.2 - 0.95 amps |
| تعدد | 60 ہرٹز |
| شافٹ کے طول و عرض | 5/16" قطر x 2 1/2" لمبائی |
| موٹر قطر | 3.3" |
| Motor Case Length | 4.17" |
| لیڈز | 12" |
| بیرنگ | بال بیرنگ |
| چڑھنا | سٹڈ ماؤنٹ |
| انکلوژر | Open Air Over |
| موصلیت کی کلاس | کلاس بی |
| محیطی درجہ حرارت | 40°C (Maximum) |
| ڈیوٹی سائیکل | مسلسل |
| شے کا وزن | 16 پاؤنڈز |
| یو پی سی | 663001635659 |
| ASIN | B000LEW46I |
5. سیٹ اپ اور انسٹالیشن
اہم: Ensure all power is disconnected before beginning installation. Installation should only be performed by qualified personnel.
5.1. چڑھنا:
- Identify the appropriate mounting location for the motor, ensuring adequate clearance for airflow and shaft rotation.
- The Nidec 9664 motor features a stud mount. Securely fasten the motor using the integrated studs to a stable and vibration-free surface.
- Ensure the motor shaft is properly aligned with the driven component (e.g., blower fan) to prevent premature wear and vibration.
5.2. برقی کنکشن:
- Verify that the incoming power supply voltage (115V یا 230V) موٹر کی ضروریات سے میل کھاتا ہے۔
- Connect the 12-inch leads from the motor to the power supply according to the wiring diagram provided with your equipment or by a qualified electrician.
- یقینی بنائیں کہ تمام کنکشن محفوظ اور مناسب طریقے سے موصل ہیں۔
- Confirm proper grounding of the motor and associated equipment.
5.3. Rotation Direction:
The motor's rotation is reversible. Consult your equipment's requirements for the correct rotation direction. The direction of rotation is typically changed by reversing specific wiring connections; refer to the motor's wiring diagram for details.
6. آپریٹنگ ہدایات
Once the motor is securely mounted and electrically connected, it is ready for operation.
- Before applying power, perform a final check of all connections and ensure no obstructions are present around the motor or fan.
- Apply power to the motor. The motor should start smoothly and reach its operating speed of 1550 RPM.
- Monitor the motor for any unusual noises, vibrations, or excessive heat during the initial operation.
- This motor is designed for continuous duty, meaning it can operate for extended periods without requiring rest.
7 دیکھ بھال
The Nidec 9664 motor is designed for reliability and requires minimal maintenance.
- صفائی: Periodically inspect the motor for dust, dirt, or debris accumulation. Clean the exterior of the motor using a dry cloth or compressed air to ensure proper heat dissipation. Do not use liquids directly on the motor.
- بیئرنگ: This motor is equipped with ball bearings, which are typically lubricated for the life of the motor and do not require additional lubrication under normal operating conditions.
- معائنہ: Regularly check for loose connections, damaged wiring, or signs of wear. Address any issues promptly.
- ہوا کا بہاؤ: Ensure that the motor's open air over enclosure design allows for adequate airflow to prevent overheating. Do not obstruct ventilation openings.
8 خرابیوں کا سراغ لگانا
This section provides guidance for common issues. For problems not listed or if solutions do not resolve the issue, contact a qualified service technician.
| مسئلہ | ممکنہ وجہ | حل |
|---|---|---|
| موٹر اسٹارٹ نہیں ہوتی | No power supply; Incorrect wiring; Overload protection tripped; Seized shaft/bearings | Check power source and circuit breaker; Verify wiring connections; Allow motor to cool and reset; Inspect shaft for obstructions, check bearings |
| موٹر زیادہ گرم ہو جاتی ہے۔ | Insufficient airflow; Overload condition; High ambient temperature; Incorrect voltage | Clear obstructions around motor; Reduce load; Ensure ambient temperature is within limits; Verify correct voltagای سپلائی |
| ضرورت سے زیادہ شور یا کمپن | Loose mounting; Unbalanced fan/load; Worn bearings | Tighten mounting studs; Inspect and balance fan; Consult service technician for bearing replacement |
9. وارنٹی اور سپورٹ
وارنٹی: The Nidec 9664 motor comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
سپورٹ: For technical assistance, warranty claims, or service inquiries, please contact Nidec customer support or your authorized Nidec dealer.
Note: Unauthorized repairs or modifications may void the warranty.
