StarTech.com SLIMDVDRW8U2 External Slim USB 2.0 DVD+/-RW Drive Instruction Manual

1. تعارف

This manual provides instructions for the installation, operation, and maintenance of your StarTech.com SLIMDVDRW8U2 External Slim USB 2.0 DVD+/-RW Dual Layer Drive. This device allows you to read and write data to DVD and CD media using a standard USB 2.0 connection, offering portability and convenience for laptops and desktop PCs without an internal optical drive.

2. پیکیج کے مشمولات

تصدیق کریں کہ آپ کے پیکیج میں درج ذیل آئٹمز ہیں:

• 1x StarTech.com SLIMDVDRW8U2 External Slim USB 2.0 DVD+/-RW Drive
• 1x USB 2.0 A to B Cable
• 1x ہدایت نامہ

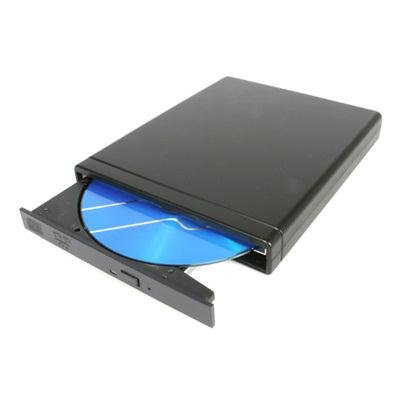

Image: The StarTech.com SLIMDVDRW8U2 external slim DVD+/-RW drive, shown with its sleek black casing and USB port.

3. سسٹم کے تقاضے

Before installing the drive, ensure your system meets the following requirements:

• Available USB 2.0 port (or higher, compatible with USB 2.0)
• Operating System: Windows XP/Vista/7/8/10/11, macOS, or Linux (with USB mass storage device support)
• For DVD/CD burning, compatible burning software may be required (not included).

4. سیٹ اپ

Follow these steps to connect and prepare your external DVD drive for use:

1. USB کیبل کو جوڑیں: Plug the USB Type-B connector of the provided USB cable into the corresponding port on the external DVD drive.
2. کمپیوٹر سے جڑیں: Plug the USB Type-A connector of the cable into an available USB 2.0 port on your computer (laptop or desktop PC).
3. ڈرائیور کی تنصیب: The drive is plug-and-play. Your operating system should automatically detect and install the necessary drivers. This process may take a few moments.
4. تصدیق: Once drivers are installed, the drive will appear as an optical drive in "My Computer" (Windows) or "Finder" (macOS).

5. آپریٹنگ ہدایات

This section details how to use your external DVD drive for reading and writing optical media.

5.1. ڈسک ڈالنا

1. Ensure the drive is connected to your computer and powered on (indicated by an LED, if present).
2. Press the eject button on the front of the drive. The disc tray will open.
3. Carefully place a CD or DVD onto the tray, ensuring it is centered with the label side facing up.
4. Gently push the tray back into the drive until it clicks shut. The drive will begin to read the disc.

5.2. Ejecting a Disc

1. Software Eject (Recommended): Right-click on the optical drive icon in "My Computer" (Windows) or drag the disc icon to the Trash (macOS) and select "Eject".
2. Hardware Eject: Press the eject button on the front of the drive. If the disc is in use, the tray may not open. Ensure no applications are accessing the disc before using the hardware eject button.

5.3. Reading Data from a Disc

Once a disc is inserted and recognized by your operating system, you can access its contents. Double-click the drive icon to browse files, or use media player software to play audio CDs or video DVDs.

5.4. Writing Data to a Disc (Burning)

To write data to a blank CD-R/RW or DVD-R/RW disc, you will need compatible burning software. Many operating systems include basic burning capabilities, or you can use third-party software. Follow the instructions provided with your chosen burning software.

• Insert a blank, recordable disc (CD-R/RW, DVD-R/RW, DVD+R/RW, DVD+R DL).
• Open your burning software and select the type of project (data disc, audio CD, video DVD, etc.).
• شامل کریں۔ files or media you wish to burn to the disc.
• Initiate the burning process. Do not disconnect the drive or interrupt the process until completion.

6 دیکھ بھال

Proper care ensures the longevity and optimal performance of your drive.

• باہر کی صفائی: Use a soft, dry, lint-free cloth to wipe the exterior of the drive. Avoid abrasive cleaners or solvents.
• لینز کی صفائی: Do not attempt to clean the internal optical lens manually. Use a specialized CD/DVD lens cleaning disc if necessary.
• ڈسک ہینڈلنگ: Always handle discs by their edges. Avoid touching the data surface. Store discs in protective cases when not in use.
• ذخیرہ: ڈرائیو کو کسی ٹھنڈی، خشک جگہ پر براہ راست سورج کی روشنی اور انتہائی درجہ حرارت سے دور رکھیں۔
• گردوغبار سے بچیں: Keep the drive in a clean environment to prevent dust accumulation, which can affect performance.

7 خرابیوں کا سراغ لگانا

If you encounter issues with your external DVD drive, refer to the following common problems and solutions:

7.1. Drive Not Recognized by Computer

• کنکشن چیک کریں: Ensure the USB cable is securely connected to both the drive and your computer's USB port.
• ایک اور USB پورٹ آزمائیں: Connect the drive to a different USB port on your computer.
• کمپیوٹر کو دوبارہ شروع کریں: کبھی کبھی ایک سادہ ری اسٹارٹ پتہ لگانے کے مسائل کو حل کر سکتا ہے۔
• ڈیوائس مینیجر (ونڈوز) کو چیک کریں: Open Device Manager and look for "DVD/CD-ROM drives." If there's an exclamation mark, try updating or reinstalling the driver.
• Check System Information (macOS): Go to Apple Menu > About This Mac > System Report > USB. Check if the drive is listed.

7.2. Disc Read Errors or Slow Performance

• Clean Disc: Inspect the disc for scratches, smudges, or dirt. Gently clean it with a soft, lint-free cloth from the center outwards.
• Try Another Disc: Test with a different, known-good disc to determine if the issue is with the drive or the disc itself.
• لینس کی صفائی: Use a specialized CD/DVD lens cleaning disc.
• Resource Usage: دیگر مطلوبہ ایپلی کیشنز کو بند کریں جو سسٹم کے وسائل کو استعمال کر رہی ہیں۔

7.3. Disc Tray Does Not Open/Close

• پاور چیک: Ensure the drive is properly connected and receiving power.
• Software Eject: Attempt to eject the disc through your operating system's software interface first.
• Manual Eject: If the tray is stuck, locate the small emergency eject hole (often near the eject button). Insert a straightened paperclip into the hole and push gently to manually open the tray.

8. وضاحتیں

9. وارنٹی اور تکنیکی مدد

StarTech.com provides a comprehensive warranty for its products. For specific warranty details, please refer to the warranty information included with your product or visit the official StarTech.com webسائٹ

For technical support, troubleshooting assistance, or to download the latest drivers and manuals, please visit the StarTech.com support website or contact their customer service department. Contact information can typically be found on the product packaging or the official webسائٹ

Webسائٹ: www.startech.com/support۔
