Xigmatek HD503 HTPC Case User Manual

1. تعارف

This manual provides detailed instructions for the installation, operation, and maintenance of your Xigmatek HD503 Home Theater PC (HTPC) case. Please read this manual thoroughly before beginning installation to ensure proper setup and safe usage. Keep this manual for future reference.

The Xigmatek HD503 is designed as an HTPC enclosure, featuring a side vent for optimized cooling performance, a robust aluminum, plastic, and steel construction, and support for various PC components.

2. حفاظتی معلومات

• برقی حفاظت: Always disconnect the power supply from the wall outlet before installing or removing any components to prevent electrical shock.
• تیزکنارے: Exercise caution when handling internal components as some edges may be sharp.
• وینٹیلیشن: Ensure adequate ventilation around the case to prevent overheating. Do not block the side vents.
• وزن: The case weighs approximately 17.6 lbs (8 kg). Use proper lifting techniques to avoid injury.
• جامد بجلی: Discharge static electricity from your body before touching internal components by touching a grounded metal object.

3. پیکیج کے مشمولات

تصدیق کریں کہ نیچے دی گئی تمام اشیاء آپ کے پیکج میں موجود ہیں:

• Main unit (Xigmatek HD503 HTPC Case)
• Motherboard / PSU bolts
• HDD bolts (for fixing hot swap bay)
• ODD bolts
• Standoffs for mATX motherboards
• SSD bolts
• Clamps
• کیبل تعلقات
• Lock Plate bolts
• لاک پلیٹ
• SD bracket
• CPU power extension cable
• ریموٹ کنٹرول
• AAA battery (for remote control)
• انسٹالیشن سی ڈی
• iMon manual

Figure 1: Xigmatek HD503 HTPC Case. This image shows the front panel of the HD503 HTPC case, highlighting the integrated DFSTN LCD display and front I/O ports.

4. سیٹ اپ اور انسٹالیشن

4.1 Component Compatibility

• Motherboard Standards: Supports Standard ATX and Micro ATX motherboards.
• بجلی کی فراہمی: Compatible with Standard ATX / ATX12V power supplies.
• PCI/AGP Card Support: Accommodates full-size cards up to 10.2 inches (260 mm) in length.

4.2 ڈرائیو کی تنصیب

• 5.25-inch Bays: Two bays available, including one hot-swap bay.
• 3.5-inch Bays: Three bays available, supporting two 2.5-inch SSDs.
• SSD Mounting: Equipped with a basic SSD mounting bracket for up to two 2.5-inch SSDs.
• گرم تبادلہ: The hot-swap bay supports SATA I and SATA II drives. Refer to the iMon manual for specific hot-swap bay usage.

4.3 فین انسٹالیشن

• Rear Vent: Supports two 3.1-inch (80 mm) fans (optional).

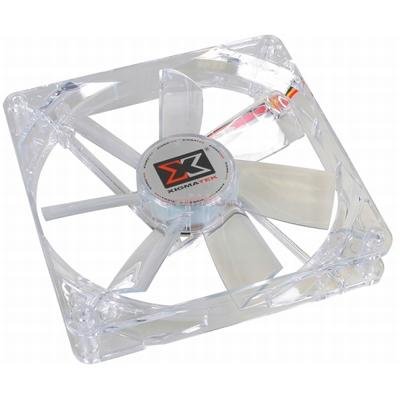

• سائیڈ وینٹ: Supports two 4.7-inch (120 mm) fans (optional). These fans contribute to maximum cooling performance.

4.4 فرنٹ I/O کنکشنز

The front panel provides convenient access to the following ports:

• 2 ایکس USB پورٹس
• 1 x e-SATA Port
• 1 x Microphone Input
• 1 ایکس ہیڈ فون آؤٹ پٹ

5. آپریٹنگ ہدایات

5.1 DFSTN LCD Display

The built-in DFSTN LCD on the front of the case provides a wide viewing angle for easy monitoring of multimedia information and system status. Refer to the included iMon manual for detailed instructions on configuring and utilizing the LCD display features.

5.2 ریموٹ کنٹرول کا استعمال

The included remote control allows for convenient operation of your HTPC. Insert the AAA battery into the remote control. Refer to the iMon manual and installation CD for instructions on pairing the remote and configuring its functions with your HTPC software.

6 دیکھ بھال

• صفائی: Use a soft, dry cloth to clean the exterior of the case. For stubborn dirt, a slightly damp cloth can be used, but ensure no liquid enters the case.
• دھول ہٹانا: Periodically open the case and use compressed air to remove dust from internal components and fan blades to maintain optimal cooling performance. Ensure the system is powered off and unplugged before performing internal cleaning.
• پنکھے کا معائنہ: Regularly check the optional 80mm rear and 120mm side fans for obstructions or excessive noise. Clean or replace as necessary.

7 خرابیوں کا سراغ لگانا

• سسٹم آن نہیں ہو رہا ہے:
  • Ensure all power cables are securely connected to the motherboard, power supply, and wall outlet.
  • تصدیق کریں کہ پاور سپلائی سوئچ 'آن' پوزیشن میں ہے۔
  • مدر بورڈ سے فرنٹ پینل پاور بٹن کے کنکشن چیک کریں۔
• مانیٹر پر کوئی ڈسپلے نہیں:
  • Confirm the monitor is connected to the graphics card and powered on.
  • Reseat the graphics card in its PCI/AGP slot.
• DFSTN LCD Not Functioning:
  • Check the internal cable connection for the LCD display to the motherboard or controller.
  • Refer to the iMon manual for software configuration and troubleshooting steps.
• زیادہ گرمی کے مسائل:
  • Ensure all case fans (optional) are installed correctly and functioning.
  • Verify that the side vents are not obstructed.
  • Clean dust from internal components and fan filters.

8. وضاحتیں

9. وارنٹی اور سپورٹ

For warranty information and technical support, please refer to the documentation provided with your purchase or contact your retailer. Additional support for the iMon software and remote control functionality can be found in the included iMon manual and installation CD.

کسی بھی وارنٹی دعووں کے لیے براہ کرم اپنے خریداری کا ثبوت اپنے پاس رکھیں۔
