KYB 343482 Rear Gas Shock Absorber

تعارف

This manual provides essential information for the proper installation, maintenance, and troubleshooting of your KYB 343482 Rear Gas Shock Absorber. Designed for rear axle applications, this Excel-G series shock absorber is engineered to restore original handling and control capabilities to your vehicle. Please read this manual thoroughly before installation and use to ensure safety and optimal performance.

حفاظتی معلومات

Always prioritize safety when working on your vehicle. Improper installation or handling of automotive components can lead to serious injury or damage.

• اس بات کو یقینی بنائیں کہ کوئی بھی کام شروع کرنے سے پہلے گاڑی کو جیک اسٹینڈز پر محفوظ طریقے سے سپورٹ کیا گیا ہو۔ کبھی بھی مکمل طور پر جیک پر بھروسہ نہ کریں۔
• حفاظتی شیشے اور دستانے سمیت مناسب ذاتی حفاظتی سامان (PPE) پہنیں۔
• ٹارک کی مخصوص خصوصیات اور طریقہ کار کے لیے اپنی گاڑی کے سروس مینوئل سے مشورہ کریں۔
• Do not attempt installation if you are unsure of the process. Seek professional assistance.
• Keep hands and tools clear of moving parts and pinch points.
• مقامی ضوابط کے مطابق پرانے حصوں کو ذمہ داری سے ٹھکانے لگائیں۔

پروڈکٹ ختمview

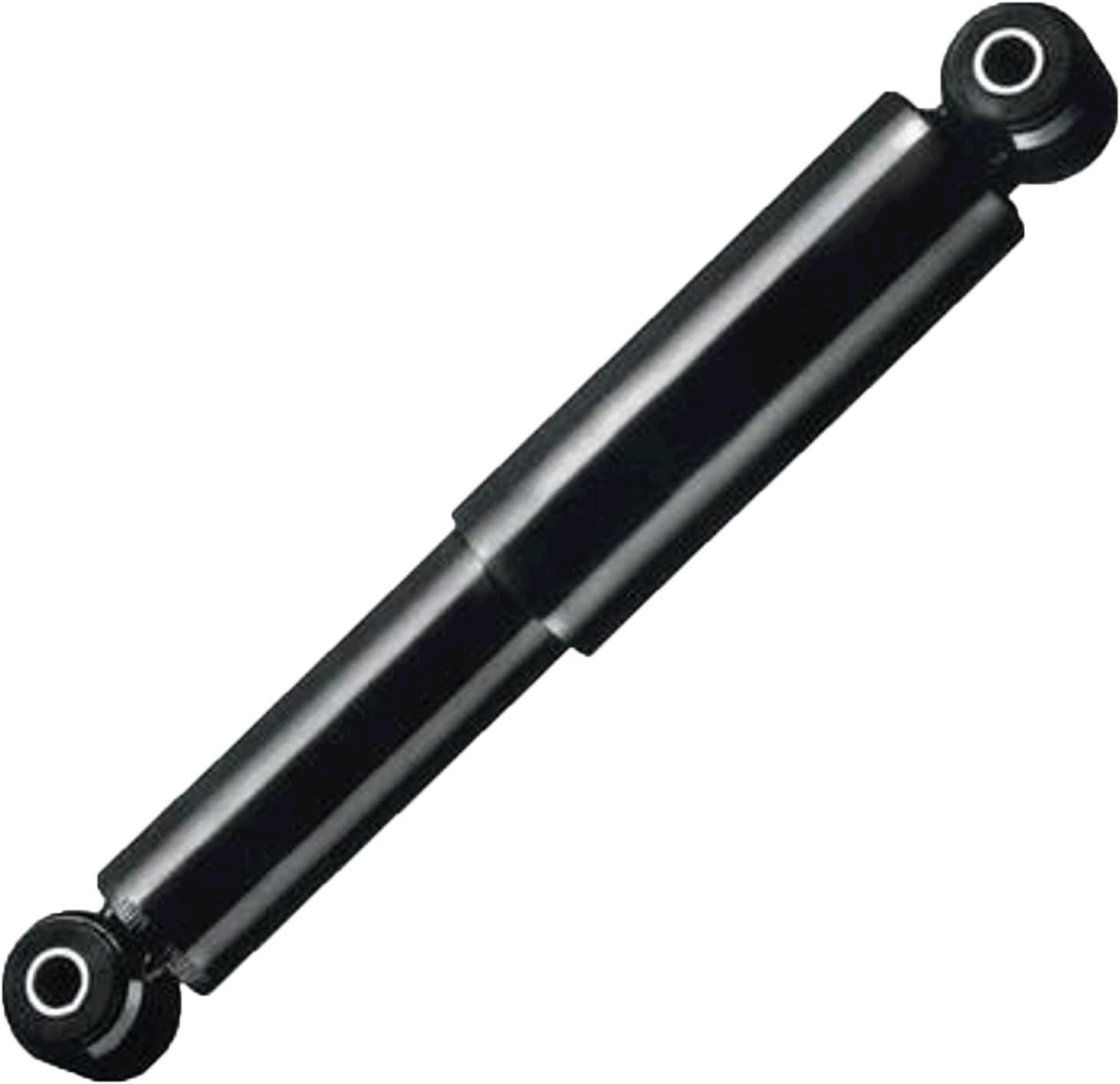

Image: A single KYB 343482 Rear Gas Shock Absorber. It is a black cylindrical component with mounting eyes at both ends, designed to absorb road impacts and control vehicle suspension.

The KYB 343482 is a gas-charged, twin-tube shock absorber from the Excel-G series, specifically designed for the rear axle. It is engineered to provide a comfortable ride while maintaining excellent handling characteristics. Key features include:

• Restores original equipment performance.
• Utilizes a seamless working cylinder for consistent performance.
• Features a triple chrome-plated piston rod and multi-lip oil seal for reduced wear.
• Nitrogen gas-charged for improved ride and handling.

انسٹالیشن گائیڈ

This section provides a general guide for installing the KYB 343482 Rear Gas Shock Absorber. Specific steps may vary depending on your vehicle's make and model. Always refer to your vehicle's service manual for detailed instructions.

مطلوبہ اوزار اور معدنیات:

• گاڑی کا جیک اور جیک اسٹینڈ
• پہیے کے چاک
• ساکٹ رنچ سیٹ
• ٹارک رنچ
• Penetrating oil (optional)
• Wire brush (optional)

مرحلہ وار تنصیب:

1. گاڑی تیار کریں: Park the vehicle on a flat, level surface. Engage the parking brake and place wheel chocks on the wheels that will remain on the ground. Loosen the lug nuts on the rear wheels.
2. لفٹ اور محفوظ: Using a jack, lift the rear of the vehicle until the wheels are off the ground. Place jack stands securely under the vehicle's frame or designated lift points. Lower the vehicle onto the jack stands. Remove the rear wheels.
3. پرانے شاک کو تلاش کریں اور ہٹائیں: Identify the existing rear shock absorber. It will typically be mounted between the vehicle's frame and the rear axle or suspension arm. Apply penetrating oil to the mounting bolts if they appear rusted.
4. Support Axle (if necessary): If the shock absorber is part of the suspension's load-bearing structure, you may need to support the axle with a floor jack to prevent it from dropping excessively when the shock is removed.
5. بڑھتے ہوئے بولٹ کو ہٹا دیں: Carefully remove the upper and lower mounting bolts that secure the old shock absorber. Keep track of any washers or bushings.
6. پرانے جھٹکے کو دور کریں: Once the bolts are removed, carefully extract the old shock absorber from its mounting points.
7. Prepare New Shock: Before installing the new KYB 343482 shock, ensure it is fully extended. Some shocks come with a retaining strap that needs to be cut after installation.
8. نیا شاک انسٹال کریں: Align the new shock absorber with its upper and lower mounting points. Insert the mounting bolts and hand-tighten them. Ensure all bushings and washers are correctly positioned.
9. ٹارک بولٹ: Refer to your vehicle's service manual for the correct torque specifications for the shock absorber mounting bolts. Use a torque wrench to tighten the bolts to the specified values.
10. دوبارہ جوڑنا: Reinstall the rear wheels and hand-tighten the lug nuts. Lift the vehicle off the jack stands, remove the jack stands, and lower the vehicle to the ground. Torque the lug nuts to the manufacturer's specifications.
11. فائنل چیک: Bounce the rear of the vehicle a few times to settle the suspension. Visually inspect the installed shock absorber to ensure it is properly seated and all bolts are tight.

آپریٹنگ خصوصیات

Once installed, the KYB 343482 shock absorber will immediately begin to function, providing improved ride comfort and vehicle stability. You should notice:

• Reduced bouncing and swaying over bumps and uneven roads.
• Improved handling and control during cornering and braking.
• A more stable and comfortable ride for passengers.

It is normal for new shock absorbers to feel slightly stiffer initially, as they need a short break-in period to fully adapt to the vehicle's suspension dynamics.

دیکھ بھال

Shock absorbers are generally maintenance-free components. However, regular inspection can help identify potential issues early and ensure their longevity.

• بصری معائنہ: Periodically inspect the shock absorbers for signs of oil leaks, bent rods, or damaged bushings. Any visible damage or leaks indicate a need for replacement.
• بڑھتے ہوئے پوائنٹس: Check the mounting bolts for tightness during routine vehicle inspections. Loose bolts can lead to noise and premature wear.
• دھول کے جوتے: If your shock absorbers are equipped with dust boots, ensure they are intact and not torn, as they protect the piston rod from contaminants.

It is recommended to have your vehicle's suspension system inspected by a qualified technician during regular service intervals.

خرابی کا سراغ لگانا

If you experience issues after installing your new shock absorber, consider the following common problems and solutions:

اگر خرابیوں کا سراغ لگانے کے اقدامات سے مسئلہ حل نہیں ہوتا ہے، تو یہ سفارش کی جاتی ہے کہ کسی مصدقہ آٹوموٹو ٹیکنیشن سے مشورہ کریں۔

وضاحتیں

Key specifications for the KYB 343482 Rear Gas Shock Absorber:

• حصہ نمبر: 343482
• سلسلہ: Excel-G (Gas)
• پوزیشن: ریئر ایکسل
• قسم: Twin-Tube Gas Shock Absorber
• مینوفیکچرر: KYB
• مصنوعات کے طول و عرض: تقریباً 55 x 10 x 10 سینٹی میٹر
• آئٹم کا وزن: تقریباً 1.49 کلو
• OEM Part Numbers (Cross-reference): DACIA 6001549248, RENAULT 6001549248, RENAULT 8200417472
• Compatible Vehicle Service Type: کار

وارنٹی اور سپورٹ

For information regarding the warranty of your KYB 343482 Rear Gas Shock Absorber, please refer to the official KYB website or contact your authorized KYB dealer or retailer. Warranty terms and conditions may vary by region and purchase location.

For technical support or further assistance, please visit the official KYB global website or contact their customer service department. When contacting support, please have your product model number (343482) and purchase details readily available.

KYB Official Webسائٹ: www.kyb.com
