Seiko 5 Automatic Men's Watch SNKK11J1 Instruction Manual

1. تعارف

Thank you for choosing the Seiko 5 Automatic Men's Watch, model SNKK11J1. This timepiece combines classic design with reliable automatic movement, offering precision and durability. This manual provides essential information for the proper setup, operation, and maintenance of your watch to ensure its longevity and optimal performance.

2. پروڈکٹ ختمview

The Seiko 5 Automatic Watch SNKK11J1 features a distinctive blue dial with luminous gold-tone hands and markers, housed in a silver-tone stainless steel case with a matching bracelet. It is powered by an automatic mechanical movement, meaning it is wound by the motion of your wrist. The watch also includes a day and date display.

تصویر 2.1: سامنے والا view of the Seiko 5 Automatic Watch SNKK11J1, showing the blue dial, gold-tone hands, and day/date display.

تصویر 2.2: زاویہ دار view of the Seiko 5 Automatic Watch SNKK11J1, highlighting the stainless steel case and bracelet.

تصویر 2.3: پیچھے view of the Seiko 5 Automatic Watch SNKK11J1, showing the transparent case back and automatic movement.

3. سیٹ اپ

3.1 ابتدائی وائنڈنگ

Your Seiko 5 watch is an automatic timepiece. It does not require a battery and is powered by the motion of your wrist. If the watch has stopped, it needs to be manually wound to start.

1. Gently shake the watch from side to side in a horizontal arc for about 30 seconds. This will initiate the movement and provide enough power for it to start ticking.
2. Wear the watch for at least 8 hours a day to maintain its power reserve.

3.2 Setting the Time and Day/Date

The crown is located on the side of the watch case.

1. Setting the Day and Date:
   • پہلی کلک پوزیشن پر تاج کو باہر نکالیں۔
   • تاریخ سیٹ کرنے کے لیے کراؤن کو گھڑی کی سمت موڑ دیں۔
   • دن سیٹ کرنے کے لیے کراؤن کو گھڑی کی مخالف سمت میں موڑ دیں۔
   • اہم: Do not set the day/date between 9:00 PM and 4:00 AM (21:00 - 04:00) as this can damage the movement. If you need to set the day/date during this period, first set the time outside this window, adjust the day/date, then reset the time.
   • تاج کو معمول کی پوزیشن پر واپس دھکیلیں۔
2. وقت کا تعین:
   • دوسری کلک پوزیشن پر تاج کو باہر نکالیں۔ دوسرا ہاتھ رک جائے گا۔
   • Turn the crown to advance the hands until the correct time is displayed. Ensure you distinguish between AM and PM when setting the time, especially if the day/date changes at noon instead of midnight.
   • گھڑی کو شروع کرنے کے لیے کراؤن کو واپس نارمل پوزیشن پر دھکیلیں۔

تصویر 3.1: طرف view of the watch, showing the crown used for setting time and day/date.

3.3 بریسلیٹ کو ایڈجسٹ کرنا

The stainless steel bracelet can be adjusted by adding or removing links to achieve a comfortable fit. This procedure typically requires specialized tools and is best performed by a qualified watchmaker or jeweler.

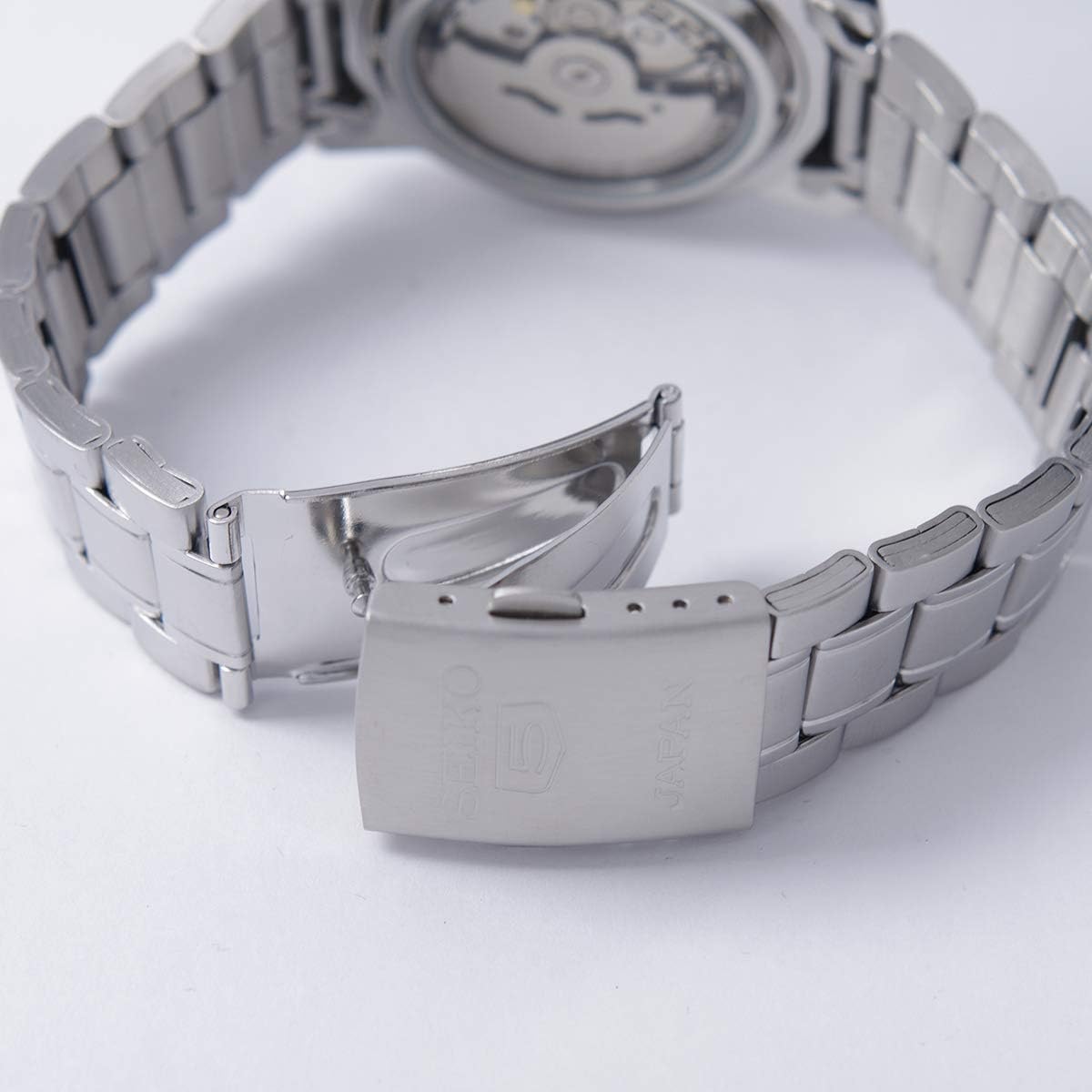

تصویر 3.2: Close-up of the fold-over clasp with push-button release on the stainless steel bracelet.

4. آپریٹنگ ہدایات

4.1 پاور ریزرو

When fully wound, your Seiko 5 automatic watch has a power reserve that allows it to run for approximately 40 hours without being worn. If the watch is not worn for an extended period, it will stop. Simply shake it gently to restart and reset the time and day/date as described in Section 3.2.

4.2 Day/Date Display

The watch features a day and date display. The day of the week is available in two languages (typically English and Arabic or another language). You can select your preferred language when setting the day. The day and date will automatically advance around midnight.

5 دیکھ بھال

5.1 اپنی گھڑی کو صاف کرنا

To maintain the appearance of your watch, wipe the case and bracelet periodically with a soft, dry cloth. For stainless steel, a slightly damp کپڑا استعمال کیا جا سکتا ہے، اس کے بعد خشک کپڑا۔ سخت کیمیکلز یا کھرچنے والے مواد کے استعمال سے پرہیز کریں۔

5.2 پانی کی مزاحمت

Your watch is water resistant up to 30 meters (100 feet). This means it is suitable for everyday use and can withstand splashes or brief immersion in water. However, it is مناسب نہیں for swimming, showering, or diving. Always ensure the crown is fully pushed in to maintain water resistance.

5.3 Avoiding Magnetic Fields

Automatic watches can be affected by strong magnetic fields, which may cause them to run inaccurately or stop. Keep your watch away from strong magnets, such as those found in speakers, refrigerators, and certain electronic devices.

5.4 Periodic Inspection and Service

For optimal performance and longevity, it is recommended to have your watch inspected and serviced by an authorized Seiko service center every 3 to 5 years. This includes checking the movement, seals, and overall condition.

6 خرابیوں کا سراغ لگانا

• گھڑی رک گئی ہے:

  As an automatic watch, it requires motion to operate. If it has stopped, gently shake it for about 30 seconds to restart the movement. Ensure you wear it regularly to maintain the power reserve.
• وقت غلط ہے:

  Inaccuracy can be caused by insufficient winding (not enough wrist movement), exposure to strong magnetic fields, or the need for servicing. Ensure the watch is adequately wound and kept away from magnets. If the issue persists, consult an authorized service center.

• Day/Date not changing correctly:

  Ensure you are not attempting to set the day/date between 9:00 PM and 4:00 AM, as this can interfere with the mechanism. If the day/date is stuck or not advancing, try resetting the time and day/date as per Section 3.2. If the problem continues, professional inspection is recommended.

7. وضاحتیں

8. وارنٹی اور سپورٹ

Your Seiko watch is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Seiko webسائٹ

For technical support, repairs, or service, please contact an authorized Seiko service center. You can find a list of authorized service centers on the official Seiko webسائٹ یا ان کی کسٹمر سروس سے رابطہ کرکے۔

Visit the official Seiko webمزید معلومات کے لیے سائٹ.
