Knightsbridge SFRJ45MW Screwless RJ45 Network Outlet Instruction Manual

1. پروڈکٹ ختمview

The Knightsbridge SFRJ45MW is a screwless RJ45 network outlet designed for creating wired networking points within a home or office environment. This unit features a UTP CAT5e compliant RJ45 socket with IDC terminals, ensuring reliable network connectivity. Constructed from high-quality, ultra-slim, premium-grade material, it offers a sleek and modern aesthetic. The outlet is supplied with an integral gasket and is compliant with relevant British safety standards.

تصویر 1: Knightsbridge SFRJ45MW Screwless RJ45 Network Outlet, Matt White.

2. حفاظتی معلومات

انتباہ: Installation must be carried out by a qualified electrician in accordance with the latest wiring regulations. Always isolate the mains power supply before commencing any electrical work. Ensure all connections are secure and correctly terminated. This product is designed for indoor use only.

• ڈی میں انسٹال نہ کریں۔amp یا گیلے حالات.
• Ensure the mounting box is securely fixed and provides adequate depth for wiring.
• Do not exceed the specified cable gauge for IDC terminals.

3. پیکیج کے مشمولات

تنصیب شروع کرنے سے پہلے تصدیق کریں کہ تمام اجزاء موجود ہیں:

• 1 x Knightsbridge SFRJ45MW Screwless RJ45 Network Outlet
• 1 x IDC Tool (for terminating network cables)
• فٹنگ کی ہدایات

4. تنصیب کی ہدایات

Follow these steps for proper installation of your network outlet:

1. Isolate Power: Before starting, ensure the mains power supply to the installation area is completely isolated at the consumer unit/fuse box.
2. Prepare Mounting Box: Ensure a suitable mounting box with a minimum depth of 35mm is installed and securely fixed in the desired location.
3. کیبل تیار کریں: Carefully strip the outer sheath of the UTP CAT5e network cable, exposing the twisted pairs. Do not strip too much, as this can compromise cable performance.
4. تاریں ختم کریں: Using the supplied IDC tool, terminate each individual wire from the network cable into the corresponding IDC terminals on the back of the RJ45 module. Follow the wiring diagram provided (T568A or T568B standard, typically indicated on the module itself). Ensure each wire is fully seated and trimmed.
5. ماؤنٹ آؤٹ لیٹ: Carefully position the wired outlet into the mounting box, ensuring no wires are pinched. Secure the outlet to the mounting box using the provided screws.
6. فیس پلیٹ منسلک کریں: Align the screwless faceplate over the mounted outlet and gently push until it clicks securely into place.
7. بجلی کی بحالی: ایک بار جب انسٹالیشن مکمل ہو جائے اور تمام کنکشنز کی جانچ پڑتال ہو جائے، سرکٹ میں بجلی بحال کریں۔

تصویر 2: Dimensions and rear view with IDC terminals for wiring.

5. آپریشن

Once installed, the Knightsbridge SFRJ45MW network outlet functions as a standard RJ45 port. Simply plug a compatible network cable (e.g., CAT5e, CAT6) from your device (computer, printer, smart TV, etc.) into the front RJ45 socket of the outlet. Ensure the other end of the network cable is connected to a network switch, router, or other network device to establish a wired network connection.

6 دیکھ بھال

This network outlet requires minimal maintenance. To clean the surface, gently wipe with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish. Ensure the faceplate remains securely attached. If the faceplate becomes loose, carefully re-attach it by pressing firmly until it clicks into place.

7 خرابیوں کا سراغ لگانا

If you experience issues with your network connection through the outlet, consider the following:

• کوئی نیٹ ورک کنکشن نہیں:
  • Verify that the network cable connecting your device to the outlet is fully inserted and undamaged.
  • Check the network cable connecting the outlet to your router/switch for proper connection and integrity.
  • Ensure your network equipment (router, switch) is powered on and functioning correctly.
  • If you have access to the rear wiring, ensure all IDC terminations are secure and correctly wired according to the T568A/B standard.
• وقفے وقفے سے رابطہ:
  • This can often be caused by loose or poorly terminated wires. Re-check all connections.
  • Test with a different network cable to rule out cable fault.

8. تکنیکی تفصیلات

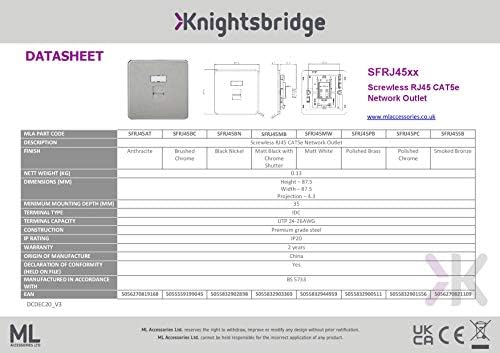

تصویر 3: Product Datasheet for SFRJ45XX series, including SFRJ45MW.

9. وارنٹی اور سپورٹ

This Knightsbridge SFRJ45MW network outlet comes with a 2 سال کی وارنٹی خریداری کی تاریخ سے، مینوفیکچرنگ نقائص کا احاطہ. وارنٹی کے دعووں کے لیے براہ کرم اپنی خریداری کا ثبوت اپنے پاس رکھیں۔

For technical support or warranty inquiries, please contact the manufacturer, MLA, or your retailer. Contact details can typically be found on the product packaging or the manufacturer's official webسائٹ
