Nidec US Motors 1279.25HP Packaged Terminal AC Heat Pump Motor User Manual

1. تعارف

This user manual provides essential information for the safe and efficient installation, operation, and maintenance of your Nidec US Motors 1279.25HP Packaged Terminal AC Heat Pump Motor. Please read this manual thoroughly before attempting to install or operate the motor. Retain this manual for future reference.

This motor is designed for use in packaged terminal air conditioner (PTAC) units, offering reliable performance with its permanent split capacitor design and automatic overload protection.

2. حفاظتی معلومات

WARNING: Electrical shock hazard. Always disconnect power before installing, servicing, or cleaning this motor. Installation and service should only be performed by qualified personnel.

• اس بات کو یقینی بنائیں کہ تنصیب کے دوران تمام مقامی اور قومی برقی کوڈز کی پیروی کی جائے۔
• تصدیق کریں کہ سپلائی والیومtage matches the motor's rated voltage (208V یا 230V)۔
• Do not operate the motor if it is damaged or if any electrical connections are loose.
• The motor is equipped with automatic overload protection. If the motor stops unexpectedly, allow it to cool before attempting to restart. Investigate the cause of the overload.
• آپریشن کے دوران ہاتھوں اور کپڑوں کو حرکت پذیر حصوں سے صاف رکھیں۔

3. پروڈکٹ ختمview

The Nidec US Motors 1279.25HP motor is a robust and efficient component for your PTAC system. It features a permanent split capacitor (PSC) design for reliable starting and continuous operation.

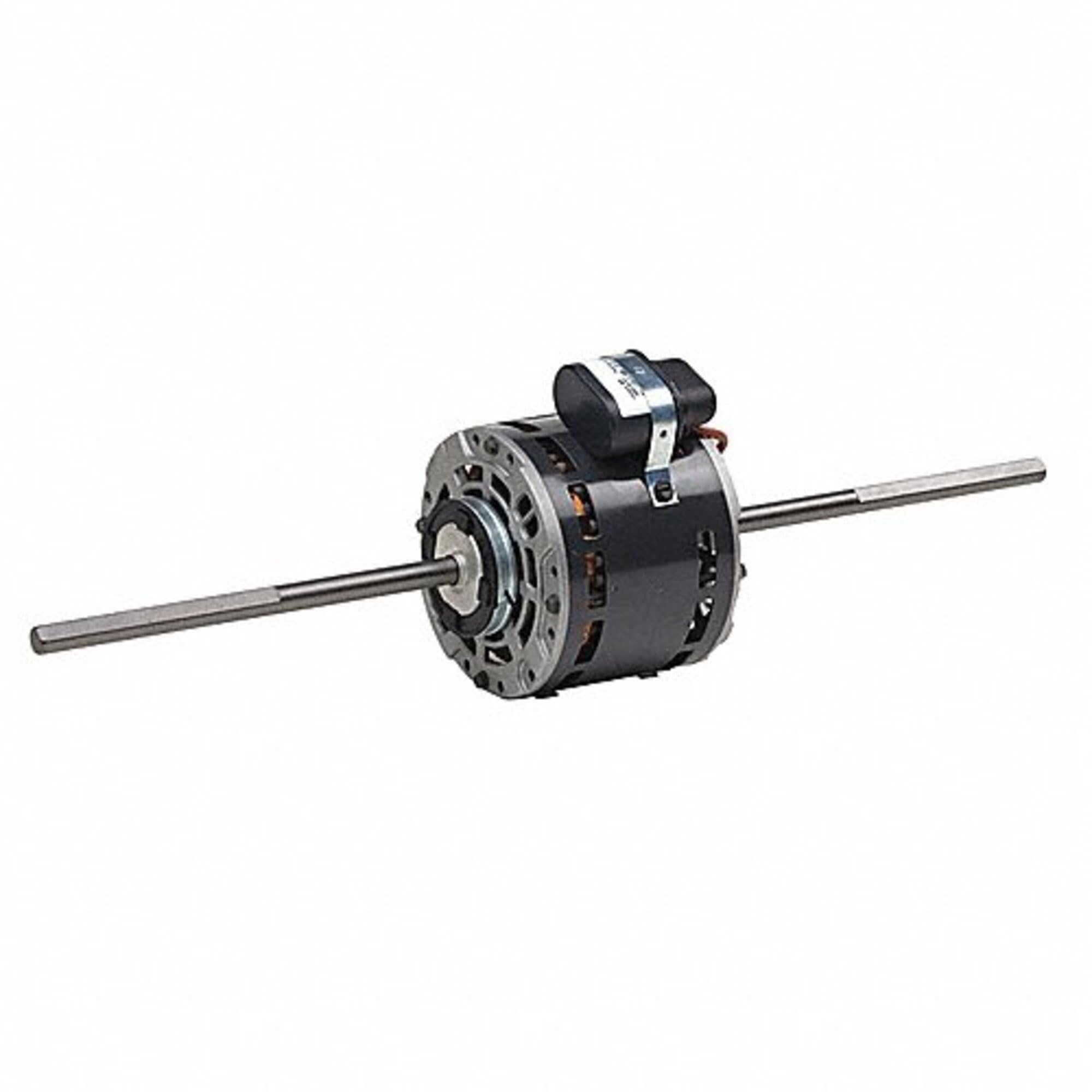

Image showing the Nidec US Motors 1279.25HP Packaged Terminal AC Heat Pump Motor, highlighting its compact design and electrical connections.

اہم خصوصیات:

• ہارس پاور: 1 / 4 HP
• رفتار: 1625 RPM (2-Speed capable)
• والیومtage: 208-230V, 1 Phase
• موجودہ: 1.4 Amps
• شافٹ کے طول و عرض: 9.5" x 1/2" x 9.5" (Shaft height 3.0")
• گردش: Counter-Clockwise (CCW) lead end
• قطر: 5 انچ
• Motor Case Length: 4.062 انچ
• بیئرنگ: آستین کی بیرنگ
• انکلوژر: Open Air Over
• موصلیت: کلاس بی
• محیطی درجہ حرارت: 40°C
• لیڈز: 36 انچ
• Includes capacitor for operation.

4. سیٹ اپ اور انسٹالیشن

Proper installation is crucial for the motor's performance and longevity. Refer to the PTAC unit's specific installation guidelines in conjunction with these instructions.

4.1 چڑھنا

1. Ensure the mounting surface is stable and free from vibrations.
2. Mount the motor securely using appropriate fasteners for its 42Y Frame.
3. Verify that the motor shaft is properly aligned with the driven component (e.g., fan blade) to prevent undue stress on the bearings.
4. Ensure adequate airflow around the motor for cooling, as it is an Open Air Over enclosure type.

4.2 الیکٹریکل کنکشن

1. DISCONNECT ALL POWER to the PTAC unit before making any electrical connections.
2. Identify the motor's lead wires (36 inches long) and the corresponding terminals on the PTAC unit's control board.
3. Connect the motor to a 208V or 230V, 1-phase power supply as indicated on the motor's nameplate and the PTAC unit's wiring diagram.
4. یقینی بنائیں کہ شارٹ سرکٹ کو روکنے کے لیے تمام کنکشن سخت اور موصل ہیں۔
5. Confirm the capacitor is correctly wired according to the motor's wiring diagram.
6. After wiring, double-check all connections before restoring power.

5. آپریٹنگ ہدایات

This motor is designed for continuous duty operation within a packaged terminal air conditioner. Its operation is typically controlled by the PTAC unit's thermostat and control system.

1. Once installed and wired correctly, restore power to the PTAC unit.
2. Set the PTAC unit to the desired operating mode (e.g., fan, heat, cool).
3. The motor will start and operate at 1625 RPM. If the PTAC unit supports 2-speed operation, the motor will switch speeds as commanded by the unit's control system.
4. Monitor the motor during its initial operation for any unusual noises, vibrations, or overheating. If any issues are observed, immediately disconnect power and refer to the troubleshooting section.

6 دیکھ بھال

The Nidec US Motors 1279.25HP motor is designed for low maintenance. Regular inspection and cleaning will help ensure its long-term reliability.

6.1 معمول کا معائنہ

1. ماہانہ: Visually inspect the motor for any signs of physical damage, corrosion, or loose connections.
2. سہ ماہی: Check for excessive dust or debris accumulation on the motor's exterior, especially around the ventilation openings.
3. سالانہ: Verify that the mounting bolts are secure and that the shaft remains properly aligned.

6.2 صفائی

1. DISCONNECT ALL POWER before cleaning the motor.
2. Use a soft brush or compressed air to remove dust and debris from the motor's exterior and ventilation openings.
3. Do not use water or liquid cleaners directly on the motor.

6.3 بیرنگ

This motor uses sleeve bearings, which are typically self-lubricating and do not require additional lubrication under normal operating conditions.

7 خرابیوں کا سراغ لگانا

If you encounter issues with your motor, refer to the following table for common problems and solutions. Always disconnect power before performing any troubleshooting steps.

If the problem persists after attempting these solutions, contact qualified service personnel or Nidec customer support.

8. وضاحتیں

9. وارنٹی اور سپورٹ

9.1 وارنٹی کی معلومات

This Nidec US Motors 1279.25HP motor comes with a 1 سال کی وارنٹی خریداری کی تاریخ سے. یہ وارنٹی عام استعمال اور سروس کے تحت مواد اور کاریگری میں نقائص کا احاطہ کرتی ہے۔ وارنٹی کے دعووں کے لیے براہ کرم اپنی خریداری کا ثبوت اپنے پاس رکھیں۔

The warranty does not cover damage resulting from improper installation, misuse, neglect, unauthorized repairs, or acts of nature.

9.2 کسٹمر سپورٹ

For technical assistance, warranty claims, or to inquire about replacement parts, please contact Nidec customer support. Refer to the official Nidec website or your product documentation for the most current contact information.

When contacting support, please have your motor's model number (1279.25HP) and part number (K048CLJ1126011B) readily available.
