CNBINGO Double Rocker Switch with Fluorescent Dots, Crystal Glass Panel (Model M1-P105) User Manual

1. حفاظتی معلومات

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or other injuries.

• پاور آف کریں: Always disconnect power at the circuit breaker or fuse box before installing, servicing, or removing the switch.
• قابل الیکٹریشن: تمام مقامی اور قومی الیکٹریکل کوڈز کے مطابق تنصیب ایک مستند الیکٹریشن کے ذریعے کی جانی چاہیے۔
• والیومtage: آپریٹنگ والیوم کو یقینی بنائیںtage of your electrical system matches the switch's specifications (250V).
• وائرنگ: Verify all wire connections are secure and correctly identified (Live, Neutral, Load).
• ماحولیات: گیلے یا ڈی میں انسٹال نہ کریں۔amp locations. This product is rated IP65 for protection against dust and low-pressure water jets, but it is not submersible.
• بچے: پیکیجنگ مواد اور چھوٹے حصوں کو بچوں سے دور رکھیں۔

2. پروڈکٹ ختمview

The CNBINGO Double Rocker Switch (Model M1-P105) is designed for controlling lighting circuits from one or two locations. It features a modern crystal glass panel and phosphorescent dots for visibility in low light.

2.1 اجزاء

تصویر: پھٹا view showing the luxury crystal glass panel, integrated security module, and metal frame of the switch.

• Luxury Crystal Glass Panel: Provides a modern aesthetic and is easy to clean.
• Integrated Security Module: Houses the electrical components and ensures safe operation.
• دھات کا فریم: Provides structural support and facilitates secure mounting.

2.2 کلیدی خصوصیات

• Phosphorescent Dots: Three green dots on each rocker glow faintly in the dark after absorbing light, aiding visibility without disturbing sleep.
• دو طرفہ کنٹرول: Can be used as a two-way switch or a 1-pole ON/OFF switch to control lights from one or two locations.
• پائیدار تعمیر: Features a fire-protective PC plate, glass panel, and modular housing. Internal components use fluorescent copper and metal for extended lifespan (up to 25 years).
• معیاری سائز: Designed to fit standard 86 x 86mm flush-mounted boxes with a 21mm mounting depth.

3. وضاحتیں

4. تنصیب

4.1 انسٹال کرنے سے پہلے

• Ensure the power supply to the circuit is completely OFF at the main breaker.
• Confirm you have all necessary tools (screwdriver, wire strippers, voltagای ٹیسٹر)۔
• Verify the existing wall box is suitable for the switch dimensions.

4.2 بڑھتے ہوئے ابعاد

تصویر: Standard dimensions of the switch, indicating it fits standard flush-mounted boxes (86x86mm with 21mm mounting depth).

The switch is designed for standard flush-mounted boxes. The front panel measures 86mm x 86mm, and the module requires a mounting depth of 21mm.

4.3 وائرنگ ڈایاگرام

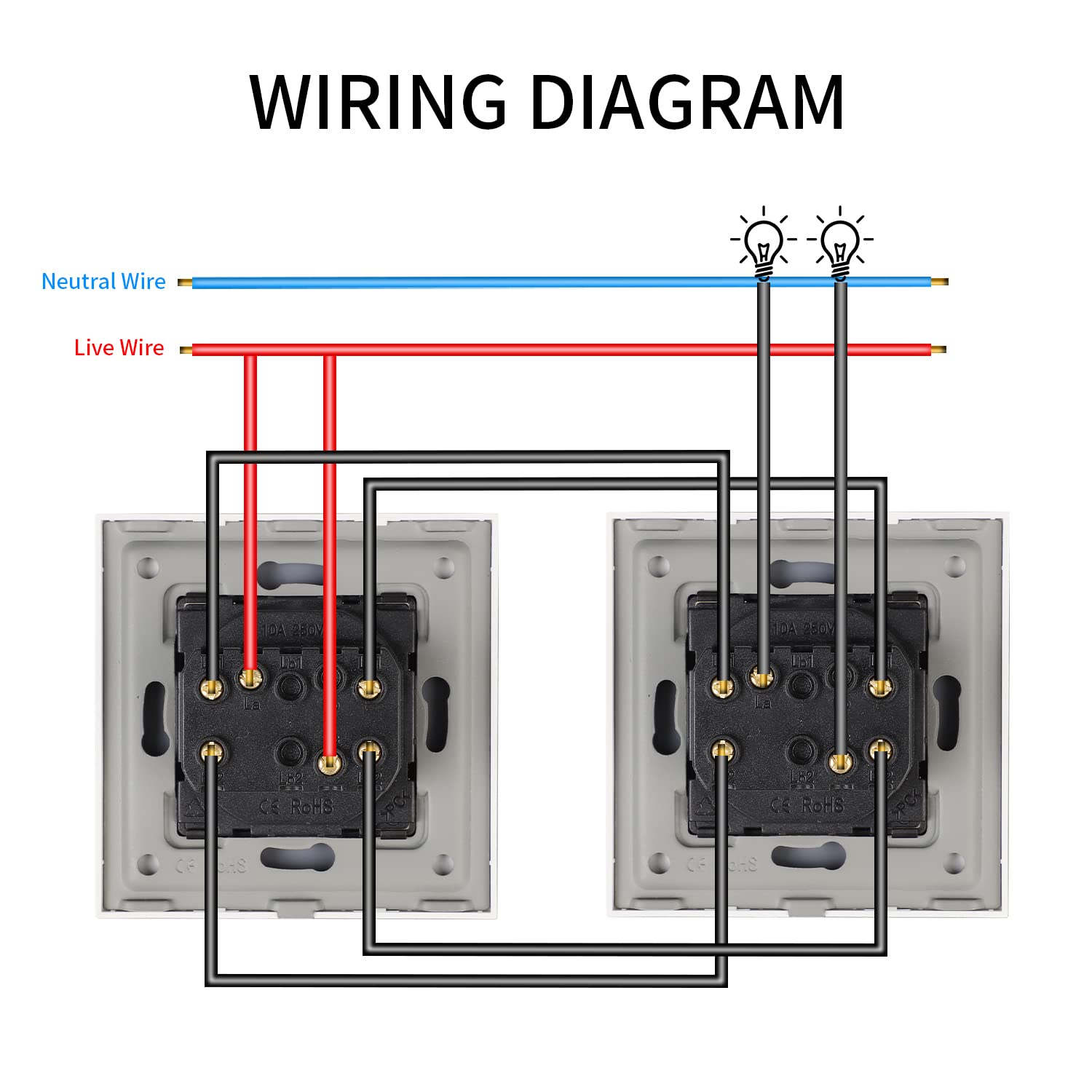

تصویر: Wiring diagram illustrating connections for a double rocker switch in both 1-way and 2-way configurations. Blue indicates Neutral, Red indicates Live, and Black indicates Load wires to the lights.

The switch supports both 1-way (single location control) and 2-way (multiple location control) wiring. Refer to the diagram for correct connections.

• لائیو وائر (L): Connect the incoming live wire to the 'L' terminal.
• Load Wires (L1, L2): Connect the load wires going to your light fixtures to the 'L1' and 'L2' terminals for each respective switch.
• Two-Way Wiring (L1, L2, L3): For 2-way control, connect the common live wire to 'L' and the two traveler wires between the switches to 'L1' and 'L2' (or 'L1' and 'L3' depending on the specific terminal layout). Consult a qualified electrician if unsure.

تصویر: پیچھے view of the switch, detailing the screw terminals for electrical connections.

4.4 تنصیب کے مراحل

1. بجلی بند: یقینی بنائیں کہ مین پاور سپلائی بند ہے۔
2. پرانا سوئچ ہٹائیں: دیوار کے خانے سے موجودہ سوئچ کو احتیاط سے ہٹا دیں۔
3. وائر کنکشن: Connect the wires to the appropriate terminals on the CNBINGO switch as per the wiring diagram. Ensure all connections are tight.
4. ماؤنٹ سوئچ: Gently push the switch module into the wall box. Secure it using the provided screws.
5. Attach Glass Panel: Snap the crystal glass panel onto the switch module. The design is screwless for a clean finish.
6. بجلی کی بحالی: مین پاور سپلائی کو دوبارہ آن کریں۔
7. ٹیسٹ: Test the functionality of the switch.

5. آپریٹنگ ہدایات

5.1 بنیادی آپریشن

To operate the switch, simply press the top or bottom of the rocker panel to toggle the connected light fixture ON or OFF. Each rocker controls an independent circuit.

تصویر: The CNBINGO Double Rocker Switch seamlessly integrated into various room settings, highlighting its modern design and ease of use.

5.2 Fluorescent Dots

The three green dots on each rocker are phosphorescent. They absorb ambient light during the day and glow faintly in the dark, making the switch visible at night without being overly bright or disruptive to sleep.

تصویر: سائیڈ پروfile of the switch, showcasing the elegant crystal glass panel and the subtle phosphorescent dots.

5.3 دو طرفہ کنٹرول

If wired for two-way control, the switch can be used in conjunction with another two-way switch to control a single light fixture from two different locations (e.g., at the top and bottom of a staircase).

6 دیکھ بھال

• صفائی: The crystal glass panel can be cleaned with a soft, damp کپڑا کھرچنے والے کلینر یا سخت کیمیکل سے پرہیز کریں جو ختم کو نقصان پہنچا سکتے ہیں۔
• معائنہ: Periodically inspect the switch for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
• صارف کے قابل خدمت حصے نہیں: Do not attempt to disassemble the switch module. There are no user-serviceable parts inside.

7 خرابیوں کا سراغ لگانا

8. وارنٹی اور سپورٹ

CNBINGO switches are manufactured with high-quality materials and are designed for a long operational life, up to 25 years under normal use conditions.

For technical support or warranty inquiries, please contact your retailer or visit the official CNBINGO website. Please have your model number (M1-P105) and purchase details ready.
