Hunter Seawall 52416 52-inch Ceiling Fan Instruction Manual
Model: 52416 | Brand: Hunter
تعارف
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Hunter Seawall 52416 52-inch ceiling fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.
اہم حفاظتی معلومات
Always disconnect power at the circuit breaker before installation or servicing. Ensure all electrical connections comply with local codes and ordinances. Consult a qualified electrician if you are unsure about wiring procedures. Mount the fan to a ceiling joist or support structure capable of supporting the fan's weight. Keep hands clear of fan blades during operation.
کیا شامل ہے۔
The Hunter Seawall 52416 ceiling fan package includes the following components:
Image: Included components for the Hunter Seawall 52416 ceiling fan, showing 2 LED bulbs, 5 blades, a 3-inch downrod, and a wall control unit.
- سیلنگ فین یونٹ
- 5 پنکھے کے بلیڈ
- 2 ایل ای ڈی بلب
- 3 انچ ڈاونروڈ
- Integrated Control System - Wall Control
- بڑھتے ہوئے ہارڈ ویئر
- ہدایت نامہ
سیٹ اپ اور انسٹالیشن
Installation should be performed by a qualified individual. Ensure the power is off at the circuit breaker before starting. Follow the detailed steps below:
- بڑھتے ہوئے بریکٹ کی تنصیب: Secure the mounting bracket to the ceiling outlet box and ceiling joist using appropriate hardware.
- وائرنگ: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the separate wiring guide.
- ڈاؤنروڈ اسمبلی: Insert the downrod through the canopy and hang the fan motor assembly onto the mounting bracket.
- بلیڈ اٹیچمنٹ: Attach each of the 5 fan blades to the blade irons, then secure the blade irons to the motor housing.
- لائٹ کٹ کی تنصیب: Connect the light kit wiring and secure the light kit to the fan motor housing. Install the 2 LED bulbs.
- چھتری کی تنصیب: Raise the canopy to cover the mounting bracket and secure it in place.
- وال کنٹرول کی تنصیب: Install the wall control unit in a standard wall switch box, following the wiring instructions provided with the control.
Image: A Hunter Seawall ceiling fan, model 52416, shown installed on a porch ceiling, demonstrating its outdoor suitability.
For detailed wiring diagrams and step-by-step visual guides, refer to the full installation manual included in the product packaging.
آپریٹنگ ہدایات
The Hunter Seawall 52416 fan is operated using the included wall control. It features a 3-speed reversible WhisperWind motor and an integrated LED light.
پنکھے کی رفتار کنٹرول
Use the fan speed buttons on the wall control to select your desired airflow. The fan offers three speeds: Low, Medium, and High.
Image: The Hunter Seawall ceiling fan in an outdoor setting, with illustrations demonstrating optimal use for low speed (sleeping), medium speed (relaxing), and high speed (activities).
ریورس ایبل موٹر فنکشن
The WhisperWind motor allows for seasonal use. A switch on the motor housing (or on the wall control, depending on the model) controls the direction of blade rotation.
- سمر موڈ (گھڑی کی مخالف سمت میں): Set blades to spin counter-clockwise to create a downdraft, providing a cooling effect.
- ونٹر موڈ (گھڑی کی سمت): Set blades to spin clockwise on low speed to create an updraft, circulating warm air trapped near the ceiling.
Image: A visual guide illustrating the reversible motor function of the Hunter Seawall fan, showing how to set blades for summer mode (counter-clockwise for downdraft) and winter mode (clockwise for updraft).
ایل ای ڈی لائٹ آپریشن
The integrated LED light can be turned on/off and dimmed using the dedicated buttons on the wall control.
دیکھ بھال
باقاعدگی سے دیکھ بھال آپ کے چھت کے پنکھے کی بہترین کارکردگی اور لمبی عمر کو یقینی بناتی ہے۔
- صفائی: Clean the fan housing and blades with a soft, damp کپڑا کھرچنے والے کلینر یا سالوینٹس کا استعمال نہ کریں۔
- بلیڈ کی تنگی: Periodically check all blade screws for tightness. Loose screws can cause wobbling and noise.
- روشنی کے بلب: The fan uses integrated LED bulbs. If replacement is needed, consult Hunter customer support for compatible parts.
- بیرونی استعمال: As a WeatherMax outdoor fan, it is designed to withstand outdoor elements. However, occasional cleaning of accumulated dirt or debris will help maintain its appearance and function.
Image: The WeatherMax logo, signifying the fan's corrosion-resistant and weather-engineered design for outdoor use.
خرابی کا سراغ لگانا
| مسئلہ | ممکنہ وجہ | حل |
|---|---|---|
| پنکھا شروع نہیں ہوتا | پنکھے کی طاقت نہیں؛ ڈھیلے تار کنکشن؛ غلط وائرنگ۔ | Check circuit breaker and wall switch. Ensure all wire connections are secure. Verify wiring against the installation manual. |
| پنکھا ڈوبتا ہے۔ | ڈھیلا بلیڈ پیچ؛ غیر متوازن بلیڈ؛ غلط نصب کرنا۔ | Tighten all blade screws. Use the included balancing kit if necessary. Ensure the mounting bracket is securely fastened to the ceiling. |
| شور والا آپریشن | ڈھیلا پیچ؛ موٹر ہم؛ بلیڈ کسی رکاوٹ کو مار رہے ہیں۔ | Check and tighten all screws. Ensure no blades are hitting anything. Allow a break-in period for new motors. |
| روشنی کام نہیں کرتی | Loose wire connection; Faulty LED bulb. | Check light kit wiring connections. Replace LED bulb if necessary (contact support for compatible bulbs). |
وضاحتیں
- ماڈل: 52416 Seawall
- برانڈ: شکاری
- سائز: 52 انچ
- رنگ: میٹ سلور
- موٹر: WhisperWind Reversible Motor (3-speed)
- روشنی: انٹیگریٹڈ ایل ای ڈی لائٹ
- کنٹرول: وال کنٹرول
- چڑھنا: معیاری پروfile Mounting (3-inch downrod included)
- انڈور / آؤٹ ڈور استعمال: Outdoor (Wet-rated, WeatherMax corrosion resistance)
- بلیڈ مواد: Plastic (Droop-free)
- واٹtage: 46 واٹ
- UPC: 049694524164

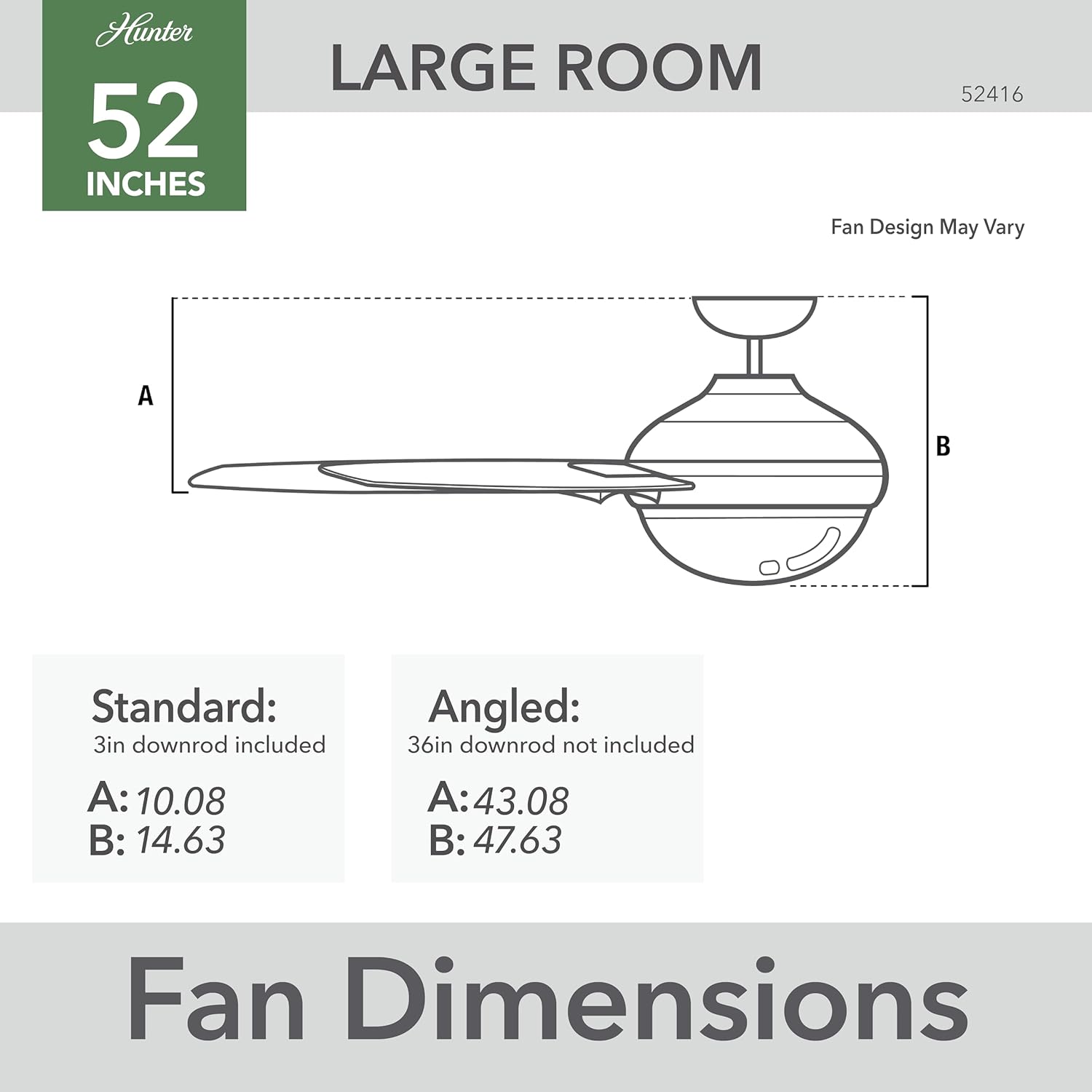

Image: Fan dimensions diagram for the Hunter Seawall 52-inch fan, detailing measurements for standard (3-inch downrod) and angled (36-inch downrod not included) mounting options.
وارنٹی اور سپورٹ
The Hunter Seawall 52416 ceiling fan comes with a محدود لائف ٹائم موٹر وارنٹی. For warranty claims, technical support, or replacement parts, please contact Hunter customer service. Hunter Fan Company has been trusted for over 135 years, with a certified in-house testing lab ensuring product safety and longevity.
For more information, visit the official Hunter webسائٹ یا آپ کے پروڈکٹ کی پیکیجنگ میں فراہم کردہ رابطے کی تفصیلات سے رجوع کریں۔
Video: Hunter - A Leader in Quality Through Testing & Certification. This video highlights Hunter's rigorous testing processes, including blade iron shake tests, accelerated life tests for electronic components, CFM tests, and rain tests for outdoor fans, ensuring product safety and reliability.
Video: Hunter Brand Video - Since 1886. This video showcases Hunter's long history and commitment to innovation in ceiling fan design, highlighting features like SureSpeed technology, WeatherMax durability, and Simple Connect smart technology.
Video: SureSpeed Technology Testimonials by Hunter. This video features testimonials from users experiencing the enhanced cooling power of Hunter's SureSpeed technology, which delivers increased air velocity.
Video: WeatherMax Extreme Weather Fans by Hunter. This video demonstrates the durability and corrosion resistance of Hunter's WeatherMax fans, engineered to withstand harsh outdoor weather conditions.
Video: Why Choose Hunter? Quality, Innovation, Long Lasting. This video emphasizes Hunter's commitment to quality, innovation, and long-lasting products, highlighting their extensive history and engineering expertise.
