1. تعارف اور اوورview
This manual provides comprehensive instructions for the assembly, safe operation, and proper maintenance of your MONDAWE 15x15FT Hexagon Hardtop Gazebo. Please read all instructions carefully before beginning assembly or use to ensure safety and optimal performance of your product.
The MONDAWE Hexagon Hardtop Gazebo is designed for outdoor use, providing a shaded and comfortable area for various activities. It features a heavy-duty aluminum frame and a galvanized steel double roof for durability and weather resistance.
Image 1.1: The MONDAWE 15x15FT Hexagon Hardtop Gazebo, showcasing its overall structure and integrated netting.
2. حفاظتی معلومات
اہم حفاظتی انتباہات:
- Always secure the gazebo to a stable foundation using the provided anchoring kit.
- Exercise caution when handling sharp objects and heavy components during assembly and disassembly.
- Keep children and pets away from the gazebo during windy or stormy conditions.
- Do not use open flames or heating appliances inside the gazebo.
- تمام کنکشنز اور فاسٹنرز کا باقاعدگی سے معائنہ کریں تاکہ یہ یقینی بنایا جا سکے کہ وہ مضبوط اور محفوظ رہیں۔
3. مصنوعات کی خصوصیات
Your MONDAWE Hexagon Hardtop Gazebo is equipped with several features designed for durability, comfort, and ease of use:
3.1 Stable Aluminum Frame
The gazebo features a sturdy aluminum frame with a powder-coated brown and bronze textured finish. This frame is designed for stability and resistance to rust and corrosion. It includes black galvanized screws for enhanced durability.
تصویر 3.1: تفصیلی view of the hexagonal pavilion design, 3.54 x 3.54 inch aluminum frame, and sturdy pre-drilled base with ground spike holes, indicating wind resistance up to 54 mph.
3.2 Double Top Galvanized Steel Roof
The double-layered galvanized steel roof design promotes better ventilation and airflow, helping to regulate temperature inside the gazebo. The sloping vertical striped iron roof prevents water accumulation and offers excellent snow load capacity.
Image 3.2: The double roof design with arrows illustrating optimal airflow and a close-up of the integrated baffle for mosquito prevention.
The roof's sloping design ensures efficient drainage, preventing rainwater accumulation and extending the product's service life.
Video 3.1: This video demonstrates the features of the 15x15Ft Double Roof Hardtop Gazebo, including the double roof for air circulation, pre-drilled bases for stability, sloping roof for water drainage, and dual-track design for curtains and mosquito nets.
3.3 Integrated Netting and Ceiling Hook
The gazebo includes top sidewalls to help keep mosquitoes and insects at bay. A dual-track design allows for easy attachment and removal of netting. A built-in hook is provided for hanging fans or lights.
Image 3.3: The built-in ceiling hook, capable of supporting fans or lamps for added comfort and ambiance.
3.4 ہر موسم میں پائیداری
Designed to withstand various weather conditions, the gazebo offers UV protection, is waterproof, and can handle snow loads up to 2300 lbs and winds up to 54 mph.
Image 3.4: Visual representation of the gazebo's performance in sunny (UV protection), windy (up to 54 mph), and snowy (up to 2300 lbs) conditions.
4. وضاحتیں
| وصف | تفصیل |
|---|---|
| برانڈ | MONDAWE |
| ماڈل نمبر | FBM-MOA070-1 |
| مصنوعات کے طول و عرض | 180"L x 180"W x 110"H (15FT x 15FT x 9.17FT) |
| فریم کا مواد | ایلومینیم، آئرن |
| چھت کا مواد | جستی اسٹیل |
| پانی کی مزاحمت کی سطح | واٹر پروف |
| الٹرا وایلیٹ لائٹ پروٹیکشن | UV تحفظ |
| شکل | مسدس |
| اسمبلی کی ضرورت ہے۔ | جی ہاں |
| شامل اجزاء | Gazebo, Nettings |
Image 4.1: Dimensional drawing of the 15x15FT Hexagon Hardtop Gazebo, providing key measurements for planning and installation.
5. سیٹ اپ اور اسمبلی
This gazebo is designed for straightforward assembly. All necessary hardware and detailed instructions are included in the package. It is recommended to have at least two adults for assembly. Please follow the step-by-step guide provided in the separate assembly manual for your specific model.
اسمبلی کے اہم اقدامات:
- سائٹ کی تیاری: Choose a level and stable area for installation. Ensure adequate clearance around the gazebo.
- ان پیک اجزاء: Carefully unpack all parts and verify against the parts list.
- فریم جمع کریں: Connect the main aluminum frame components according to the diagrams.
- چھت نصب کریں: Attach the galvanized steel roof panels, ensuring proper alignment and secure fastening.
- Attach Netting: Install the polyester netting onto the dual tracks.
- محفوظ گیزبو: Anchor the gazebo firmly to the ground using the provided hardware.
6. آپریٹنگ ہدایات
The MONDAWE Hexagon Hardtop Gazebo is designed for simple operation.
6.1 Using the Netting
The included polyester netting can be easily deployed or retracted along the dual tracks to provide protection from insects. The netting features zippers for convenient entry and exit.
6.2 Utilizing the Ceiling Hook
The central ceiling hook is suitable for hanging lightweight items such as outdoor fans or decorative lights. Ensure that any item hung does not exceed the weight capacity specified in the full assembly manual.

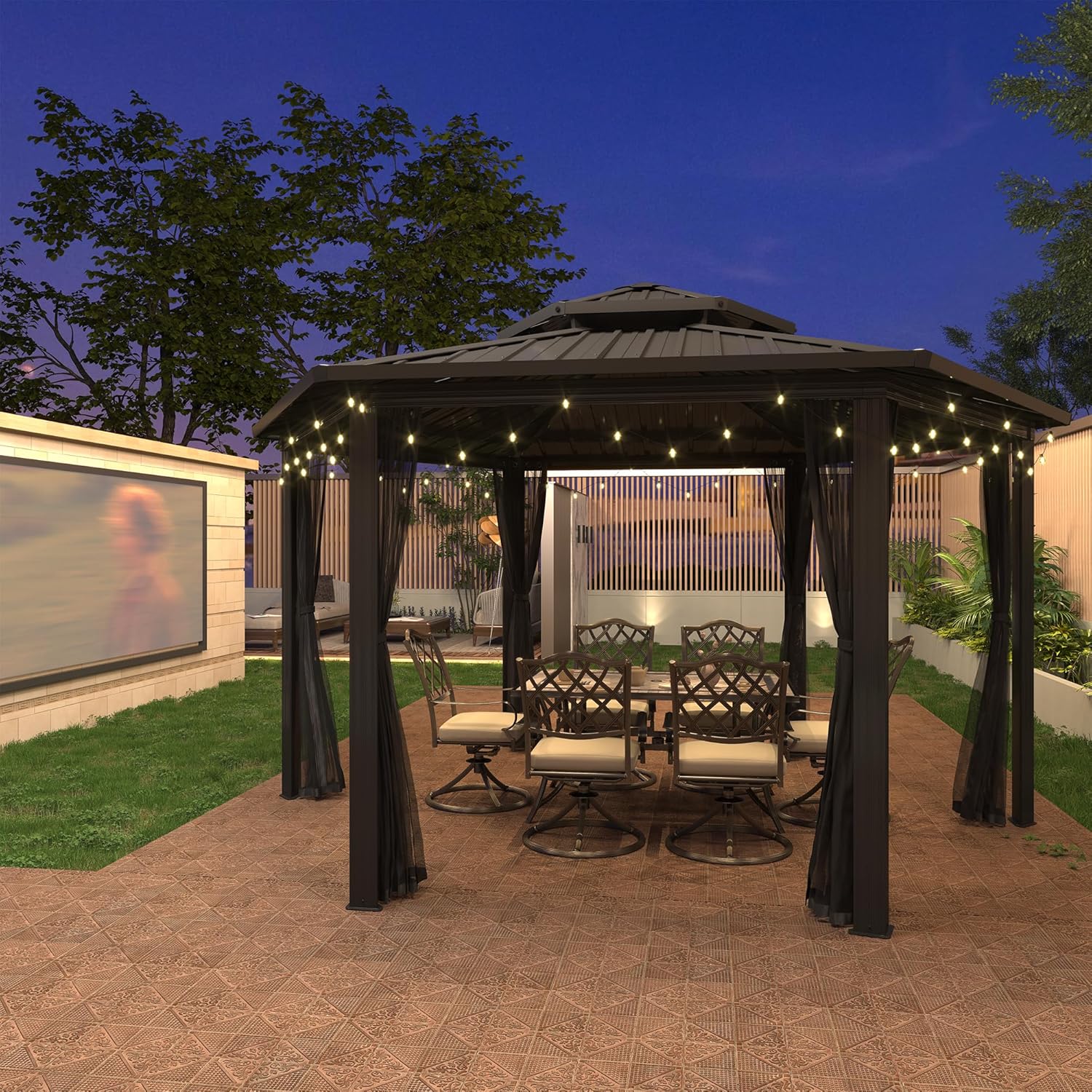

Image 6.1: The gazebo configured for evening use, demonstrating the potential for lighting and creating an inviting outdoor space.
7 دیکھ بھال
Regular maintenance will prolong the life and appearance of your gazebo.
- صفائی: Clean the aluminum frame and steel roof with a mild soap solution and water. Rinse thoroughly and dry. Avoid abrasive cleaners or harsh chemicals.
- نیٹنگ کی دیکھ بھال: The polyester netting can be hand-washed with mild soap and water. Allow to air dry completely before storing or reattaching.
- فاسٹینر چیک: Periodically check all bolts, screws, and connections to ensure they are tight. Re-tighten as necessary.
- موسم سرما کی دیکھ بھال: While the roof is designed for snow load, it is advisable to remove heavy snow accumulation to prevent excessive stress on the structure. In areas with extreme winter weather, consider disassembling and storing the gazebo indoors.
8 خرابیوں کا سراغ لگانا
یہ سیکشن عام مسائل کو حل کرتا ہے جن کا آپ کو سامنا ہو سکتا ہے۔
| مسئلہ | ممکنہ وجہ | حل |
|---|---|---|
| چھت پر پانی کا جمع ہونا | Improper roof panel installation or debris blockage. | Ensure roof panels are correctly aligned and secured. Clear any debris from the roof and drainage channels. |
| Gazebo غیر مستحکم محسوس کرتا ہے | Loose fasteners or inadequate anchoring. | Check and tighten all bolts and screws. Verify that the gazebo is properly anchored to a solid surface. |
| Netting does not slide smoothly | Debris in tracks or damaged netting. | Clean the dual tracks of any dirt or obstructions. Inspect netting for tears or damage. |
9. وارنٹی اور سپورٹ
MONDAWE is committed to providing high-quality products. For any issues with your gazebo, please refer to your purchase documentation for warranty details. If you require assistance or have questions not covered in this manual, please contact MONDAWE customer service through the retailer where the product was purchased.
