CNBINGO Double Schuko Socket with USB Charging Ports User Manual

تعارف

Thank you for choosing the CNBINGO Double Schuko Socket with 2 USB Ports (20W Fast Charging). This recessed glass double socket features one Type-C and one USB-A port, along with child safety mechanisms. This manual provides essential information for the safe installation, proper operation, and effective maintenance of your new socket.

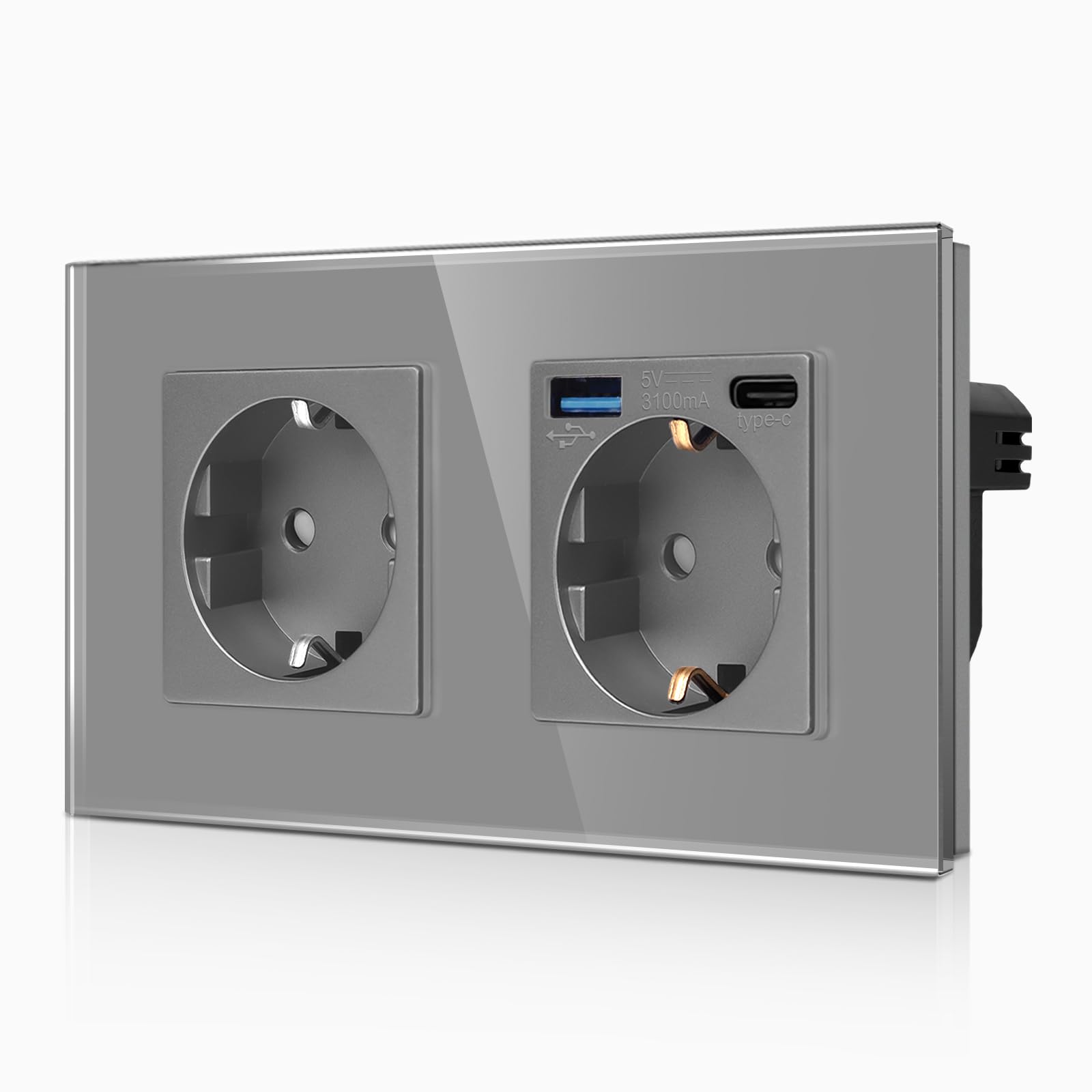

ایک محاذ view of the CNBINGO double Schuko socket in grey, featuring two standard power outlets and two integrated USB ports (Type-C and USB-A) for convenient charging.

حفاظتی معلومات

براہ کرم تنصیب اور استعمال سے پہلے تمام حفاظتی ہدایات کو احتیاط سے پڑھیں۔ ان ہدایات پر عمل کرنے میں ناکامی کے نتیجے میں بجلی کا جھٹکا لگ سکتا ہے، آگ لگ سکتی ہے یا شدید چوٹ لگ سکتی ہے۔

• پیشہ ورانہ تنصیب کی سفارش کی جاتی ہے: تنصیب ایک مستند الیکٹریشن کے ذریعہ کی جانی چاہئے۔
• الیکٹرانک تحفظ: The earthed power socket is equipped with electronic short-circuit protection and protective contacts to ensure user safety.
• شعلہ retardant مواد: The socket housing is constructed from flame-retardant plastic and glass for enhanced fire safety.
• خودکار شٹ آف: The USB ports feature intelligent detection and will automatically stop charging when a connected device is fully charged, protecting your device from overcharging.
• بچوں کی حفاظت: Integrated child safety mechanisms prevent accidental access to live parts.

This image highlights the comprehensive safety mechanisms built into the CNBINGO socket, such as grounding protection, electronic short-circuit protection, overvoltage protection, overcurrent protection, and overload protection, ensuring safe operation.

مصنوعات کی خصوصیات

• Integrated USB Fast Charging: Features one USB-A and one USB-C port, providing 20W fast charging (5V/3.1A total) for rapid and efficient charging of mobile devices.
• Intelligent Device Detection: USB ports intelligently detect connected devices to deliver the optimal charging current.
• پائیدار ٹمپرڈ گلاس: The modern tempered glass plate is scratch-resistant, easy to clean, and maintains its appearance over time.
• ورسٹائل ڈیزائن: Suitable for installation in various environments including bedrooms, living rooms, offices, and commercial spaces.

This image demonstrates the functionality of the integrated USB-A and USB-C ports, supporting 5V/3.1A total and 20W fast charging. A smartphone is shown connected to the USB-C port, indicating active charging.

This graphic compares the charging performance of the CNBINGO socket, which offers 20W fast charging via its USB-C and USB-A ports, against a conventional socket providing only 5V/2.1A. It highlights the faster charging capability of the CNBINGO product.

This image demonstrates the robust power delivery of the CNBINGO socket, capable of handling up to 20W (5V/3.1A) and suitable for charging or powering a wide range of common household appliances and mobile devices.

وضاحتیں

سیٹ اپ اور انسٹالیشن

Installation of this electrical product should only be carried out by a qualified professional to ensure safety and compliance with local electrical codes.

تنصیب کے تقاضے:

• The product depth is 42 mm.
• The device box must have a minimum depth of 45 mm.
• Mounting in a standard wall box with a 60 mm diameter is required.

This diagram illustrates the precise dimensions of the CNBINGO double Schuko socket, including its 42mm depth. It also specifies that the wall box must have a minimum depth of 45mm and a 60mm diameter for proper installation, highlighting suitable and unsuitable box types.

وائرنگ کی ہدایات:

1. پاور آف کریں: Before starting any electrical work, ensure the main power supply to the circuit is switched off at the fuse box or circuit breaker.
2. تاریں تیار کریں: Strip the insulation from the live, neutral, and earth wires according to standard electrical practices.
3. تاروں کو جوڑیں: Refer to the wiring diagram below. Connect the live wire (typically brown or red) to the 'L' terminal, the neutral wire (typically blue or black) to the 'N' terminal, and the earth wire (typically green/yellow) to the earth terminal. Ensure all connections are secure.
4. ساکٹ ماؤنٹ کریں: Carefully place the socket into the recessed wall box. Secure it using the provided screws.
5. Attach Glass Plate: Once the socket is securely mounted, attach the tempered glass cover plate. Ensure it clicks into place firmly.
6. بجلی کی بحالی: مین پاور سپلائی کو دوبارہ آن کریں۔

This diagram provides clear instructions for electrical connection, detailing where to connect the live (red), neutral (blue), and earth (green) wires to the socket's terminals. Professional installation is recommended.

بڑھتے ہوئے واقفیت:

The CNBINGO double Schuko socket can be mounted either horizontally or vertically, depending on your preference and installation requirements.

This visual shows the versatility of the CNBINGO socket, illustrating how it can be mounted either horizontally or vertically to suit various aesthetic and functional requirements in different environments like a living room or bedroom.

آپریٹنگ ہدایات

Using your CNBINGO double Schuko socket is straightforward:

• Schuko Outlets: Insert standard European (Schuko) plugs into the two main outlets.
• USB چارجنگ: Connect your device's USB-A or USB-C charging cable to the corresponding port on the socket. The intelligent detection system will automatically provide the optimal charging current for your device.
• بچوں کی حفاظت: The integrated child safety shutters on the Schuko outlets require simultaneous pressure on both holes to open, preventing single-pin insertion.

دیکھ بھال

To ensure the longevity and appearance of your CNBINGO socket:

• صفائی: Wipe the tempered glass surface with a soft, damp کپڑا کھرچنے والے کلینر، سخت کیمیکلز یا سالوینٹس کے استعمال سے پرہیز کریں، کیونکہ یہ ختم کو نقصان پہنچا سکتے ہیں۔
• خشک کرنا: Ensure the socket is completely dry before using it again after cleaning.
• معائنہ: Periodically inspect the socket for any signs of damage or wear. If any issues are found, consult a qualified electrician.

خرابی کا سراغ لگانا

If you encounter any issues with your CNBINGO double Schuko socket, please refer to the following common solutions:

• Issue: The glass cover plate detaches easily or feels loose.
  حل: Ensure the aluminum mounting frame is securely screwed to the wall box and properly aligned before attaching the glass cover. The small groove on the frame should be positioned at the bottom for correct engagement.
• Issue: Difficulty fitting the socket into the wall box during installation.
  حل: Use long recessed wall boxes if possible. Ensure that excess cable sheathing is trimmed and cables are neatly arranged, as space within the box is limited. Route cables from the back of the box, not from the sides, to maximize space.
• Issue: Device is not charging via the USB ports.
  حل:
  1. Verify that the USB cable is securely connected to both the device and the socket.
  2. Test the USB cable with another charger to ensure it is not faulty.
  3. Confirm that your device is compatible with USB charging and that its power requirements do not exceed the socket's 20W output.
  4. If the issue persists, ensure the main power supply to the socket is active.
• Issue: No power from Schuko outlets.
  حل: Check the main power supply to the circuit. Verify that the circuit breaker has not tripped. If the problem continues, consult a qualified electrician.

وارنٹی اور سپورٹ

CNBINGO products are manufactured to high-quality standards and come with a standard warranty against manufacturing defects. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact CNBINGO customer service.

For technical support, troubleshooting assistance, or warranty claims, please contact CNBINGO customer service through the retailer where you purchased the product or visit the official CNBINGO webرابطے کی معلومات کے لیے سائٹ۔
