Generic ST-5525B Wireless Portable Tire Inflator User Manual

تعارف

Thank you for choosing the Generic ST-5525B Wireless Portable Tire Inflator. This device is designed to provide convenient and accurate tire inflation for various vehicles and inflatables. Please read this manual thoroughly before use to ensure safe and optimal performance.

حفاظتی معلومات

• Always ensure the inflator is fully charged before use, especially for critical situations.
• آپریشن کے دوران انفلیٹر کو لاپرواہ نہ چھوڑیں۔
• بچوں کی پہنچ سے دور رکھیں۔
• Avoid over-inflating tires. The digital display provides real-time pressure monitoring and automatic shut-off to prevent over-inflation.
• آلے کو گیلے حالات میں یا آتش گیر مائعات یا گیسوں کے قریب نہ چلائیں۔
• If the device becomes unusually hot during operation, turn it off and allow it to cool before resuming use.
• صرف فراہم کردہ چارجنگ کیبل اور لوازمات استعمال کریں۔

پیکیج کے مشمولات

The ST-5525B Wireless Portable Tire Inflator package includes the following items:

• 1 x Portable Tire Inflator Air Compressor (ST-5525B)
• 1 ایکس ایئر نلی
• 3 x Air Nozzles (various types for different inflatables)
• 1 x Type-C چارجنگ کیبل
• 1 ایکس انسٹرکشن دستی

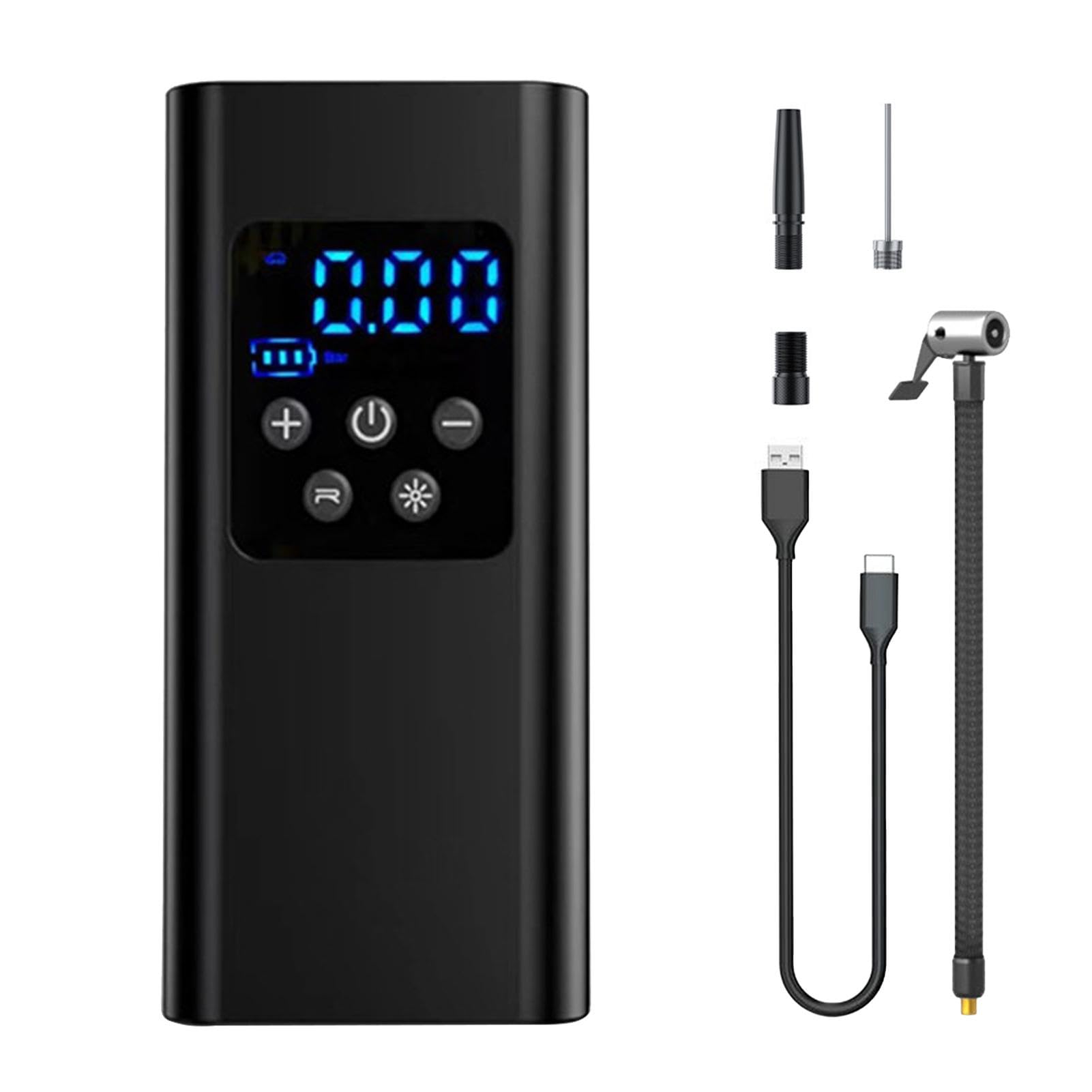

Image: The ST-5525B package contents, including the inflator, air hose, three different nozzles, and a Type-C charging cable.

پروڈکٹ ختمview

The ST-5525B is a compact and powerful wireless tire inflator featuring a digital display for precise pressure readings and control. Its portable design allows for easy storage and use anywhere.

تصویر: سامنے view of the ST-5525B Portable Tire Inflator, showcasing اس کے ڈیجیٹل ڈسپلے اور کنٹرول بٹن۔

کومپیکٹ ڈیزائن

The inflator's small size makes it easy to store in your car or carry with you, ensuring it's always available when needed. It is approximately one-third the size of a traditional air pump.

Image: The ST-5525B inflator placed next to a smartphone, illustrating its compact and portable size.

Image: Diagram showing the dimensions of the ST-5525B Portable Tire Inflator: 16.2cm (6.38in) height, 8cm (3.14in) width, and 4.7cm (1.85in) depth.

ایل ای ڈی ایمرجنسی لائٹنگ

Equipped with an integrated LED light, the inflator can serve as a flashlight, emergency warning light, or rescue light, enhancing safety during nighttime or critical situations.

Image: The ST-5525B inflator demonstrating its LED emergency lighting function, useful for tire changes or as a warning signal.

وضاحتیں

سیٹ اپ

1. ڈیوائس کو چارج کریں: Before first use, fully charge the inflator using the provided Type-C charging cable and a 5V2A power adapter (not included). The charging indicator on the display will show charging status.
2. ایئر نلی منسلک کریں: انفلیٹر کے ایئر آؤٹ لیٹ پر ایئر ہوز کو محفوظ طریقے سے اسکریو کریں۔
3. نوزل منتخب کریں: Choose the appropriate air nozzle for the item you wish to inflate and attach it to the other end of the air hose.

آپریٹنگ ہدایات

1. پاور آن/آف

• آلے کو آن یا آف کرنے کیلئے پاور بٹن دبائیں اور تھامیں۔

2. Connect to Item

• Connect the air hose with the selected nozzle to the tire valve or inflatable item. Ensure a tight seal to prevent air leakage. The digital display will show the current pressure.

3. Select Mode and Set Pressure

• Press the 'M' button to cycle through different inflation modes (e.g., Car, Motorcycle, Bicycle, Ball). Each mode has a default pressure setting.
• Use the '+' and '-' buttons to adjust the target pressure to your desired value.

Image: Visual guide for different inflation applications, including cars (2.2-2.8 bar), motorcycles (1.8-2.8 bar), bicycles (30-90 psi), balls (7-9 psi), swimming rings (1-150 psi), and inflatable boats (1-2.5 psi).

4. Start Inflation

• Press the inflation button (usually indicated by a play/start icon) to begin inflation. The device will automatically stop when the preset pressure is reached.

5. منقطع ہونا

• Once inflation is complete, quickly disconnect the air hose from the item to minimize air loss.

6 ایل ای ڈی لائٹ آپریشن

• Press the light button (often indicated by a lightbulb icon) to cycle through different light modes: LED work light, flashing warning light, and flashing rescue light.

دیکھ بھال

• صفائی: انفلیٹر کے بیرونی حصے کو نرم، خشک کپڑے سے صاف کریں۔ سخت کیمیکل یا کھرچنے والے کلینر کا استعمال نہ کریں۔
• ذخیرہ: Store the inflator in a cool, dry place away from direct sunlight and extreme temperatures. Ensure it is fully charged before long-term storage.
• بیٹری کی دیکھ بھال: To prolong battery life, avoid completely draining the battery frequently. Recharge the device regularly, even if not in use.
• نلی اور نوزلز: Inspect the air hose and nozzles for any damage or blockages before each use. Replace if necessary.

خرابی کا سراغ لگانا

وارنٹی اور سپورٹ

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or inquiries, please reach out to the seller directly through the platform where the product was purchased.
