ہدایت نامہ

1. تعارف

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the replacement water drain pump compatible with GE GTW460ASJ8WW washing machines. This is an aftermarket replacement part, not an original equipment manufacturer (OEM) part. Please read these instructions carefully before proceeding with any installation or maintenance.

2. پروڈکٹ ختمview

The water drain pump is a critical component in your washing machine, responsible for removing water from the wash tub during and after cycles. This replacement pump is designed to restore proper drainage function to your GE GTW460ASJ8WW washer.

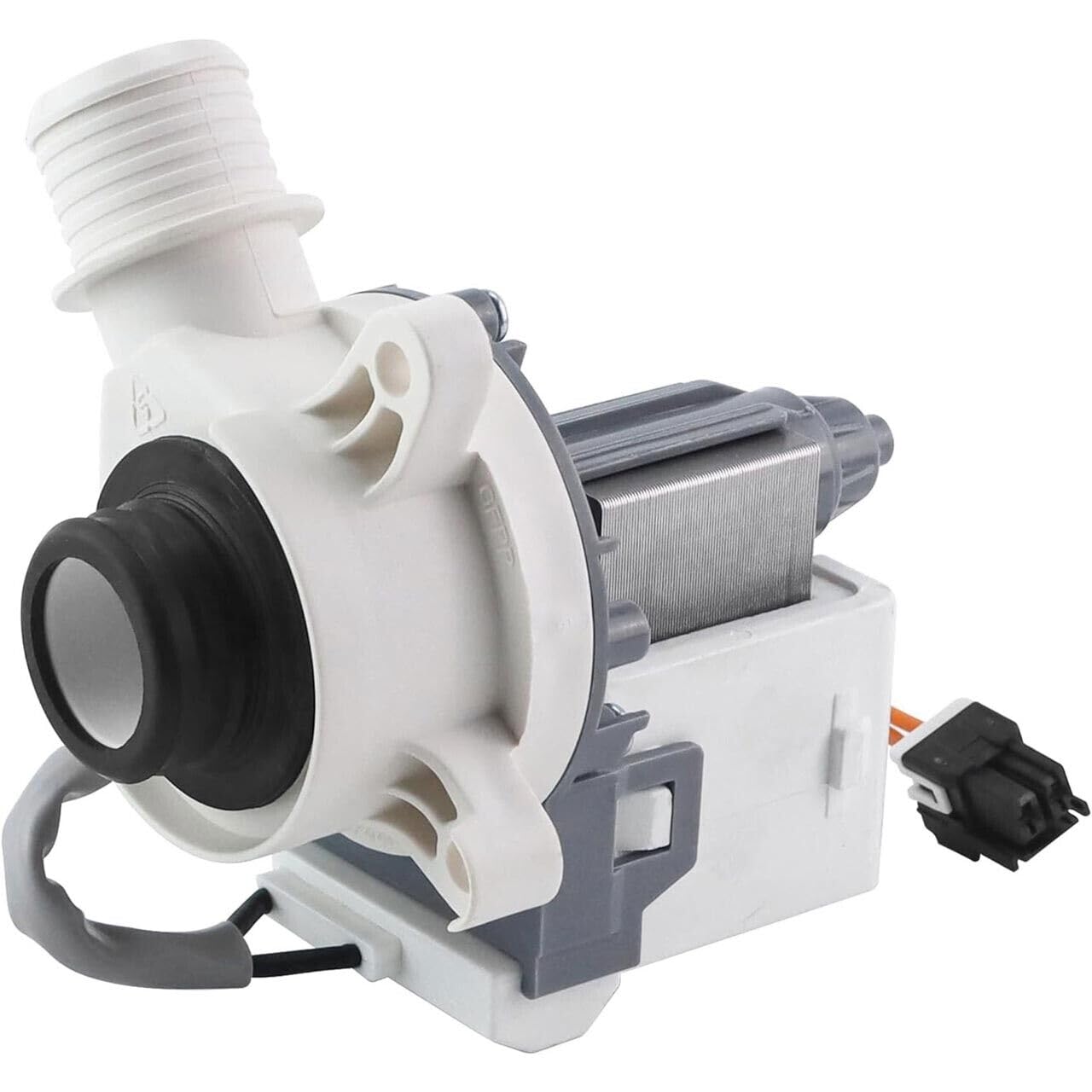

تصویر 1: The complete replacement water drain pump unit. It features a white plastic housing with a threaded inlet/outlet, a black rubber seal, and an electrical connector with orange and black wires.

اہم نوٹ: Appliance parts can appear similar in many ways. Always verify compatibility with your specific washer model (GTW460ASJ8WW) before installation. If you are unsure, consult your washer's service manual or contact a qualified technician.

3. حفاظتی معلومات

• پاور منقطع کریں: Always unplug the washing machine from the electrical outlet before attempting any repairs or maintenance.
• پانی کی فراہمی بند کریں: Close the hot and cold water supply valves to the washing machine.
• پانی نکالنا: Ensure all water is drained from the washer tub and hoses before beginning work to prevent spills and electrical hazards.
• حفاظتی پوشاک پہنیں: Use appropriate personal protective equipment, such as gloves and safety glasses, to prevent injury.
• پیشہ ورانہ مدد: If you are uncomfortable performing this repair, seek assistance from a qualified appliance repair technician.

4. تنصیب کی ہدایات

The following steps provide a general guide for replacing the drain pump. Specific procedures may vary slightly depending on your washer's exact configuration. Refer to your GE GTW460ASJ8WW washer's service manual for detailed instructions.

1. واشر تیار کریں:
   • پاور آؤٹ لیٹ سے واشر کو ان پلگ کریں۔
   • گرم اور ٹھنڈے پانی کی فراہمی کے والوز کو بند کر دیں۔
   • Disconnect the water inlet hoses from the back of the washer.
   • Position the drain hose into a bucket or drain to empty any remaining water.
2. پمپ تک رسائی: Depending on your washer model, you may need to tilt the washer back, remove the front panel, or remove the back panel to access the drain pump. Consult your washer's service manual for specific access instructions.
3. Disconnect the Old Pump:
   • Locate the drain pump. It will have hoses connected to it and an electrical connector.
   • Use pliers or a screwdriver to release the clamps securing the hoses to the pump. Carefully remove the hoses, being prepared for residual water.
   • Disconnect the electrical connector from the pump by pressing the tab and pulling it apart.
   • Unmount the old pump from its housing or base. This usually involves unscrewing it or releasinجی کلپس۔
4. Install the New Pump:
   • Position the new drain pump in the same location as the old one.
   • Secure the new pump using the original screws or clips.
   • cl کو یقینی بناتے ہوئے ہوزز کو نئے پمپ سے دوبارہ جوڑیں۔ampلیک کو روکنے کے لیے s کو محفوظ طریقے سے باندھ دیا گیا ہے۔
   • Connect the electrical connector to the new pump. Ensure it clicks into place.
5. دوبارہ جوڑنا اور ٹیسٹ کرنا:
   • Reattach any panels or components that were removed to access the pump.
   • Reconnect the water inlet hoses and turn on the water supply.
   • Plug the washer back into the electrical outlet.
   • Run a short drain/spin cycle to check for proper operation and any leaks.

5. آپریٹنگ ہدایات

The drain pump operates automatically as part of the washing machine's cycle. No manual operation is required for the pump itself. Once installed correctly, the pump will activate when the washer needs to drain water from the tub.

After installation, ensure the washer completes a full drain cycle without issues. Listen for unusual noises and check for leaks around the pump and hose connections.

6 دیکھ بھال

Regular maintenance of the drain pump is generally not required, but periodic checks can help ensure its longevity and prevent issues:

• لیک کے لیے معائنہ کریں: Periodically check the area around the drain pump and hoses for any signs of water leaks. Address any leaks immediately.
• رکاوٹوں کی جانچ کریں: If your washer has a drain pump filter or trap, clean it regularly according to your washer's user manual. While this pump does not have an external filter, blockages can occur in the hoses leading to or from the pump.
• غیر معمولی آوازیں سنیں: A properly functioning pump should operate smoothly. If you hear grinding, humming, or excessive noise, it may indicate a problem.

7 خرابیوں کا سراغ لگانا

If your washer is experiencing drainage issues after installing the new pump, consider the following:

• Washer Not Draining:
  • Ensure the electrical connector to the pump is securely attached.
  • نالی کی نلی میں کنکس یا رکاوٹیں چیک کریں۔
  • Verify that the washer's lid switch or door lock is functioning correctly, as some washers will not drain if the lid/door is open or faulty.
  • Inspect the pump impeller for any foreign objects that might be jamming it.
• Pump Making Loud Noises:
  • Foreign objects (coins, buttons, lint) can get trapped in the pump, causing noise. Disconnect power and inspect the pump.
  • A worn-out motor bearing can also cause noise. If the pump is new, ensure it's properly mounted and not vibrating against other components.
• Water Leaking from Pump Area:
  • تمام نلی cl کو یقینی بنائیںamps are tight and hoses are properly seated on the pump's inlet and outlet ports.
  • Check for cracks in the pump housing or damaged seals.

If troubleshooting steps do not resolve the issue, it may indicate a problem with another component of the washer or a faulty replacement part. Contact a qualified technician for further diagnosis.

8. وضاحتیں

• مصنوعات کی قسم: Replacement Washer Water Drain Pump
• ہم آہنگ واشر ماڈل: GE GTW460ASJ8WW
• مینوفیکچرر: ایکٹوم کے حصے
• رنگ: سیاہ/سفید
• ASIN: B0F17M33MW

9. وارنٹی اور سپورٹ

For information regarding warranty coverage or technical support for this replacement part, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
