1. حفاظتی معلومات
Please read these instructions carefully before installation. If you do not understand these instructions or have doubts about the safety of the installation, assembly, or use of this product, please contact customer service.
- وزن کی صلاحیت: Do not exceed the maximum weight capacity of 110 lbs (50 kg). This mount is designed for TVs between 32 and 65 inches.
- VESA مطابقت: Ensure your TV's VESA mounting pattern is between 100x100mm and 400x400mm.
- دیوار کی قسم: This TV mount is designed for installation on wood studs, solid concrete, or brick walls. اکیلے ڈرائی وال پر انسٹال نہ کریں۔
- Personal Injury & Property Damage: Improper installation may result in serious personal injury and property damage. Always use appropriate safety gear and tools.
- بچے: Keep children away from the work area during installation. Small parts may be a choking hazard.
2. پیکیج کے مشمولات
Please refer to the included parts list in your product packaging to ensure all components are present and undamaged. If any parts are missing or defective, please contact Pipishell customer service for assistance.
3. مصنوعات کی خصوصیات
- وسیع مطابقت: Supports most 32-65 inch TVs with VESA patterns from 100x100mm to 400x400mm.
- اعلی وزن کی صلاحیت: Securely holds TVs up to 110 lbs (50 kg).
- توسیعی رسائی: Extends up to 37.4 inches (95 cm) from the wall and retracts to a slim 2.6 inches (6.6 cm).
- مکمل موشن ایڈجسٹمنٹس: Offers +/-90° swivel, +5°/-15° tool-free tilt, and +/-3° post-installation leveling.
- مضبوط تعمیر: Made from heavy-duty alloy steel with a reinforced wall plate and solid central pivot for enhanced stability.
- خلائی بچت ڈیزائن: Single-stud design allows for flexible placement, including corner installations.

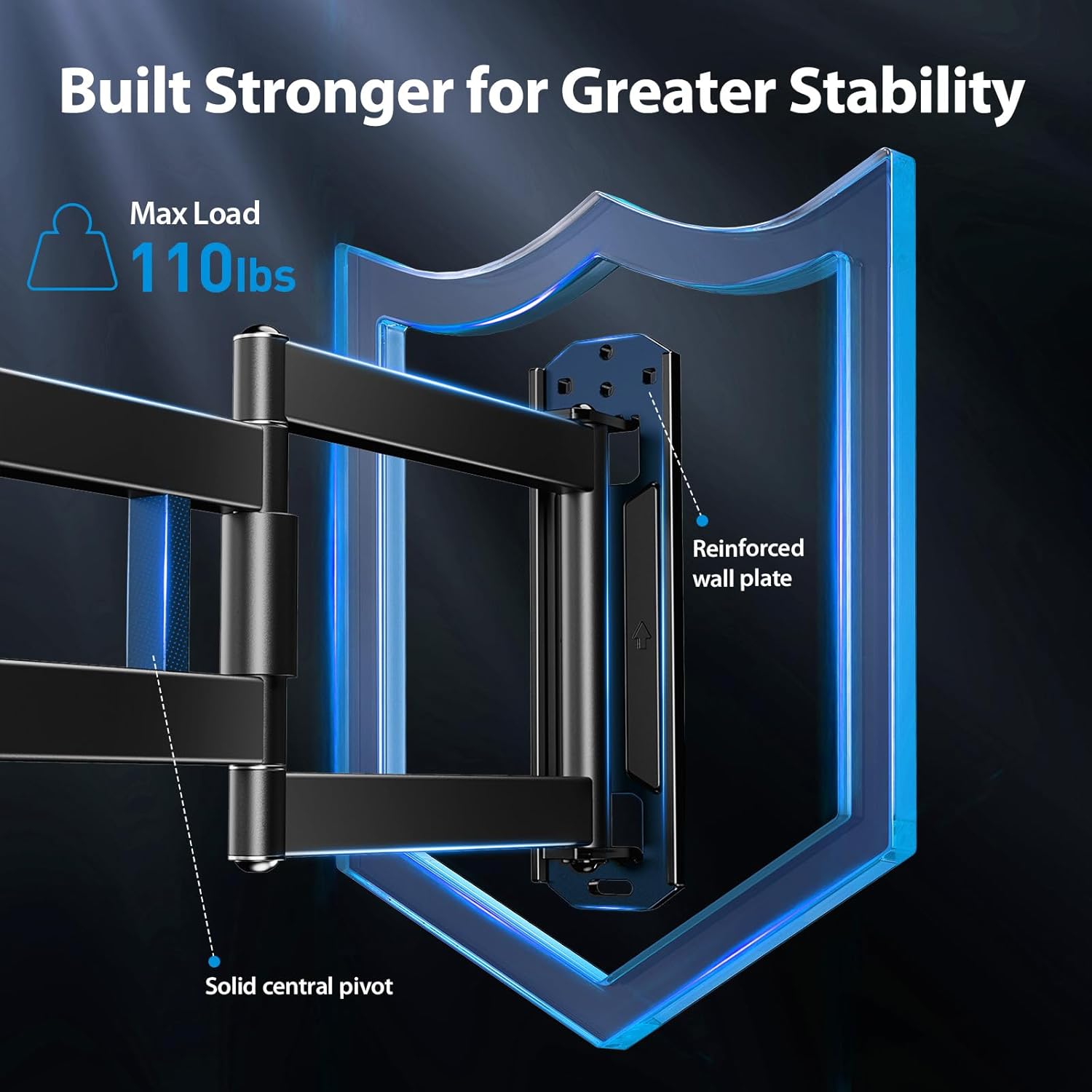

تصویر 3.1: The mount features a reinforced wall plate and a solid central pivot for increased stability, supporting up to 110 lbs.
4 مطابقت
Before installation, verify that your TV and wall are compatible with this mount.
- ٹی وی کا سائز: Suitable for most 32-65 inch flat or curved screen televisions.
- ٹی وی وزن: آپ کے ٹی وی کا وزن 110 پونڈ (50 کلوگرام) سے زیادہ نہیں ہونا چاہیے۔
- VESA پیٹرن: The mounting holes on the back of your TV must match VESA patterns from 100x100mm to 400x400mm.
- دیوار کی قسم: Compatible with wood stud walls (single stud), solid concrete walls, and brick walls. Anchors are required for concrete and brick walls. Not suitable for drywall-only installation.

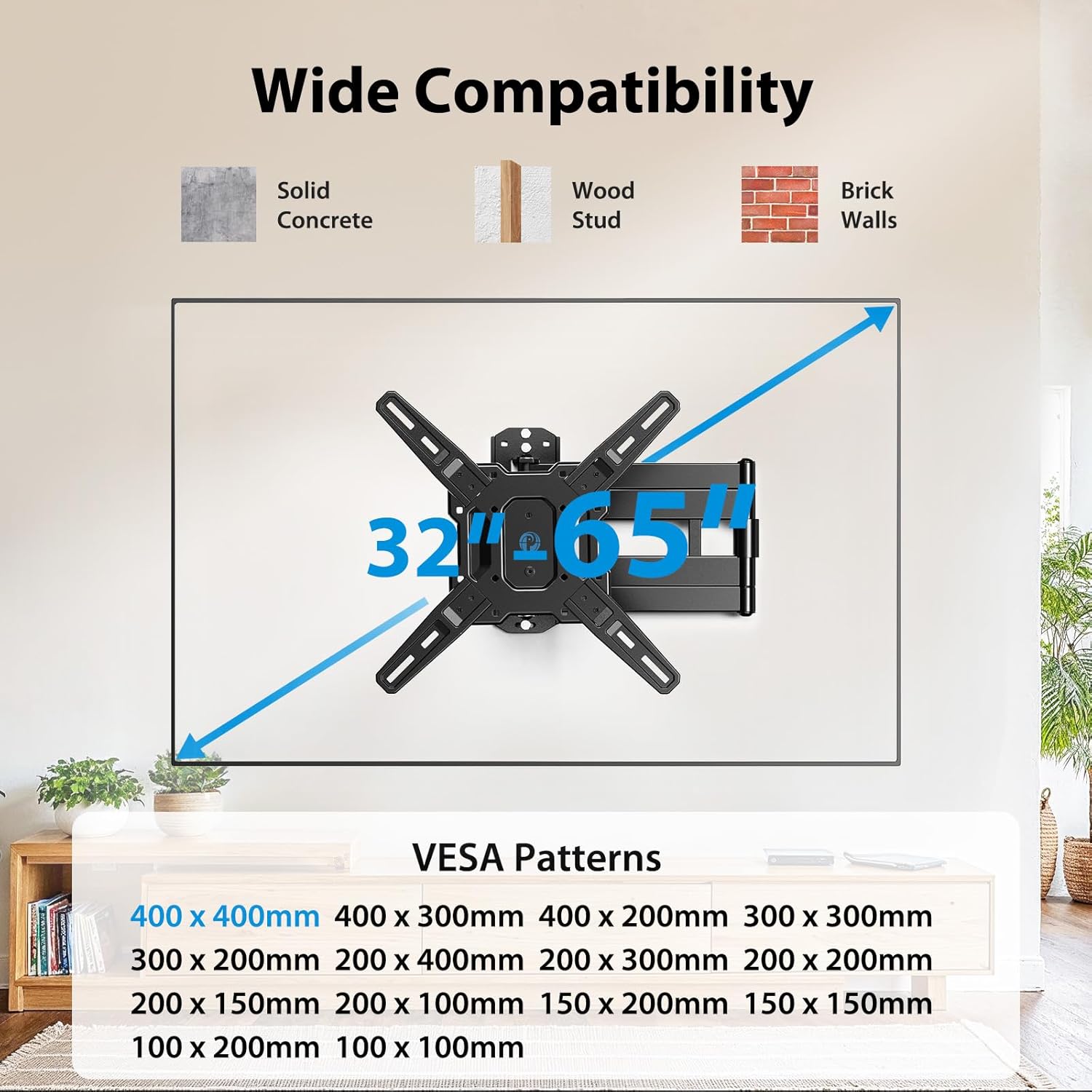

تصویر 4.1: This mount is compatible with 32-65 inch TVs and various VESA patterns, suitable for wood stud, solid concrete, and brick walls.
تصویر 4.2: The mount extends up to 37.4 inches from the wall, providing ample reach for flexible viewing
5. تنصیب کی ہدایات (سیٹ اپ)
This section provides general installation steps. For detailed, step-by-step instructions, please refer to the comprehensive manual included in your product packaging. Always ensure you have the correct tools and safety equipment.
- پری انسٹالیشن چیک: Verify all parts are present and undamaged. Confirm your TV's VESA pattern and weight are within the mount's specifications.
- Determine Wall Type: Identify if your wall is a wood stud, solid concrete, or brick. This will dictate the hardware and drilling method required.
- ٹی وی بریکٹ منسلک کریں: Secure the TV brackets to the back of your television using the appropriate screws and spacers provided. Ensure they are centered and tightened securely.
- وال پلیٹ انسٹال کریں: Mark the desired mounting location on the wall. Drill pilot holes according to the drilling template. Secure the wall plate to the wall using the correct anchors and lag bolts for your wall type.
- ہینگ ٹی وی: Carefully lift the TV with the attached brackets and hook it onto the wall plate. Ensure the TV is securely seated on the mount.
- ماؤنٹ کرنے کے لئے محفوظ ٹی وی: Fasten any safety screws or locking mechanisms to prevent the TV from accidentally disengaging from the mount.
تصویر 5.1: The single-stud design allows for flexible installation, including in corners, to optimize viewزاویہ
6. Operation (Adjustments)
Once installed, your Pipishell PIMF26B mount offers various adjustments for optimal viewing
- کنڈا: The mount allows for a +/-90° swivel, enabling you to turn your TV left or right to view from different positions in a room or even adjacent rooms.
- جھکاؤ: Adjust the TV vertically with a +5° upward tilt and a -15° downward tilt. This tool-free adjustment helps reduce glare and provides a comfortable viewING زاویہ
- توسیع/ مراجعت: Extend the TV up to 37.4 inches (95 cm) from the wall for maximum viewing flexibility, or retract it to a compact 2.6 inches (6.6 cm) to save space.
- لیولنگ: After installation, you can make minor horizontal adjustments of +/-3° to ensure your TV is perfectly level.
تصویر 6.1: The mount's swivel feature allows for viewing from various angles and even multiple rooms.
تصویر 6.2: Adjustments include extension, retraction, tilt, and leveling for optimal screen positioning.
تصویر 6.3: The tool-free tilt-lock lever allows for quick and easy angle adjustments.
ویڈیو 6.1: This video demonstrates the key features of the Pipishell PIMF26B TV mount, including its solid construction, extended reach, full swivel, tool-free tilt, and leveling capabilities, showcasing its versatility for various viewماحولیات
7 دیکھ بھال
To ensure the longevity and safe operation of your TV mount, follow these maintenance guidelines:
- باقاعدہ چیکس: وقتاً فوقتاً تمام پیچ اور کنکشن کا معائنہ کریں تاکہ یہ یقینی بنایا جا سکے کہ وہ سخت اور محفوظ رہیں۔
- صفائی: Clean the mount with a soft, dry cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish.
- حرکت: If the mount's movement becomes stiff, apply a small amount of silicone-based lubricant to the pivot points.
8 خرابیوں کا سراغ لگانا
If you encounter any issues during or after installation, refer to the following common solutions:
- ٹی وی نہیں لیول: Use the +/-3° leveling adjustment feature to correct the horizontal alignment of your TV.
- ماؤنٹ غیر مستحکم محسوس ہوتا ہے: Recheck all wall plate fasteners and TV bracket screws. Ensure the mount is installed on a compatible and structurally sound wall type. Verify the TV weight does not exceed 110 lbs.
- Difficulty Moving/Adjusting: Ensure all locking mechanisms (e.g., tilt lock lever) are disengaged. Check for any obstructions or cables interfering with movement.
- گمشدہ حصے: Refer to the package contents list. If parts are missing, contact Pipishell customer service.
9. وضاحتیں
| فیچر | تفصیلات |
|---|---|
| ماڈل نمبر | PIMF26B |
| ہم آہنگ ٹی وی سائز | 32 - 65 انچ |
| زیادہ سے زیادہ لوڈ کی صلاحیت | 110 پونڈ (50 کلوگرام) |
| VESA مطابقت | کم از کم 100x100mm سے زیادہ سے زیادہ 400x400mm |
| دیوار سے توسیع | 2.6 انچ (واپس لیا) سے 37.4 انچ (توسیع شدہ) |
| کنڈا زاویہ | +/-90° |
| جھکاؤ کا زاویہ | +5° / -15° (Tool-Free) |
| لیول ایڈجسٹمنٹ | +/-3° |
| مواد | مرکب سٹیل |
| رنگ | سیاہ |
| چڑھنے کی قسم | Wall Mount (Single Wood Stud, Solid Concrete, Brick) |
| پارسل کے طول و عرض | 45.2 x 35 x 8.1 سینٹی میٹر؛ 6.78 کلوگرام |
10. وارنٹی اور سپورٹ
Pipishell is committed to providing high-quality products and customer satisfaction.
وارنٹی: We serve every customer with the most sincere attitude. If you have any questions about the product, please feel free to contact us.
کسٹمر سپورٹ: For any inquiries, technical assistance, or warranty claims, please contact Pipishell customer service through the retailer's platform or the official Pipishell webسائٹ
