Klarstein PowerGlide 60cm Induction Hob User Manual

1. تعارف

This manual provides essential information for the safe and efficient operation of your Klarstein PowerGlide 60cm Induction Hob. Please read these instructions carefully before installation and use, and keep them for future reference. The Klarstein PowerGlide induction hob features a modern design with a scratch-resistant matte glass surface, four high-performance cooking zones, and a total power output of up to 7400W in boost mode. It includes intuitive touch slider controls, an integrated timer, and a ThermoRecall function to restore previous settings after a power interruption. Safety features such as a child lock, residual heat indicator, and automatic shut-off are integrated for peace of mind.

2. حفاظتی معلومات

To prevent accidents and ensure proper operation, observe the following safety precautions:

• آلے کو استعمال کرنے سے پہلے تمام ہدایات پڑھیں۔
• Ensure the appliance is correctly installed by a qualified technician.
• گرم سطحوں کو مت چھونا۔ ہینڈل یا نوبس کا استعمال کریں۔
• ہمیشہ کھانا پکانے کی نگرانی کریں، خاص طور پر جب زیادہ گرمی کی ترتیبات استعمال کریں۔
• Keep children away from the hob during operation and when it is cooling down. Activate the child lock feature to prevent accidental activation.
• صرف انڈکشن کے موافق کوک ویئر استعمال کریں۔
• Do not place metallic objects such as knives, forks, spoons, or lids on the hob surface, as they can become hot.
• چکنائی جمع ہونے سے بچنے کے لیے ہوب کو باقاعدگی سے صاف کریں، جو آگ کا خطرہ ہو سکتا ہے۔
• In case of a malfunction, disconnect the appliance from the power supply and contact customer support.

3. پروڈکٹ ختمview

The Klarstein PowerGlide induction hob is designed for modern kitchens, offering efficient and precise cooking. It features four independent cooking zones and a sleek matte glass surface.

Figure 3.1: The Klarstein PowerGlide induction hob features four cooking zones for versatile meal preparation.

The hob provides a total power output of 7400W, distributed across its four zones, with a boost function for rapid heating.

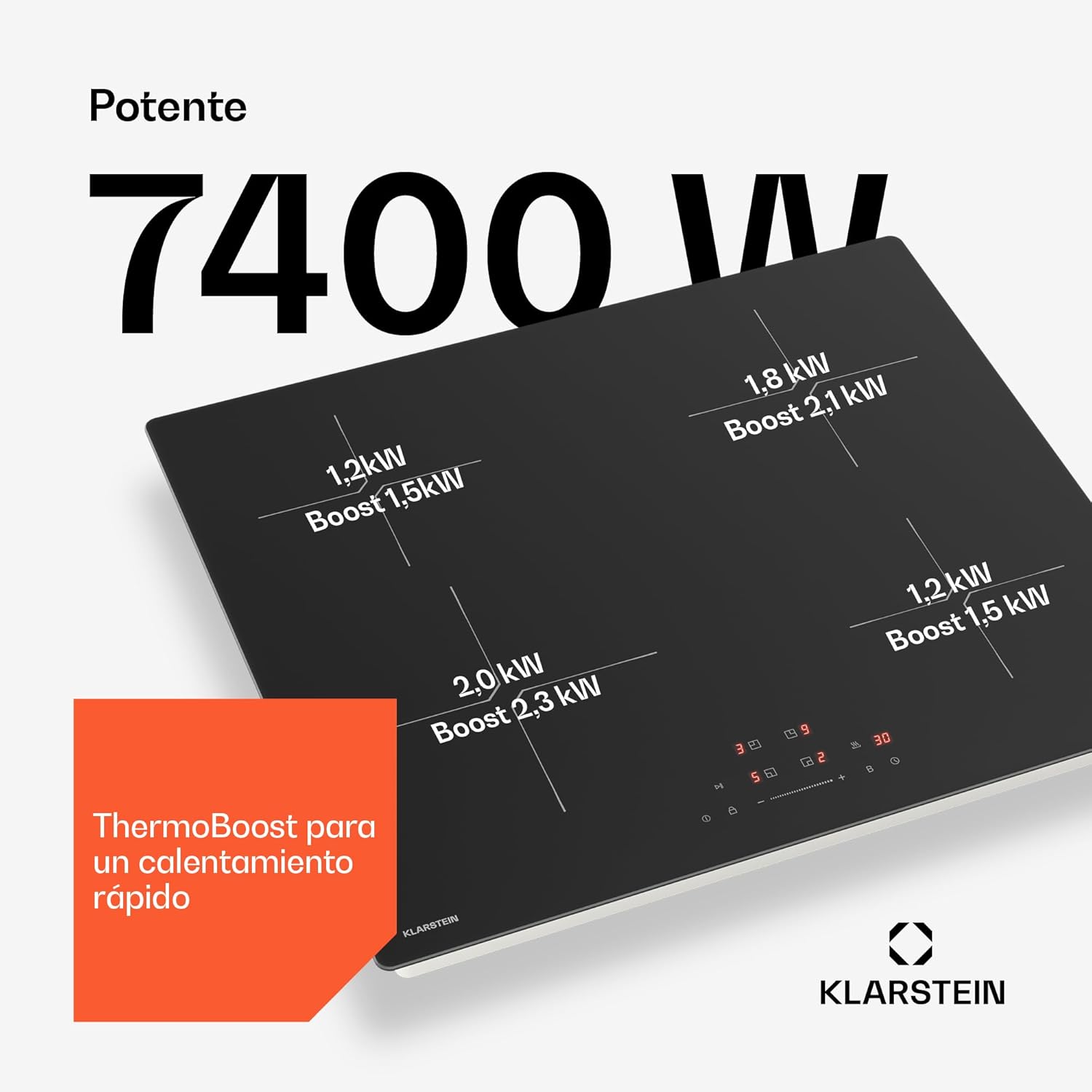

Figure 3.2: This hob offers a total power of 7400W with individual zone power distribution for efficient cooking.

The matte glass surface is not only aesthetically pleasing but also highly functional, designed for durability and ease of cleaning.

Figure 3.3: The durable matte glass surface is designed to resist scratches and reduce reflections, ensuring easy cleaning and lasting elegance.

Control is managed via a sensitive touch slider, allowing precise adjustment of the 9 power levels.

Figure 3.4: Adjust cooking temperatures with precision using the intuitive touch slider control, offering 9 power levels.

Integrated safety features enhance user experience and kitchen safety.

Figure 3.5: Key safety and convenience features include a residual heat indicator, timer function, automatic shut-off, and child lock.

4. سیٹ اپ اور انسٹالیشن

Proper installation is crucial for the safe and efficient operation of your induction hob. It must be installed by a qualified professional in accordance with local regulations.

4.1 طول و عرض اور کٹ آؤٹ

Ensure your countertop has the correct dimensions for installation. The hob dimensions are 59 cm (width) x 52 cm (depth) x 5.5 cm (height). The required cut-out dimensions for the countertop are approximately 56 cm (width) x 49 cm (depth).

Figure 4.1: Ensure proper installation by adhering to the specified hob dimensions (59cm x 52cm x 5.5cm) and countertop cut-out (56cm x 49cm).

4.2 الیکٹریکل کنکشن

The hob requires a dedicated electrical circuit. The power supply must match the specifications listed on the appliance rating plate. Consult a qualified electrician for connection.

4.3 وینٹیلیشن

Adequate ventilation must be provided around the hob to ensure proper cooling of the electronic components. Do not obstruct any ventilation openings.

5. آپریٹنگ ہدایات

Familiarize yourself with the control panel and functions before first use.

5.1 آن/آف کرنا

• To turn on: Press the power button (O) کنٹرول پینل پر۔
• آف کرنے کے لیے: پاور بٹن کو دوبارہ دبائیں۔

5.2 کوکنگ زون کا انتخاب اور طاقت کو ایڈجسٹ کرنا

• Place an induction-compatible pot on the desired cooking zone.
• Select the zone by tapping its corresponding control.
• Adjust the power level from 1 to 9 using the touch slider control.

5.3 بوسٹ فنکشن

The boost function provides maximum power for rapid heating. It is ideal for boiling water quickly.

• Activate the boost function by selecting a zone and then tapping the boost symbol (B).
• The boost function operates for a limited time and then automatically reduces to a lower power setting.

5.4 ٹائمر فنکشن

The timer allows you to set a specific cooking duration for a selected zone.

• کھانا پکانے کا مطلوبہ زون منتخب کریں۔
• Tap the timer button (گھڑی کا آئیکن) and use the slider or +/- buttons to set the desired time.
• The zone will automatically turn off once the set time expires.

5.5 چائلڈ لاک۔

چائلڈ لاک ہوب کے حادثاتی آپریشن کو روکتا ہے۔

• To activate: Press and hold the child lock button (لاک آئیکن) for a few seconds. An indicator will light up.
• To deactivate: Press and hold the child lock button again until the indicator turns off.

5.6 بقایا ہیٹ انڈیکیٹر

After cooking, the display for a hot zone will show an "H" to indicate that the surface is still hot and should not be touched.

5.7 Pot Detection

The hob will only activate and heat a zone if suitable induction-compatible cookware is placed on it. If no pot is detected or the pot is unsuitable, an error message may appear, or the zone will not heat.

5.8 ThermoRecall Function

In the event of a brief power interruption, the ThermoRecall function will automatically restore the last selected temperature settings once power is restored, allowing you to resume cooking without re-entering settings.

6. دیکھ بھال اور صفائی

Regular cleaning and maintenance will prolong the life of your hob and ensure optimal performance.

6.1 روزانہ صفائی

• صفائی سے پہلے ہمیشہ یقینی بنائیں کہ ہوب ٹھنڈا ہے۔
• Wipe the glass surface with a soft cloth or sponge and a mild detergent.
• ضدی داغوں کے لیے، سیرامک ​​ہوب کلینر کا استعمال کریں۔
• Rinse with clean water and dry thoroughly with a soft, clean cloth to avoid streaks.

6.2 نقصان سے بچنا

• Do not use abrasive cleaners, scouring pads, or harsh chemicals, as they can scratch the matte glass surface.
• ہوب پر بھاری یا تیز چیزوں کو گرانے سے گریز کریں۔
• Wipe up spills, especially sugary liquids, immediately to prevent them from burning onto the surface.

7 خرابیوں کا سراغ لگانا

If you encounter issues with your hob, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Klarstein customer support.

8. وضاحتیں

Detailed technical specifications for the Klarstein PowerGlide Induction Hob:

9. وارنٹی اور سپورٹ

Your Klarstein PowerGlide Induction Hob comes with a manufacturer's warranty. Please refer to the warranty card included in the packaging for specific terms and conditions.

For technical support, service, or warranty claims, please contact Klarstein customer service. You can find contact information on the official Klarstein webسائٹ یا اپنے خوردہ فروش کے ذریعے۔

Manufacturer: Klarstein

Seller: Klarstein España
