1. تعارف
This manual provides essential information for the proper installation, operation, and maintenance of your Briggs & Stratton 796228 Choke Shaft Kit. This genuine Briggs & Stratton part is designed to ensure optimal performance and compatibility with most 406000 model Briggs & Stratton engines. Using genuine parts helps maintain the integrity and efficiency of your engine system.
2. حفاظتی معلومات
Always prioritize safety when working with engine components. Failure to follow safety precautions can result in serious injury or damage to equipment.
- Disconnect the Spark Plug: Before performing any service or maintenance, always disconnect the spark plug wire to prevent accidental engine starting.
- حفاظتی پوشاک پہنیں: Use safety glasses, gloves, and appropriate clothing to protect yourself from potential hazards.
- انجن کولڈ ڈاؤن: Allow the engine to cool completely before handling any parts to avoid burns.
- Refer to Engine Manual: Always consult your specific engine's service manual for detailed instructions and safety warnings pertinent to your model.
- اچھی طرح سے ہوادار علاقے میں کام کریں: Ensure adequate ventilation when working with fuel or cleaning agents.
3. پروڈکٹ ختمview
The Briggs & Stratton 796228 Choke Shaft Kit is a critical component for the carburetor system, responsible for controlling the choke plate. The choke plate restricts airflow into the carburetor, enriching the fuel-air mixture for easier cold starting. This kit is a direct replacement for Briggs & Stratton part number 699722 and is compatible with most 406000 series engines.

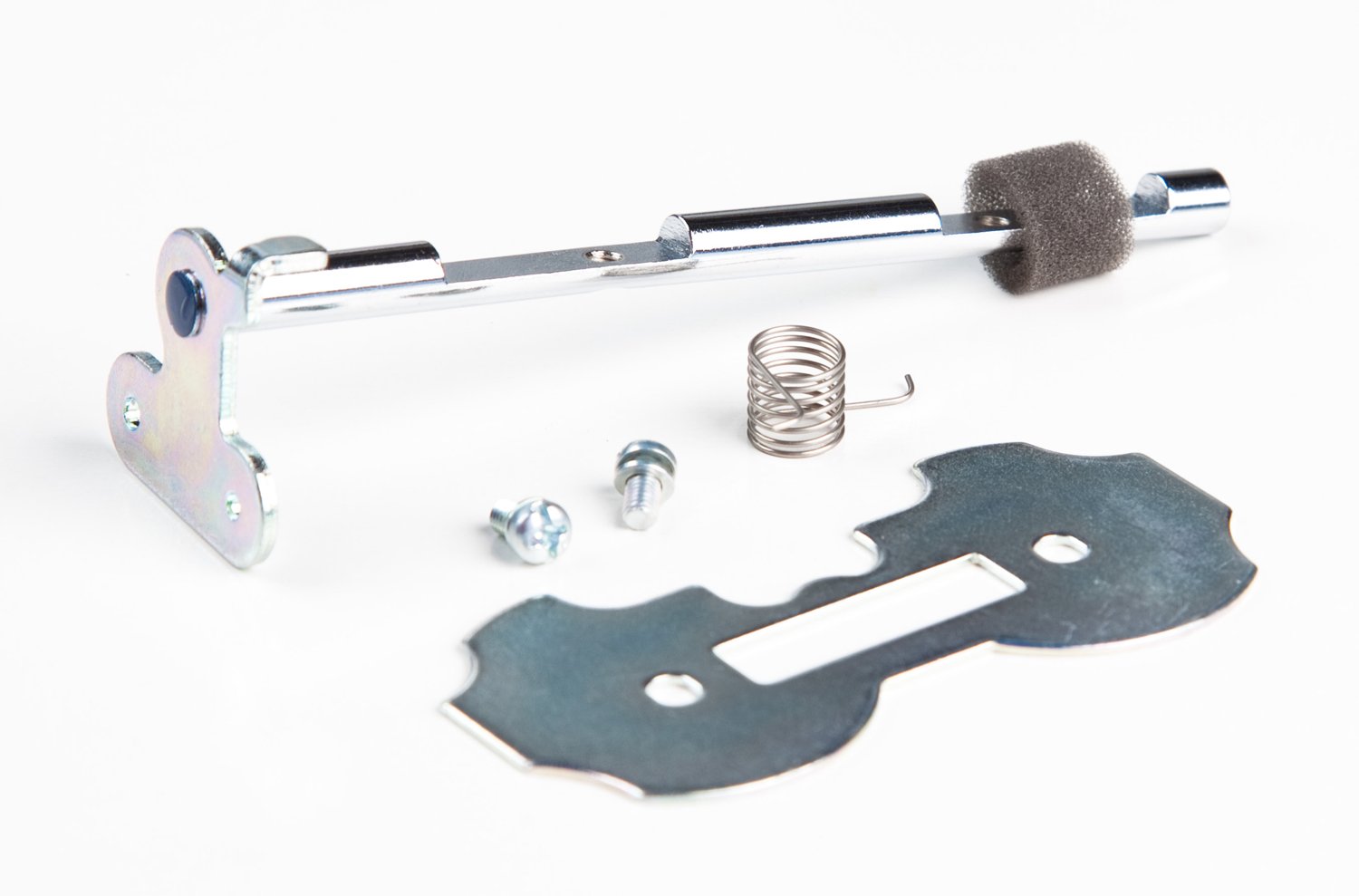

This image displays the various components included in the Briggs & Stratton 796228 Choke Shaft Kit, designed for engine carburetor systems.
4. سیٹ اپ اور انسٹالیشن
Installation of the choke shaft kit requires careful attention to detail. If you are unsure about any step, it is recommended to seek assistance from a qualified service technician.
اوزار کی ضرورت ہے:
- سکریو ڈرایور سیٹ (فلپس اور فلیٹ ہیڈ)
- چمٹا
- Wrench set (if carburetor removal is necessary)
- حفاظتی شیشے
تنصیب کے مراحل:
- انجن تیار کریں: Ensure the engine is off and cool. Disconnect the spark plug wire to prevent accidental starting.
- کاربوریٹر تک رسائی: Depending on your engine model, you may need to remove the air filter assembly, carburetor cover, or even the carburetor itself to gain access to the choke shaft. Refer to your engine's service manual for specific instructions.
- Remove the Old Choke Shaft: Carefully observe how the existing choke shaft and plate are assembled. Remove any retaining clips, screws, or linkages connected to the choke shaft. Gently slide out the old choke shaft and plate.
- Install the New Choke Shaft: Insert the new choke shaft from the kit into its designated position on the carburetor. Ensure the choke plate is correctly oriented and secured to the shaft with its retaining screw(s). The plate should move freely within the carburetor bore when the shaft is rotated.
- روابط دوبارہ جوڑیں: Reattach any linkages or springs that connect to the choke shaft, ensuring they operate smoothly.
- دوبارہ جوڑنا: Reinstall any removed components such as the carburetor, air filter assembly, or covers.
- اسپارک پلگ کو دوبارہ جوڑیں: Once all components are securely in place, reconnect the spark plug wire.
5. Operating the Choke
After installation, the choke shaft facilitates the operation of the choke system. The choke is primarily used for starting a cold engine.
- کولڈ اسٹارٹ: When starting a cold engine, move the choke lever to the 'FULL CHOKE' or 'START' position. This closes the choke plate, restricting air intake and creating a richer fuel mixture necessary for ignition.
- وارم اپ: Once the engine starts and runs for a few seconds, gradually move the choke lever to the 'HALF CHOKE' or 'RUN' position as the engine warms up.
- چل رہا ہے: For a warm engine, the choke should be in the 'RUN' or 'OFF' position, allowing maximum airflow for normal operation.
نوٹ: Improper choke usage can lead to engine flooding or poor starting performance.
6 دیکھ بھال
Regular maintenance ensures the longevity and proper function of your choke system.
- Inspect for Free Movement: Periodically check that the choke shaft and plate move freely without binding. Lubricate pivot points with a light oil if necessary, ensuring not to get oil into the carburetor bore.
- صفائی: Keep the carburetor area clean from dirt, debris, and fuel residue that could impede choke operation.
- Check Linkages: Ensure all choke linkages are securely attached and not bent or damaged.
- Refer to Engine Manual: Adhere to the maintenance schedule outlined in your engine's owner's manual for comprehensive care.
7 خرابیوں کا سراغ لگانا
If you experience issues related to the choke system after installation, consider the following troubleshooting steps:
- Engine Hard to Start (Cold):
- Ensure the choke plate fully closes when the choke lever is in the 'FULL CHOKE' position.
- Check for any obstructions preventing the choke plate from closing.
- Verify that the choke linkage is correctly connected and not loose.
- Engine Runs Rough or Smokes (Warm):
- Ensure the choke plate fully opens when the choke lever is in the 'RUN' or 'OFF' position.
- A partially closed choke can cause an overly rich fuel mixture.
- Choke Lever Sticking:
- Inspect the choke shaft for dirt or corrosion. Clean and lightly lubricate if necessary.
- Check for bent linkages or a damaged choke plate.
If troubleshooting does not resolve the issue, consult a professional service technician or contact Briggs & Stratton customer support.
8. وضاحتیں
- ماڈل نمبر: 796228
- Replaces Part Number: 699722
- مینوفیکچرر: بریگز اینڈ اسٹریٹن
- مصنوعات کے طول و عرض: تقریباً 4 x 0.25 x 7 انچ
- آئٹم کا وزن: تقریباً 1.28 اونس
- مطابقت: Fits most 406000 model Briggs & Stratton Engines
9. وارنٹی اور سپورٹ
Briggs & Stratton genuine parts are manufactured to high standards and are typically covered by a limited warranty against defects in material and workmanship. For specific warranty details, please refer to the documentation included with your engine or contact Briggs & Stratton directly.
For technical assistance, parts inquiries, or warranty claims, please contact Briggs & Stratton customer support or visit their official website. You can also find more information and genuine parts at the Briggs & Stratton Store on Amazon.
