1. تعارف
Thank you for choosing the Arregui Activa Electronic Surface-Mounted Safe. This manual provides essential information for the correct installation, operation, and maintenance of your safe. Please read these instructions carefully before using the product to ensure optimal performance and security.
The Arregui Activa safe is designed to provide secure storage for your valuables, featuring an electronic locking system and a robust construction for surface mounting.
2. سیٹ اپ
2.1 پیک کھولنا
- احتیاط سے اس کی پیکیجنگ سے سیف کو ہٹا دیں۔
- Check that all components are present: safe unit, emergency keys, instruction manual, and mounting hardware.
- مستقبل کی نقل و حمل یا اسٹوریج کے لیے پیکیجنگ کو برقرار رکھیں۔
2.2 بیٹری کی تنصیب
- Locate the battery compartment, typically on the inside of the safe door.
- بیٹری کور کھولیں۔
- Insert four (4) AA 1.5V alkaline batteries, ensuring correct polarity (+/-).
- Close the battery cover securely. The safe will emit a beep, indicating successful battery installation.
2.3 سیف کو لگانا
The Arregui Activa safe is designed for surface mounting to a wall or floor. Choose a secure and discreet location.
- Position the safe in the desired location and mark the drilling points through the pre-drilled holes in the back or bottom of the safe.
- Drill holes in the wall or floor using an appropriate drill bit for the mounting surface.
- Insert the provided wall anchors (if applicable) into the drilled holes.
- Align the safe with the holes and secure it using the provided screws or bolts. Tighten all fasteners firmly.

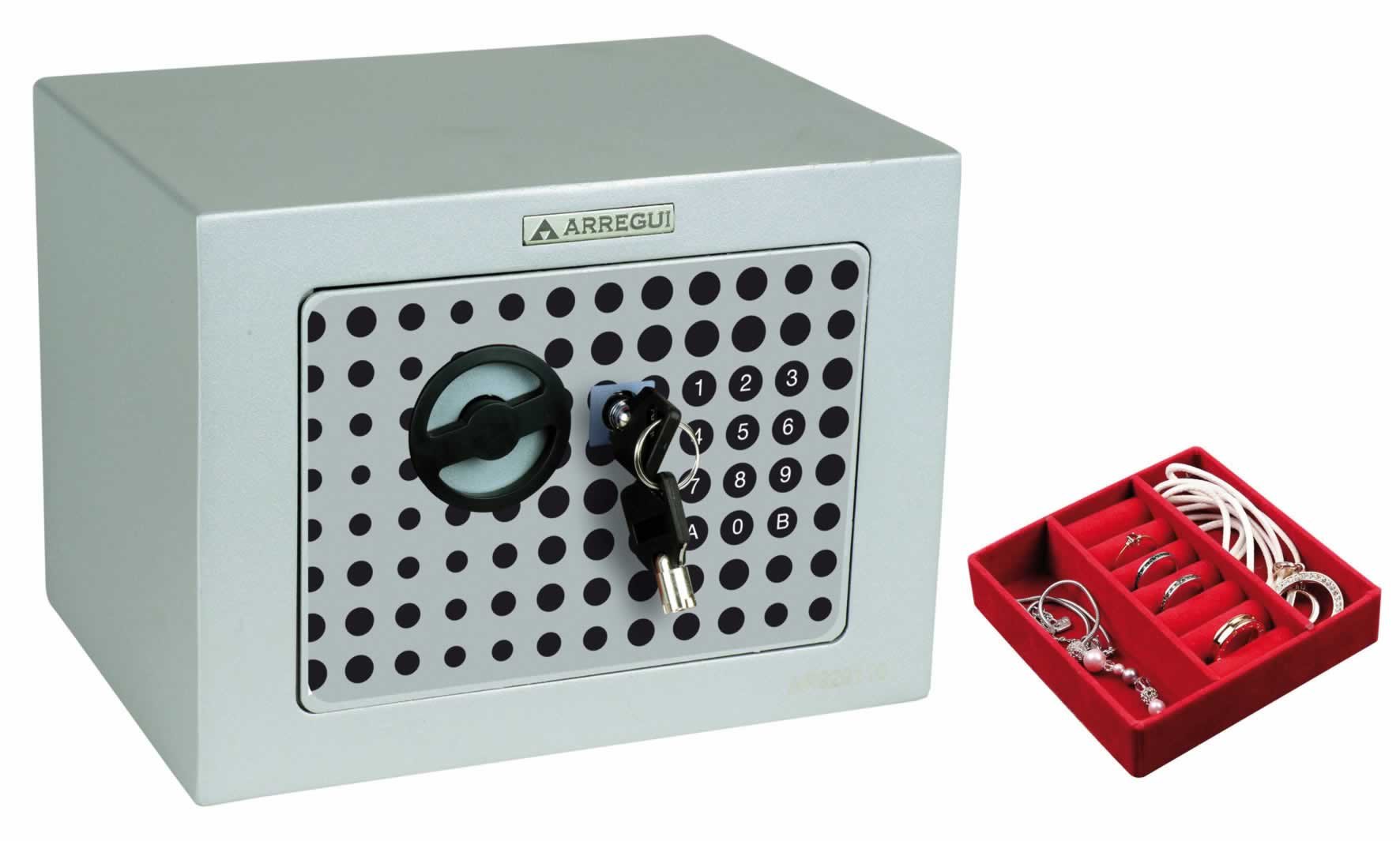

Image 1: Arregui Activa Electronic Safe, illustrating its compact design suitable for surface mounting.
3. آپریٹنگ ہدایات
3.1 Initial Code Setting
Upon first use, you will need to set your personal access code.
- With the safe door open, press the red reset button located on the inside of the door (usually near the hinge). The yellow indicator light on the keypad will illuminate.
- Enter a new personal code (3-8 digits) on the keypad.
- Confirm the code by pressing the 'A' or '#' button. The safe will beep, and the yellow light will turn off, indicating the code has been successfully set.
- نئے کوڈ کو بند کرنے سے پہلے دروازہ کھول کر اس کی جانچ کریں۔
3.2 سیف کو کھولنا
- Enter your personal code on the keypad.
- Press the 'A' or '#' button. The green indicator light will illuminate, and you will hear a click.
- Within 5 seconds, turn the knob or handle clockwise to open the door.
3.3 Closing the Safe
- محفوظ دروازے کو مضبوطی سے بند کریں۔
- Turn the knob or handle counter-clockwise to engage the locking bolts. The safe is now secured.
3.4 یوزر کوڈ کو تبدیل کرنا
- Open the safe using your current code.
- Press the red reset button on the inside of the door. The yellow indicator light will illuminate.
- Enter your new personal code (3-8 digits).
- Confirm the new code by pressing the 'A' or '#' button. The safe will beep, and the yellow light will turn off.
- نئے کوڈ کو بند کرنے سے پہلے دروازہ کھول کر اس کی جانچ کریں۔
3.5 Emergency Opening (with Key)
In case of battery failure or forgotten code, you can use the emergency key.
- ہنگامی کی ہول کا پتہ لگائیں، جو عام طور پر کی پیڈ پینل پر چھوٹے کور کے پیچھے چھپا ہوتا ہے۔
- کور کو ہٹا دیں۔
- Insert the emergency key and turn it clockwise while simultaneously turning the handle to open the safe.
- Once open, replace the batteries if necessary and reset your code. Keep emergency keys in a secure location away from the safe.
4 دیکھ بھال
4.1 بیٹری کی تبدیلی
When the batteries are low, the red indicator light will flash or the safe will emit a warning sound when you attempt to open it. Replace all four batteries promptly to ensure continued operation.
- Follow the steps in section 2.2 for battery installation.
- Always use new, high-quality alkaline batteries. Do not mix old and new batteries or different battery types.
4.2 صفائی
- سیف کے بیرونی حصے کو نرم سے صاف کریں، ڈیamp کپڑا
- Do not use abrasive cleaners or solvents, as these can damage the finish or electronic components.
5 خرابیوں کا سراغ لگانا
| مسئلہ | ممکنہ وجہ | حل |
|---|---|---|
| محفوظ کوڈ کے ساتھ نہیں کھلتا ہے۔ | Incorrect code entered; Low batteries; Keypad malfunction. | Re-enter code carefully; Replace batteries (Section 4.1); Use emergency key (Section 3.5). |
| کی پیڈ جواب نہیں دیتا۔ | Dead batteries; Loose battery connection. | Replace batteries (Section 4.1); Ensure batteries are correctly inserted. |
| Red light flashes or beeps continuously. | کم بیٹری کی وارننگ۔ | Replace batteries immediately (Section 4.1). |
| دروازہ ٹھیک سے بند نہیں ہوتا۔ | رکاوٹ; غلط ترتیب۔ | Check for items blocking the door or bolts; Ensure safe is mounted level. |
6. وضاحتیں
| ماڈل نمبر: | 1832D80 |
| بیرونی طول و عرض (HxWxD): | 230 x 170 x 170 ملی میٹر |
| تالا لگانے کا طریقہ کار: | Electronic keypad with emergency key override |
| طاقت کا منبع: | 4 x AA 1.5V بیٹریاں |
| چڑھنے کی قسم: | Surface-mounted (wall or floor) |
7. وارنٹی کی معلومات
Arregui products are manufactured to high-quality standards and are guaranteed against manufacturing defects for a period specified by local consumer protection laws from the date of purchase. This warranty does not cover damage caused by improper installation, misuse, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
8. سپورٹ
For technical assistance, spare parts, or warranty inquiries, please contact your retailer or the Arregui customer service department. Refer to the contact information provided with your purchase documentation or visit the official Arregui webسپورٹ کی تفصیلات کے لیے سائٹ۔
Webسائٹ: www.arregui.es
