Proster Coaxial Crimping and Stripping Tool Instruction Manual

تعارف

This manual provides instructions for the safe and effective use of your Proster Coaxial Crimping and Stripping Tool (Model PST067). Please read this manual thoroughly before operating the tool and retain it for future reference.

حفاظتی معلومات

• اس ٹول کا استعمال کرتے وقت ہمیشہ مناسب ذاتی حفاظتی سامان، جیسے حفاظتی شیشے پہنیں۔
• Keep hands and fingers away from cutting blades and crimping jaws during operation.
• Ensure the tool is clean and free from debris before and after each use.
• Do not use the tool for purposes other than its intended use (crimping and stripping cables).
• آلے کو خشک، محفوظ جگہ پر، بچوں کی پہنچ سے دور رکھیں۔

پیکیج کے مشمولات

تصدیق کریں کہ تمام اشیاء آپ کے پیکیج میں موجود ہیں:

• 1 x Proster Coaxial Crimping Tool
• 1 x Proster Multi-function Wire Stripper
• 15 x F-Type Compression Connectors

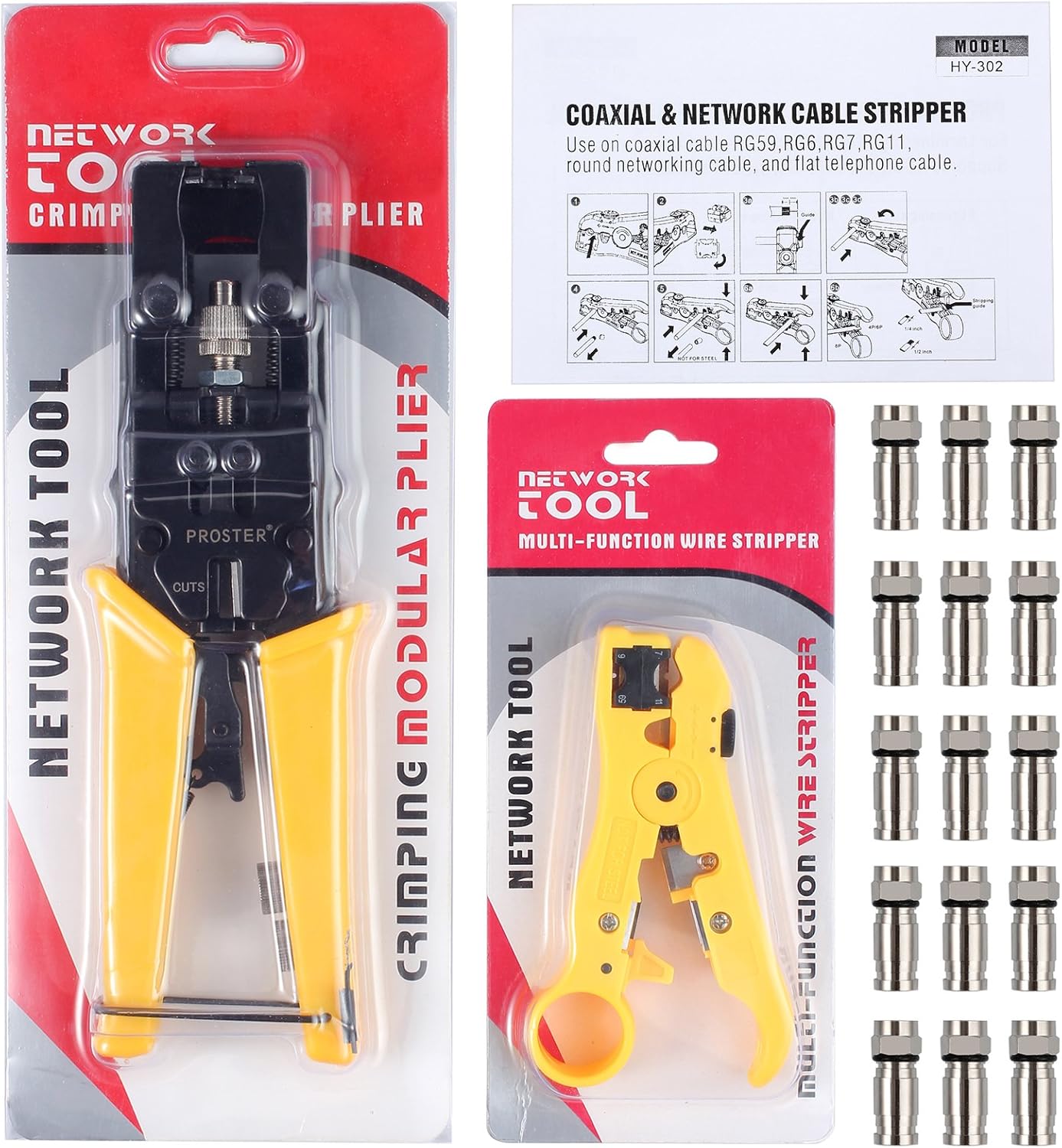

Image: Complete kit including the crimping tool, stripping tool, and F-type connectors.

مصنوعات کے اجزاء

Coaxial Crimping Tool

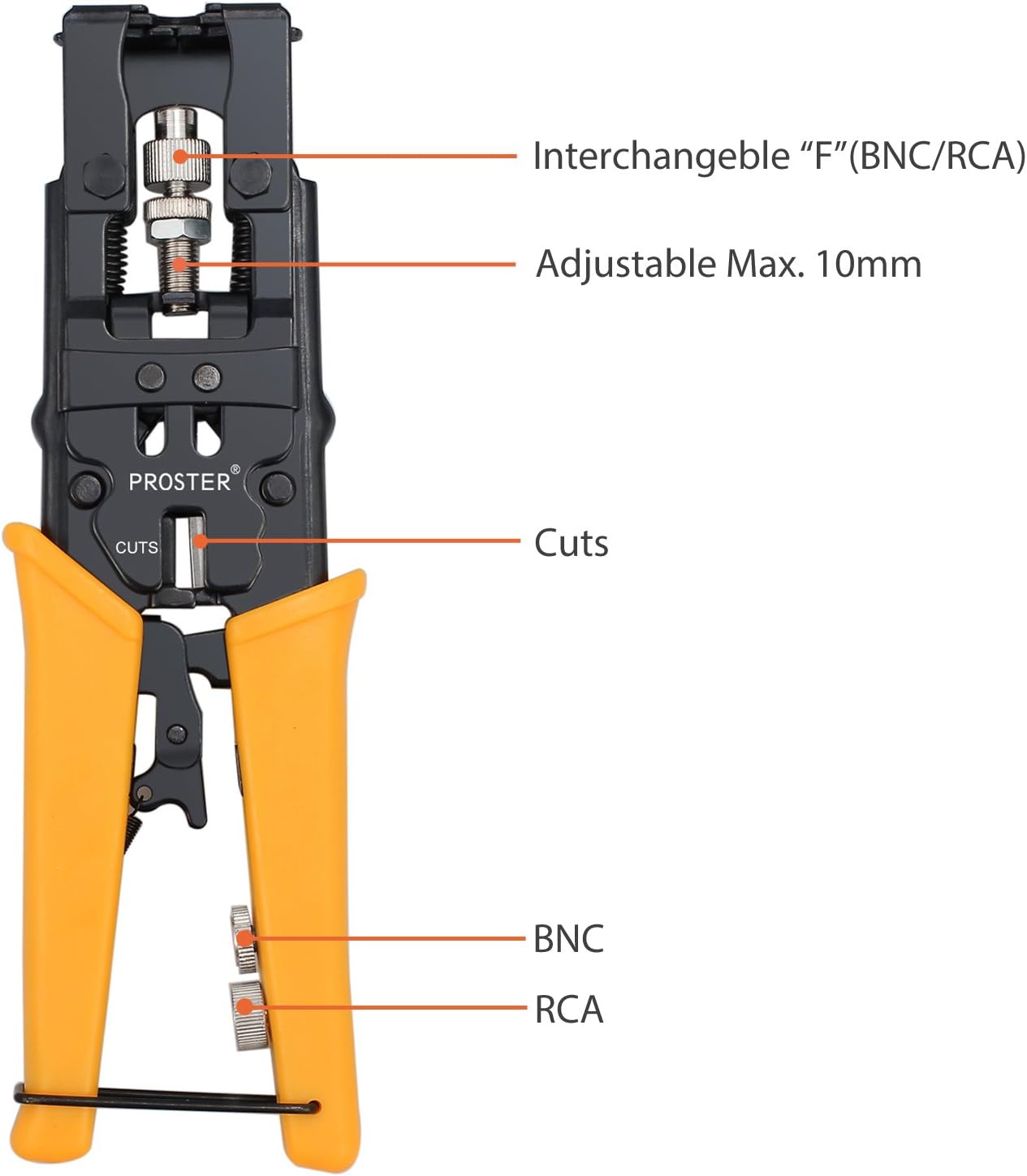

Image: The coaxial crimping tool, highlighting the interchangeable F/BNC/RCA head, adjustable 10mm crimp depth, and cutting function.

• Interchangeable Head: Supports F-Type, BNC, and RCA connectors.
• Adjustable Max. 10mm: Allows for precise crimp depth adjustment.
• کٹوتیاں: Integrated cable cutting function.
• BNC/RCA Adapters: Located on the handle for storage and use.

Multi-function Wire Stripper

Image: The multi-function wire stripper, showing the diameter adjustment, cutter, round cable stripper, flat cable stripper, and detachable coaxial cable stripper block.

• Diameter Adjustment: Knob to adjust blade depth for various cable thicknesses.
• کٹر: Integrated blade for cutting cables.
• Round Cable Stripper: For stripping round cables like coaxial.
• Flat Cable Stripper: For stripping flat cables.
• Detachable Coaxial Cable Stripper Block: Specific block for RG59/6, RG7/11 coaxial cables.

سیٹ اپ

No specific setup is required for the tools themselves. Ensure you have the correct cable type and connectors for your application.

Crimping Tool Adapter Selection

1. Identify the type of connector you are using (F-Type, BNC, or RCA).
2. Select the corresponding adapter from the tool's handle.
3. Insert the chosen adapter into the crimping tool's head. Ensure it is securely seated.

آپریٹنگ ہدایات

1. Cable Stripping (Coaxial Cable)

1. Open the multi-function wire stripper.
2. Insert the coaxial cable into the appropriate stripping hole on the detachable block (e.g., RG59/6 or RG7/11).
3. Adjust the blade depth using the diameter adjustment knob if necessary, ensuring it cuts through the outer jacket without damaging the inner conductor or shield.
4. Rotate the stripper tool around the cable 2-3 times.
5. Remove the tool and pull off the stripped insulation to expose the conductor and shield.

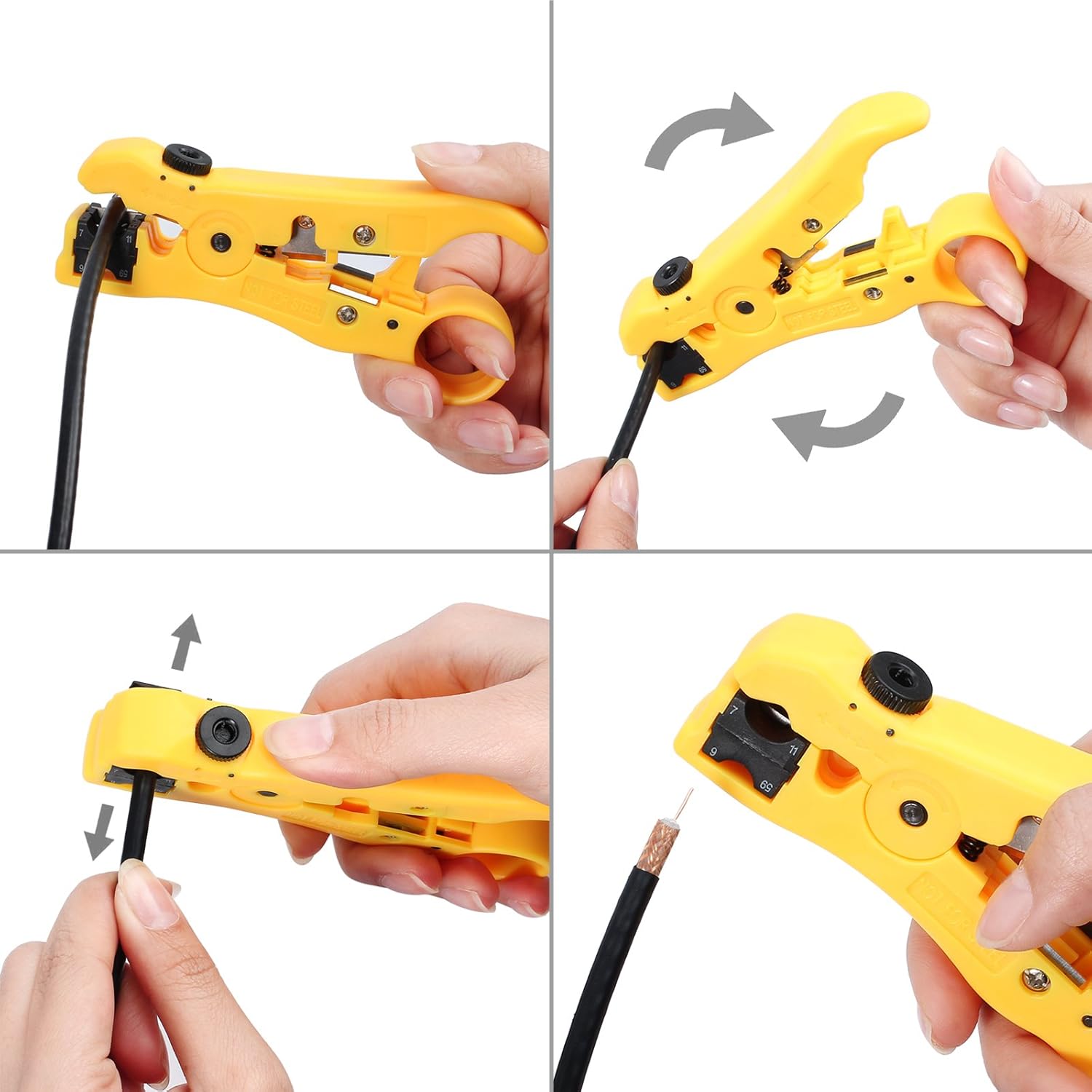

Image: Step-by-step guide demonstrating how to strip a coaxial cable using the multi-function wire stripper.

2. Cable Stripping (Network/UTP/STP Cable)

1. For round network cables, use the round cable stripper slot. For flat cables, use the flat cable stripper slot.
2. Insert the cable into the chosen slot.
3. Adjust the blade depth if needed.
4. Rotate the tool or pull the cable through to strip the outer jacket.

Image: Demonstration of stripping both round and flat network cables using the multi-function wire stripper.

3. Cable Crimping (F-Type, BNC, RCA Connectors)

1. After stripping the cable, prepare the connector by sliding it onto the cable according to the connector's specific instructions.
2. Open the crimping tool and ensure the correct adapter for your connector type is installed.
3. Place the connector with the cable into the crimping jaw. Ensure the connector is fully seated and aligned.
4. Squeeze the handles of the crimping tool firmly and completely until the crimping mechanism releases or reaches its full travel. This ensures a secure compression.
5. Release the handles and remove the crimped cable and connector.
6. Inspect the crimp for proper seating and connection.

Image: A four-panel image illustrating the process of inserting a cable into the crimper, compressing the connector, and removing the finished crimped cable.

دیکھ بھال

• صفائی: After each use, wipe the tools with a clean, dry cloth to remove any cable debris or residue.
• چکنا: Periodically apply a light machine oil to the moving parts and pivot points of the crimping tool to ensure smooth operation.
• بلیڈ معائنہ: Regularly check the stripper blades for sharpness and damage. Dull or damaged blades can lead to poor stripping results. Replacement blades are not specified in the product information, but general care is advised.
• ذخیرہ: Store the tools in a dry environment to prevent rust and corrosion.

خرابی کا سراغ لگانا

وضاحتیں

وارنٹی اور سپورٹ

وارنٹی کی معلومات یا تکنیکی مدد کے لیے، براہ کرم اپنی خریداری کے ساتھ فراہم کردہ رابطے کی تفصیلات دیکھیں یا آفیشل پروسٹر پر جائیں۔ webسائٹ خریداری کے ثبوت کے طور پر اپنی خریداری کی رسید اپنے پاس رکھیں۔

Manufacturer: Proster Trading Limited
