Zotoyi Glacier Bay Farmhouse Apron Front Stainless Steel 33-inch Double Basin باورچی خانے کے سنک کا ہدایت نامہ

1. تعارف

This manual provides essential information for the installation, operation, and maintenance of your Zotoyi Glacier Bay Farmhouse Apron Front Stainless Steel 33-inch Double Basin Kitchen Sink. Please read these instructions thoroughly before beginning installation or use to ensure proper function and longevity of your product.

2. حفاظتی معلومات

• پلمبنگ کا کوئی بھی کام شروع کرنے سے پہلے پانی کی مین سپلائی کو ہمیشہ بند کر دیں۔
• تنصیب کے دوران مناسب ذاتی حفاظتی سامان، جیسے حفاظتی شیشے اور دستانے پہنیں۔
• Due to the weight and size of the sink, it is recommended to have two people for lifting and positioning.
• For drop-in or top-mount installations, it is strongly suggested to contact a professional countertop fabricator to ensure proper fit and sealing.
• پانی کی فراہمی بحال کرنے سے پہلے یقینی بنائیں کہ تمام کنکشن محفوظ اور رساو سے پاک ہیں۔

3. پیکیج کے مشمولات

تنصیب شروع کرنے سے پہلے تصدیق کریں کہ تمام اجزاء موجود ہیں:

• Stainless Steel Double Basin کچن سنک
• Bottom Grids (2)
• سٹرینر باؤل
• اسٹرینر ٹوکری
• Strainer and Drain Assembly (2 sets)
• انسٹالیشن گائیڈ
• کٹ آؤٹ سانچہ

تصویر 3.1: ختمview of the Glacier Bay 33-inch Farmhouse Sink with its accompanying bottom grids and drain components.

تصویر 3.2: تفصیلی view of the included sink accessories: two bottom grids, a strainer bowl, a strainer basket, and two complete strainer and drain assemblies.

4 خصوصیات

• پریمیم کنسٹرکشن: Made from 16-gauge 304 18-8 stainless steel, offering durability and resistance to corrosion.
• Brushed Satin Finish: Commercial-grade brushed finish helps minimize the appearance of scratches.
• Dual Mount Design: Can be installed as an under-counter or top-mount (drop-in) sink.
• ڈیپ بیasins: Extra deep 50/50 split bowls provide ample space for various kitchen tasks.
• آواز ڈیampening: Insulated sound dampening pads minimize noise and condensation.
• Stone Guard Coating: Commercial grade undercoating helps prevent condensation and protects cabinetry.
• گول کونے: Gently rounded R10 corners facilitate easy cleaning and maintenance.
• معیاری ڈرین کھولنا: Features a standard 3.5-inch drain opening.

تصویر 4.1: Key features of the Glacier Bay sink, including material, gauge, finish, drain size, corner radius, and warranty information.

تصویر 4.2: Illustration of the Stone Guard Coating for condensation prevention and Sound Dampening Pads for noise reduction.

تصویر 4.3: Explanation of steel gauge, indicating that a lower gauge number (like 16-gauge) signifies thicker, stronger, and quieter steel.

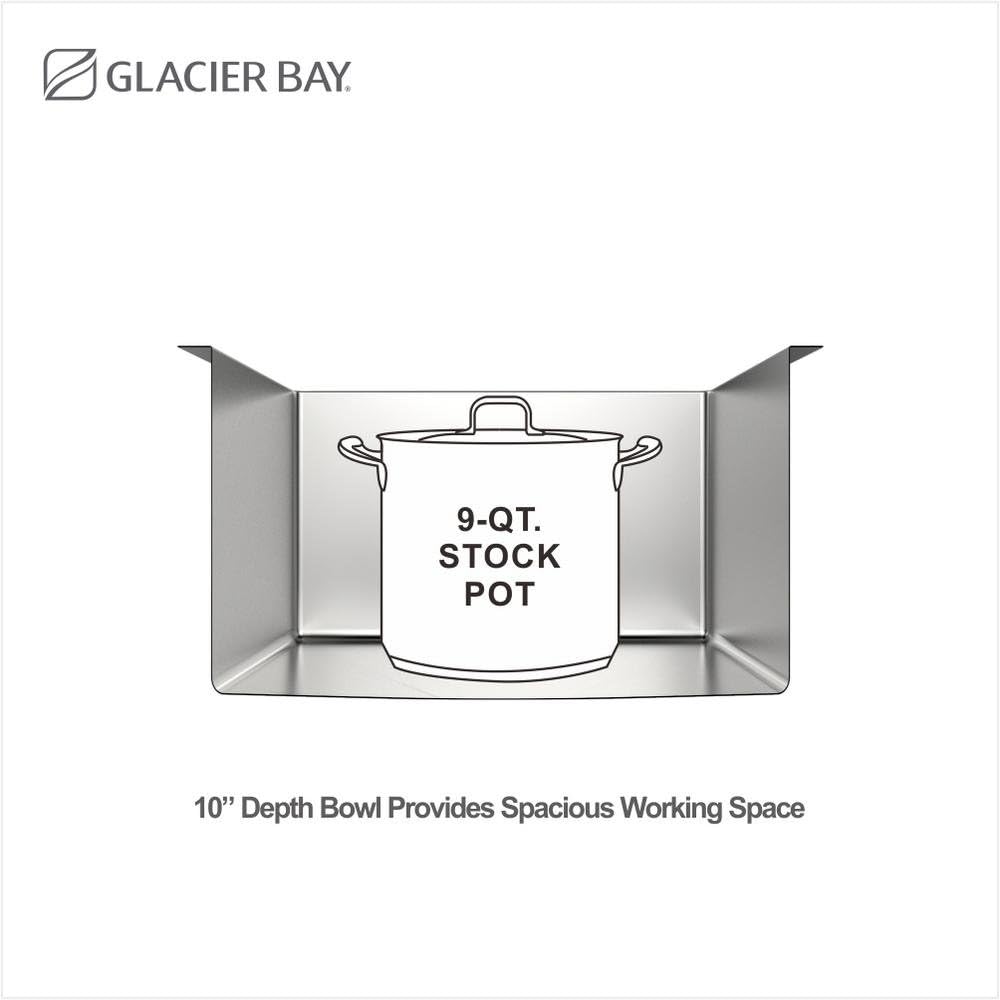

تصویر 4.4: Visual representation of the spacious 10-inch deep sink bowl, capable of accommodating large items such as a 9-quart stock pot.

5. سیٹ اپ اور انسٹالیشن

The Zotoyi Glacier Bay sink offers a dual-mount design, allowing for either under-counter or top-mount (drop-in) installation. An installation guide and cut-out template are included to assist with the process.

5.1 پری انسٹالیشن کے مراحل

1. Unpack the sink and all components. Inspect for any damage.
2. Ensure you have all necessary tools and materials for plumbing connections (e.g., sealant, wrenches, P-trap).
3. Turn off the water supply to the installation area.

5.2 کاؤنٹر ٹاپ کی تیاری

Use the provided cut-out template to mark the opening on your countertop. For precise and secure installation, especially for top-mount or drop-in applications, it is highly recommended to consult or hire a professional countertop fabricator.

5.3 سنک کی تنصیب

1. کاؤنٹر ٹاپ پر سنک کے کھلنے کے چاروں طرف سلیکون سیلنٹ کی مالا لگائیں۔
2. Carefully lower the sink into the opening. For under-counter installation, secure the sink using appropriate mounting clips (not included, typically supplied with countertop).
3. Install the drain assemblies into the sink openings, ensuring a watertight seal with plumber's putty or silicone.
4. Connect the plumbing (P-trap, garbage disposal if applicable) to the drain assemblies.
5. Connect the faucet and water supply lines according to the faucet manufacturer's instructions.
6. Once all connections are made, slowly turn on the water supply and check for any leaks. Tighten connections as needed.

تصویر 5.1: ایک سابقample of the Glacier Bay farmhouse sink installed in a kitchen setting, showcasing its appearance with a faucet and countertop.

تصویر 5.2: An angled perspective of the installed sink, highlighting its apron front design and integration with the kitchen environment.

6. آپریٹنگ ہدایات

Your Zotoyi Glacier Bay kitchen sink is designed for everyday use in food preparation and dishwashing. The 50/50 double basin configuration allows for multitasking, such as washing dishes in one basin while rinsing in the other.

• Use the included bottom grids to protect the sink surface from scratches and allow water to drain freely beneath dishes.
• Utilize the strainer basket and bowl to catch food debris and prevent clogs in your plumbing.

7 دیکھ بھال

Proper care and maintenance will help preserve the appearance and functionality of your stainless steel sink.

• روزانہ صفائی: Wipe the sink with a soft, dry cloth after each use to prevent water spots and mineral buildup.
• باقاعدگی سے صفائی: For general cleaning, use a mild dish soap and warm water with a soft cloth or sponge. Always rinse thoroughly and dry immediately.
• کھرچنے والی چیزوں سے پرہیز کریں: Do not use abrasive cleaners, steel wool, or scouring pads, as these can scratch the satin finish.
• کیمیکل: Avoid harsh chemicals, bleach, or cleaners containing chlorides, which can corrode stainless steel.
• مورچا کی روک تھام: Remove any iron-based items (e.g., cast iron pots, steel wool fragments) from the sink promptly to prevent rust spots.
• Strainer Care: Regularly clean the strainer basket and drain assembly to ensure proper drainage and prevent odors.

8 خرابیوں کا سراغ لگانا

8.1 Water Spots / Stains

مسئلہ: Water spots or mineral stains appear on the sink surface.

حل: These are often caused by hard water. Wipe the sink dry after each use. For existing spots, use a solution of vinegar and water, then rinse and dry. For stubborn stains, a non-abrasive stainless steel cleaner can be used, following the product instructions.

8.2 آہستہ نکاسی آب

مسئلہ: Water drains slowly from the sink.

حل: Check the strainer basket for accumulated food debris and clear it. If the issue persists, the plumbing P-trap may be clogged and require cleaning or professional attention.

8.3 Scratches

مسئلہ: Minor scratches appear on the sink surface.

حل: Stainless steel sinks can develop a patina over time, and minor scratches are normal. The satin finish is designed to minimize their appearance. Use the included bottom grids to help prevent new scratches. For deeper scratches, consult a professional or use specialized stainless steel scratch removal kits with caution.

9. وضاحتیں

10. وارنٹی اور سپورٹ

This Zotoyi Glacier Bay kitchen sink comes with a محدود لائف ٹائم وارنٹی. براہ کرم مخصوص شرائط و ضوابط کے لیے آپ کی خریداری کے ساتھ شامل وارنٹی دستاویزات کا حوالہ دیں۔

For technical assistance, replacement parts, or warranty claims, please contact Zotoyi customer support through your retailer or the manufacturer's official webسائٹ خریداری کے ثبوت کے طور پر اپنی خریداری کی رسید اپنے پاس رکھیں۔
