Soehnle Page Compact 100 Digital Kitchen Scales Instruction Manual

1. تعارف

The Soehnle Page Compact 100 digital kitchen scale is designed for precise weighing of ingredients in the kitchen. It features a maximum load capacity of 5 kg with accurate 1-gram increments, an easy-to-read LCD display, and a practical tare function. Its compact and flat design allows for convenient, space-saving storage. The scale also includes an automatic switch-off feature to conserve battery life.

Image 1: Soehnle Page Compact 100 Digital Kitchen Scale, black with an LCD display showing '0 g'.

2. پیکیج کے مشمولات

براہ کرم چیک کریں کہ تمام اشیاء موجود ہیں اور اچھی حالت میں ہیں:

• 1 x Soehnle Page Compact 100 Digital Kitchen Scale
• 1 x 3V CR2032 Battery (pre-installed or included separately)

3. سیٹ اپ

3.1 بیٹری کی تنصیب

1. Locate the screw-on battery compartment on the underside of the scale.
2. Unscrew the cover using a suitable tool (e.g., a small screwdriver or coin).
3. Insert the 3V CR2032 battery, ensuring the correct polarity (+/-).
4. Replace the battery compartment cover and screw it securely to prevent accidental access, especially by children.

3.2 ابتدائی جگہ کا تعین

For accurate measurements, place the kitchen scale on a flat, stable, and hard surface. Avoid placing it on soft or uneven surfaces, as this may affect weighing precision.

4. آپریٹنگ ہدایات

4.1 پاور آن/آف

پیمانے کو آن کرنے کے لیے ، دبائیں۔ آن/آف/ٹیر button located on the front edge of the scale. The display will show "0 g" when ready for use. To turn the scale off, press and hold the آن/آف/ٹیر button for a few seconds, or allow the automatic switch-off function to activate after a period of inactivity.

تصویر 2: کلوز اپ view of the green ON/OFF/TARE button located on the front edge of the scale.

Image 3: A hand demonstrating how to press the ON/OFF/TARE button to operate the scale.

4.2 وزنی اجزاء

1. Ensure the scale is on a stable surface and powered on, displaying "0 g".
2. Place the item or container directly onto the center of the weighing surface.
3. The weight will be displayed on the LCD screen in 1-gram increments.

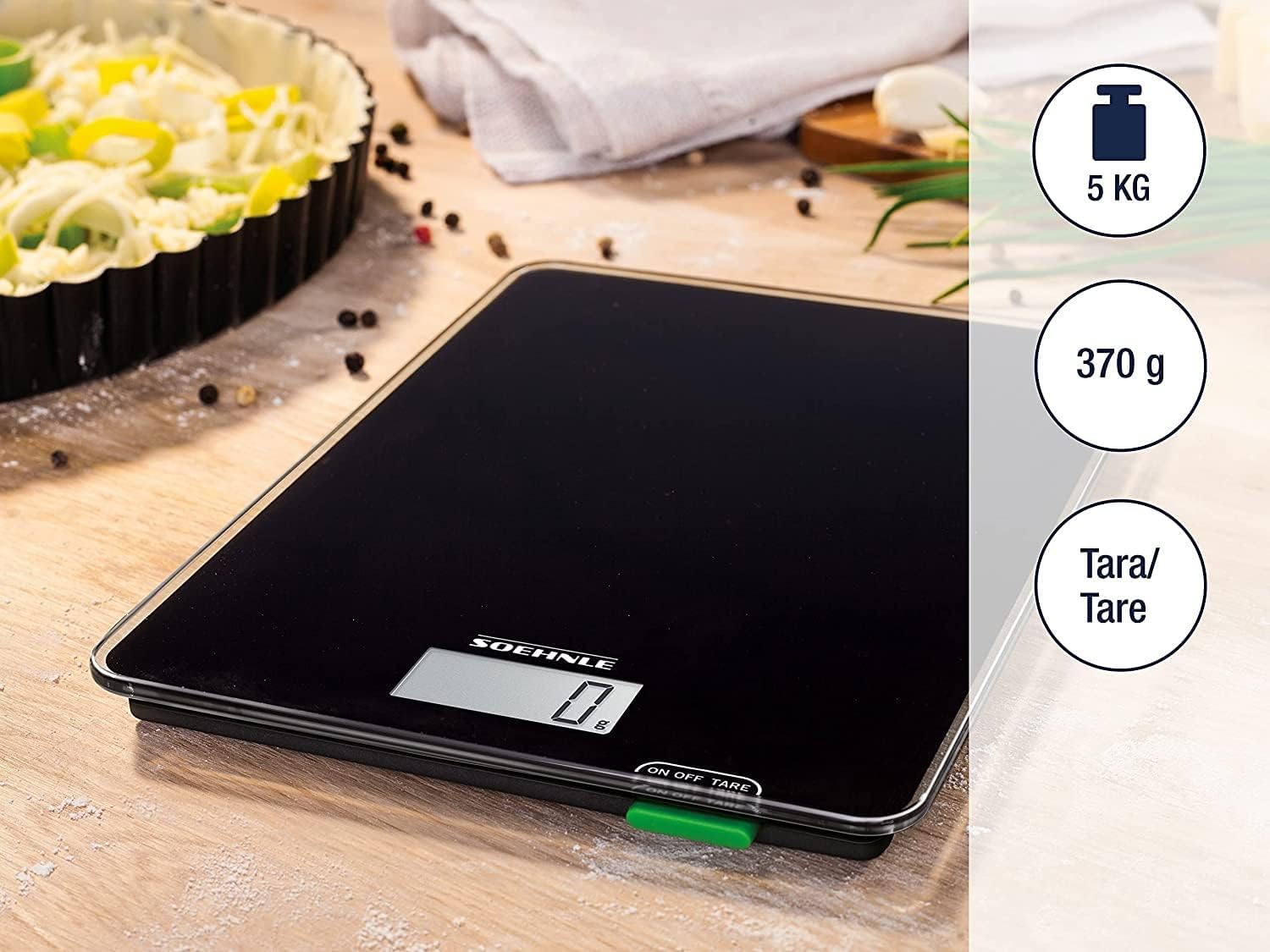

Image 4: The Soehnle kitchen scale in use, showing its capacity of 5 kg, accuracy of 1 g, and tare function.

4.3 Tare Function (Add-and-Weigh)

The tare function allows you to weigh multiple ingredients consecutively in the same container without emptying it.

1. Place your first ingredient or an empty container on the scale. The display will show its weight.
2. دبائیں آن/آف/ٹیر button once. The display will reset to "0 g".
3. کنٹینر میں اگلا جزو شامل کریں۔ ڈسپلے صرف نئے شامل کردہ اجزاء کا وزن دکھائے گا۔
4. Repeat this process for additional ingredients as needed.

5 دیکھ بھال

5.1 صفائی

To clean the scale, wipe the glass surface with a damp کپڑا کھرچنے والے کلینر کا استعمال نہ کریں یا اسکیل کو پانی میں نہ ڈوبیں۔ اس بات کو یقینی بنائیں کہ اسٹوریج یا اگلے استعمال سے پہلے پیمانہ خشک ہو۔

5.2 اسٹوریج

Thanks to its extra-flat and compact design, the scale can be stored easily in drawers, cabinets, or even vertically to save space.

Image 5: The compact design of the scale allows for vertical storage in a kitchen cabinet.

6 خرابیوں کا سراغ لگانا

• اسکیل آن نہیں ہوتا ہے: Check if the battery is correctly installed and has sufficient charge. Replace the battery if necessary.
• غلط پڑھنا: Ensure the scale is placed on a flat, stable, and hard surface. Avoid placing it near strong electromagnetic fields or in areas with significant air currents.
• Display shows "Err": This usually indicates an overload. Remove the item from the scale immediately to prevent damage.

7. وضاحتیں

Image 6: Visual representation of the scale's dimensions and battery type (1x CR2032).
