Radiolink PIXHAWK Flight Controller User Manual

1. تعارف

The Radiolink PIXHAWK is an advanced 32-bit flight controller designed for FPV RC drones, long-wheelbase quadcopters, and 6-8 axis multirotors. It offers robust flight control capabilities, including GPS handling, telemetry, and various flight modes for stable and precise operation. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your PIXHAWK flight controller.

2. باکس میں کیا ہے۔

• Radiolink PIXHAWK Flight Controller
• پاور ماڈیول
• مائیکرو ایس ڈی کارڈ
• سیفٹی سوئچ
• بزر
• GPS Module (may vary by package)
• کنیکٹنگ کیبلز

تصویر 2.1: The image displays the contents typically included in the Radiolink PIXHAWK Flight Controller package, featuring the main flight controller unit, GPS module, power module, various cables, and a micro SD card.

3. پروڈکٹ ختمview

The PIXHAWK flight controller features a high-end configuration with multiple ports for various peripherals and sensors, ensuring reliable and redundant operation.

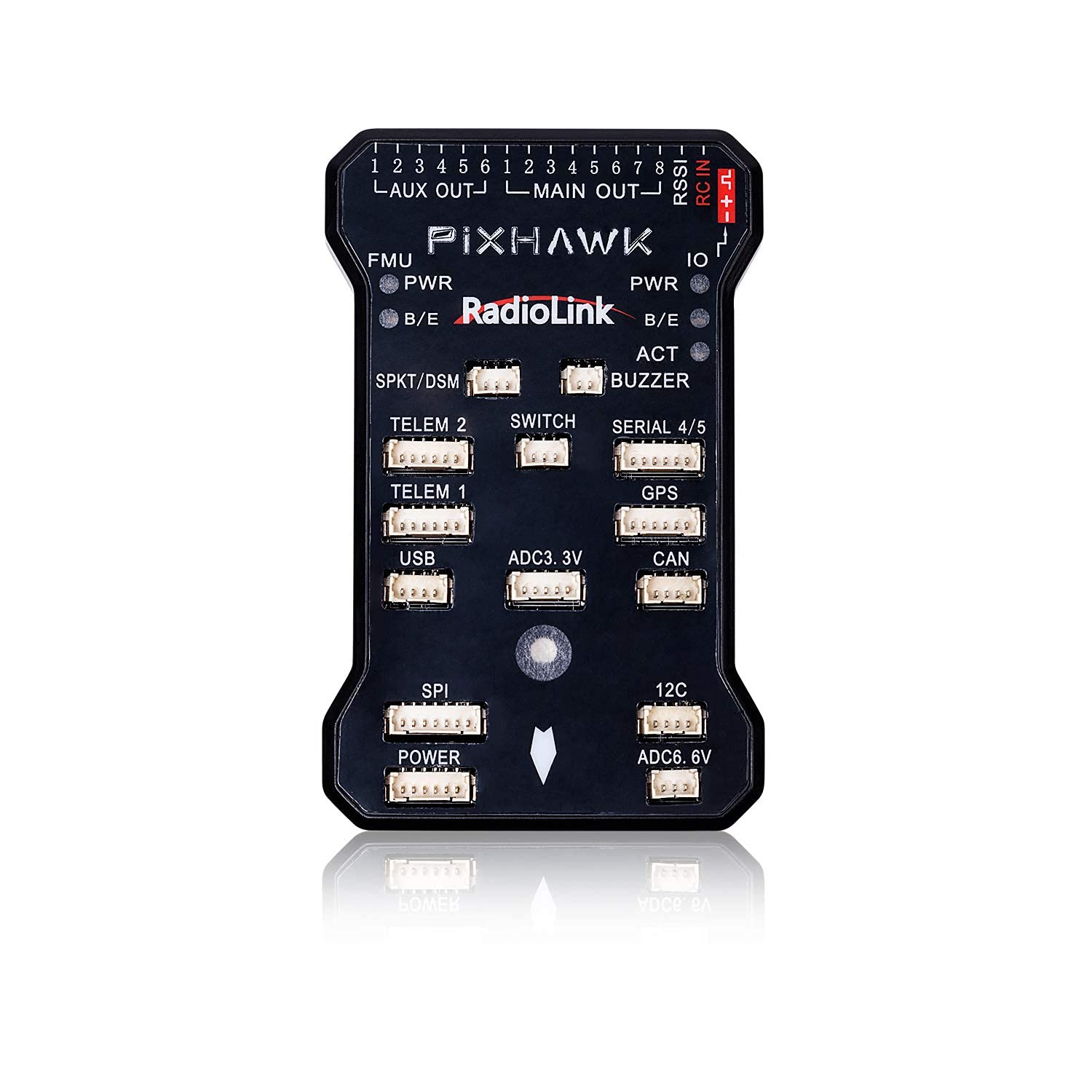

تصویر 3.1: ایک دھماکہ ہوا۔ view of the PIXHAWK flight controller, highlighting its internal high-end configuration and advanced circuitry for reliable performance.

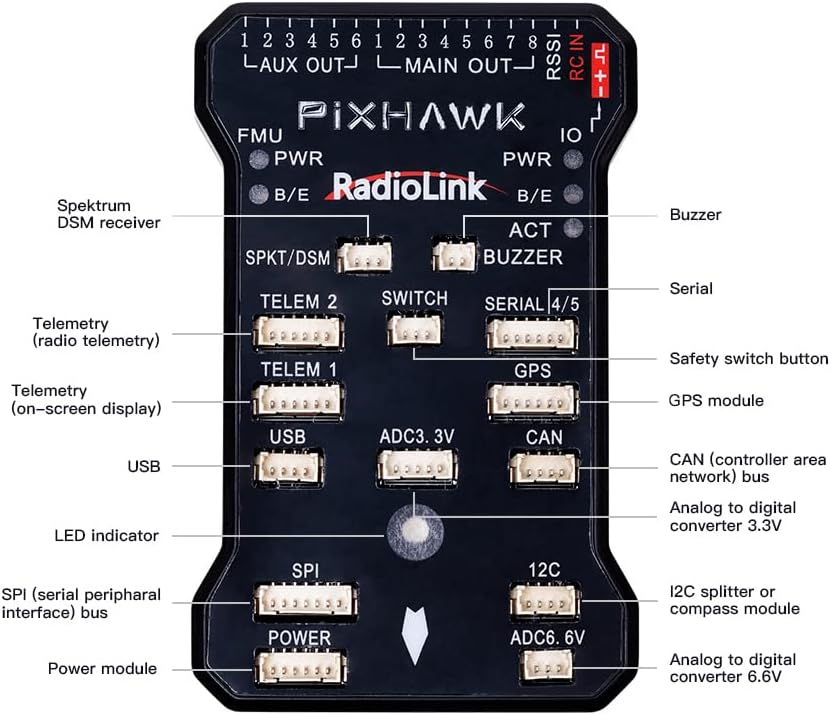

تصویر 3.2: This image provides a detailed layout of the PIXHAWK flight controller's ports, including FMU, PWR, SPKT/DSM, TELEM1, TELEM2, SWITCH, SERIAL 4/5, GPS, USB, ADC3.3V, CAN, SPI, POWER, I2C, and ADC6.6V, along with their respective functions.

تصویر 3.3: The PIXHAWK flight controller's dimensions (6.7"L x 4.2"W x 2"H) are shown, along with examples of compatible long-wheelbase quadcopters and multirotors.

4. سیٹ اپ

4.1. Firmware Update and Compass Calibration

Proper firmware and compass calibration are crucial for safe and stable flight. Follow the steps outlined in the video below for a successful setup.

Steps for Firmware Update:

1. Open the ArduPilot Mission Planner software.
2. Connect the PIXHAWK to your computer via USB. Do NOT click "CONNECT" yet.
3. Navigate to "INITIAL SETUP" > "Install Firmware".
4. Select the corresponding model (e.g., ArduCopter V4.0.7 Quad) to update the latest version online.
5. If prompted "Is this a CubeBlack?", click "No".
6. If prompted "Upload ChibiOS", click "Yes".
7. Wait for the upload to complete.
8. Alternatively, to use firmware V3.X (if V4.0 causes compass issues without an external GPS module), click "Download Firmwares" and select any version below V4.0 (e.g., stable-3.6.9). Find the "fmv2" file and download "arducopter.apj". Then, click "Load custom firmware" in Mission Planner and open the downloaded .apj file.
9. After successful firmware upload, select the COM port in the upper right corner and click "CONNECT".

Steps for Compass Calibration:

1. In Mission Planner, navigate to "INITIAL SETUP" > "Install Firmware Manifest" > "Compass".
2. Click "Start" to begin the calibration process.
3. Hold the PIXHAWK device in the air and rotate it slowly so that each side (front, back, left, right, top, and bottom) points down towards the earth for a few seconds in turn.
4. During the calibration, observe the green progress bar for Mag 1 moving.
5. If using a GPS module with compass (e.g., SE100), ensure it is connected and its direction is consistent with the PIXHAWK during calibration.
6. Click "OK" when the calibration is finished.

5۔ آپریٹنگ موڈ

The PIXHAWK flight controller supports various flight modes, offering flexibility and stability for different applications. The video below demonstrates some of these modes.

Key Flight Modes:

• Stabilize Mode: This is a basic flight mode where the flight controller automatically levels the aircraft, making it easier to fly. The pilot directly controls the roll, pitch, and yaw.
• Loiter Mode: In Loiter mode, the aircraft maintains its current position, altitude, and heading automatically. This mode is ideal for beginners or for tasks requiring stable hovering, such as aerial photography.
• Return to Launch (RTL): This safety feature allows the aircraft to automatically return to its launch point and land. It is particularly useful in situations where the pilot loses visual contact or needs to bring the drone back safely.
• Waypoint Navigation: The PIXHAWK can be programmed to follow a series of waypoints, enabling autonomous flight missions. This is managed through the ground control station software.

تصویر 5.1: A drone equipped with the PIXHAWK flight controller demonstrates stable flight, showcasing the built-in barometer's ability to reduce airflow interference and maintain altitude hold stabilization.

تصویر 5.2: The PIXHAWK flight controller is shown connected to a laptop running Radiolink's Mission Planner software, illustrating the ease of parameter setting via USB for various flight configurations.

6. وضاحتیں

7 دیکھ بھال

To ensure the longevity and optimal performance of your Radiolink PIXHAWK Flight Controller, regular maintenance is recommended:

• صفائی رکھیں: Regularly clean the flight controller and its components to prevent dust and debris buildup, which can affect sensor performance.
• کنکشن کا معائنہ کریں: Periodically check all cable connections for looseness or damage. Secure any loose connections to prevent intermittent issues during flight.
• فرم ویئر اپ ڈیٹس: Stay updated with the latest stable firmware versions to benefit from performance improvements and bug fixes. Always follow the official update procedures.
• مناسب ذخیرہ: Store the flight controller in a dry, cool environment, away from direct sunlight and extreme temperatures, to prevent damage to electronic components.

8 خرابیوں کا سراغ لگانا

If you encounter issues with your PIXHAWK flight controller, consider the following troubleshooting steps:

• Compass Calibration Issues: If the compass fails to calibrate or shows errors, ensure you are performing the calibration correctly as shown in Video 4.1. If using firmware V4.0 or higher, an external GPS module with a compass might be required, or you may need to revert to a V3.X firmware version.
• No GPS Lock: یقینی بنائیں کہ GPS ماڈیول صاف ہے۔ view of the sky. Interference from other electronic components or indoor environments can prevent a satellite lock.
• کنیکٹیویٹی کے مسائل: Verify that the USB cable is securely connected to both the PIXHAWK and the computer. Check that the correct COM port is selected in Mission Planner.
• Safety Switch Blinking Yellow: This indicates that the flight controller is not ready to arm. Check for any pre-arm checks that are failing (e.g., compass calibration, GPS lock, accelerometer calibration).
• غیر مستحکم پرواز: Re-check all calibrations (accelerometer, compass, radio). Ensure propellers are balanced and correctly installed. Verify that the frame type is correctly configured in the Mission Planner.

9. وارنٹی اور سپورٹ

Radiolink products are covered by a limited warranty against manufacturing defects. For specific warranty terms, technical support, or service inquiries, please refer to the official Radiolink webسائٹ یا ان کی کسٹمر سروس سے براہ راست رابطہ کریں۔ خریداری کے ثبوت کے طور پر اپنی خریداری کی رسید اپنے پاس رکھیں۔
