تعارف
This manual provides essential instructions for the proper installation, operation, and maintenance of your CAMRY Head and Needle 1113 and Cr 1114 phono cartridge and stylus. Designed for optimal audio reproduction, this product is easy to handle and features a modern design. Please read this manual thoroughly before use to ensure correct setup and to maximize the lifespan and performance of your audio component.
اہم خصوصیات:
- ہینڈل کرنے میں آسان
- جدید ڈیزائن
- استعمال میں آسان
پیکیج کے مشمولات
تصدیق کریں کہ پیکیج میں تمام اجزاء موجود ہیں:
- 1 x CAMRY Head and Needle 1113 and Cr 1114 Phono Cartridge Assembly
- 1 x Stylus (needle)
- (Optional: Mounting hardware, if included with your specific purchase)
تصویر 1: The CAMRY Head and Needle 1113 and Cr 1114 phono cartridge assembly. This image displays the complete unit, including the cartridge body (black and red sections) and the stylus assembly (white translucent cover with the cantilever and needle visible). The four pins for electrical connection are visible at the back.
سیٹ اپ اور انسٹالیشن
Proper installation is crucial for optimal sound quality and to prevent damage to your records or equipment.
- بجلی بند: Ensure your turntable is powered off and unplugged from the mains electricity before beginning installation.
- پرانے کارتوس کو ہٹا دیں (اگر قابل اطلاق ہو): Carefully disconnect the wires from your old cartridge. Note the color coding (typically Red for Right+, Green for Right-, White for Left+, Blue for Left-). Unscrew and remove the old cartridge from the headshell.
- Attach New Cartridge:
- Align the CAMRY cartridge with the mounting holes on your turntable's headshell.
- Secure the cartridge using the provided screws and nuts (if applicable). Do not overtighten.
- تاروں کو جوڑیں: Connect the tonearm wires to the corresponding pins on the back of the CAMRY cartridge. Match the colors:
- Red wire to R+ (Right Channel Positive)
- Green wire to R- (Right Channel Ground)
- White wire to L+ (Left Channel Positive)
- Blue wire to L- (Left Channel Ground)
- Stylus Installation: If the stylus is separate, gently slide it onto the cartridge body until it clicks securely into place. Avoid touching the needle tip.
- Alignment and Tracking Force:
- Refer to your turntable's manual for specific instructions on cartridge alignment (e.g., using a protractor) and setting the tracking force.
- The recommended tracking force for this cartridge is typically between 1.5 to 2.5 grams. Start with the manufacturer's recommended setting for your turntable or cartridge.
- Adjust anti-skate according to your turntable's instructions, usually matching the tracking force.

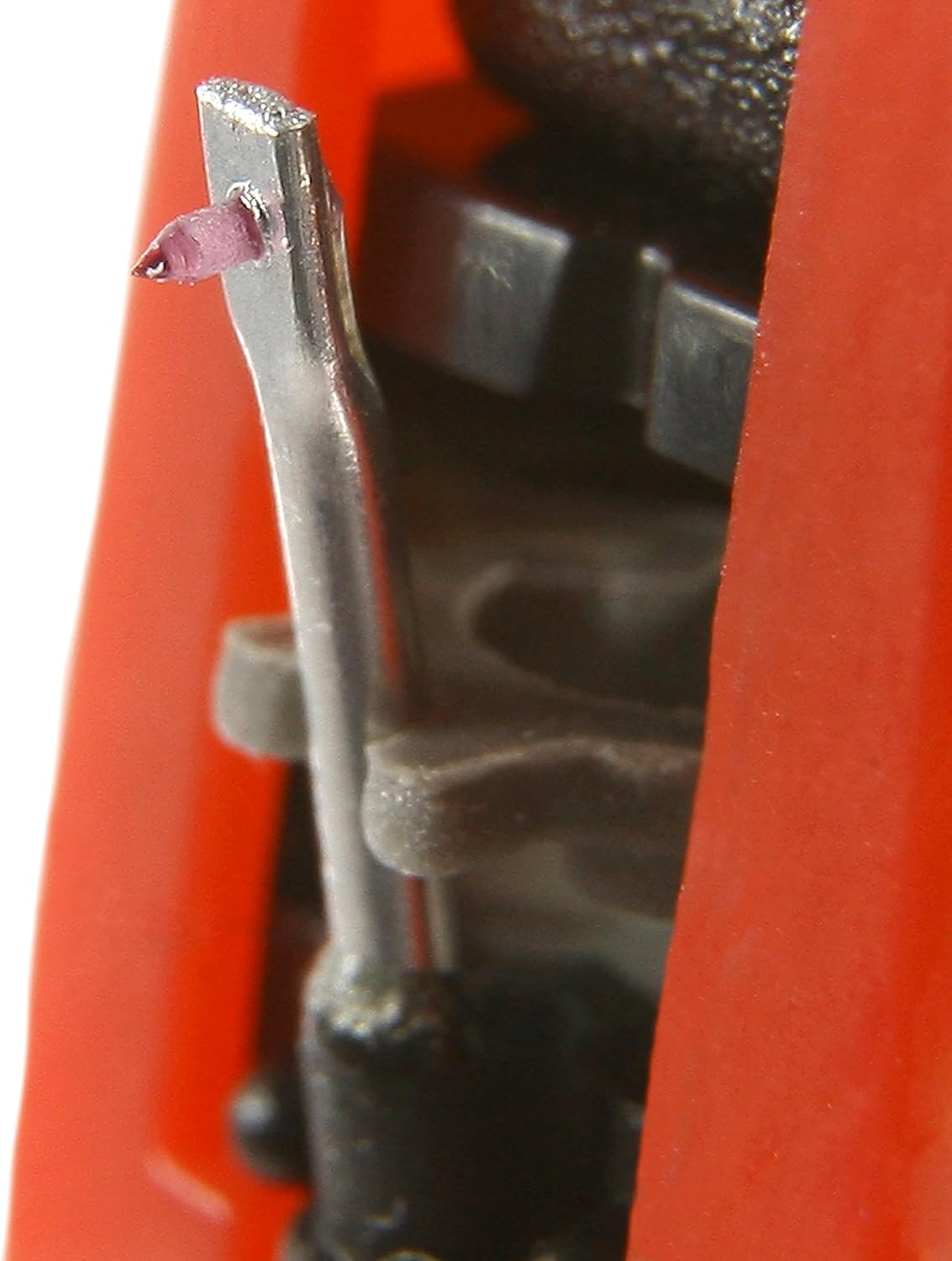

تصویر 2: ایک قریبی اپ view of the CAMRY stylus (needle) tip. This image highlights the delicate cantilever and the small, conical or elliptical diamond tip responsible for tracking the record grooves. Handle with extreme care.
آپریٹنگ ہدایات
Once installed and aligned, your CAMRY cartridge is ready for use.
- Clean Records: Always ensure your records are clean and free of dust before playing to prevent damage to both the record and the stylus.
- Lower Tonearm Gently: Use the tonearm lift mechanism on your turntable to gently lower the stylus onto the record's lead-in groove. Avoid dropping the tonearm manually, as this can damage the stylus or record.
- پلے بیک: Allow the record to play through.
- ٹونآرم اٹھانا: At the end of the record, use the tonearm lift to raise the stylus from the record surface. Return the tonearm to its rest.
نوٹ: For optimal sound quality and to extend stylus life, avoid back-cueing or scratching with the stylus.
دیکھ بھال
Regular maintenance ensures consistent performance and extends the life of your stylus and records.
- اسٹائلس کی صفائی:
- Gently clean the stylus tip before or after each play using a dedicated stylus cleaning brush. Brush from back to front (from the pivot point towards the tip) only.
- For stubborn dirt, use a specialized stylus cleaning fluid sparingly, applied to the brush, not directly to the stylus.
- Never use your fingers to clean the stylus.
- Cartridge Body: Wipe the cartridge body with a soft, dry, lint-free cloth if it becomes dusty.
- Stylus Inspection: Periodically inspect the stylus tip for wear or damage using a magnifying glass. A worn stylus can damage your records and degrade sound quality. Replace the stylus if it appears worn or bent.
- ذخیرہ: When not in use, ensure the tonearm is secured in its rest and, if available, use the stylus guard to protect the needle.
خرابی کا سراغ لگانا
اگر آپ کو مسائل درپیش ہیں تو درج ذیل عام مسائل اور حل کا حوالہ دیں:
| مسئلہ | ممکنہ وجہ | حل |
|---|---|---|
| ایک چینل سے کوئی آواز یا کمزور آواز نہیں۔ | Loose or incorrect wire connection; damaged stylus/cartridge | Check all wire connections to the cartridge and tonearm. Ensure they are secure and correctly matched (L+/L-, R+/R-). Inspect stylus for damage. |
| مسخ شدہ آواز یا اچھلنا | Incorrect tracking force; dirty or worn stylus; dirty record; incorrect anti-skate | Verify tracking force setting. Clean stylus. Clean record. Adjust anti-skate. Inspect stylus for wear. |
| گنگنانا یا گونجنے والا شور | Grounding issue; interference; loose connections | اس بات کو یقینی بنائیں کہ ٹرن ٹیبل آپ کے لئے مناسب طریقے سے گراؤنڈ ہے۔ amplifier/receiver. Check all audio cable connections. Move turntable away from other electronic devices. |
| Stylus ٹریکنگ نالی نہیں ہے۔ | Incorrect tracking force; damaged stylus; tonearm balance issue | Re-balance tonearm and reset tracking force. Inspect stylus for damage. |
If problems persist after attempting these solutions, consult a qualified audio technician or contact CAMRY customer support.
وضاحتیں
| فیچر | تفصیل |
|---|---|
| برانڈ | کیمری |
| ماڈل کا نام | 1113 and Cr 1114 |
| آئٹم ماڈل نمبر | camry_CR 1113.1 |
| رنگ | ملٹی کلر |
| مواد | شیشہ (Note: This likely refers to the stylus tip material, e.g., sapphire or diamond, often described as 'glass' in general terms.) |
| پروڈکٹ کے طول و عرض (L x W x H) | 11.81 x 11.81 x 3.94 inches (Note: This dimension seems unusually large for a cartridge and may refer to packaging. Actual cartridge dimensions are much smaller.) |
| شے کا وزن | 0.704 اونس (تقریباً 20 گرام) |
| کارخانہ دار | Adler Itd |
| پہلی تاریخ دستیاب ہے۔ | 22 اکتوبر 2018 |
وارنٹی اور سپورٹ
Specific warranty information for the CAMRY Head and Needle 1113 and Cr 1114 is not provided in this manual. Please refer to your purchase documentation or the retailer's website for details regarding warranty coverage.
For technical support, inquiries, or to report issues, please contact the retailer from whom you purchased the product or visit the official CAMRY brand webکسٹمر سروس سے رابطہ کی معلومات کے لیے سائٹ۔
