Sony HT-S350 2.1ch ساؤنڈ بار سسٹم وائرلیس سب ووفر انسٹرکشن مینوئل کے ساتھ

تعارف

This manual provides essential information for the safe and efficient use of your Sony HT-S350 2.1ch Soundbar System. Please read it thoroughly before operating the product and retain it for future reference.

The Sony HT-S350 system enhances your audio experience with a 2.1 channel soundbar and a powerful wireless subwoofer, delivering 320W total output. It features HDMI ARC for simplified connectivity and S-Force Pro Front Surround technology for an immersive soundstage.

باکس میں کیا ہے۔

• ساؤنڈ بار یونٹ
• وائرلیس سب ووفر
• Remote Commander (RMT-AH500U)
• Batteries for Remote Commander (2 AAA)
• آپٹیکل کیبل
• وال ماؤنٹ ٹیمپلیٹ

سیٹ اپ

1. مقام

Place the soundbar centrally below your TV. The wireless subwoofer can be placed anywhere in the room where a power outlet is available, ideally near the soundbar for optimal bass integration.

Image: Sony HT-S350 Soundbar and Wireless Subwoofer positioned in a living room setup.

2. رابطے

درج ذیل طریقوں میں سے ایک کا استعمال کرتے ہوئے ساؤنڈ بار کو اپنے ٹی وی سے جوڑیں:

HDMI ARC (تجویز کردہ)

For optimal audio and control, connect an HDMI cable (not included) from the HDMI OUT (TV (ARC)) port on the soundbar to the HDMI ARC port on your TV. This allows for one-cable audio and control synchronization.

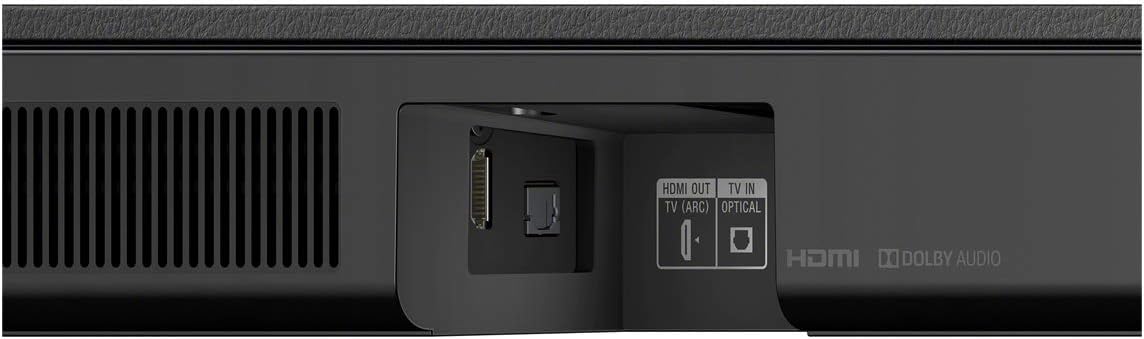

Image: Close-up of the soundbar's rear panel, highlighting the HDMI OUT (TV (ARC)) and TV IN (OPTICAL) ports.

آپٹیکل کیبل

If your TV does not support HDMI ARC, connect the supplied optical cable from the TV IN (OPTICAL) port on the soundbar to the optical digital output port on your TV.

3. پاور آن

Plug the soundbar and wireless subwoofer into separate AC outlets. The subwoofer will automatically pair with the soundbar upon powering on.

آپریٹنگ ہدایات

ریموٹ کنٹرول کے افعال

Use the supplied Remote Commander (RMT-AH500U) to control various settings:

• Power (TV/Soundbar): Turns the TV and soundbar on/off.
• بلوٹوتھ: بلوٹوتھ پیئرنگ موڈ کو فعال کرتا ہے۔
• سنیما: Optimizes sound for movies.
• Auto Sound: مواد کی بنیاد پر آواز کی ترتیبات کو خودکار طور پر ایڈجسٹ کرتا ہے۔
• موسیقی: Enhances audio for music playback.
• آواز: Isolates and amplifies voices for clearer dialogue.
• رات: رات گئے سننے کے لیے آواز کو ایڈجسٹ کرتا ہے۔
• SW +/-: سب ووفر والیوم لیول کو ایڈجسٹ کرتا ہے۔
• آڈیو: Selects audio input.
• گیم: Optimizes sound for gaming.
• خبریں: Enhances dialogue clarity for news programs.
• کھیل: کھیلوں کی نشریات کے لیے آواز کو بہتر بناتا ہے۔
• معیاری: ایک متوازن آواز فراہم کرتا ہے۔file.
• Secure Link Indicators: کنکشن کی حیثیت دکھاتا ہے۔

بلوٹوتھ سٹریمنگ

To stream audio from your smartphone or tablet:

1. Press the Bluetooth button on the remote or soundbar to enter pairing mode.
2. On your mobile device, search for and select "HT-S350" from the list of available Bluetooth devices.
3. Once paired, audio from your device will play through the soundbar system.

دیکھ بھال

اپنے ساؤنڈ بار سسٹم کی لمبی عمر اور بہترین کارکردگی کو یقینی بنانے کے لیے:

• Keep the units clean by wiping them with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Ensure proper ventilation around both the soundbar and subwoofer to prevent overheating.
• Protect the units from direct sunlight, extreme temperatures, and moisture.

خرابی کا سراغ لگانا

کوئی آواز نہیں۔

• Check that both the soundbar and TV are powered on.
• Verify that the correct input source is selected on the soundbar (e.g., TV, Bluetooth).
• Ensure all cables (HDMI, Optical) are securely connected.
• If using HDMI ARC, confirm that ARC is enabled in your TV's audio settings.

سب ووفر کنیکٹ نہیں ہو رہا ہے۔

• Ensure the subwoofer is plugged into a working power outlet.
• The subwoofer should automatically pair. If not, refer to the full user manual for manual pairing instructions.
• Check for any obstructions or interference between the soundbar and subwoofer.

ناقص بلوٹوتھ کنکشن

• Ensure your Bluetooth device is within range (typically 10 meters) of the soundbar.
• Avoid placing the soundbar near other wireless devices that may cause interference.
• Try unpairing and re-pairing your device.

وضاحتیں

وارنٹی اور سپورٹ

This product comes with a limited warranty. For detailed warranty information, please refer to the warranty card included in the product packaging or visit the official Sony support webسائٹ

For further assistance, troubleshooting, or product inquiries, please visit the ایمیزون پر سونی اسٹور or contact Sony customer support.
