Amewi AMXRock RCX10B Scale Crawler Pick-Up 1:10 RTR User Manual

1. حفاظتی معلومات

This product is a sophisticated hobby model and not a toy. It requires careful operation and basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or property.

• عمر کی پابندی: Do not give this model to children under 14 years of age. Only allow children to play under direct adult supervision.
• آپریٹنگ ماحول: Operate the vehicle in open areas, away from people, pets, vehicles, and water. Avoid public roads and crowded spaces.
• پانی کی نمائش: While the vehicle may have some water-resistant components, it is not fully waterproof. Avoid submerging the vehicle in water to prevent damage to electronics.
• بیٹری کی حفاظت: Always follow battery manufacturer's instructions for charging, handling, and storage. Use only approved chargers and batteries.
• حرکت پذیر حصے: Keep fingers, hair, and loose clothing away from all moving parts, especially the wheels and drivetrain, to prevent injury.
• حرارت: The motor and electronic speed controller (ESC) can become hot during operation. Allow components to cool before handling.

2. پیکیج کے مشمولات

براہ کرم پیکیج کے مواد کا بغور معائنہ کریں تاکہ یہ یقینی بنایا جا سکے کہ تمام اشیاء موجود ہیں اور بغیر کسی نقصان کے۔

• 1 x Amewi AMXRock RCX10B Scale Crawler (fully assembled)
• 4 x Tyres / Rims (diameter: 110 mm, super soft)
• 1 x 2.4 GHz ریموٹ کنٹرول
• 1 x User Manual (German/English)

Note: Batteries for the vehicle and remote control are typically sold separately unless specified as 'RTR' (Ready-to-Run) with included batteries. Please check your specific product variant.

3. سیٹ اپ

3.1 ابتدائی معائنہ

Before first use, visually inspect the vehicle for any loose screws, damaged wires, or misaligned parts that may have occurred during shipping. Ensure all linkages and suspension components move freely.

3.2 Battery Installation (Vehicle)

Locate the battery compartment, typically under the vehicle body. Securely connect your charged Li-Po battery to the ESC (Electronic Speed Controller) using the Deans connector. Ensure the battery is properly secured within the compartment to prevent movement during operation.

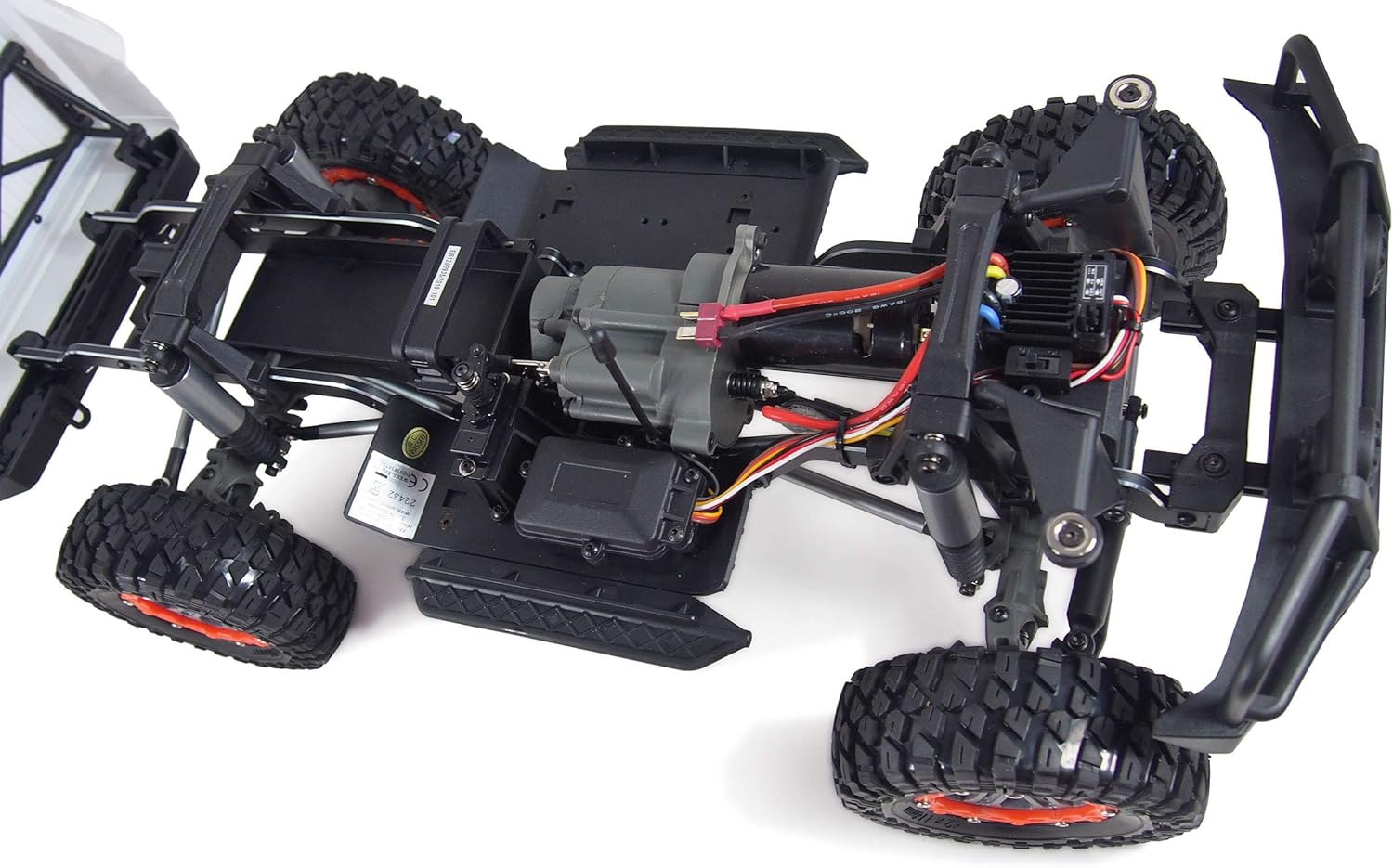

تصویر: اوپر view of the chassis, highlighting the battery placement area and electronic components.

3.3 بیٹری کی تنصیب (ریموٹ کنٹرول)

Open the battery compartment on the back of the 2.4 GHz remote control. Insert the required batteries (usually AA or AAA, not included) according to the polarity markings. Close the compartment securely.

3.4 ریموٹ کنٹرول کی جوڑی

Most 2.4 GHz systems automatically pair. Turn on the remote control first, then the vehicle. If pairing is not automatic, refer to the specific remote control manual for binding instructions. Ensure the vehicle's wheels are off the ground during initial power-up to prevent accidental movement.

4. آپریٹنگ ہدایات

4.1 بنیادی کنٹرولز

• تھروٹل ٹرگر: آگے بڑھنے کے لیے کھینچیں، بریک/ریورس پر دھکیلیں۔
• سٹیئرنگ وہیل: Turn left or right to steer the vehicle. The unique steering damping system provides precise control over rough terrain.
• ٹرم ایڈجسٹمنٹس: Use the steering trim dial on the remote to ensure the wheels are straight when the steering wheel is centered. Use the throttle trim if the vehicle creeps forward or backward when the trigger is neutral.

Image: Detail of the damped steering system and front suspension.

4.2 2-Speed Manual Transmission

The AMXRock RCX10B features a unique 2-speed manual transmission. A dedicated switch or button on your remote control (refer to your remote's manual) allows you to shift between high and low gears. Use low gear for maximum torque and control on challenging climbs and technical terrain. Use high gear for faster speeds on flatter surfaces. It is recommended to stop the vehicle or reduce speed before shifting gears to prevent damage to the transmission.

4.3 Driving Tips for Crawling

• سست اور مستحکم: Crawlers excel at slow, controlled movements. Avoid sudden throttle inputs.
• لائن کا انتخاب: Observe the terrain and choose the best line to navigate obstacles.
• وزن کی منتقلی: Use subtle throttle and steering inputs to shift the vehicle's weight and maintain traction.
• پورٹل ایکسل: The portal axles provide increased ground clearance, allowing the vehicle to clear larger obstacles.
• Locked Diffs: The permanently locked axles (differentials) ensure maximum traction on uneven surfaces.

تصویر: نیچے view of the chassis, showing the robust drivetrain and portal axles.

5 دیکھ بھال

5.1 صفائی

After each use, especially in dirty or wet conditions, clean the vehicle. Use a soft brush or compressed air to remove dirt, dust, and debris from the chassis, suspension, and motor area. Avoid using water directly on electronics.

5.2 معائنہ

Regularly inspect the following components:

• Screws and Fasteners: Check for any loose screws, especially on the wheels, suspension, and chassis. Tighten as necessary.
• ڈرائیو ٹرین: Inspect CVD drive shafts and gears for wear or damage.
• معطلی: Check the oil pressure shock absorbers for leaks or damage. Ensure they move smoothly.
• وائرنگ: Look for frayed or damaged wires, especially around the motor and ESC.
• ٹائر: Check for wear, tears, or punctures.

Image: Detail of the wheel and hub assembly.

5.3 چکنا

Apply a small amount of appropriate RC-grade lubricant to moving metal parts, such as universal joints and bearings, as needed. Avoid over-lubrication, which can attract dirt.

5.4 اسٹوریج

When not in use, store the vehicle in a cool, dry place away from direct sunlight. Remove batteries from both the vehicle and the remote control for long-term storage.

6 خرابیوں کا سراغ لگانا

If you encounter issues not listed here, or if the problem persists after attempting these solutions, please contact Amewi customer support.

7. وضاحتیں

Image: Dimensional diagram of the Amewi AMXRock RCX10B.

8. وارنٹی اور سپورٹ

For warranty information, technical support, or spare parts, please refer to the official Amewi webسائٹ یا اپنے مجاز ڈیلر سے رابطہ کریں۔ وارنٹی کے دعووں کے لیے اپنی خریداری کا ثبوت رکھیں۔

Amewi is committed to providing high-quality products and customer satisfaction. Do not attempt to modify or repair the vehicle beyond the scope of this manual, as this may void your warranty.
