DMB-8800A Premium H.264 High Profile HDMI AV with WiFi RTSP Video Streaming Encoder IPTV Live Streaming

1. تعارف

The DTVANE DMB-8800A is a high-performance H.264/AVC video streaming encoder designed for professional IPTV and live streaming applications. It supports multiple video inputs including HDMI and CVBS, and outputs streams over IP using various protocols such as RTSP, HTTP, UDP, and RTMP. This device is ideal for broadcasting, surveillance, and other scenarios requiring reliable and high-quality video encoding and distribution.

This manual provides detailed instructions for setting up, operating, and maintaining your DMB-8800A encoder, ensuring optimal performance and longevity.

2. کلیدی خصوصیات

• Input Versatility: Equipped with 1 HDMI input and 2 CVBS inputs for diverse source compatibility.
• Robust IP Output: Supports TS over IP output (1000M) with HTTP, UDP, RTSP, RTMP, and ONVIF protocols.
• HDCP سپورٹ: Compatible with High-bandwidth Digital Content Protection for secure content transmission.
• Multi-Stream Capability: Capable of outputting up to 4 TS over IP streams from each HDMI/CVBS input simultaneously.
• Optimized Streaming: Delivers low bitrate streams with high-quality image retention.
• وائرلیس رابطہ: Integrated Wi-Fi support for flexible network deployment.
• کراس پلیٹ فارم مطابقت: Supports simultaneous display on multiple devices and is compatible with Windows XP/VISTA/SERVER2003/SERVER2008/WIN7 (32/64-bit) and LINUX operating systems.

3. Product Components and Interfaces

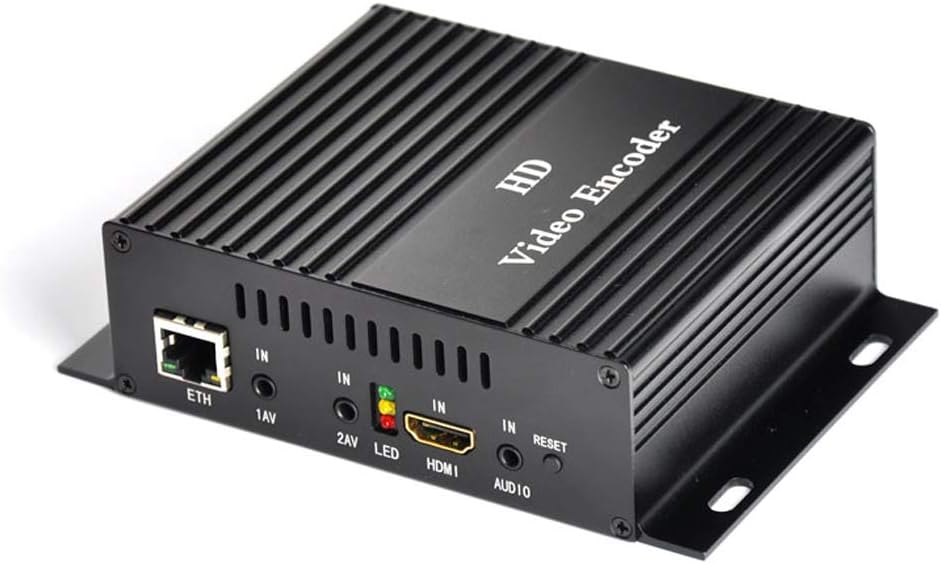

تصویر 3.1: سامنے والا view of the DMB-8800A Video Encoder. This image displays the compact design and the primary input/output ports on the front panel, including Ethernet, AV inputs, HDMI, and audio input.

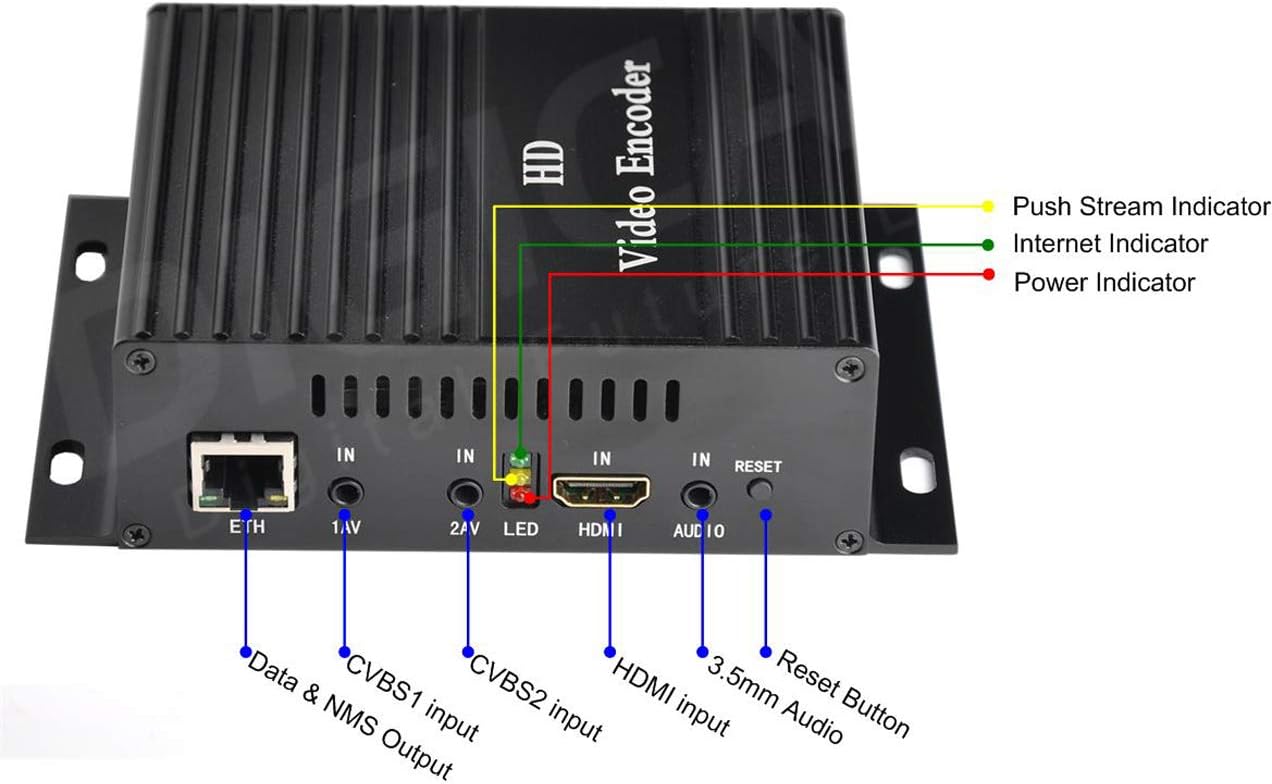

تصویر 3.2: تفصیلی view of the DMB-8800A encoder's front panel with labeled ports and indicators. This image highlights the Ethernet (ETH) port, CVBS1 input (1AV), CVBS2 input (2AV), LED indicators (Power, Internet, Push Stream), HDMI input, 3.5mm Audio input, and Reset button.

• ETH: Ethernet port for network connection and NMS (Network Management System) output.
• 1AV / 2AV: CVBS (Composite Video Broadcast Signal) inputs for analog video sources.
• ایل ای ڈی: Indicator lights for Power (Red), Internet (Green), and Push Stream (Yellow).
• HDMI: High-Definition Multimedia Interface input for digital video and audio sources.
• آڈیو: 3.5mm audio input jack.
• دوبارہ تلاش کریں: ڈیوائس کو فیکٹری سیٹنگز پر ری سیٹ کرنے کے لیے بٹن۔

تصویر 3.3: Various perspectives of the DMB-8800A encoder, showcasing its compact form factor and heat dissipation design. This provides a comprehensive view of the device's physical attributes.

تصویر 3.4: Internal block diagram illustrating the video and audio processing flow within the DMB-8800A encoder. It shows the path from HDMI and CVBS inputs through H.264, AAC, and MP3 encoding, synchronization, encapsulation, and finally to IP output via various protocols.

تصویر 3.5: Typical application diagram for the DMB-8800A encoder. This diagram demonstrates how the encoder integrates into a streaming ecosystem, showing signal sources (PC, DVD player, CCTV camera), the encoder, WAN connection to servers (Wowza, FMS, Youtube, Facebook, Ustream, ISS-9000 IPTV), and various receiving devices (PC, IPTV & OTT box, Smart Phone, Smart TV).

4. سیٹ اپ ہدایات

Follow these steps to set up your DMB-8800A encoder:

1. ویڈیو کا ماخذ مربوط کریں: Connect your HDMI or CVBS video source(s) to the corresponding input ports (HDMI, 1AV, 2AV) on the front panel of the encoder.
2. آڈیو ماخذ کو مربوط کریں: If using an external audio source, connect it to the 3.5mm AUDIO input jack. If using HDMI, audio will be embedded with the video signal.
3. نیٹ ورک کنکشن: Connect an Ethernet cable from the ETH port on the encoder to your network router or switch. For Wi-Fi setup, refer to the web-based configuration interface after initial power-up.
4. پاور آن: Connect the 12V DC power adapter to the encoder's power input and then plug it into a power outlet. The Power LED (Red) should illuminate.
5. رسائی Web انٹرفیس: Once powered on and connected to the network, use a web browser on a computer connected to the same network to access the encoder's web-based configuration interface. The default IP address can usually be found in the quick start guide or by using a network scanning tool.

ڈیوائس کو پاور کرنے سے پہلے یقینی بنائیں کہ تمام کنکشن محفوظ ہیں۔

5. آپریشن گائیڈ

The DMB-8800A encoder is primarily configured and operated via its web-based interface. Below are key operational aspects:

5.1 ویڈیو کنفیگریشن

• ویڈیو کمپریشن: H.264/AVC ہائی پروfile لیول 4.0۔
• ان پٹ موڈ: Supports PAL and NTSC for CVBS inputs.
• قرارداد کی ترتیبات:
  • HD Main Stream: 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, auto.
  • HD Sub-Stream: 1280x720, 800x450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x300, 352x288, 320x240, 320x180, auto.
  • CVBS Main Stream (NTSC): 720x480, 640x480.
  • CVBS Main Stream (PAL): 720x576, 704x576.
  • CVBS Sub-Stream (NTSC): 320x240۔
  • CVBS Sub-Stream (PAL): 352x288۔
• بٹ ریٹ: Configurable from 16kbps to 12Mbps, supporting CBR (Constant Bit Rate) and VBR (Variable Bit Rate) modes.
• Video Pre-processing: Features include Noise reduction, Sharpening, and Filtering for enhanced video quality.

5.2 آڈیو کنفیگریشن

• آڈیو کمپریشن: Supports AAC and MP3 formats.
• Sampزبان کی شرح: Adaptive, with selectable re-sampاختیارات.
• Sampلنگ کی درستگی: 24 بٹ۔
• بٹ ریٹ: Selectable options including 48000, 64000, 96000, 128000, 160000, 192000, 256000.
• Re-sampقیمتیں: 32000، 44100۔

5.3. IP Output and Protocols

• ٹرانسپورٹ پروٹوکول: TS over IP output, supporting RTSP, HTTP, UDP, and RTMP protocols.
• Multi-Stream Output:
  • HD to IP Output: 4*TS over IP streams (HTTP/RTSP/UDP or RTMP protocol). Typically, 2 channels with higher resolution (up to 1080P) for large screen applications and 2 channels with lower resolution (up to 720P) for small screen applications.
  • CVBS to IP Output: 4*TS over IP streams (HTTP/RTSP/UDP or RTMP protocol). Typically, 2 channels with higher resolution (D1) for large screen applications and 2 channels with lower resolution (CIF) for small screen applications.
• کنیکٹر: RJ45, 100M Ethernet.

Detailed configuration of these parameters, including network settings, stream destinations, and advanced features, is performed through the intuitive web-based management interface. Refer to the on-screen help within the interface for specific parameter definitions and recommended settings.

6. تکنیکی تفصیلات

7 دیکھ بھال

Proper maintenance ensures the longevity and reliable operation of your DMB-8800A encoder:

• صفائی: Regularly clean the exterior of the device with a soft, dry cloth. Avoid using liquid cleaners or aerosols directly on the unit.
• وینٹیلیشن: Ensure the encoder is placed in a well-ventilated area. Do not block the ventilation slots to prevent overheating.
• ماحولیاتی حالات: Operate the device within the specified temperature range (0~50°C) and avoid environments with high humidity or excessive dust.
• فرم ویئر اپ ڈیٹس: وقتا فوقتا کارخانہ دار کی جانچ کریں۔ website for firmware updates. Updating the firmware via network can improve performance, add features, or resolve issues.

8 خرابیوں کا سراغ لگانا

If you encounter issues with your DMB-8800A encoder, refer to the following common troubleshooting steps:

• کوئی طاقت نہیں:
  • Ensure the power adapter is securely connected to the encoder and a working power outlet.
  • تصدیق کریں کہ پاور آؤٹ لیٹ فعال ہے۔
• No Video Input Signal:
  • Check if the video source (e.g., camera, DVD player) is powered on and outputting a signal.
  • Ensure the HDMI or CVBS cables are securely connected to the correct input ports on the encoder.
  • Verify the input resolution and format are supported by the encoder (refer to Section 6: Technical Specifications).
• کوئی نیٹ ورک کنیکٹیویٹی نہیں:
  • Check the Ethernet cable connection to the ETH port and your router/switch.
  • Verify your network settings (IP address, subnet mask, gateway) in the encoder's web انٹرفیس
  • Ensure your router/switch is functioning correctly.
  • For Wi-Fi, ensure the Wi-Fi module is enabled and correctly configured with your network credentials.
• Streaming Issues (Buffering, Disconnections):
  • اپنے انٹرنیٹ کنکشن کی رفتار اور استحکام کو چیک کریں۔
  • Reduce the video bitrate or resolution in the encoder's settings if your network bandwidth is limited.
  • Verify the streaming server (e.g., RTMP server) is online and correctly configured.
  • Ensure firewall settings on your network or computer are not blocking the streaming protocols.
• Web انٹرفیس ناقابل رسائی:
  • Ensure your computer is on the same network segment as the encoder.
  • Verify the encoder's IP address. If unknown, you may need to use a network scanning tool or reset the device to factory defaults (using the RESET button) to revert to a known default IP.

For persistent issues, consult the manufacturer's support resources or contact technical support.

9. وارنٹی اور سپورٹ

The DTVANE DMB-8800A Video Streaming Encoder comes with a comprehensive warranty and support package:

• مینوفیکچرر وارنٹی: A five-year manufacturer warranty covers defects in materials and workmanship from the date of purchase.
• لائف ٹائم ٹیکنیکل سپورٹ: Enjoy free lifetime technical support for your product. This includes assistance with setup, configuration, troubleshooting, and general inquiries.
• Customization Services: The manufacturer also provides various customization options, such as logo printing, function adjustments, or firmware modifications.

For warranty claims, technical assistance, or customization inquiries, please refer to the contact information provided on the official DTVANE webسائٹ یا آپ کی خریداری کی دستاویزات۔
