Beko RDNE430K12B No Frost Refrigerator User Manual

1. اہم حفاظتی معلومات

Please read this manual thoroughly before operating your appliance to ensure safe and efficient use. Keep these instructions for future reference.

• اس بات کو یقینی بنائیں کہ آلے کو صفائی یا دیکھ بھال سے پہلے ان پلگ کیا گیا ہے۔
• ریفریجرینٹ سرکٹ کو نقصان نہ پہنچائیں۔
• فوڈ سٹوریج ڈبوں کے اندر برقی آلات استعمال نہ کریں جب تک کہ وہ اس قسم کے نہ ہوں جو کارخانہ دار تجویز کرے۔
• یہ آلہ صرف گھریلو استعمال کے لیے ہے۔
• وینٹیلیشن کے سوراخوں کو رکاوٹ سے پاک رکھیں۔

2. سیٹ اپ اور انسٹالیشن

2.1 پیک کھولنا

Remove all packaging materials, tapes, and protective films from the refrigerator. Inspect the appliance for any damage during transit. Report any damage to your retailer immediately.

2.2 جگہ کا تعین

• ریفریجریٹر کو ایک مضبوط، سطح کی سطح پر رکھیں. اگر ضروری ہو تو آلات کو برابر کرنے کے لیے ایڈجسٹ فٹ کا استعمال کریں۔
• Ensure adequate ventilation around the appliance. Maintain a minimum distance of 5 cm (2 inches) from walls and other appliances to allow for proper air circulation.
• Avoid placing the refrigerator near heat sources such as direct sunlight, ovens, or radiators, as this will increase energy consumption.
• The appliance is designed for operation in ambient temperatures between 10°C and 43°C.

شکل 1: بیرونی view of the Beko RDNE430K12B No Frost Refrigerator. This image shows the overall design and black finish of the appliance.

2.3 الیکٹریکل کنکشن

Connect the appliance to a grounded power outlet with a voltage of 240 Volts AC. Ensure the power cord is not trapped or damaged. Do not use extension cords or multiple socket adapters.

2.4 ابتدائی استعمال

After installation, wait at least 4 hours before plugging in the appliance to allow the refrigerant to settle. Once plugged in, allow the refrigerator to operate for 6-12 hours empty to reach its optimal operating temperature before loading with food.

2.5 دروازے کو تبدیل کرنا

This refrigerator features a reversible door, allowing it to open from either the left or right side. If you wish to change the door opening direction, please refer to the detailed instructions provided in the separate installation guide or contact qualified service personnel.

3. اپنا ریفریجریٹر چلانا

3.1 درجہ حرارت کنٹرول

The Beko RDNE430K12B refrigerator uses a mechanical control system with a sensor to regulate temperature. The thermostat dial, typically located inside the refrigerator compartment, allows you to adjust the cooling intensity. Turn the dial to a higher number for colder temperatures and a lower number for warmer temperatures. Start with a medium setting and adjust as needed based on ambient temperature and food load.

3.2 فوڈ اسٹوریج کے رہنما خطوط

خوراک کا مناسب ذخیرہ تازگی کو برقرار رکھنے میں مدد کرتا ہے اور خراب ہونے سے بچاتا ہے۔

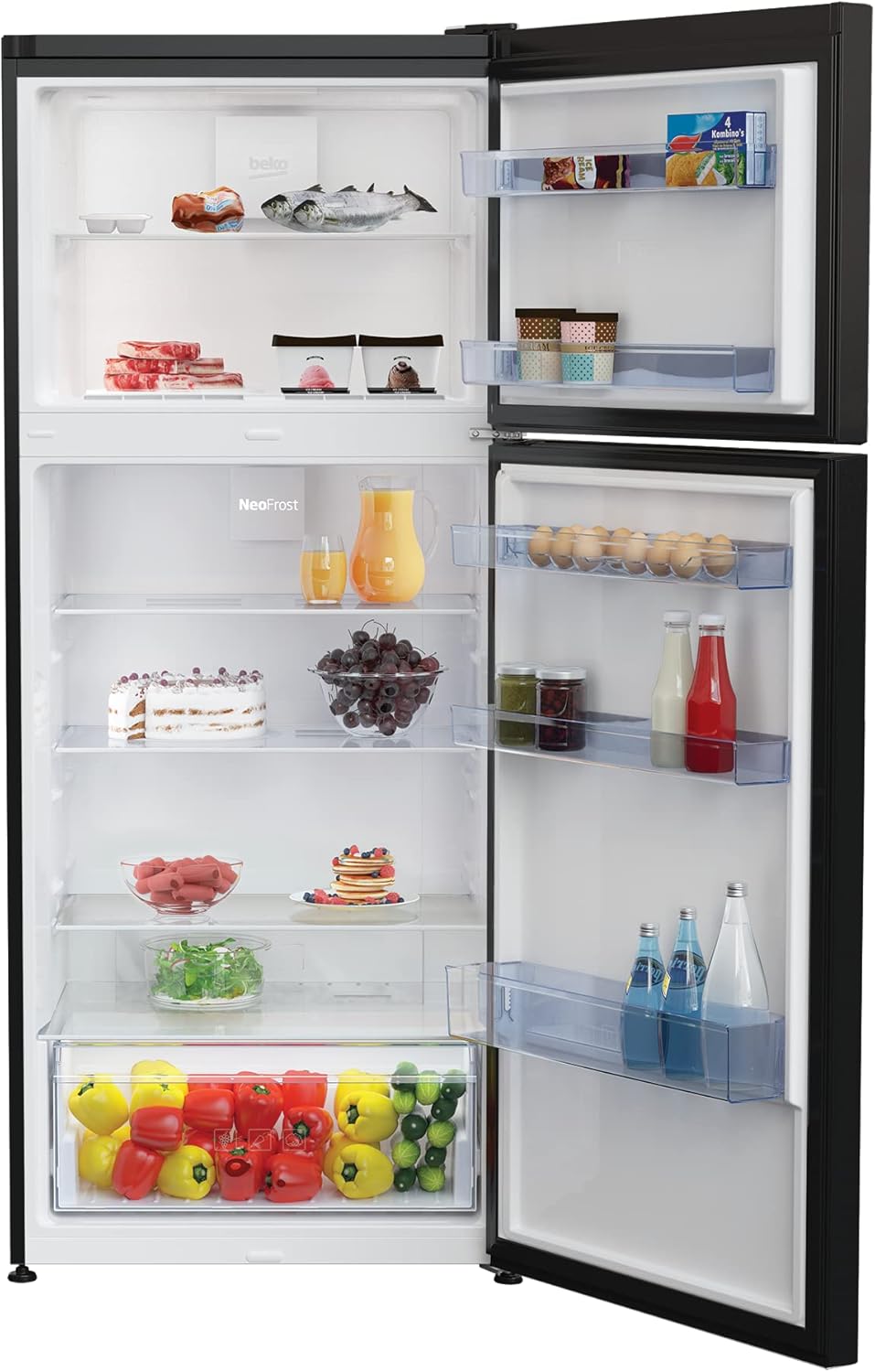

شکل 2: داخلہ view of the Beko RDNE430K12B refrigerator, showing various food items stored on shelves and in door bins. This illustrates typical food placement within the fresh food and freezer compartments.

• Fresh Food Compartment (274 Liters): Store fruits and vegetables in the crisper drawer. Dairy products, cooked foods, and beverages should be placed on the shelves. Ensure food is covered to prevent drying out and odor transfer.
• فریزر کمپارٹمنٹ (93 لیٹر): Use for long-term storage of frozen foods. Ensure packages are sealed to prevent freezer burn. The daily freezing capacity is 6 kg, and daily ice making capacity is 1.5 kg.

3.3 NeoFrost Technology

Your Beko RDNE430K12B refrigerator features NeoFrost technology, which provides two separate cooling systems for the fresh food and freezer compartments. This prevents odor transfer between compartments and maintains optimal humidity levels in the fresh food section, keeping food fresher for longer. The No Frost system eliminates the need for manual defrosting.

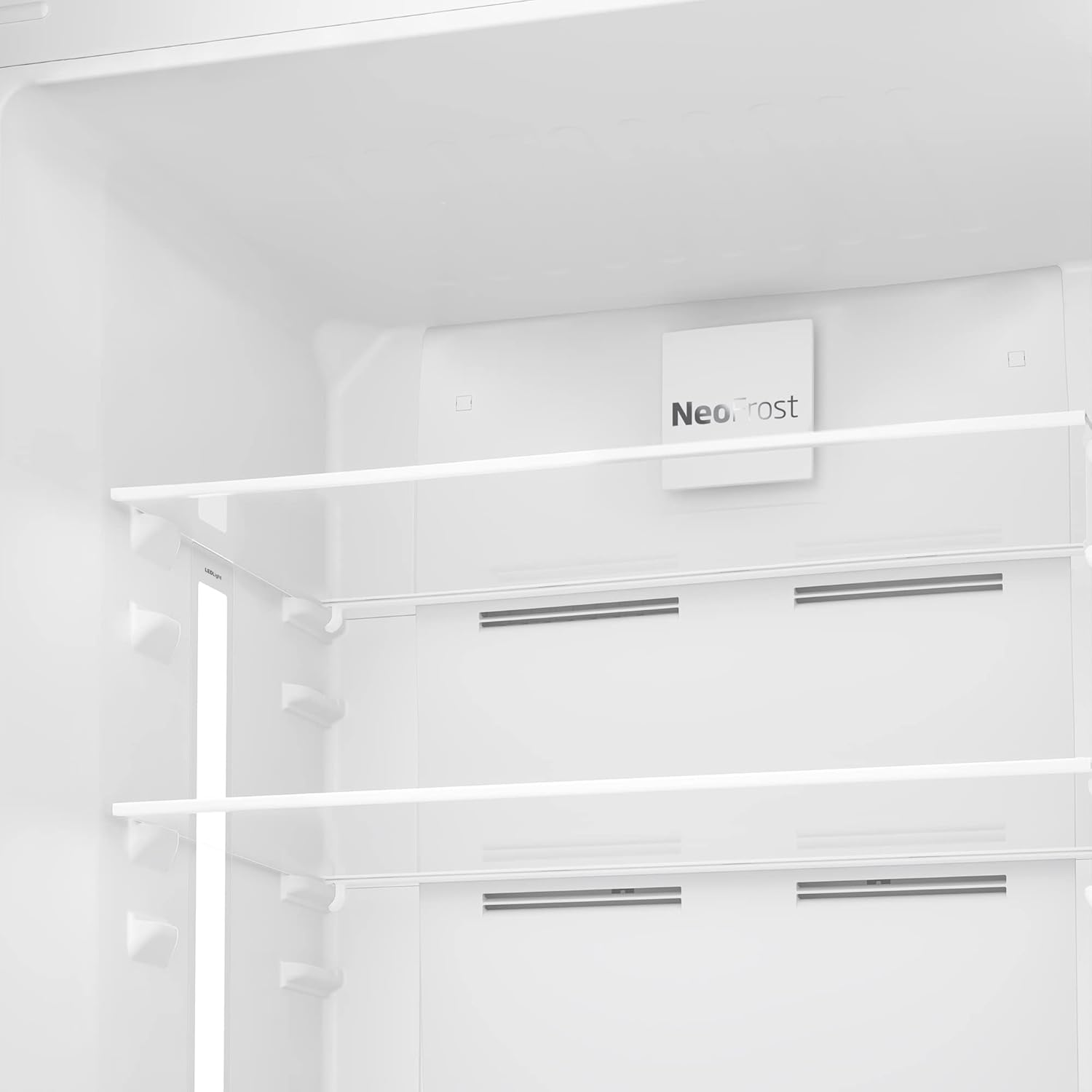

تصویر 3: کلوز اپ view of the "NeoFrost" label inside the refrigerator compartment, indicating the advanced cooling technology.

3.4 اندرونی روشنی

The refrigerator compartment is illuminated by energy-efficient LED lighting located on the left wall, providing clear visibility of the contents.

4. دیکھ بھال اور صفائی

Regular cleaning and maintenance will ensure the longevity and optimal performance of your refrigerator.

• صفائی سے پہلے: صاف کرنے سے پہلے ہمیشہ ریفریجریٹر کو پاور آؤٹ لیٹ سے ان پلگ کریں۔
• داخلہ کی صفائی: Wipe the interior surfaces with a soft cloth dampened with a solution of warm water and a mild, non-abrasive detergent. Rinse with clean water and dry thoroughly. Do not use harsh chemicals or abrasive cleaners.
• بیرونی صفائی: Clean the exterior surfaces with a soft cloth and a mild detergent. For the black finish, avoid abrasive materials that could scratch the surface.
• دروازے کی مہریں: Regularly check and clean the door gaskets to ensure they are free from food particles and remain flexible. Clean with warm soapy water and dry thoroughly. The anti-bacterial gasket helps prevent bacterial growth.
• Anti-bacterial Odor Filter: The refrigerator is equipped with an anti-bacterial odor filter. Refer to the full product manual for instructions on cleaning or replacing this filter, if applicable.
• فراسٹ سسٹم نہیں: As this is a No Frost appliance, manual defrosting of the freezer compartment is not required.

5 خرابیوں کا سراغ لگانا

سروس سے رابطہ کرنے سے پہلے، براہ کرم درج ذیل عام مسائل اور حل چیک کریں:

اگر ان پوائنٹس کو چیک کرنے کے بعد بھی مسئلہ برقرار رہتا ہے، تو براہ کرم مجاز سروس کے اہلکاروں سے رابطہ کریں۔

6. وضاحتیں

Key technical specifications for the Beko RDNE430K12B Refrigerator:

7. وارنٹی اور سپورٹ

Your Beko RDNE430K12B Refrigerator is covered by a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms, conditions, and duration of coverage.

For technical assistance, service requests, or to purchase genuine spare parts, please contact Beko customer support or an authorized service center in your region. Contact details can typically be found on the Beko official webسائٹ یا آپ کی وارنٹی دستاویزات میں۔
