MOFii Wireless Keyboard and Mouse Combo Instruction Manual

تعارف

This manual provides detailed instructions for the MOFii 2.4GHz Wireless Keyboard and Mouse Combo, Model 4056. Please read this manual carefully before using the product to ensure proper operation and longevity.

پیکیج کے مشمولات

• MOFii Wireless Keyboard
• MOFii Wireless Mouse
• 2.4GHz USB Nano Receiver
• صارف دستی (یہ دستاویز)

سیٹ اپ کی ہدایات

1. بیٹریاں انسٹال کریں:
   • Open the battery compartment on the underside of the keyboard and mouse.
   • مطلوبہ بیٹریاں ڈالیں۔
   • درست قطبیت (+/-) کو یقینی بنائیں۔
   • بیٹری کی ٹوکری بند کریں۔
2. USB وصول کنندہ کو مربوط کریں:
   • Locate the 2.4GHz USB Nano Receiver. It is often stored within the mouse's battery compartment.
   • Plug the USB receiver into an available USB port on your computer, laptop, or smart TV.
   • The system should automatically detect and install the necessary drivers.
3. پاور آن:
   • Turn on the keyboard and mouse using their respective power switches (if available).
   • The devices should connect automatically to the receiver.

Image: MOFii Wireless Keyboard and Mouse connected to a laptop, illustrating the 2.4GHz USB receiver connection.

Image: Diagram illustrating the 2.4GHz wireless connection between the keyboard, mouse, and a laptop, highlighting stable connection up to 10m/33ft.

آپریٹنگ ہدایات

عام استعمال

The keyboard features a full-size layout with colorful round keys, designed for comfortable typing. The mouse is ergonomically shaped for ease of use.

ہاٹکی کے افعال

The keyboard includes 13 hotkey functions for quick access to various features. Refer to the keycap legends for specific functions (e.g., media control, volume adjustment, web browser access).

Image: The MOFii keyboard highlighting its 13 hotkey functions, designed to enhance productivity and entertainment.

آٹو پاور کی بچت۔

To conserve battery life, both the keyboard and mouse will automatically enter sleep mode after 5 minutes of inactivity. To wake them up, simply press any key on the keyboard or move the mouse.

Image: The keyboard and mouse in a low-light setting, illustrating the intelligent auto-sleep feature that conserves battery power.

دیکھ بھال

کی بورڈ کی صفائی

The keyboard features detachable keycaps for easy cleaning. A brush is included to help remove dust and debris from between the keys.

• Gently pull up the keycaps to remove them.
• Use the provided brush or a soft, dry cloth to clean the keyboard base and keycaps.
• Ensure all parts are dry before reattaching the keycaps.

تصویر: کلوز اپ view of the keyboard demonstrating detachable keycaps and the included cleaning brush for thorough maintenance.

ایرگونومک ڈیزائن

The keyboard is designed with ergonomic considerations, including foldable stands on the underside to adjust the typing angle for improved comfort and reduced wrist pressure.

Image: The underside of the keyboard, highlighting foldable stands and silicone non-slip pads for adjustable height and stability.

خرابی کا سراغ لگانا

• کوئی کنکشن / وقفہ نہیں:
  • یقینی بنائیں کہ USB ریسیور محفوظ طریقے سے کام کرنے والے USB پورٹ میں لگا ہوا ہے۔
  • Check if the keyboard and mouse have fresh batteries and are powered on.
  • Move the devices closer to the USB receiver to ensure they are within the 10m/33ft operating range.
  • USB ریسیور کو مختلف USB پورٹ میں لگانے کی کوشش کریں۔
• چابیاں جواب نہیں دے رہی ہیں:
  • بیٹری کی سطح چیک کریں اور اگر ضروری ہو تو تبدیل کریں۔
  • Ensure the keyboard is not in sleep mode (press any key to wake).
  • Re-pair the keyboard by unplugging and re-plugging the USB receiver.
• ماؤس جواب نہیں دے رہا ہے:
  • بیٹری کی سطح چیک کریں اور اگر ضروری ہو تو تبدیل کریں۔
  • Ensure the mouse is not in sleep mode (move the mouse to wake).
  • Verify the optical sensor on the bottom of the mouse is clean and unobstructed.
  • Re-pair the mouse by unplugging and re-plugging the USB receiver.

وضاحتیں

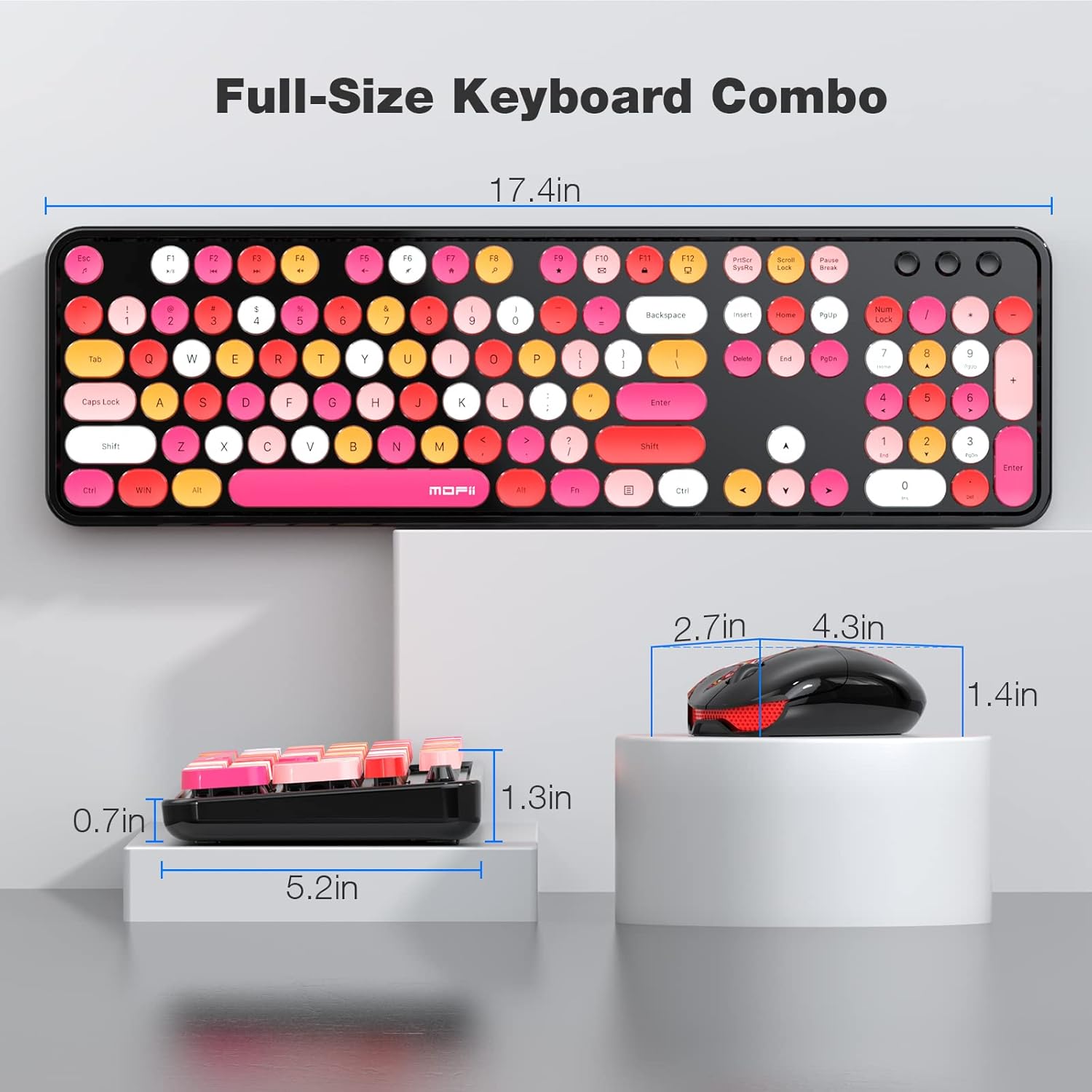

Image: Technical diagram displaying the full-size dimensions of the keyboard (17.4 inches) and mouse (2.7 x 4.3 x 1.4 inches).

مطابقت

The MOFii Wireless Keyboard and Mouse Combo is compatible with the following operating systems:

• ونڈوز 7
• ونڈوز 8
• ونڈوز 10
• Windows XP/Vista
• Works with PC, Laptop, Smart TV.

Note: Not compatible with Apple systems.

Image: Visual representation of the product's wide compatibility with various Windows operating systems and devices like PCs and laptops.

آفیشل پروڈکٹ ویڈیوز

وارنٹی اور سپورٹ

وارنٹی کی معلومات اور کسٹمر سپورٹ کے لیے، براہ کرم مینوفیکچرر کے اہلکار سے رجوع کریں۔ website or contact their customer service directly. The product typically comes with a standard manufacturer's warranty against defects in materials and workmanship.

مزید مدد کے لیے، آپ ملاحظہ کر سکتے ہیں۔ MOFII Store on Amazon.
