besrey Stroller User Manual

1. تعارف اور اوورview

Thank you for choosing the besrey Stroller. This compact and lightweight stroller is designed for comfort, safety, and convenience, suitable for children from newborn (0 months) up to approximately 36 months (maximum 15 kg). Please read this manual thoroughly before assembly and use to ensure proper operation and to prevent injury.

Image 1.1: The besrey stroller shown in both its unfolded and compact folded configurations.

Image 1.2: The besrey stroller in use, demonstrating its design and functionality.

2. حفاظتی انتباہات

ان انتباہات اور ہدایات پر عمل کرنے میں ناکامی سنگین چوٹ یا موت کا باعث بن سکتی ہے۔

• Do not lift the stroller using the front guard while a child is in it.
• ضرورت سے زیادہ طاقت نہ لگائیں۔, such as forcibly pushing down the front guard.
• The basket's weight limit is 2 کلو گرام. Do not place excessive loads in it.
• Do not attach hooks with heavy items to the stroller's push bar. This can cause damage, malfunction, or serious accidents.
• Always ensure the stroller is fully open and locked before placing a child in it.
• Always use the 5-point harness to secure your child.
• اپنے بچے کو سٹرولر میں کبھی بھی لاپرواہ نہ چھوڑیں۔
• Engage the brakes when the stroller is stationary.
• سٹرولر کو ایڈجسٹ کرتے وقت بچوں کو حرکت پذیر حصوں سے دور رکھیں۔

3. مصنوعات کی تفصیلات

Image 3.1: Detailed dimensions and weight capacity of the besrey stroller.

4. اسمبلی اور سیٹ اپ

The besrey stroller comes largely pre-assembled. Follow these steps to prepare it for use:

1. سٹرولر کو کھولنا:
   Locate the lock slider on the handle. Press the button while pushing the lock slider, then lift the handle upwards until you hear a distinct 'click' sound, indicating the stroller is fully open and locked. Ensure all frame components are securely engaged. If it does not open smoothly, refer to the troubleshooting section or contact customer support.
2. Attaching/Removing the Front Guard:
   The front guard can be attached or removed as needed. Align the guard with the attachment points on the stroller frame and push until it clicks into place. To remove, press the release buttons on either side and pull the guard away.
3. چھتری کو ایڈجسٹ کرنا:
   The canopy has a three-stage adjustment. Gently pull or push the canopy to your desired position. Do not pull too hard.
4. Checking the Wheels:
   Ensure all wheels are securely attached and rotate freely. The universal wheels are designed for 360-degree rotation.

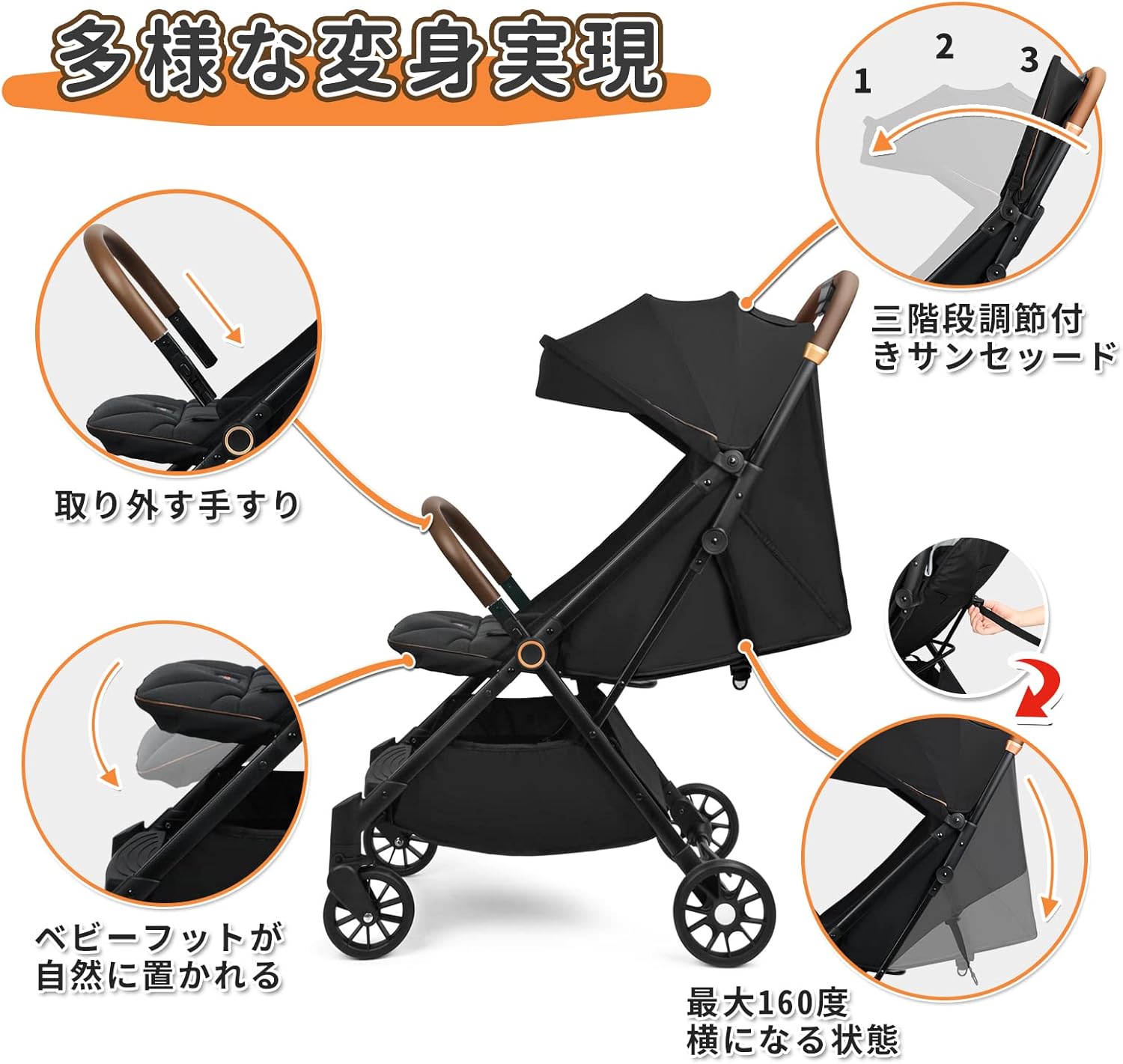

Image 4.1: Key adjustable features of the stroller, including the removable front bar and multi-position canopy.

Image 4.2: Detail of the removable front guard for easy child access.

5. آپریٹنگ ہدایات

5.1 Securing Your Child with the 5-Point Harness

The stroller is equipped with a 5-point safety harness to keep your child secure.

1. Placing the Child: Seat your child in the stroller.
2. Fastening the Harness: Bring the shoulder straps over your child's shoulders and the waist straps around their waist. Insert the buckles into the central locking mechanism until they click.
3. ہارنس کو ایڈجسٹ کرنا: Pull the adjustment straps to ensure a snug fit around your child, without being too tight. The seat belt is hand-stitched and does not affect its use.
4. Unlocking the Harness: To release, press the central button on the buckle.

Image 5.1: Step-by-step guide for operating the 5-point safety harness.

5.2 تکیہ لگانے کا فنکشن

The seat offers multiple recline positions from 100° to 160° for your child's comfort, suitable for different age groups.

• To recline the seat, locate the adjustment mechanism behind the seat.
• Gently squeeze the lever or press the button (depending on the mechanism) and adjust the seat to the desired angle.
• Ensure the seat is securely locked in place before use.

Image 5.2: The stroller's adjustable recline positions for optimal comfort.

5.3 فولڈنگ اور اسٹوریج

The stroller features a compact, self-standing fold for easy storage and transport.

1. Prepare for Folding: Ensure the canopy is fully retracted and the seat is in an upright position. Remove any items from the storage basket.
2. Initiate Fold: Locate the folding mechanism on the handle (usually a button and a slider). Activate the mechanism as per the unfolding instructions, but instead of lifting, push downwards or follow the specific folding sequence for your model.
3. کومپیکٹ فولڈ: Continue to fold the stroller until it collapses into its compact form. It should be self-standing once folded.
4. ذخیرہ: The compact size allows for storage in car trunks, airplane overhead bins, or on trains.

تصویر 5.3: مثال کے طور پرamples of compact storage for the folded besrey stroller.

5.4 بریک سسٹم

The stroller is equipped with a unique brake system for secure stopping.

• To engage the brake, press down on the brake pedal located near the rear wheels.
• To release the brake, lift the pedal upwards.
• Always ensure the brake is fully engaged when the stroller is stationary.

تصویر 5.4: ختمview of the stroller's safety and operational features, including the brake system.

6 دیکھ بھال

باقاعدگی سے دیکھ بھال آپ کے سٹرولر کی لمبی عمر اور محفوظ آپریشن کو یقینی بناتی ہے۔

• Cleaning the Frame and Plastic Parts: کپڑے سے مسح کریں d۔ampened with water and wrung out well. Do not use abrasive cleaners.
• فیبرک کی دیکھ بھال: The seat fabric and canopy are made of polyester. For general cleaning, wipe with a damp cloth. For deeper cleaning, the seat cushion is removable and washable.
• چکنا: If squeaking occurs or operation becomes stiff (e.g., wheels, folding mechanism), apply a small amount of lubricant to the moving parts. Clean off any mud or dirt from the lubricated parts beforehand.
• ذخیرہ: Store the stroller in a dry, cool place away from direct sunlight when not in use.

Image 6.1: The multi-layer mesh seat structure, designed for breathability and easy cleaning.

7 خرابیوں کا سراغ لگانا

If you encounter any issues with your besrey stroller, please refer to the common problems and solutions below. If the problem persists, contact customer support.

• Stroller does not open smoothly:
  Ensure the lock slider on the handle is fully disengaged. Apply gentle, even pressure when lifting. If the mechanism feels stiff, apply a small amount of lubricant to the folding joints.
• Stroller does not fold smoothly:
  Ensure the seat is in an upright position and the canopy is retracted. Check for any obstructions in the folding mechanism. Lubricate joints if stiff.
• Squeaking wheels or frame:
  Clean any dirt or debris from the wheel axles and frame joints. Apply a small amount of silicone-based lubricant to the moving parts.
• باندھنا/بکلنا مشکل:
  Ensure the buckle components are clean and free of debris. If the issue persists, inspect for damage.
• Reclining function is stiff:
  Check for any fabric obstructions in the reclining mechanism. Apply a small amount of lubricant if necessary.
• Lost screws:
  If any screws are lost, please contact besrey customer support for replacement parts.

8. وارنٹی اور سپورٹ

besrey products are manufactured to high-quality standards. For warranty information, product support, or to request replacement parts, please contact besrey customer service.

When contacting support, please have your model number (BR-C750-6) and purchase information ready.

رابطہ کی معلومات:
Please refer to the contact details provided with your purchase or visit the official besrey webسپورٹ کے لیے سائٹ۔

اہم نوٹ: Please ensure the outer box is not damaged before accepting delivery. Always read the product manual thoroughly before use. If you experience any issues with the product, especially regarding assembly or operation, please contact us for assistance. We can provide operational videos if needed.
