InnoGear Microphone Stand Instruction Manual

تعارف

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your InnoGear Microphone Stand (Model: RG250). Designed for versatility and stability, this stand is suitable for various applications, from studio recording to live performances.

Image: The InnoGear Microphone Stand (Model RG250) shown with its detachable gooseneck, mic clip, screw adapter, and cable clips, highlighting its main components.

مصنوعات کی خصوصیات

• Height Adjustable & Stable: Adjustable from 32 inches to 70 inches, suitable for both standing and sitting use. Features a single height clutch and a separate extension pole for enhanced stability.
• لچکدار Gooseneck: The 360° adjustable gooseneck allows for precise positioning of the microphone. The included mic clip can rotate 180°.
• Heavy-duty Round Base: A weighted 4.5 Lbs round base with a 9.8-inch diameter provides superior stability compared to tripod stands. Includes 6 non-slip pads and an upgraded fixing loop to prevent wobbling.
• Detachable & Portable Stand: Easily disassembles into four parts for convenient transport and quick setup, ideal for various activities like stage, studio, or outdoor performances.
• وسیع مطابقت: Compatible with most microphones, including popular models like HyperX QuadCast, Blue Yeti, Shure SM58, and Audio-Technica AT2020. (Note: Shock mount not included).

تصویر: ایڈوان کو نمایاں کرنے والا ایک بصری موازنہtages of the InnoGear Gooseneck Mic Stand, including upgraded cable clips, improved connection, thickened main pole, and weighted round base.

پیکیج کے مشمولات

براہ کرم تصدیق کریں کہ اسمبلی شروع کرنے سے پہلے تمام اجزاء موجود ہیں:

• Weighted Round Base
• Main Pole (with height adjustment clutch)
• قطب توسیع
• لچکدار Gooseneck
• مائیکروفون کلپ
• 3/8" to 5/8" Screw Adapter
• Cable Clips (typically 3-4)

سیٹ اپ کی ہدایات

Follow these steps to assemble your InnoGear Microphone Stand:

1. Attach the Main Pole to the Base: Screw the bottom end of the main pole into the threaded hole on the center of the weighted round base. Ensure it is tightened securely to prevent wobbling.
2. Connect the Extension Pole (Optional): If additional height is required, connect the extension pole to the top of the main pole using the long screw adapter.
3. Attach the Gooseneck: Screw the flexible gooseneck onto the top of the main pole or the extension pole.
4. مائیکروفون کلپ انسٹال کریں: Screw the microphone clip onto the threaded end of the gooseneck. If your microphone requires a different thread size, use the provided 3/8" to 5/8" screw adapter.
5. محفوظ کیبلز: Use the included cable clips to neatly route your microphone cable along the stand, preventing tangles and ensuring a clean setup.

Image: The InnoGear mic stand shown disassembled into its main components (base, main pole, extension pole, gooseneck, mic clip), illustrating its portability and ease of setup.

آپریٹنگ ہدایات

Adjusting your microphone stand for optimal performance:

• اونچائی کو ایڈجسٹ کرنا: Loosen the height adjustment clutch on the main pole. Extend or retract the pole to your desired height (between 32 and 70 inches) and then securely tighten the clutch.
• Positioning the Gooseneck: The flexible gooseneck can be bent and angled 360° to achieve the perfect microphone position for singing, speaking, or instrument miking.
• Adjusting Mic Clip Angle: The microphone clip can be rotated 180° to fine-tune the microphone's direction.

Image: A visual representation of the InnoGear mic stand's adjustable height, ranging from a minimum of 32 inches to a maximum of 70 inches, suitable for both sitting and standing users.

Image: A person playing a guitar with the InnoGear mic stand, demonstrating the 360-degree flexibility of the gooseneck and the 180-degree rotation of the mic clip for optimal microphone positioning.

Image: The InnoGear mic stand shown in various multi-functional scenarios, including stage performances, outdoor live events, speeches, and studio use, highlighting its versatility.

دیکھ بھال

To ensure the longevity and optimal performance of your microphone stand:

• صفائی: Wipe down the stand regularly with a soft, dry cloth to remove dust and debris. For stubborn marks, a slightly damp کپڑے کو فوری طور پر خشک کرنے کے بعد استعمال کیا جا سکتا ہے۔
• کنکشن کا معائنہ: Periodically check all screw connections and clutches to ensure they are tight. Loose connections can affect stability.
• ذخیرہ: When not in use, disassemble the stand and store it in a dry, cool place to prevent rust or damage.
• زیادہ سختی سے بچیں: Do not overtighten the adjustment clutches or screw connections, as this can strip threads or damage components.

خرابی کا سراغ لگانا

وضاحتیں

تصویر: ایک تفصیلی view of the heavy-duty weighted round base, showing its 4.5 Lbs weight, 9.8-inch diameter, upgraded fixing loop, and non-slip pads for enhanced stability.

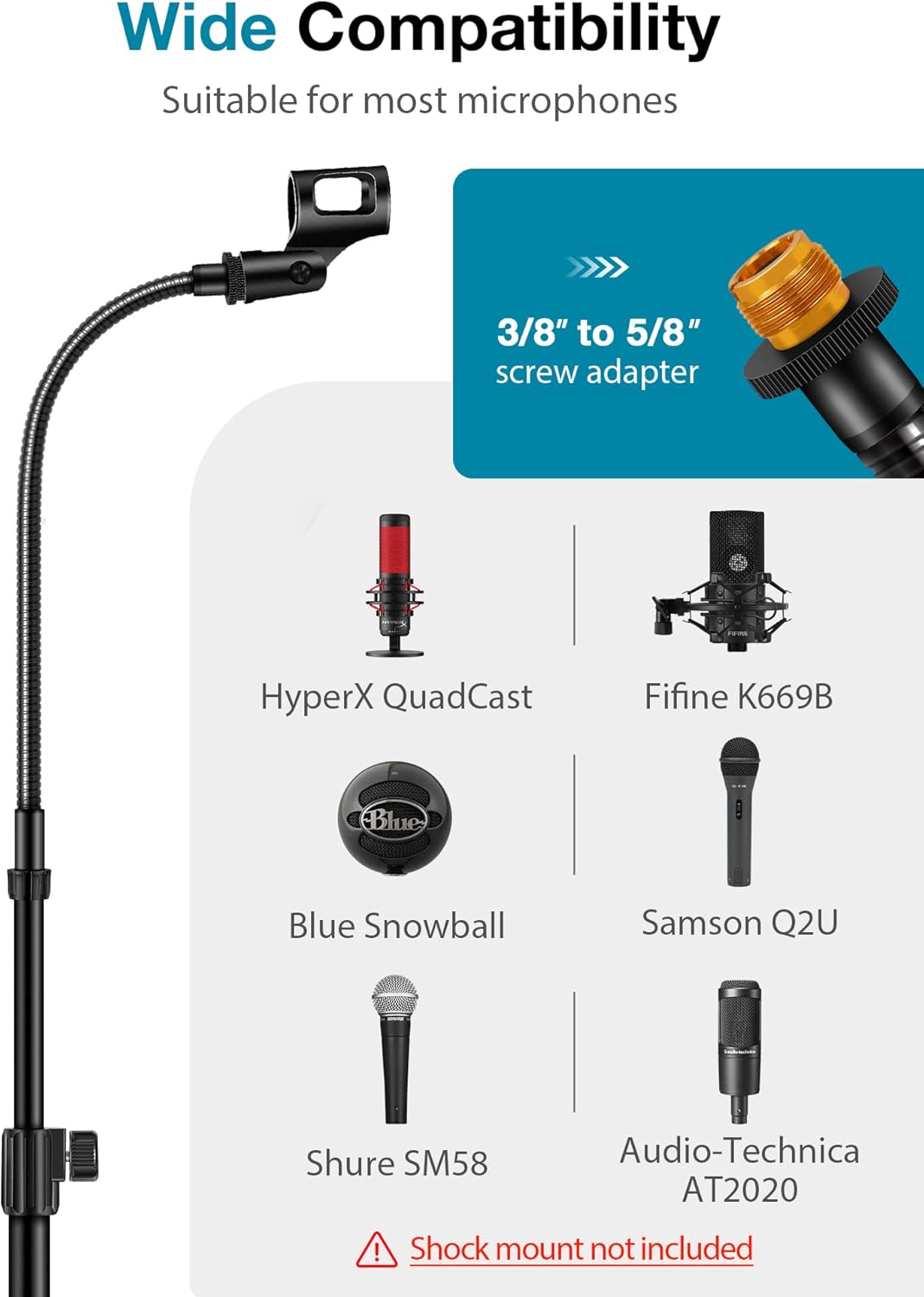

Image: The InnoGear mic stand illustrating its wide compatibility with different microphone models, along with the included 3/8" to 5/8" screw adapter.

وارنٹی اور سپورٹ

InnoGear products are designed for quality and performance. For warranty information, technical support, or any inquiries regarding your microphone stand, please refer to the official InnoGear webسائٹ یا ان کی کسٹمر سروس سے براہ راست رابطہ کریں۔ وارنٹی کے دعووں کے لیے اپنی خریداری کی رسید اپنے پاس رکھیں۔

مزید مدد کے لیے، آپ ملاحظہ کر سکتے ہیں۔ InnoGear Store on Amazon.
