ThermoPro TP716 ڈیجیٹل میٹ تھرمامیٹر صارف دستی

تعارف

The ThermoPro TP716 Digital Meat Thermometer is designed to help you cook your food to perfection, whether you're grilling, roasting, or smoking. Featuring a durable stainless steel probe, a clear backlit display, and a built-in timer, this thermometer provides accurate temperature readings and convenient monitoring for a variety of meats and cooking methods. Please read this manual thoroughly before use to ensure proper operation and longevity of your device.

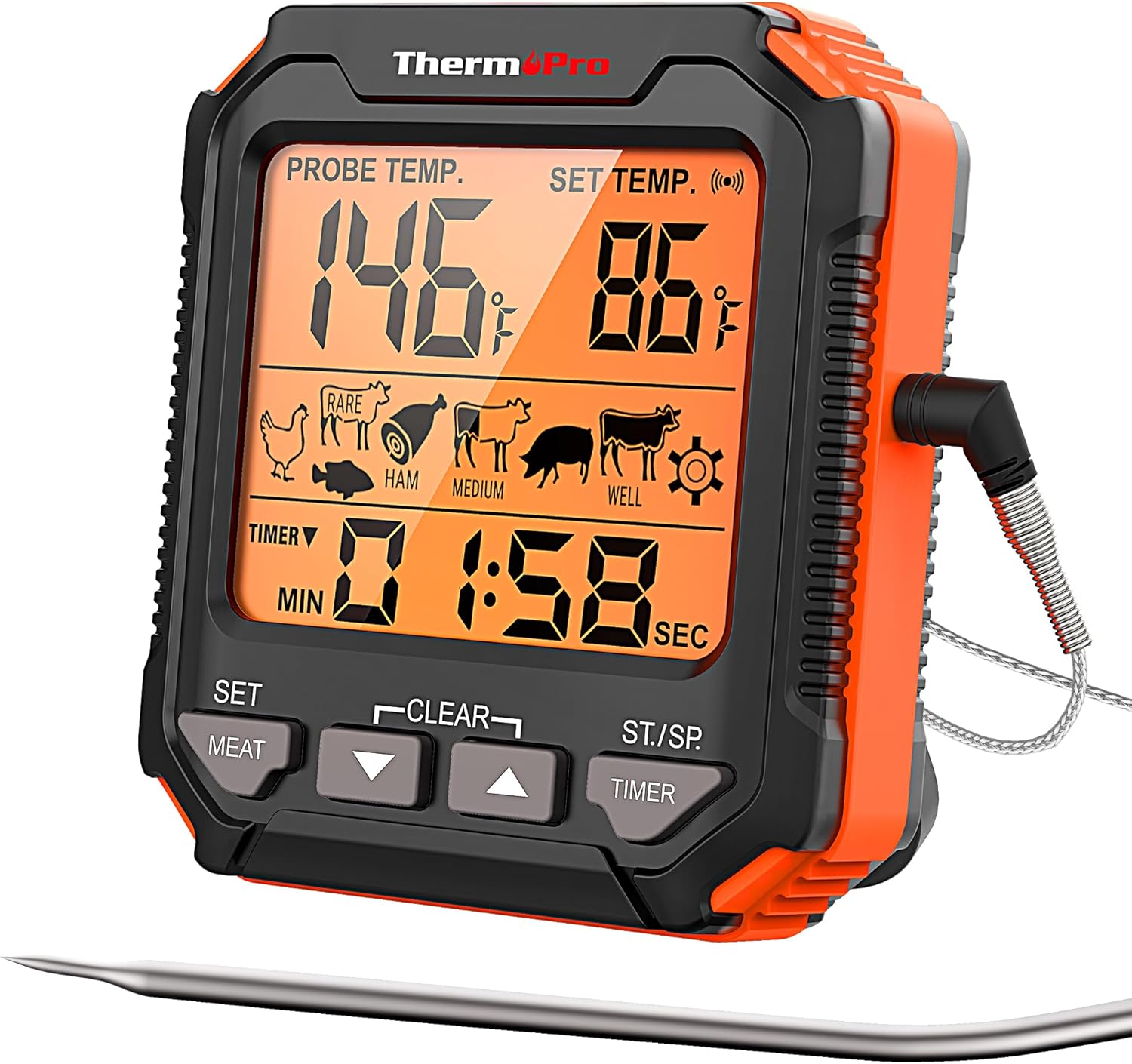

Figure 1: ThermoPro TP716 Digital Meat Thermometer main unit and probe.

خصوصیات

• High Accuracy & Fast Response: Provides temperature readings within 2-3 seconds with an accuracy of ±1.8°F.
• درجہ حرارت کی وسیع رینج: Measures temperatures from 14°F to 572°F (-10°C to 300°C).
• USDA Preset Temperatures: Includes pre-programmed temperature settings for various meats and doneness levels (Poultry, Beef Rare/Fish, Ham, Beef Medium, Pork, Beef Well, Set Your Own Temp).
• بیک وقت ڈسپلے: Shows both probe temperature and set temperature, along with a countdown timer, on a single screen.
• ٹچ ایبل بیک لائٹ: Easy-to-read display with a touch-activated backlight for low-light conditions.
• Long Stainless Steel Probe: Durable probe with a heat-resistant wire, suitable for ovens, grills, and smokers.
• متعدد جگہ کے اختیارات: Features a magnetic back for attaching to metal surfaces and a fold-out kickstand for tabletop use.
• الارم فنکشن: Alerts you when the target temperature is reached.

Figure 2: USDA Preset Temperatures for common meats.

Figure 3: The TP716 offers accurate and fast temperature readings.

سیٹ اپ

1. بیٹری کی تنصیب: Open the battery compartment on the back of the unit. Insert one AAA battery, ensuring correct polarity (+/-). Close the compartment securely.
2. تحقیقات کنکشن: Insert the stainless steel probe's connector firmly into the jack on the side of the thermometer unit. Ensure it is fully seated to prevent inaccurate readings.
3. ابتدائی تعیناتی: Decide on your preferred placement. The unit has a strong magnet on the back for attaching to metal surfaces (e.g., oven door, refrigerator) or a fold-out kickstand for countertop use.

Figure 4: The long probe wire is ideal for oven use.

آپریٹنگ ہدایات

پاور آن/آف

The unit automatically powers on when a battery is inserted and the probe is connected. There is no dedicated power off switch; to turn off, remove the battery.

درجہ حرارت کی ترتیب

1. دبائیں گوشت button to cycle through preset meat types (Poultry, Beef Rare/Fish, Ham, Beef Medium, Pork, Beef Well).
2. To set a custom target temperature, press the سیٹ بٹن استعمال کریں۔ UP or نیچے arrows to adjust the desired temperature. Press سیٹ تصدیق کرنے کے لیے دوبارہ۔
3. Insert the probe into the thickest part of the meat, avoiding bone or gristle.
4. The display will show the current probe temperature. When the probe temperature reaches the set target temperature, the alarm will sound.

ٹائمر فنکشن

The TP716 features a countdown timer. Press the ٹائمر button to switch to timer mode. Use the UP or نیچے arrows to set the desired time. Press ST/SP (Start/Stop) to begin or pause the timer. Press صاف کریں۔ ٹائمر کو دوبارہ ترتیب دینے کے لیے۔

Figure 5: Simultaneous display of temperature and timer.

Temperature Unit Selection (°F/°C)

On the back of the unit, locate the °F/°C switch to toggle between Fahrenheit and Celsius temperature readings.

بیک لائٹ

The display features a touch-activated backlight. Simply touch any button to illuminate the screen for easy reading in dim environments.

Figure 6: The touchable backlight enhances visibility.

دیکھ بھال

• صفائی: Wipe the thermometer unit clean with a damp cloth. Do NOT immerse the unit in water. The probe can be cleaned with warm soapy water. Ensure the probe connector is dry before plugging it back into the unit.
• ذخیرہ: Store the thermometer and probe in a dry place when not in use. The probe can be wrapped neatly for storage.
• بیٹری کی دیکھ بھال: اگر رساو کو روکنے کے لیے یونٹ کو طویل مدت تک استعمال نہیں کیا جائے گا تو بیٹری کو ہٹا دیں۔

خرابی کا سراغ لگانا

• غلط پڑھنا: Ensure the probe is fully inserted into the jack. Check that the probe tip is in the thickest part of the meat and not touching bone or gristle.
• No Display/Unit Not Turning On: Check battery polarity and ensure the battery is fresh. Reinsert the battery.
• الارم والیوم: The alarm has a fixed volume. If you find it too quiet in a noisy environment, consider placing the unit closer to you or in a quieter area.
• Unit Tipping Over (Kickstand): The kickstand is designed for a specific angle. For maximum stability, especially when manipulating the probe, it is recommended to lay the unit flat or utilize its magnetic back feature.

وضاحتیں

وارنٹی اور سپورٹ

ThermoPro products are designed for reliability and performance. For information regarding warranty coverage, product registration, or technical support, please visit the official ThermoPro webسائٹ یا ان کی کسٹمر سروس سے رابطہ کریں۔ وارنٹی دعووں کے لیے خریداری کے ثبوت کے طور پر اپنی خریداری کی رسید رکھیں۔

Official ThermoPro Webسائٹ: www.buythermopro.com
