تعارف
This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your VidaXL TV Stand with LED Lighting. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct installation and to maximize the product's lifespan. Keep this manual for future reference.
The VidaXL TV Stand is designed to accommodate your television and media devices, offering practical storage and an aesthetic enhancement with its integrated RGB LED lighting. It features a brown oak finish, constructed primarily from plywood with a glass shelf in the central compartment.
حفاظتی معلومات
- تمام ہدایات پڑھیں: اس بات کو یقینی بنائیں کہ آپ آگے بڑھنے سے پہلے اسمبلی کے تمام اقدامات اور حفاظتی انتباہات کو سمجھتے ہیں۔
- بالغ اسمبلی کی ضرورت ہے: اس کی مصنوعات کو بالغوں کی طرف سے جمع کیا جانا چاہئے.
- مناسب اوزار استعمال کریں: Ensure you have the necessary tools for assembly and use them correctly.
- وزن کی حد: Do not exceed the maximum weight capacity of 26 kg for the unit. Distribute weight evenly.
- Anti-tip safety: For added safety, consider securing the TV stand to the wall using appropriate anti-tip hardware (not included) to prevent accidental tipping, especially in households with children or pets.
- برقی حفاظت: When connecting the LED lighting, ensure the power adapter is compatible with your local power supply and is connected to a properly grounded outlet. Do not expose LED components to moisture.
- وینٹیلیشن: زیادہ گرم ہونے سے بچنے کے لیے اسٹینڈ پر یا اس کے اندر رکھے ہوئے الیکٹرانک آلات کے ارد گرد مناسب وینٹیلیشن کو یقینی بنائیں۔
- جگہ کا تعین: Place the TV stand on a flat, stable surface. Avoid placing it near heat sources or in direct sunlight.
پیکیج کے مشمولات
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
- Wooden panels (various sizes for top, bottom, sides, doors, and back)
- شیشے کا شیلف
- Assembly hardware (screws, dowels, hinges, cam locks, etc.)
- LED strip with power adapter and remote control
- ہدایت نامہ (یہ دستاویز)
اسمبلی کی ہدایات
اوزار کی ضرورت ہے: Phillips head screwdriver, hammer (optional, for dowels), measuring tape (optional).
- پیک کھولیں اور حصوں کی شناخت کریں: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Identify each part by comparing it with the diagrams in the included assembly guide.
- بیس فریم کو جمع کریں: Connect the bottom panel to the side panels using the provided hardware (dowels and cam locks). Ensure all connections are secure.
- Install Internal Dividers: Attach the central divider and any other internal panels according to the diagrams.
- گلاس شیلف داخل کریں: Carefully place the glass shelf into the designated central compartment. Ensure it rests securely on its supports.
- ٹاپ پینل منسلک کریں: Secure the top panel to the assembled frame using the appropriate hardware.
- دروازے نصب کریں: Attach the hinges to the doors and then to the side panels of the stand. Adjust hinges as needed for proper door alignment.
- بیک پینل انسٹال کریں: Secure the back panel to the rear of the unit.
- Install LED Lighting: Follow the specific instructions provided with the LED kit to attach the LED strip to the central compartment. Connect the power adapter.
- حتمی جانچ پڑتال: Ensure all screws are tightened and the unit is stable. If any parts do not align perfectly, re-check the instructions and ensure all components are correctly oriented before tightening.
Figure 1: Product dimensions for the VidaXL TV Stand.

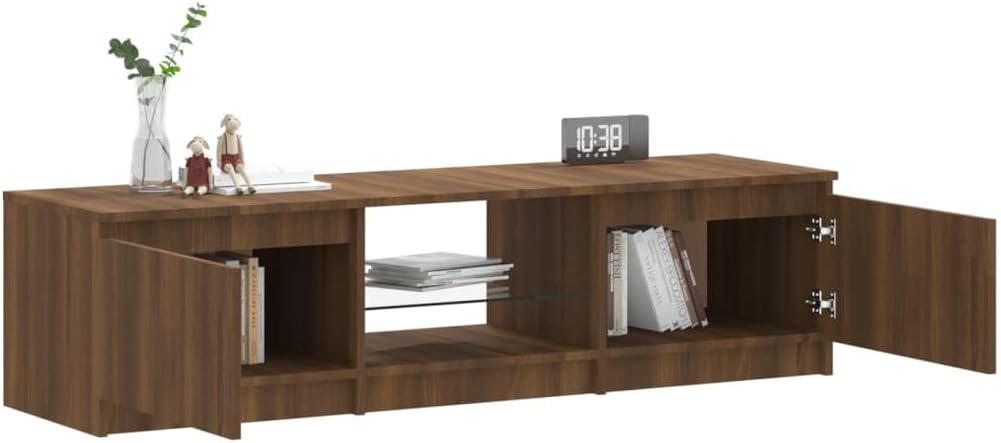

شکل 2: داخلہ view of the TV stand with doors open, showing storage and the central glass shelf.
Operating Instructions (LED Lighting)
The VidaXL TV Stand features integrated RGB LED lighting in the central compartment, controlled by a remote.
- پاور کنکشن: After assembly, connect the LED power adapter to the LED strip and then plug the adapter into a standard wall outlet.
- ریموٹ کنٹرول: Use the provided remote control to operate the LED lights. Ensure the remote has batteries and is pointed towards the LED receiver.
- افعال:
- پاور آن/آف: دبائیں آن/آف لائٹس کو آن یا آف کرنے کے لیے بٹن۔
- رنگ کا انتخاب: Use the color buttons (e.g., نیلا, سرخ, سبز, سفید) to select a static color.
- چمک ایڈجسٹمنٹ: استعمال کریں۔ چمک اوپر/نیچے روشنی کی شدت کو ایڈجسٹ کرنے کے لیے بٹن۔
- موڈ کا انتخاب: Cycle through various dynamic modes (e.g., flash, strobe, fade, smooth) using the موڈ بٹن

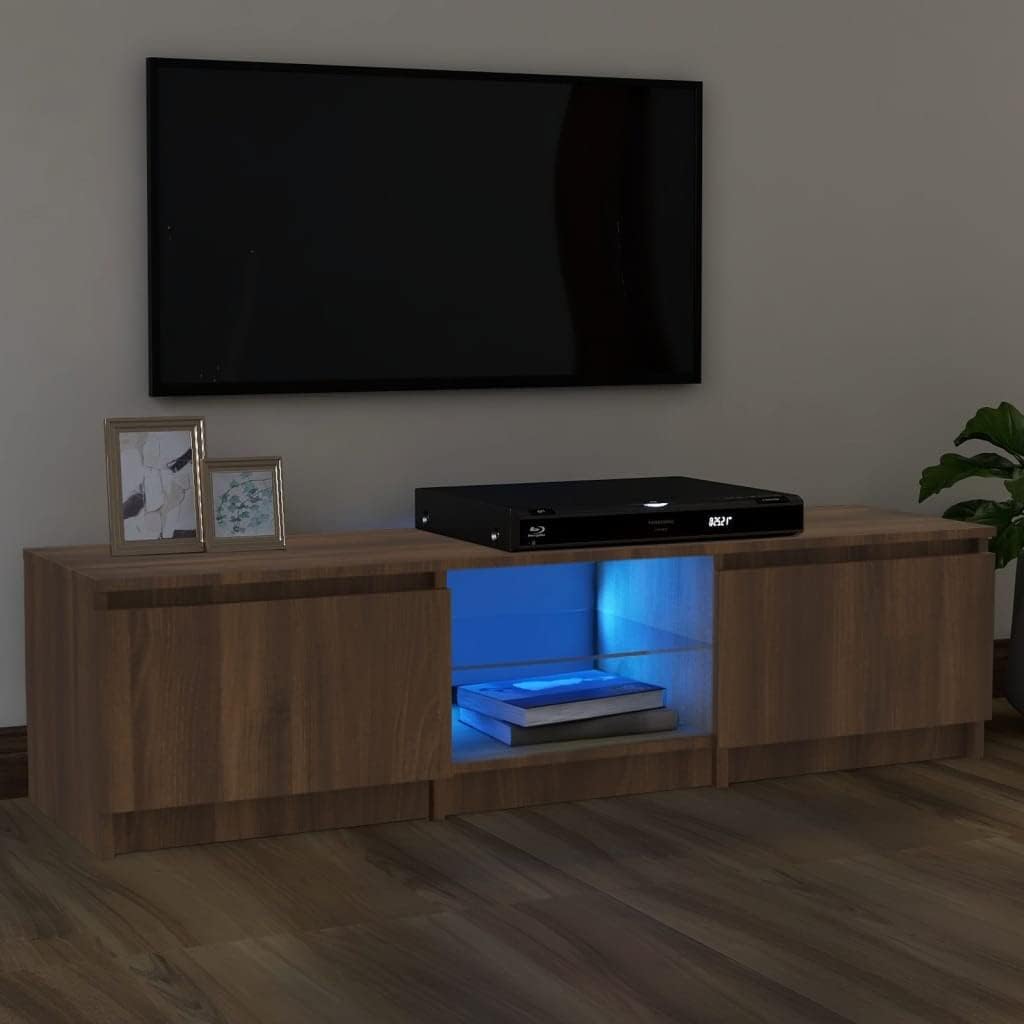

Figure 3: TV stand with blue LED lighting activated.
Figure 4: TV stand with red LED lighting activated.
Figure 5: TV stand with green LED lighting activated.
Figure 6: TV stand with white LED lighting activated.
دیکھ بھال
- لکڑی کی سطح کی صفائی: Wipe the brown oak surfaces with a soft, damp کپڑا کھرچنے والے کلینر یا سخت کیمیکل سے پرہیز کریں جو ختم کو نقصان پہنچا سکتے ہیں۔ صاف کپڑے سے فوری طور پر خشک کریں۔
- شیشے کی شیلف کی صفائی: Use a standard glass cleaner and a soft, lint-free cloth to clean the glass shelf.
- ایل ای ڈی کی دیکھ بھال: The LED strip requires minimal maintenance. If dust accumulates, gently wipe it with a dry, soft cloth. Do not attempt to disassemble the LED strip or power adapter.
- ہارڈ ویئر چیک: وقتاً فوقتاً تمام پیچ اور کنکشن چیک کریں تاکہ یہ یقینی بنایا جا سکے کہ وہ سخت ہیں۔ اگر ضروری ہو تو دوبارہ سخت کریں۔
- نمی سے بچیں: Keep the TV stand and its electrical components away from excessive moisture or liquids.
خرابی کا سراغ لگانا
| مسئلہ | ممکنہ وجہ | حل |
|---|---|---|
| ایل ای ڈی لائٹس آن نہیں ہوتی ہیں۔ | Power adapter unplugged, remote batteries dead, LED strip disconnected. | Ensure power adapter is securely plugged into outlet and LED strip. Replace remote batteries. Check LED strip connection. |
| ریموٹ کنٹرول کام نہیں کر رہا۔ | Dead batteries, remote not pointed at receiver, obstruction. | Replace remote batteries. Ensure clear line of sight to the LED receiver. |
| پرزے اسمبلی کے دوران سیدھ میں نہیں ہوتے ہیں۔ | Incorrect orientation of parts, incorrect hardware used, manufacturing variation. | احتیاط سے دوبارہview assembly diagrams. Ensure each part is oriented correctly. Do not force parts. If issues persist, contact customer support. |
| Unit feels unstable after assembly. | Loose hardware, uneven surface. | Tighten all screws and connections. Ensure the stand is placed on a flat, level surface. |
وضاحتیں
- ماڈل نمبر: 822683
- طول و عرض (L x W x H): 140 سینٹی میٹر x 40 سینٹی میٹر x 35.5 سینٹی میٹر
- مواد: Plywood (main structure), Glass (shelf)
- رنگ: براؤن اوک
- زیادہ سے زیادہ وزن کی صلاحیت: 26 کلوگرام
- خصوصی خصوصیات: RGB LED lighting with remote control
- برانڈ: vidaXL
Figure 7: VidaXL TV Stand in a living room setting with blue LED lighting.
وارنٹی اور سپورٹ
This VidaXL product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.
For technical assistance, missing parts, or warranty inquiries, please contact your retailer or the official vidaXL customer service. Contact details can typically be found on the vidaXL webسائٹ یا آپ کی خریداری کی دستاویزات۔
For more information, visit the official vidaXL webسائٹ: www.vidaxl.com
