Bosch Professional 18V System Cordless Jigsaw GST 18V-125 S Instruction Manual

1. تعارف

This manual provides essential information for the safe and effective use of your Bosch Professional 18V System Cordless Jigsaw GST 18V-125 S. Please read these instructions carefully before operating the tool and keep them for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your jigsaw.

2. حفاظتی ہدایات

Always observe general power tool safety warnings and local regulations. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

جنرل پاور ٹول سیفٹی

• کام کے علاقے کی حفاظت: کام کے علاقے کو صاف اور اچھی طرح سے روشن رکھیں۔ بے ترتیبی یا تاریک علاقے حادثات کو دعوت دیتے ہیں۔
• برقی حفاظت: زمینی یا زمینی سطحوں سے جسم کے رابطے سے گریز کریں۔ بجلی کے آلات کو بارش یا گیلے حالات میں بے نقاب نہ کریں۔
• ذاتی حفاظت: Always wear eye protection, hearing protection, and a dust mask when operating the jigsaw. Dress appropriately; avoid loose clothing or jewelry.
• آلے کا استعمال اور دیکھ بھال: طاقت کے آلے کو مجبور نہ کریں۔ اپنی درخواست کے لیے صحیح پاور ٹول استعمال کریں۔ کوئی بھی ایڈجسٹمنٹ کرنے، لوازمات کو تبدیل کرنے، یا پاور ٹولز کو ذخیرہ کرنے سے پہلے بیٹری پیک کو منقطع کریں۔

Jigsaw Specific Safety

• محفوظ ورک پیس: ہمیشہ clamp the workpiece firmly. Do not hold it by hand.
• بلیڈ کا انتخاب: Use the correct blade type for the material being cut. Ensure the blade is sharp and undamaged.
• کٹ شروع کرنا: Ensure the blade is clear of the workpiece before starting the tool. Allow the tool to reach full speed before engaging the material.
• دھول کا انتظام: Connect a dust extraction system when possible to reduce dust exposure.

3. پروڈکٹ ختمview

The Bosch Professional 18V System Cordless Jigsaw GST 18V-125 S is designed for precise and efficient cutting in various materials, particularly wood. It features a robust design and a brushless motor for extended tool runtime and longevity.

Figure 1: Bosch Professional 18V System Cordless Jigsaw GST 18V-125 S. This image shows the overall design of the cordless jigsaw, highlighting its ergonomic grip and robust construction.

اہم خصوصیات:

• برشلیس موٹر: Ensures excellent tool runtime and increased tool longevity.
• SDS Blade Holder: For quick and tool-free blade changes.
• ایل ای ڈی لائٹ: Illuminates the cutting line for improved visibility.
• 4-ایسtage Pendulum Action: Adjustable for faster cutting in different materials.
• ڈسٹ اُڑانے والا: Keeps the cutting line clear of sawdust.
• رفتار کا انتخاب: Variable speed control for adapting to various materials and applications.
• Adjustable Baseplate: Can be adjusted up to 45° for bevel cuts.

4. سیٹ اپ

4.1 بیٹری کی تنصیب

1. یقینی بنائیں کہ جیگس بند ہے۔
2. Insert a charged Bosch Professional 18V System battery pack into the battery receptacle until it clicks into place.
3. بیٹری کو ہٹانے کے لیے، ریلیز کا بٹن دبائیں اور بیٹری کو باہر نکالیں۔

4.2 Blade Installation (SDS Blade Holder)

The SDS blade holder allows for quick and secure blade changes without additional tools.

1. یقینی بنائیں کہ بیٹری کو حفاظت کے لیے آلے سے ہٹا دیا گیا ہے۔
2. Push the SDS blade holder lever forward.
3. جیگس بلیڈ کو بلیڈ ہولڈر میں ڈالیں جب تک کہ وہ اپنی جگہ پر نہ بند ہو جائے اس وقت تک دانت آگے کی طرف ہو جائیں۔
4. Release the lever. Gently pull the blade to ensure it is securely seated.
5. To remove the blade, push the SDS blade holder lever forward again and pull the blade out.

4.3 Dust Extraction Setup

For a cleaner work environment and improved visibility, connect the dust extraction set.

1. دھول نکالنے والے اڈاپٹر کو جیگس پر نامزد پورٹ سے منسلک کریں۔
2. Connect a suitable vacuum cleaner hose to the dust extraction adapter.

5. آپریٹنگ ہدایات

5.1 پاورنگ آن/آف اور رفتار کا انتخاب

• To switch on the tool, press the ON/OFF switch. The LED light will illuminate the cutting area.
• The jigsaw features variable speed control. Adjust the speed dial to select the appropriate stroke rate for your material. Lower speeds are suitable for harder materials or intricate cuts, while higher speeds are for softer materials and faster cuts.
• To switch off, release the ON/OFF switch.

5.2 Pendulum Action Adjustment

4-stage pendulum action allows you to optimize cutting speed and finish.

• پوزیشن 0 (کوئی پینڈولم نہیں): For fine, precise cuts and cutting hard materials.
• Positions I-III (Increasinجی پینڈولم): For faster cutting in softer materials like wood. Higher settings provide faster, rougher cuts.
• Adjust the pendulum lever to the desired setting before starting the cut.

5.3 Making Bevel Cuts

The baseplate can be adjusted for bevel cuts up to 45 degrees.

1. یقینی بنائیں کہ بیٹری ہٹا دی گئی ہے۔
2. Loosen the screw that secures the baseplate.
3. Tilt the baseplate to the desired angle (up to 45°). Use an angle gauge for accuracy.
4. Tighten the screw firmly to secure the baseplate in position.

5.4 کاٹنے کی تکنیک

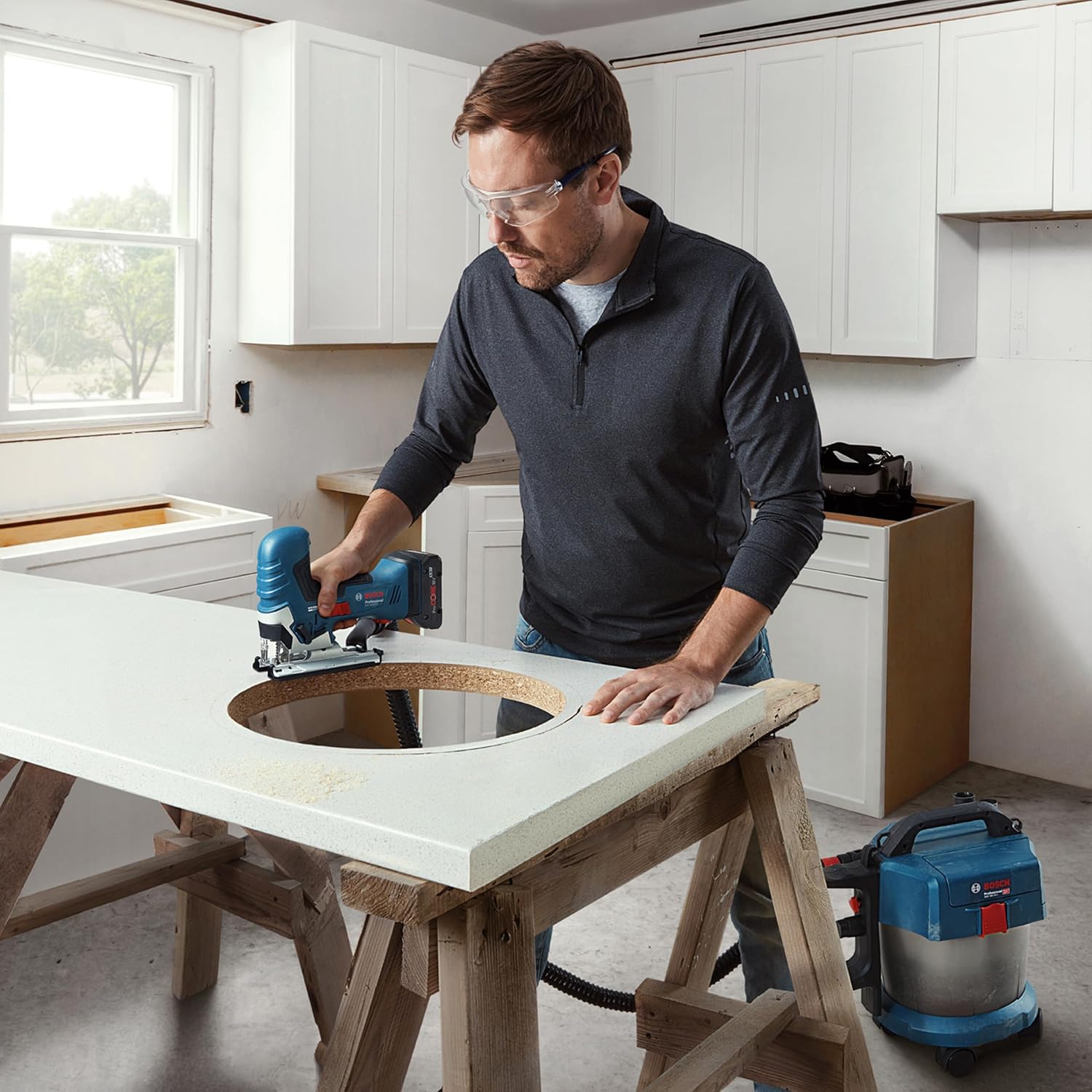

Figure 2: User operating the Bosch Professional Jigsaw for a curved cut. This image demonstrates the tool's use in creating precise curved cuts in a workpiece.

Figure 3: User operating the Bosch Professional Jigsaw for a cross cut. This image illustrates the tool's capability for straight cross cuts across a wooden panel.

تصویر 4: کلوز اپ view of the Bosch Professional Jigsaw blade cutting wood. This image provides a detailed look at the cutting action and the dust blower keeping the line clear.

• Starting a Cut: Place the front edge of the baseplate flat on the workpiece. Start the tool and allow it to reach full speed before slowly guiding the blade into the material.
• سیدھے کٹوتی: Guide the jigsaw along a marked line or against a straight edge guide.
• مڑے ہوئے کٹ: Use a narrow blade and guide the tool smoothly along the curve. Avoid forcing the tool, especially in tight curves.
• پلنگ کٹس: For internal cutouts, drill a pilot hole large enough for the jigsaw blade to enter, then proceed with the cut.

6 دیکھ بھال

Regular maintenance ensures the longevity and safe operation of your jigsaw.

6.1 صفائی

• صفائی سے پہلے ہمیشہ بیٹری پیک کو ہٹا دیں۔
• زیادہ گرمی سے بچنے کے لیے ٹول کے وینٹیلیشن کے سوراخوں کو صاف رکھیں۔
• Regularly clean the dust extraction port and the area around the blade holder.
• Use a soft brush or compressed air to remove dust and debris. Do not use solvents or abrasive cleaners.

6.2 بلیڈ کی تبدیلی

Replace dull or damaged blades promptly. Refer to Section 4.2 for blade installation and removal instructions.

6.3 اسٹوریج

• Store the jigsaw in a dry, secure place, out of reach of children.
• طویل مدت تک ذخیرہ کرنے سے پہلے بیٹری پیک کو ہٹا دیں۔
• If storing in the L-BOXX, ensure the tool and accessories are properly secured.

7 خرابیوں کا سراغ لگانا

یہ سیکشن عام مسائل کو حل کرتا ہے جن کا آپ کو اپنے جیگس کے ساتھ سامنا ہو سکتا ہے۔

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Bosch Professional customer support.

8. وضاحتیں

Technical data for the Bosch Professional 18V System Cordless Jigsaw GST 18V-125 S.

Figure 5: Dimensions of the Bosch Professional 18V System Cordless Jigsaw GST 18V-125 S. This image provides key measurements for the tool, including length, width, and height.

9. وارنٹی اور سپورٹ

Your Bosch Professional 18V System Cordless Jigsaw GST 18V-125 S comes with a Limited Warranty. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Bosch Professional webسائٹ

For technical assistance, spare parts, or warranty claims, please contact Bosch Professional customer support. Contact information can typically be found on the Bosch Professional webسائٹ یا آپ کی مصنوعات کی پیکیجنگ میں۔
