1. تعارف
The Paulmann Bonnie LED Outdoor Wall Light (Model 94851) is designed to provide efficient and automatic illumination for outdoor areas such as entrances and walls. Featuring an integrated motion detector and durable construction, this luminaire enhances safety and convenience around your home.
Key features include an 8.5-watt LED light source, 3000K warm white light, IP44 protection against splashing water, and a modern anthracite aluminum design.
2. حفاظتی ہدایات
- کسی بھی تنصیب، دیکھ بھال، یا مرمت کی کوشش کرنے سے پہلے ہمیشہ سرکٹ بریکر پر مین پاور سپلائی کو منقطع کریں۔
- مقامی الیکٹریکل کوڈز اور ضوابط کے مطابق انسٹالیشن ایک مستند الیکٹریشن کے ذریعے کی جانی چاہیے۔
- فکسچر کی مناسب بنیاد کو یقینی بنائیں۔
- Do not modify the product in any way. Unauthorized modifications can lead to electric shock, fire, or product damage.
- The IP44 rating indicates protection against solid objects larger than 1mm and splashing water from any direction. Do not immerse the fixture in water.
- پیکیجنگ مواد کو بچوں کی پہنچ سے دور رکھیں۔
3. پیکیج کے مشمولات
براہ کرم انسٹالیشن شروع کرنے سے پہلے چیک کریں کہ تمام اجزاء موجود ہیں اور بغیر کسی نقصان کے:
- 1x Paulmann Bonnie LED Outdoor Wall Light (Model 94851)
- بڑھتے ہوئے ہارڈویئر (پیچ، وال پلگ)
- اسمبلی کی ہدایات
4. سیٹ اپ اور انسٹالیشن
اپنی بیرونی دیوار کی روشنی کی مناسب تنصیب کے لیے ان اقدامات پر عمل کریں:
- تیاری: Turn off the main power supply at the circuit breaker. Choose a suitable mounting location on an exterior wall, considering the motion detector's optimal range and coverage area.
- نشان لگانا: Use the fixture's base or mounting bracket to mark the drilling points on the wall.
- ڈرلنگ: Drill holes at the marked points and insert the provided wall plugs.
- بڑھتے ہوئے بریکٹ: پیچ کا استعمال کرتے ہوئے دیوار پر بڑھتے ہوئے بریکٹ کو محفوظ کریں۔
- الیکٹریکل کنکشن: Connect the electrical wires (Live, Neutral, and Ground) from the wall to the corresponding terminals on the fixture. Ensure all connections are secure and correctly polarized.
- حتمی اسمبلی: Carefully attach the light fixture to the mounting bracket. Ensure it is securely fastened and properly sealed against moisture to maintain its IP44 rating.
- بجلی کی بحالی: ایک بار جب انسٹالیشن مکمل ہو جائے اور تمام کنکشن محفوظ ہو جائیں، سرکٹ بریکر پر بجلی بحال کریں۔

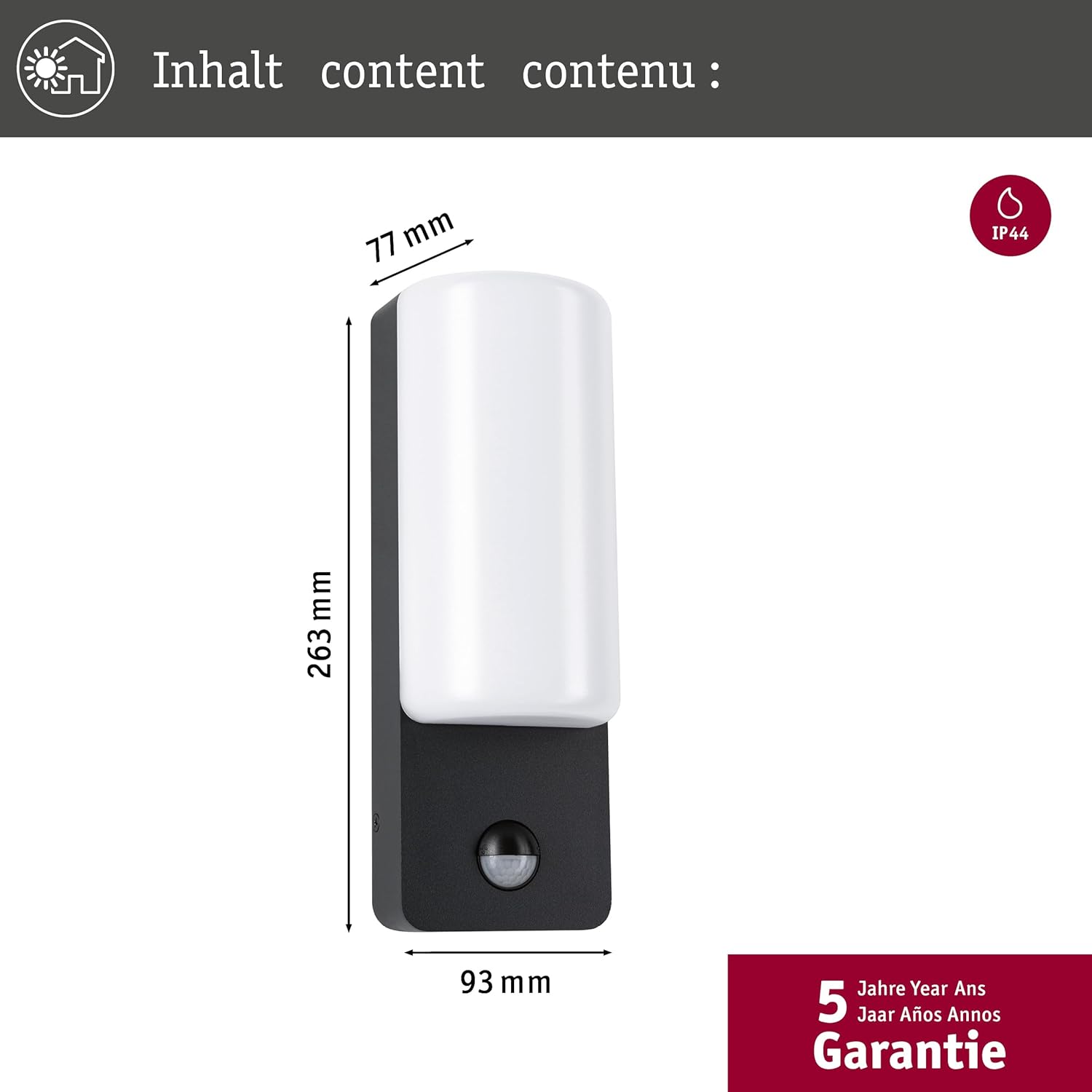

Detailed measurements of the wall light: 263mm height, 93mm width, and 77mm depth.

This image shows the complete fixture, including the integrated LED light source and the motion sensor at the bottom.
5. آپریٹنگ ہدایات
The Paulmann Bonnie LED Outdoor Wall Light is designed for automatic operation:
- خودکار ایکٹیویشن: The integrated motion detector automatically switches the light on when movement is detected within its adjustable range, particularly in low ambient light conditions.
- روشنی: The fixture provides a uniform, warm white light (3000K) with a luminous flux of 560 lumens, ensuring clear visibility for entrances and pathways.
- توانائی کی کارکردگی: Utilizing LED technology, the light consumes significantly less energy compared to traditional lighting solutions.

The Bonnie LED outdoor wall light provides uniform warm white illumination for entrances and walls.

This image illustrates the energy-saving benefits of LED technology, consuming up to 80% less energy than traditional bulbs.
6 دیکھ بھال
To ensure the longevity and optimal performance of your Paulmann Bonnie LED Outdoor Wall Light, follow these maintenance guidelines:
- صفائی: Clean the fixture regularly with a soft, damp کپڑا کھرچنے والے کلینر، سالوینٹس یا سخت کیمیکل استعمال نہ کریں، کیونکہ یہ فنش یا برقی اجزاء کو نقصان پہنچا سکتے ہیں۔
- معائنہ: نقصان، ڈھیلے کنکشن، یا پہننے کی کسی بھی علامت کے لیے فکسچر کا وقتاً فوقتاً معائنہ کریں۔ اگر کوئی نقصان نظر آئے تو بجلی منقطع کریں اور کسی مستند الیکٹریشن سے رجوع کریں۔
- ایل ای ڈی روشنی ماخذ: The LED light source in this fixture is integrated and not user-replaceable. Do not attempt to open or replace the LED module.
- استحکام: The aluminum construction and seawater-resistant surface ensure durability, especially in coastal environments.

The fixture features a seawater-resistant surface, preventing corrosion in coastal environments.
7 خرابیوں کا سراغ لگانا
If you encounter issues with your Paulmann Bonnie LED Outdoor Wall Light, refer to the following troubleshooting guide:
- لائٹ آن نہیں ہوتی:
- چیک کریں کہ آیا مین پاور سپلائی آن ہے۔
- Verify all electrical connections are secure and correct.
- Ensure the motion detector is not obstructed.
- Check ambient light conditions; the sensor may prevent activation during daylight hours.
- Light stays on or flashes continuously:
- Check for continuous movement within the sensor's detection range.
- Ensure the sensor lens is clean and free from debris.
- Verify that no external factors (e.g., heat sources, strong winds, moving foliage) are interfering with the motion detector.
- Motion detector not responding correctly:
- Ensure the sensor is positioned correctly to cover the desired area.
- If the sensor has adjustable settings (e.g., sensitivity, time-on duration), refer to the assembly instructions for adjustment.
If the problem persists after attempting these steps, please contact a qualified electrician or Paulmann customer support.
8. وضاحتیں
| فیچر | تفصیل |
|---|---|
| برانڈ | پال مین |
| ماڈل نمبر | 94851 |
| طول و عرض (L x W x H) | 7.7 x 9.3 x 26.3 سینٹی میٹر (263 x 93 x 77 ملی میٹر) |
| وزن | 640 گرام |
| مواد | ایلومینیم |
| رنگ | اینتھراسائٹ |
| بجلی کی کھپت | 8.5 واٹ |
| برائٹ فلوکس | 560 Lumens |
| رنگین درجہ حرارت | 3000K (گرم سفید) |
| والیومtage | 230 وولٹ |
| آئی پی کی درجہ بندی | IP44 (سپلیش پروف) |
| خصوصی خصوصیات | Motion Detector, Seawater Resistant |
| روشنی کا ذریعہ | انٹیگریٹڈ ایل ای ڈی |
| تنصیب کی قسم | وال ماؤنٹ |
9. وارنٹی اور سپورٹ
The Paulmann Bonnie LED Outdoor Wall Light (Model 94851) comes with a 5 سال کی وارنٹی، معیار اور وشوسنییتا کو یقینی بنانا۔

This image displays the product's dimensions (263mm x 93mm x 77mm) and highlights the 5-year warranty.
For technical support, warranty claims, or any questions regarding your product, please contact Paulmann customer service or your authorized retailer. Please have your model number (94851) and proof of purchase ready when contacting support.
