SENSEA POP Oval Toilet Seat Instruction Manual

1. تعارف

This manual provides detailed instructions for the installation, operation, and maintenance of your SENSEA POP Oval Toilet Seat. SENSEA, a brand by ADEO, specializes in practical and aesthetic bathroom and sanitary equipment, offering water-saving and environmentally friendly products designed for durability.

The SENSEA POP toilet seat, with its pine wood effect and matte finish, combines timeless design with robust quality. Made from FSC certified wood, it is a natural and resistant material choice that adds a touch of originality to your bathroom. Its metal hinges ensure exceptional durability and allow for easy installation on all standard toilets due to their adjustable nature.

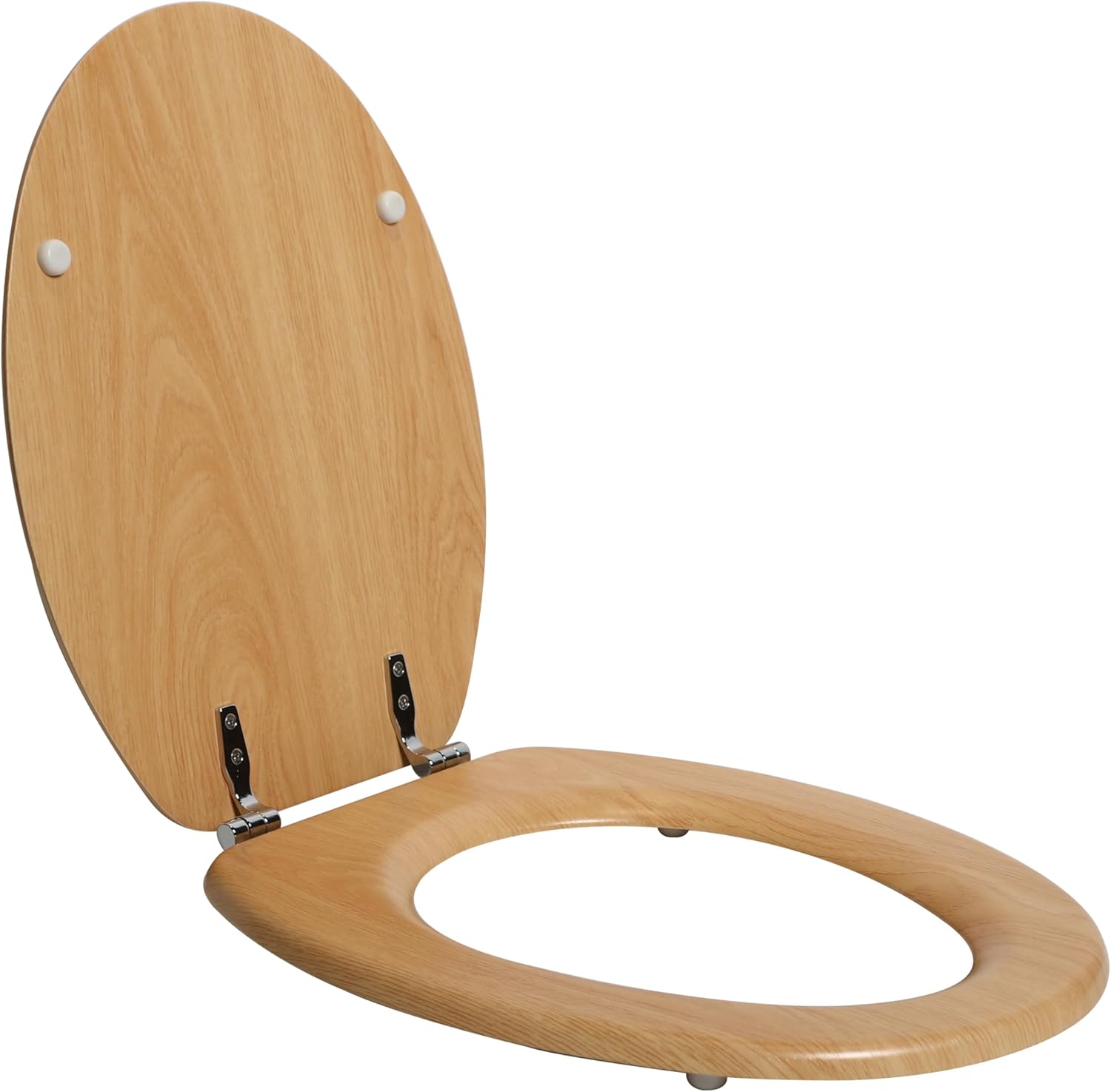

Figure 1: SENSEA POP Oval Toilet Seat (open view)

This image displays the SENSEA POP Oval Toilet Seat in its open position, highlighting the natural pine wood effect finish and the durable metal hinges. The seat is designed to fit standard toilet bowls.

2. مصنوعات کی خصوصیات

• یونیورسل فٹ: This SENSEA toilet seat easily adapts to all standard toilet models thanks to its adjustable hinges.
• Aesthetic and Functional Design: Our pine-effect toilet seat with a matte finish combines timeless design and quality to add a touch of originality to your bathroom.
• اعلی معیار کے مواد: Made from FSC wood, this toilet seat combines strength and durability, ensuring an environmentally friendly choice.
• اعلی لوڈ کی صلاحیت: The seat of this toilet lid can support up to 150 kg (approximately 330 lbs).
• توسیع شدہ عمر: Designed for approximately 30,000 openings, providing more than 10 years of typical use.
• صاف کرنے کے لئے آسان: Thanks to the stainless steel hinges, cleaning is simple and the hinges are corrosion-free.

Figure 2: SENSEA POP Oval Toilet Seat (top and bottom views)

This image shows both the top and bottom surfaces of the SENSEA POP Oval Toilet Seat, emphasizing its durable construction and the 'LONG LIFE x30000' indicator, signifying its extended lifespan.

3. وضاحتیں

شکل 3: پروڈکٹ کے طول و عرض کا خاکہ

This diagram illustrates the key dimensions of the SENSEA POP Oval Toilet Seat, including its length (435mm), width (368mm), and the adjustable hinge spacing (130-180mm) for universal compatibility.

4. سیٹ اپ اور انسٹالیشن

The SENSEA POP toilet seat is designed for easy installation on most standard toilet bowls. Please follow these general steps. Refer to Figure 4 for a visual representation of the components.

تنصیب کے مراحل:

1. ٹوائلٹ باؤل تیار کریں: Ensure the toilet bowl's mounting holes are clean and free of debris.
2. اجزاء کی شناخت کریں: Unpack all components. You should have the toilet seat and lid assembly, two threaded rods, two plastic washers, two metal washers, and two wing nuts (or similar fastening nuts).
3. Insert Threaded Rods: Insert the threaded rods through the holes in the toilet seat hinges.
4. Position the Seat: Place the toilet seat assembly onto the toilet bowl, aligning the threaded rods with the mounting holes on the ceramic.
5. نیچے سے محفوظ کریں: From underneath the toilet bowl, slide a plastic washer onto each threaded rod, followed by a metal washer, and then tighten with the wing nuts.
6. ایڈجسٹ اور سخت کریں: Adjust the position of the seat to ensure it is centered and aligned with the bowl. Once satisfied, fully tighten the wing nuts to secure the seat firmly in place. Do not overtighten.

Figure 4: Toilet Seat and Installation Components

This image displays the SENSEA POP Oval Toilet Seat alongside its essential installation hardware, including the threaded rods, washers, and nuts, which are used to secure the seat to the toilet bowl.

Figure 5: Installed Toilet Seat

This image shows the SENSEA POP Oval Toilet Seat fully installed on a standard white toilet, demonstrating its appearance and fit within a typical bathroom environment.

5. آپریٹنگ ہدایات

The SENSEA POP Oval Toilet Seat operates like any standard toilet seat. Simply lift the lid and seat to use the toilet, and lower them gently when finished. The durable hinges are designed for smooth operation over many years.

6. دیکھ بھال اور صفائی

Regular cleaning will help maintain the appearance and hygiene of your toilet seat. The stainless steel hinges are designed to be corrosion-free and facilitate easy cleaning.

صفائی کی ہدایات:

• Use a soft cloth or sponge with mild soap and water.
• Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish of the wood and the hinges.
• Wipe the entire surface of the seat, lid, and hinges.
• Rinse thoroughly with clean water and dry with a soft, clean cloth to prevent water spots.
• For the hinges, ensure they are wiped dry to prevent any potential long-term moisture build-up, although they are corrosion-resistant.

7 خرابیوں کا سراغ لگانا

عام مسائل:

• ڈھیلی نشست: If the toilet seat feels wobbly or loose, check the nuts underneath the toilet bowl. Tighten them firmly, but do not overtighten, as this can damage the ceramic or the seat.
• Squeaking Hinges: If the hinges produce a squeaking sound, a small amount of silicone-based lubricant (avoid oil-based lubricants) can be applied to the hinge pins. Ensure the lubricant is safe for use in bathroom environments.
• Difficulty Closing/Opening: Ensure there is no obstruction preventing the lid or seat from moving freely. Check if the hinges are properly aligned.

8. وارنٹی اور سپورٹ

Specific warranty information for this product is not provided in the available documentation. For details regarding warranty coverage, spare parts availability, or technical support, please contact SENSEA customer service or the retailer from whom you purchased the product.

You can typically find contact information on the SENSEA official website or through your purchase receipt.
