Phanteks 5.5" ہائی-ریز یونیورسل LCD ڈسپلے (ماڈل PH-HRLCD_WT01) ہدایت نامہ

1. تعارف

The Phanteks 5.5” Hi-Res Universal LCD Display is designed to enhance your PC setup by providing a versatile secondary screen. This display offers a high-resolution visual experience and multiple mounting options for seamless integration into or outside your PC chassis. This manual will guide you through the installation, operation, and maintenance of your new display.

2. پیکیج کے مشمولات

براہ کرم تصدیق کریں کہ نیچے دی گئی تمام اشیاء آپ کے پروڈکٹ کی پیکیجنگ میں موجود ہیں:

• Phanteks 5.5” Hi-Res Display
• 4x Fan Screws
• 4x M4 پیچ
• 1x SATA to Micro USB Type B Cable
• 1x HDMI کیبل
• 2x Feet (for external placement)

3. پروڈکٹ ختمview

The Phanteks 5.5” Hi-Res Universal LCD Display is engineered for both functionality and aesthetic appeal. Key features include:

• High-resolution 2160 x 1440 IPS display
• Wide range of mounting options – Hidden magnets for mounting on a steel surface. Mount to chassis fan location or fans directly.
• Smooth 60hz refresh rate with 450 nit brightness, IPS Panel with LED backlighting and 99% sRGB support.
• Plug-and-play with HDMI and SATA Power cable included.
• Secondary display with endless possibilities and edge-to-edge tempered glass panel.

4. سیٹ اپ

4.1. ڈسپلے کو جوڑنا

1. فراہم کردہ کو مربوط کریں۔ HDMI کیبل from your graphics card or motherboard to the HDMI input port on the Phanteks display.
2. فراہم کردہ کو مربوط کریں۔ SATA to Micro USB Type B Cable from an available SATA power connector in your PC to the Micro USB Type B port on the Phanteks display for power.
3. Ensure both connections are secure. The display should power on automatically once your PC is running.

4.2. بڑھتے ہوئے اختیارات

The Phanteks display offers flexible mounting solutions:

• مقناطیسی ماؤنٹنگ: The display features hidden magnets allowing it to be securely attached to any steel surface within your PC chassis.
• پنکھا لگانا: Use the provided 4x Fan Screws or 4x M4 Screws to mount the display to a 120mm fan bracket or directly to a fan location in your chassis.
• External Placement: Attach the 2x Feet to the display for stable placement outside your PC, such as on your desk.

شکل 1: سامنے view of the Phanteks 5.5” Hi-Res Universal LCD Display.

شکل 2: پیچھے view of the display, highlighting magnetic mounting points and screw holes for fan mounting.

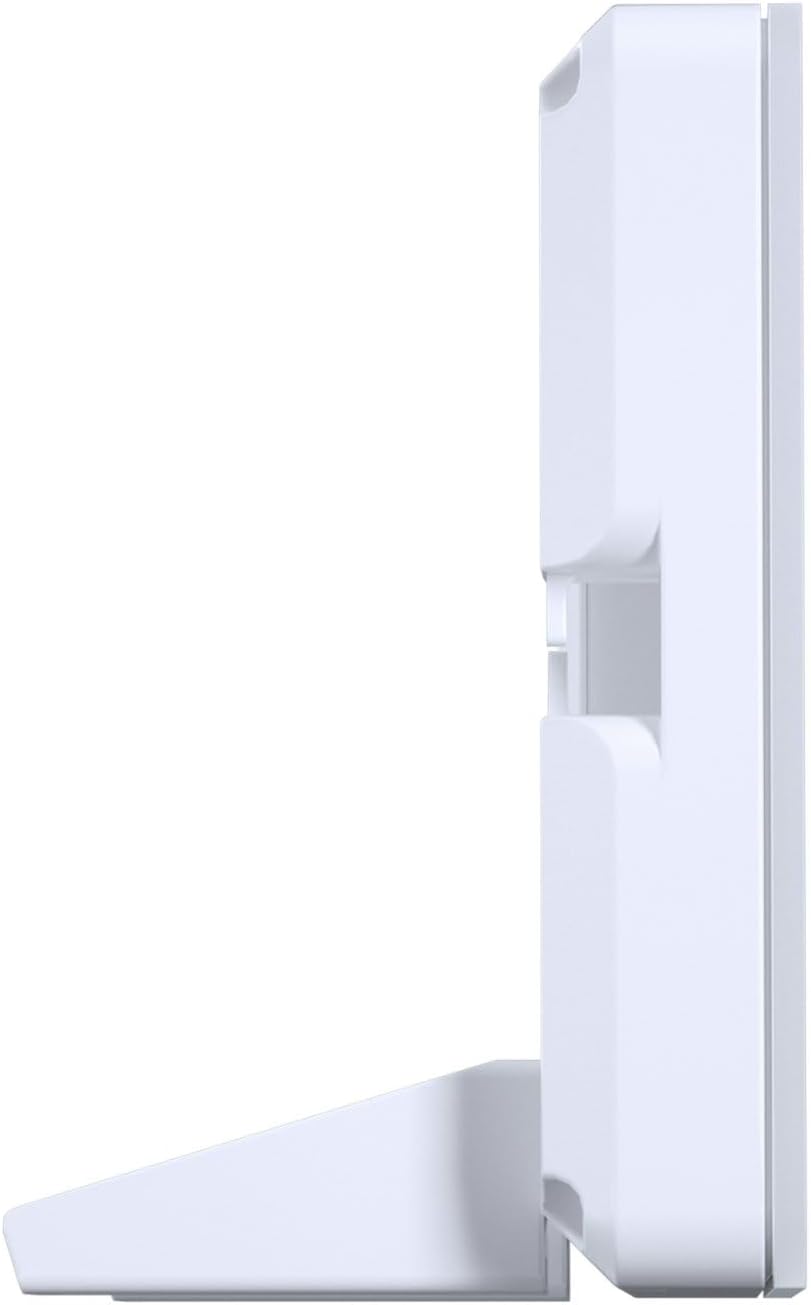

شکل 3: طرف view of the display with the included feet attached for desktop use.

4.3. سافٹ ویئر سیٹ اپ

The Phanteks display is designed for plug-and-play functionality, recognized by your PC as a standard secondary monitor. For advanced customization, such as displaying system statistics (CPU/GPU temperature, usage, etc.) or custom animations, third-party software like AIDA64, Rainmeter, or Wallpaper Engine may be utilized. Refer to the documentation of your chosen software for specific setup instructions.

5. آپریٹنگ

Once connected and powered on, the Phanteks display will function as an extension of your main monitor. You can drag windows, applications, or custom monitoring dashboards onto it.

• معلومات کی نمائش: Use compatible software to output real-time system data, custom images, or videos to the display.
• حسب ضرورت: Many third-party applications allow for extensive customization of the displayed content, including themes, layouts, and background images/animations.

6 دیکھ بھال

To ensure the longevity and optimal performance of your Phanteks display, follow these maintenance guidelines:

• صفائی: Gently wipe the screen with a soft, lint-free cloth. For stubborn smudges, use a screen-safe cleaning solution applied to the cloth, not directly to the screen.
• ہینڈلنگ: Avoid applying excessive pressure to the screen or dropping the device.
• ماحولیات: Operate the display in a well-ventilated area and avoid extreme temperatures or humidity.

7 خرابیوں کا سراغ لگانا

If you encounter issues with your Phanteks display, refer to the following common troubleshooting steps:

• ڈسپلے آن نہیں ہو رہا ہے:
  • Ensure both the HDMI and SATA power cables are securely connected.
  • Verify that your PC is powered on and the graphics card is functioning correctly.
  • Try connecting the display to a different HDMI port on your graphics card/motherboard or a different USB power source.
• Distorted Colors or Flickering:
  • Check the HDMI cable for any damage or loose connections. Try a different HDMI cable if available.
  • یقینی بنائیں کہ آپ کے گرافکس ڈرائیور اپ ٹو ڈیٹ ہیں۔
  • Verify the display resolution and refresh rate settings in your operating system.
• Display Not Detected by PC:
  • اپنے پی سی کو دوبارہ شروع کریں۔
  • Ensure the HDMI cable is connected to an active output port on your graphics card.
  • Check your display settings in your operating system to see if the secondary monitor is detected but disabled.

8. وضاحتیں

Detailed technical specifications for the Phanteks 5.5” Hi-Res Universal LCD Display:

Figure 4: Display dimensions: 5.94" (L) x 3.15" (B) x 0.65" (H).

9. وارنٹی اور سپورٹ

For warranty information, technical support, or service inquiries, please refer to the official Phanteks webسائٹ یا ان کے کسٹمر سروس ڈیپارٹمنٹ سے رابطہ کریں۔ وارنٹی کے دعووں کے لیے اپنی خریداری کا ثبوت رکھیں۔
