WIPEBOT Pro خودکار ونڈو کلیننگ روبوٹ یوزر مینوئل بنائیں

تعارف

Thank you for choosing the CREATE WIPEBOT Pro Automatic Window Cleaning Robot. This advanced device is designed to provide efficient and thorough cleaning for your windows, featuring dual water outlets, two spray levels, and intelligent corner and edge detection. With its 5-meter safety cable and 60ml water tank, it ensures a reliable and extended cleaning experience. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your WIPEBOT Pro.

حفاظتی ہدایات

Please read all safety instructions carefully before using the WIPEBOT Pro. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always attach the safety rope securely to a fixed anchor point before operation. The 5-meter safety cable is crucial for preventing falls.
• Ensure the power adapter and cable are securely connected and free from damage. Do not use if damaged.
• Do not operate the robot in rainy or extremely humid conditions.
• ہاتھوں، بالوں اور ڈھیلے لباس کو حرکت پذیر حصوں سے دور رکھیں۔
• Use only the cleaning solution recommended by CREATE or clean water. Do not use corrosive liquids.
• Do not use the robot on cracked or damaged glass surfaces.
• Supervise the robot during operation, especially when used on high windows.
• بچوں اور پالتو جانوروں کی پہنچ سے دور رکھیں۔
• صفائی یا دیکھ بھال کرنے سے پہلے بجلی منقطع کریں۔

پیکیج کے مشمولات

تصدیق کریں کہ تمام اشیاء پیکیج میں موجود ہیں:

WIPEBOT Pro Robot Unit

Microfiber Cleaning Pads (multiple)

Power Adapter and AC Cable

5m Safety Rope with Carabiner

ریموٹ کنٹرول

Cleaning Solution Bottle (empty)

پروڈکٹ ختمview

Familiarize yourself with the components of your WIPEBOT Pro.

سامنے والا View: Displays the power button and the start/pause button. The "CREATE" logo is centered.

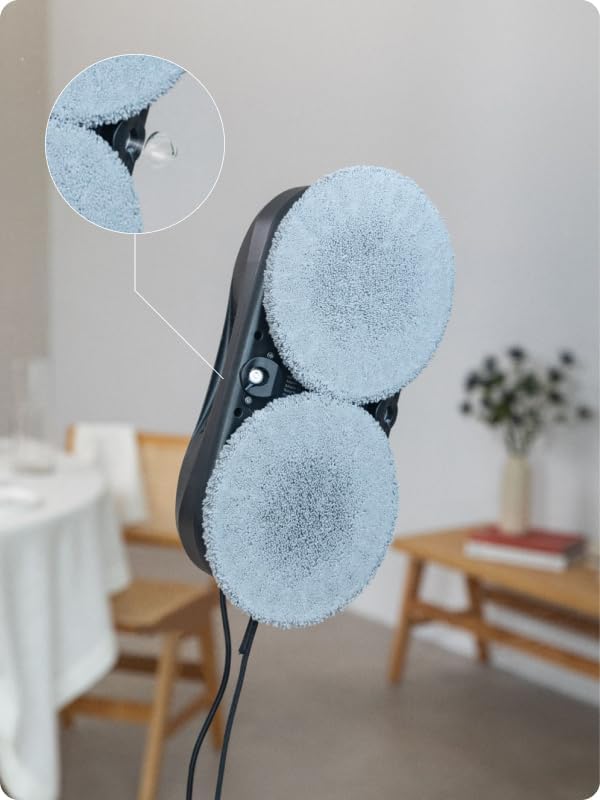

Water Spray Nozzles: Located between the cleaning pads, these nozzles provide precise water or cleaning solution application.

پانی کے ٹینک میں داخل: The opening for filling the 60ml water tank, typically located on the top surface.

سیٹ اپ

1. روبوٹ کو چارج کریں: Before first use, ensure the robot is fully charged. Connect the power adapter to the robot and a power outlet. The indicator light will show charging status.
2. صفائی پیڈ منسلک کریں: Securely attach the microfiber cleaning pads to the designated areas on the bottom of the robot. Ensure they are clean and dry or slightly damp as per cleaning requirements.
3. پانی کے ٹینک کو بھریں: Open the water tank inlet and carefully fill the 60ml tank with clean water or a recommended window cleaning solution. Close the cap tightly.


   Filling the water tank with cleaning solution.

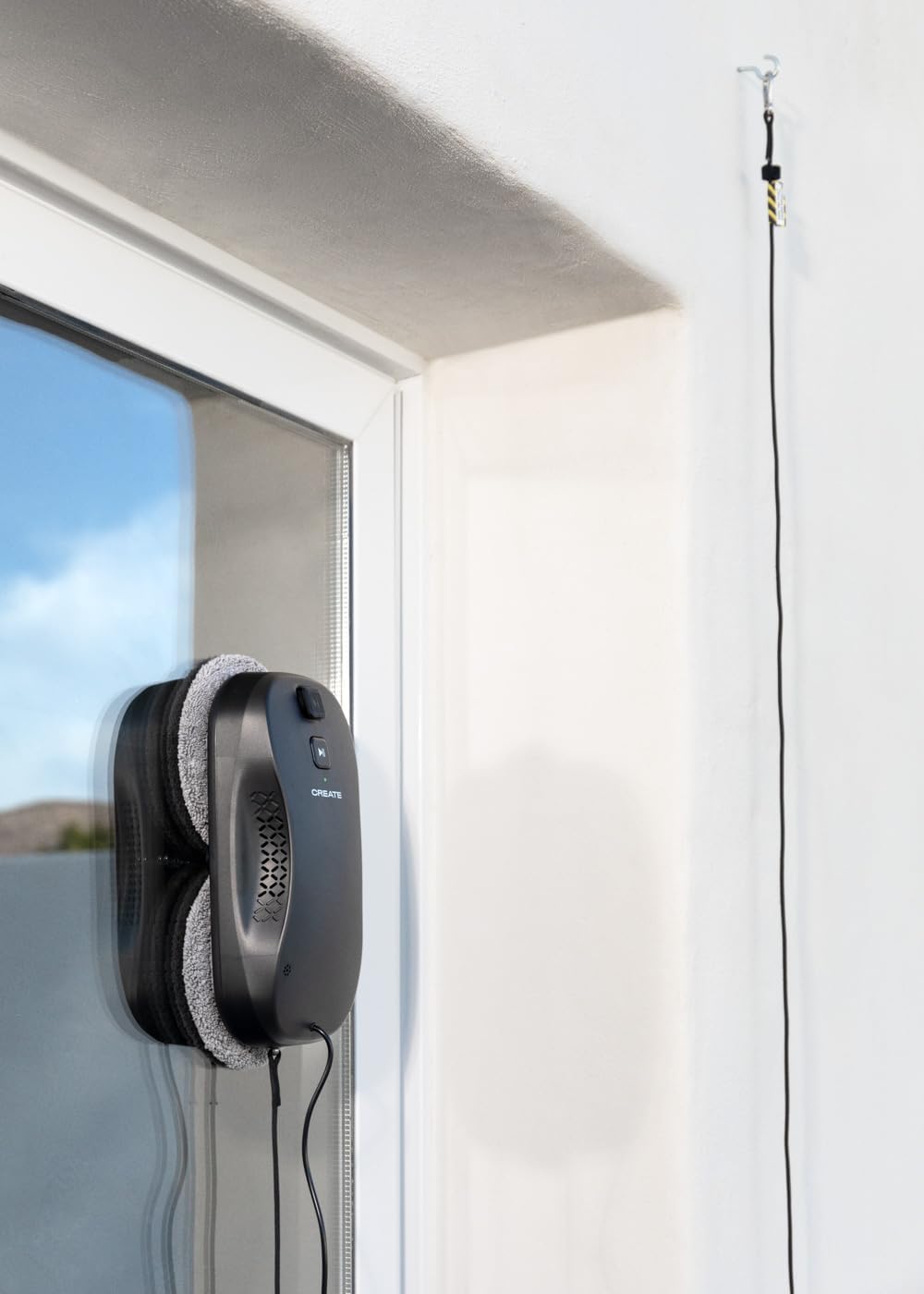

4. حفاظتی رسی منسلک کریں: Connect the 5-meter safety rope to the robot's safety attachment point and secure the other end to a strong, fixed anchor point indoors. This is critical for safety.


   Ensure the safety rope is securely fastened.

5. پاور کنکشن: Connect the robot to the power adapter. The robot requires continuous power during operation.
6. ایپ کنکشن (اختیاری): Download the CREATE app on your smartphone. Follow the in-app instructions to connect your WIPEBOT Pro via WiFi for remote control and additional features.


   Controlling the robot via the CREATE app on a smartphone.

آپریٹنگ ہدایات

1. جگہ کا تعین: Place the robot firmly on the center of the window surface you wish to clean. Ensure it adheres securely.
2. صفائی شروع کریں:
   • دستی آغاز: Press the Start/Pause button on the robot.


     Pressing the start button on the robot.

   • ریموٹ کنٹرول: Use the remote control to start, pause, or direct the robot.


     Controlling the robot with the remote control.

   • ایپ کنٹرول: Use the CREATE app on your smartphone to initiate cleaning cycles and adjust settings.
3. Adjust Spray Levels: The WIPEBOT Pro offers two polishing modes/spray levels. Adjust the intensity of the sprayer via the remote or app to suit the cleaning needs.


   The robot's dual water outlets provide precise spraying.

4. Edge and Corner Detection: The robot is equipped with intelligent sensors to detect edges and corners, ensuring comprehensive cleaning coverage.
5. Stopping and Removing: Once cleaning is complete, the robot will return to its starting position or stop. Carefully remove the robot from the window by holding it firmly and pressing the release button (if applicable) or gently pulling it off.

دیکھ بھال

Regular maintenance ensures optimal performance and extends the lifespan of your WIPEBOT Pro.

• Clean Cleaning Pads: After each use, remove and wash the microfiber cleaning pads. They can typically be hand-washed or machine-washed with mild detergent. Ensure they are completely dry before reattaching.
• Clean Robot Body: Wipe the exterior of the robot with a soft, damp cloth. Do not use abrasive cleaners or immerse the robot in water.
• خالی پانی کی ٹینک: After each use, empty any remaining water or cleaning solution from the tank to prevent residue buildup.
• نوزل چیک کریں: Periodically check the spray nozzles for blockages and clean them if necessary using a small brush or pin.
• ذخیرہ: روبوٹ کو براہ راست سورج کی روشنی اور انتہائی درجہ حرارت سے دور ٹھنڈی، خشک جگہ پر اسٹور کریں۔

خرابی کا سراغ لگانا

If you encounter issues with your WIPEBOT Pro, refer to the following common problems and solutions:

وضاحتیں

وارنٹی اور سپورٹ

The CREATE WIPEBOT Pro comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official CREATE webتفصیلی وارنٹی شرائط و ضوابط کے لیے سائٹ۔

For technical support, troubleshooting assistance, or spare parts, please contact CREATE customer service. You can usually find contact information on the product packaging, the official webسائٹ، یا اپنے خوردہ فروش کے ذریعے۔

Webسائٹ: www.create.com (نوٹ: یہ پلیس ہولڈر ہے۔ URL. Please refer to your product documentation for the actual support webسائٹ)
