vidaXL الیکٹرک ریکلائننگ مساج آرم چیئر ماڈل 3203966 یوزر مینوئل

1. تعارف

This manual provides essential information for the safe and efficient use of your new vidaXL Electric Reclining Massage Armchair. Please read these instructions carefully before assembly and operation, and retain them for future reference. This armchair is designed to offer comfort and relaxation with its electric reclining and integrated massage functions.

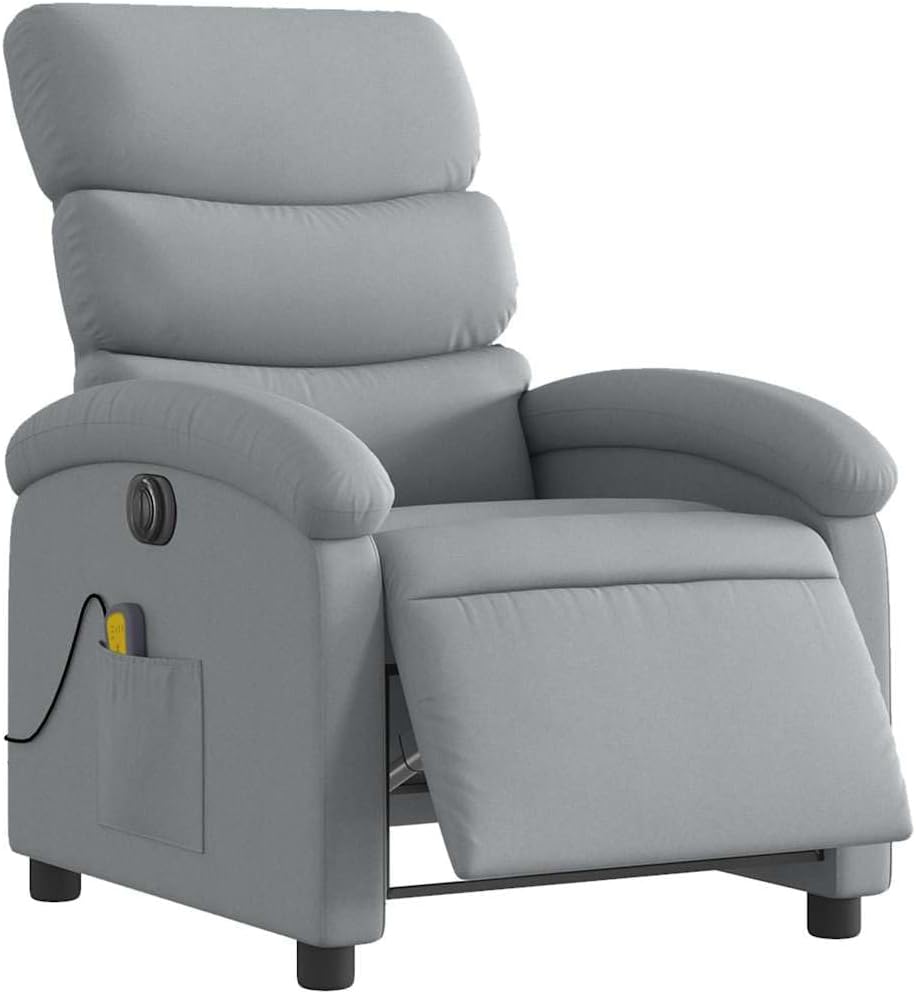

Image 1.1: The vidaXL Electric Reclining Massage Armchair in its upright position.

2. حفاظتی معلومات

• Ensure safe assembly by following all instructions carefully.
• Adhere strictly to the maximum load capacity of 110 کلوگرام (approximately 242 lbs). Exceeding this limit may cause damage to the armchair and potential injury.
• آپریشن کے دوران بچوں اور پالتو جانوروں کو حرکت پذیر حصوں سے دور رکھیں۔
• کسی بھی سوراخ میں غیر ملکی اشیاء نہ ڈالیں۔
• صفائی یا دیکھ بھال سے پہلے بجلی کی فراہمی منقطع کریں۔
• Use only the provided power adapter or a certified 5V USB power source for the massage function.

3. پیکیج کے مشمولات

Before beginning assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Main chair components (backrest, seat, armrests)
• ٹانگیں (4 ٹکڑے)
• Power adapter for electric recline
• Remote control for massage function
• Assembly hardware (screws, washers, Allen key)

4. سیٹ اپ اور اسمبلی

Assembly is required for this armchair. Please follow the steps below and refer to the diagrams for visual guidance. It is recommended to assemble the chair on a soft, clean surface to prevent damage.

4.1. اسمبلی کے مراحل

1. ٹانگیں جوڑیں: Carefully turn the main seat frame upside down. Attach the four legs to the designated mounting points using the provided screws and Allen key. Ensure they are securely tightened.
2. بیکریسٹ کو سیٹ سے جوڑیں: Align the backrest with the seat frame. Slide the backrest into the metal brackets on the seat until it clicks securely into place. Ensure both sides are fully engaged.
3. Connect Armrests (if separate): If armrests are separate, attach them to the main frame using the provided hardware.
4. پاور کیبلز کو جوڑیں: Locate the power cable for the electric recline mechanism and connect it to the power adapter. Connect the power adapter to a suitable electrical outlet. For the massage function, connect the USB cable from the chair to a certified 5V USB power source (not supplied).

Image 4.1: Assembly overview and dimensions. Note the 100-135 degree recline range.

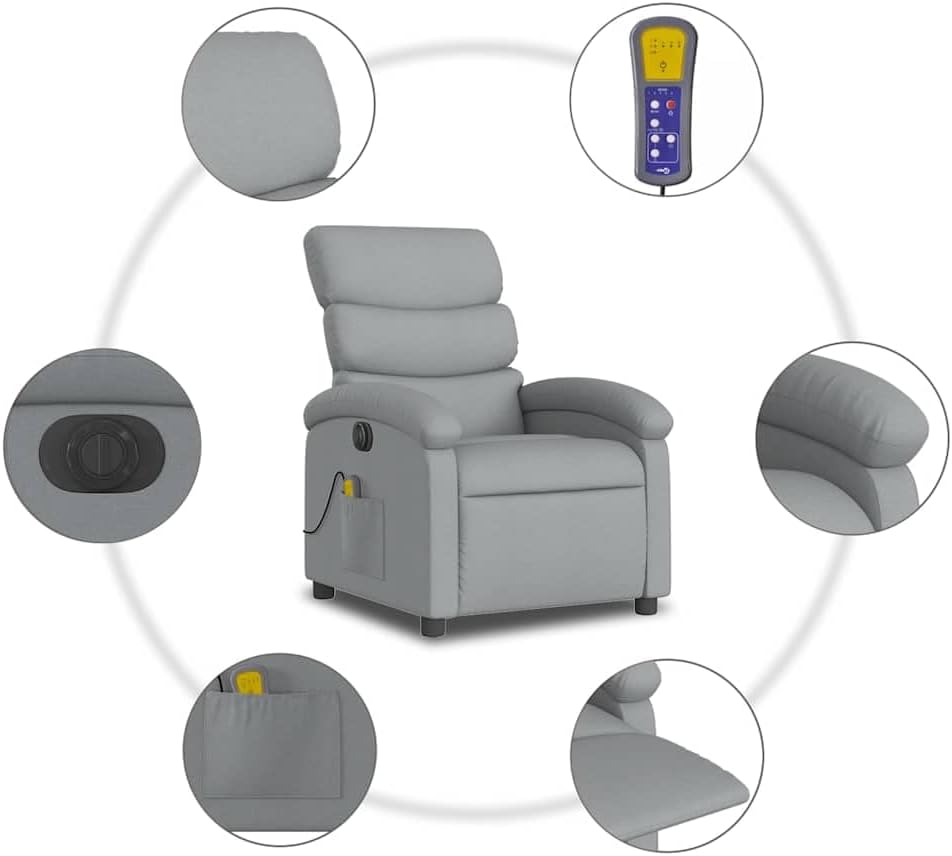

Image 4.2: Detail of the electric recline button and massage points.

5. آپریٹنگ ہدایات

5.1. Electric Recline Function

The armchair features an electric motor for smooth reclining. To operate:

• Locate the control button on the side of the armchair.
• Press and hold the button to extend the footrest and recline the backrest. Release the button when you reach your desired position (up to 135 degrees).
• To return to the upright position, press and hold the button again. The backrest and footrest will retract automatically.

5.2. Massage Function

The integrated massage function provides targeted relaxation with 6 massage points.

• Ensure the USB cable from the chair is connected to a certified 5V USB power source (not included).
• Use the included remote control to activate and customize your massage experience.
• The remote control allows you to select different massage programs, intensities, and modes. Refer to the remote control diagram for specific button functions.

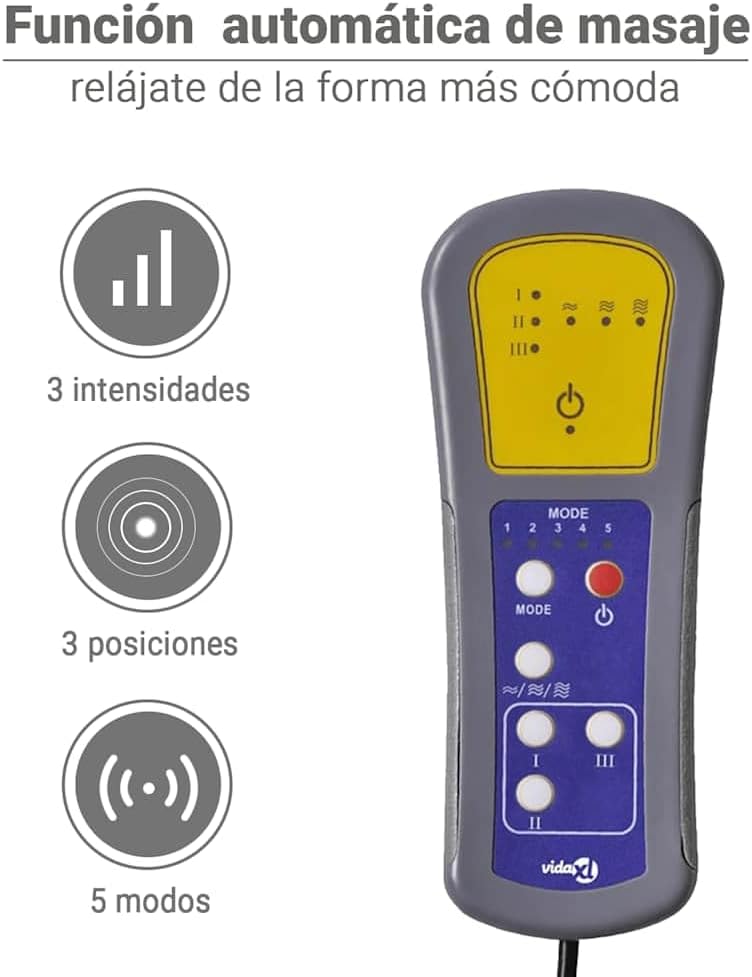

Image 5.1: Massage remote control for selecting programs, intensities, and modes.

5.3. Side Pocket

A convenient side pocket is integrated into the armchair, ideal for storing the massage remote control, magazines, or other small personal items within easy reach.

6 دیکھ بھال

Proper care will extend the life and appearance of your armchair.

• صفائی: Clean the fabric upholstery with soft cloths.
• باقاعدہ دیکھ بھال: دھول اور ملبہ ہٹانے کے لیے کپڑے کو باقاعدگی سے ویکیوم یا برش کریں۔
• Stain Treatment: Treat stains promptly with a mild detergent specifically designed for fabric upholstery. Test the detergent on an inconspicuous area first.
• اجتناب: Do not use harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the fabric and internal components.

Image 6.1: Detail of the premium fabric material.

7 خرابیوں کا سراغ لگانا

If you encounter issues with your armchair, refer to the following common problems and solutions:

• Chair does not recline:
  • Check if the power adapter is securely connected to both the chair and a working electrical outlet.
  • Ensure there are no obstructions preventing the reclining mechanism from moving freely.
• مساج فنکشن کام نہیں کر رہا ہے:
  • Verify that the USB cable is properly connected to a certified 5V USB power source.
  • یقینی بنائیں کہ USB پاور سورس فعال ہے اور پاور فراہم کر رہا ہے۔
• کرسی غیر مستحکم یا ہلچل محسوس ہوتی ہے:
  • Re-check all assembly hardware, especially the leg attachments, and tighten any loose screws.
  • Ensure the chair is placed on a flat, even surface.

8. وضاحتیں

9. وارنٹی اور سپورٹ

Information regarding spare parts availability for this product is not explicitly provided. For any product-related inquiries, technical support, or warranty claims, please contact your retailer or the manufacturer, vidaXL, directly. Please have your model number (3203966) and proof of purchase ready when contacting support.
