Sunforce 82182 Solar Powered Security Motion Sensor LED Light

تعارف

Thank you for choosing the Sunforce 82182 Solar Powered Security Motion Sensor LED Light. This product is designed to provide reliable, energy-efficient lighting and enhanced security for your home, garden, or garage. Utilizing solar power, it offers a sustainable lighting solution without the need for complex wiring or external power sources. This manual will guide you through the installation, operation, and maintenance of your new security light.

حفاظتی معلومات

• تنصیب اور آپریشن سے پہلے تمام ہدایات کو احتیاط سے پڑھیں۔
• مصنوعات کو جدا کرنے یا اس میں ترمیم کرنے کی کوشش نہ کریں۔ یہ وارنٹی کو باطل کر سکتا ہے اور نقصان کا سبب بن سکتا ہے۔
• یقینی بنائیں کہ بڑھتی ہوئی سطح مستحکم ہے اور لائٹ فکسچر کے وزن کو سہارا دے سکتی ہے۔
• چارجنگ کی بہترین کارکردگی کو یقینی بنانے کے لیے سولر پینل کو صاف رکھیں۔
• مقامی قواعد کے مطابق بیٹریاں ڈسپوز کریں۔

پیکیج کے مشمولات

براہ کرم تصدیق کریں کہ تنصیب شروع کرنے سے پہلے تمام اجزاء موجود ہیں:

• 1 x Sunforce 1800 Lumens Solar Security Motion Light
• 1 x Solar Panel with 14.7 ft. (4.5m) of wire
• 2 x Lithium-ion rechargeable batteries (1800 mAh, 3.7V) (pre-installed or included separately)
• بڑھتے ہوئے ہارڈ ویئر (پیچ، اینکرز)

Image: The Sunforce 82182 solar security light unit and its separate solar panel, illustrating the main components included in the package.

مصنوعات کی خصوصیات

• اعلی چمک: 1800 Lumens output with 5000K cool white LEDs for powerful illumination.
• حرکت چالو: Detects motion up to 30 ft. (9.1m) with a 180-degree detection range.
• شمسی توانائی سے چلنے والا: Amorphous solar panel charges in all daylight conditions, eliminating the need for direct sunlight or electrical wiring.
• سایڈست ایلamp سربراہان: Innovative design allows side lamp heads to pivot vertically and horizontally, and the middle piece to move up and down for maximum lighting coverage.
• موسم مزاحم: Fully weather-resistant construction suitable for outdoor use in various conditions.
• ورسٹائل تنصیب: Ideal for entryways, garages, pathways, sheds, and remote areas.

Image: A visual summary highlighting key features: motion activation with detection range, the amorphous solar panel's ability to charge in all daylight, and the light's fully weather-resistant design.

سیٹ اپ اور انسٹالیشن

The Sunforce 82182 light is designed for easy installation without the need for main power or complex wiring.

1 ایک مقام کا انتخاب

Select a location for the light fixture that provides adequate coverage for the desired area. For optimal solar panel performance, choose a spot where the solar panel can receive maximum daylight exposure throughout the day. While the amorphous panel charges in all daylight conditions, direct sunlight will yield the best results.

2. Mounting the Light Fixture

1. Using the provided mounting hardware, securely attach the light fixture to a wall or desired surface. Ensure it is mounted at a height that allows for effective motion detection and light distribution.
2. Connect the solar panel wire to the light fixture. The 14.7 ft. (4.5m) wire provides flexibility for solar panel placement.

Image: The Sunforce 82182 security light mounted above a garage door, demonstrating a typical installation scenario for outdoor security lighting.

3 ایل کو ایڈجسٹ کرناamp سر

The light features adjustable lamp heads to customize the lighting coverage:

• طرف ایلamp heads can pivot افقی طور پر to direct light left or right.
• طرف ایلamp heads can also pivot عمودی طور پر to direct light up or down.
• The central light panel can move اوپر اور نیچے to further refine the light spread.

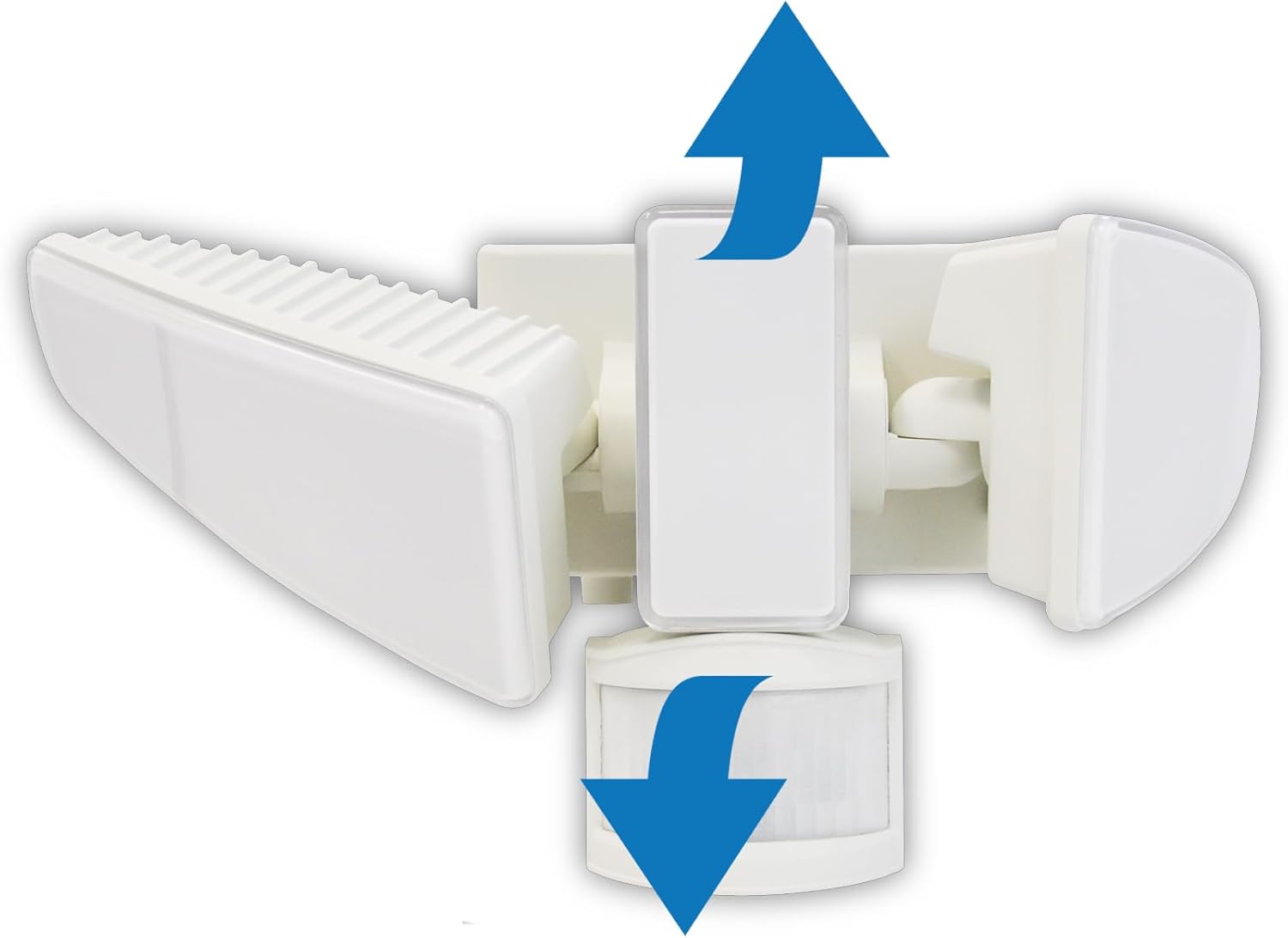

Image: Illustration showing the horizontal adjustment capability of the light's side lamp heads, indicated by blue arrows.

Image: Illustration showing the vertical adjustment capability of the light's side lamp heads, indicated by blue arrows.

آپریٹنگ ہدایات

The Sunforce 82182 is designed for automatic operation.

خودکار آپریشن

Once installed and charged, the light will automatically turn on when motion is detected within its 30 ft. (9.1m) detection distance and 180-degree detection range. The light will remain on as long as motion is detected and will turn off after a period of no motion, conserving battery life.

ابتدائی چارج

For optimal performance, allow the solar panel to charge the internal batteries for at least 24-48 hours in daylight before first use. This ensures the batteries are fully charged and ready for operation.

دیکھ بھال

Regular maintenance will help ensure the longevity and optimal performance of your solar security light.

• سولر پینل کی صفائی: وقتاً فوقتاً سولر پینل کو نرم سے صاف کریں، ڈیamp دھول، گندگی، یا ملبہ ہٹانے کے لیے کپڑا۔ ایک صاف پینل سورج کی روشنی کو زیادہ سے زیادہ جذب کرنے اور چارج کرنے کی کارکردگی کو یقینی بناتا ہے۔
• Cleaning the Light Fixture: Clean the LED light heads and motion sensor lens with a soft, damp cloth as needed to maintain brightness and sensor sensitivity.
• بیٹری کی دیکھ بھال: The included Lithium-ion batteries are designed for long life. If the light's performance significantly diminishes over time, it may indicate the batteries are reaching the end of their lifespan and may need replacement. Use only compatible rechargeable batteries.

خرابی کا سراغ لگانا

If your Sunforce 82182 light is not functioning as expected, please refer to the following common issues and solutions:

وضاحتیں

وارنٹی اور سپورٹ

The Sunforce 82182 Solar Powered Security Motion Sensor LED Light comes with a 1 سالہ صنعت کار کی وارنٹی خریداری کی تاریخ سے. یہ وارنٹی عام استعمال کے تحت مواد اور کاریگری میں نقائص کا احاطہ کرتی ہے۔

For warranty claims, technical support, or any questions regarding your product, please contact Sunforce customer service. Keep your proof of purchase for warranty validation.
