19X10W Moving Head DJ Light Instruction Manual

پروڈکٹ ختمview

The Datewink 19X10W Moving Head DJ Light is a high-performance stage lighting fixture designed for dynamic visual effects. It features 19 ultra-bright 10W 4-in-1 LED lamp beads, offering pure, uniform color mixing with up to 16.7 million colors. Its motorized head provides extensive movement capabilities, including 540° X-axis and 270° Y-axis rotation, complemented by zoom, wash, and beam effects. Multiple control modes, including Automatic, Sound-Activated, Master-Slave, and DMX512, ensure versatile operation for various event settings.

باکس میں کیا ہے۔

• 1 x Moving Head DJ Light
• 1 X بڑھتے ہوئے بریکٹ
• 1 ایکس صارف دستی
• 1 ایکس پاور کی ہڈی

Image: The product packaging showing the moving head light, mounting bracket, user manual, and power cord.

سیٹ اپ

Before initial use, ensure all packaging materials are removed. The light can be placed on a flat surface or mounted using the included bracket.

بڑھتے ہوئے ہدایات

1. Attach the mounting bracket securely to the base of the light using the provided screws.
2. Ensure the mounting surface (ceiling, truss, or floor) is stable and capable of supporting the light's weight (approximately 13.88 lbs).
3. Secure the light to the desired position using appropriate clamps or fasteners (not included).

Image: Illustration of the light's zoom function, demonstrating beam angle adjustment.

پاور کنکشن

Connect the provided power cord to the 'POWER IN' port on the rear panel of the light. Plug the other end into a compatible power outlet (AC100-240V, 50/60Hz).

آپریٹنگ موڈز

The 19X10W Moving Head DJ Light offers several operating modes, selectable via the LCD display on the rear panel.

کنٹرول پینل ختم۔view

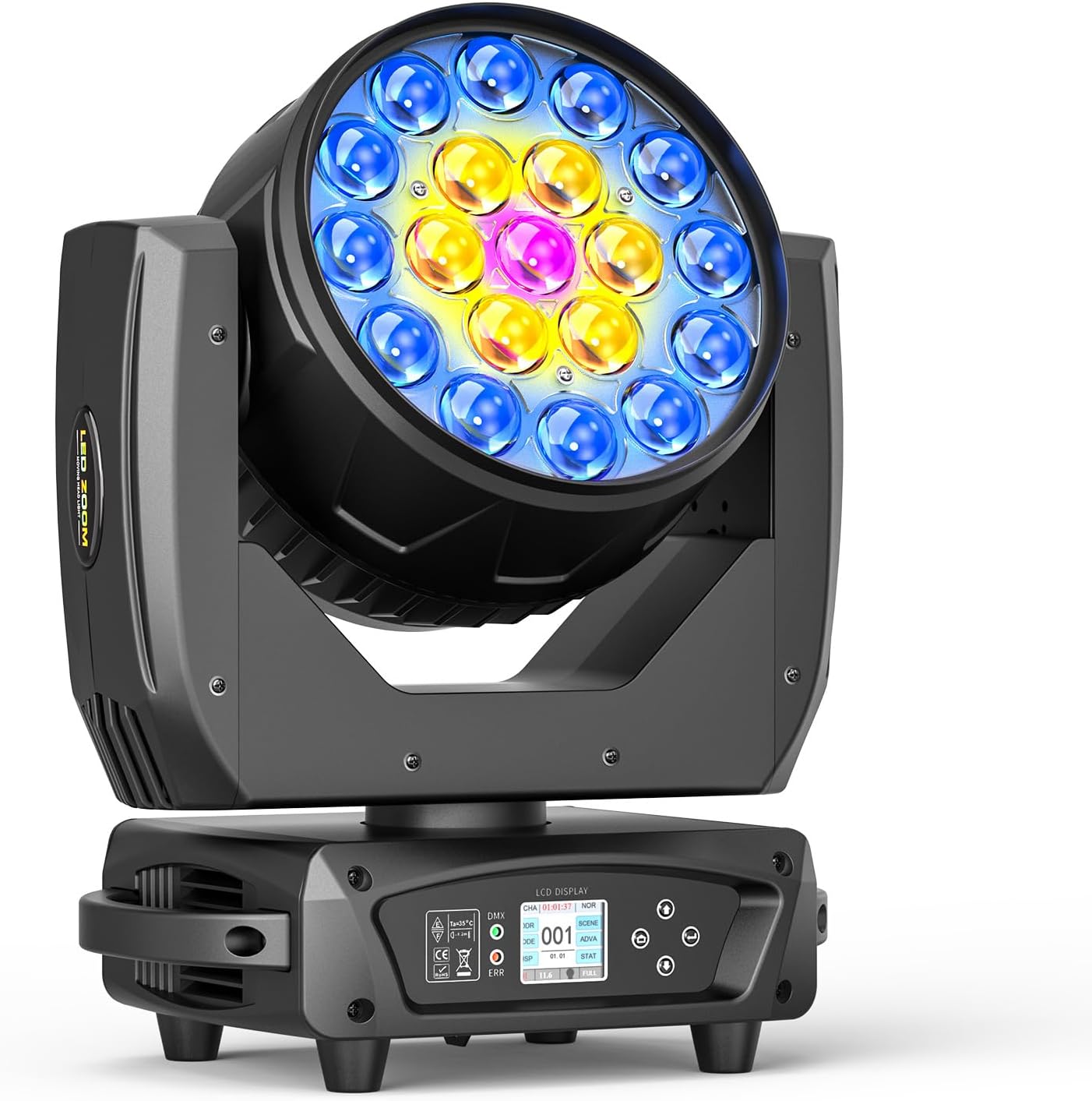

Image: The LCD display and navigation buttons for mode selection and settings adjustment.

1. خودکار موڈ

In Automatic mode, the light cycles through pre-programmed patterns and color changes without external input. This is ideal for quick setup and continuous operation.

2. Sound-Activated Mode

The Sound-Activated mode allows the light to react to ambient sound or music, changing patterns and movements in sync with the beat. Adjust sensitivity via the control panel.

3 ماسٹر غلام موڈ

Connect multiple lights in a Master-Slave configuration. One unit acts as the master, controlling all connected slave units, ensuring synchronized effects across your setup.

4 DMX512 کنٹرول موڈ

For advanced control, connect the light to a DMX512 controller. The light supports 16 or 24 DMX channels, allowing precise manipulation of color, movement, dimming, strobe, and zoom effects. Refer to the DMX channel table in the user manual for detailed channel assignments.

Image: Illustration of the light's extensive pan (X-axis) and tilt (Y-axis) movement ranges.

دیکھ بھال

Regular maintenance ensures optimal performance and longevity of your light.

• صفائی: Periodically clean the lenses and exterior with a soft, lint-free cloth. Avoid abrasive cleaners or solvents.
• کولنگ سسٹم: Ensure the cooling fan and vents are free from dust and debris to prevent overheating. The light features an aluminum heat dissipation system for efficient cooling.
• ذخیرہ: جب استعمال میں نہ ہو تو، روشنی کو خشک، دھول سے پاک ماحول میں محفوظ کریں، ترجیحاً اس کی اصل پیکیجنگ یا حفاظتی کیس میں۔

خرابی کا سراغ لگانا

وضاحتیں

وارنٹی اور سپورٹ

Datewink products are backed by a manufacturer's warranty. For specific warranty details, technical support, or service inquiries, please refer to the contact information provided on the product packaging or the official Datewink webسائٹ وارنٹی کے دعووں کے لیے اپنی خریداری کی رسید اپنے پاس رکھیں۔
