تعارف
The Mobvoi Walking Pad Treadmill Edge is a compact and portable fitness solution designed for both home and office environments. This 2-in-1 under-desk treadmill allows you to integrate walking and jogging into your daily routine, promoting an active lifestyle regardless of the weather. With its robust motor, shock-absorbing running belt, and smart connectivity features, it offers a comfortable and efficient workout experience.
Figure 1: Mobvoi Walking Pad Treadmill Edge in a home setting, demonstrating its use for both walking and under-desk exercise.
اہم حفاظتی معلومات
Please read all instructions carefully before using the Mobvoi Walking Pad Treadmill Edge. Keep this manual for future reference. Failure to follow these safety guidelines may result in injury or damage to the product.
- یقینی بنائیں کہ ٹریڈمل فلیٹ، مستحکم سطح پر رکھی گئی ہے۔
- آپریشن کے دوران بچوں اور پالتو جانوروں کو ٹریڈمل سے دور رکھیں۔
- ٹریڈمل کو نہ چلائیں اگر اس کی ہڈی یا پلگ خراب ہے، یا اگر یہ ٹھیک سے کام نہیں کر رہا ہے۔
- Wear appropriate athletic footwear when using the treadmill.
- بیلٹ حرکت کرتے وقت ٹریڈمل پر قدم نہ رکھیں
- Always use the safety key during operation.
- جب استعمال میں نہ ہو یا صفائی سے پہلے ٹریڈمل کو پاور آؤٹ لیٹ سے ان پلگ کریں۔
- ورزش کا کوئی بھی نیا پروگرام شروع کرنے سے پہلے معالج سے مشورہ کریں۔
پیکیج کے مشمولات
تصدیق کریں کہ نیچے دی گئی تمام اشیاء آپ کے پیکیج میں شامل ہیں:
Figure 2: All components included in the Mobvoi Walking Pad Treadmill Edge package.
- Mobvoi Walking Pad Treadmill Edge x1
- ہدایات دستی x1
- ریموٹ کنٹرول x1۔
- 5.9 ft Power Cord x1
- سایڈست فٹ x2
- Lubricant Oil x1
- 5mm & 6mm L-shaped Wrench Set x1
- کھولیں رینچ x1
سیٹ اپ
The Mobvoi Walking Pad Treadmill Edge comes largely pre-assembled for your convenience. Minimal setup is required before first use.
- پیک کھولنا: پیکیجنگ سے ٹریڈمل اور تمام لوازمات کو احتیاط سے ہٹا دیں۔
- جگہ کا تعین: Place the treadmill on a flat, hard surface. Ensure there is adequate clear space around the treadmill for safe operation (at least 2 feet from walls or furniture).
- سایڈست پاؤں منسلک کریں: Locate the two adjustable feet and screw them into the designated holes at the rear of the treadmill. These can be adjusted to level the unit on uneven surfaces.
- پاور کنکشن: Connect the power cord to the treadmill's power input port and then plug it into a grounded electrical outlet.
- ریموٹ کنٹرول سیٹ اپ: Insert the provided batteries into the remote control. The remote is essential for operating the treadmill.
آپریٹنگ ہدایات
Familiarize yourself with the treadmill's controls and display before beginning your workout.
LED Display and Remote Control
The integrated LED display provides real-time exercise data, while the remote control offers convenient operation.
Figure 3: The LED display and remote control for monitoring and adjusting your workout.
- پاور آن/آف: Use the main power switch on the treadmill.
- شروع/روکنا: Press the 'Start/Stop' button on the remote to begin or end your workout. The treadmill will typically count down before starting.
- سپیڈ ایڈجسٹمنٹ: Use the '+' and '-' buttons on the remote to increase or decrease the speed. The speed range is 1-4 mph.
- ڈسپلے میٹرکس: The LED display cycles through Speed, Time, Distance, and Calories burned.
- خاموش فنکشن: The remote control may include a mute button to silence operational beeps.
استعمال کے طریقے
The treadmill supports various modes to suit your activity level:
Figure 4: Different speed ranges for various exercise modes.
- ورکنگ موڈ: Ideal for use under a standing desk (1.0-1.5 mph).
- چلنے کا موڈ: Suitable for light exercise (1.0-2.5 mph).
- جاگنگ موڈ: For a more intense cardio workout (2.6-3.2 mph).
- رننگ موڈ: For higher intensity exercise (3.2-4.0 mph).
کلیدی خصوصیات
- طاقتور اور پرسکون موٹر: Equipped with a 1.65 HP peak motor, supporting up to 265 lbs. Operates at less than 60 dB, ensuring a peaceful workout environment.

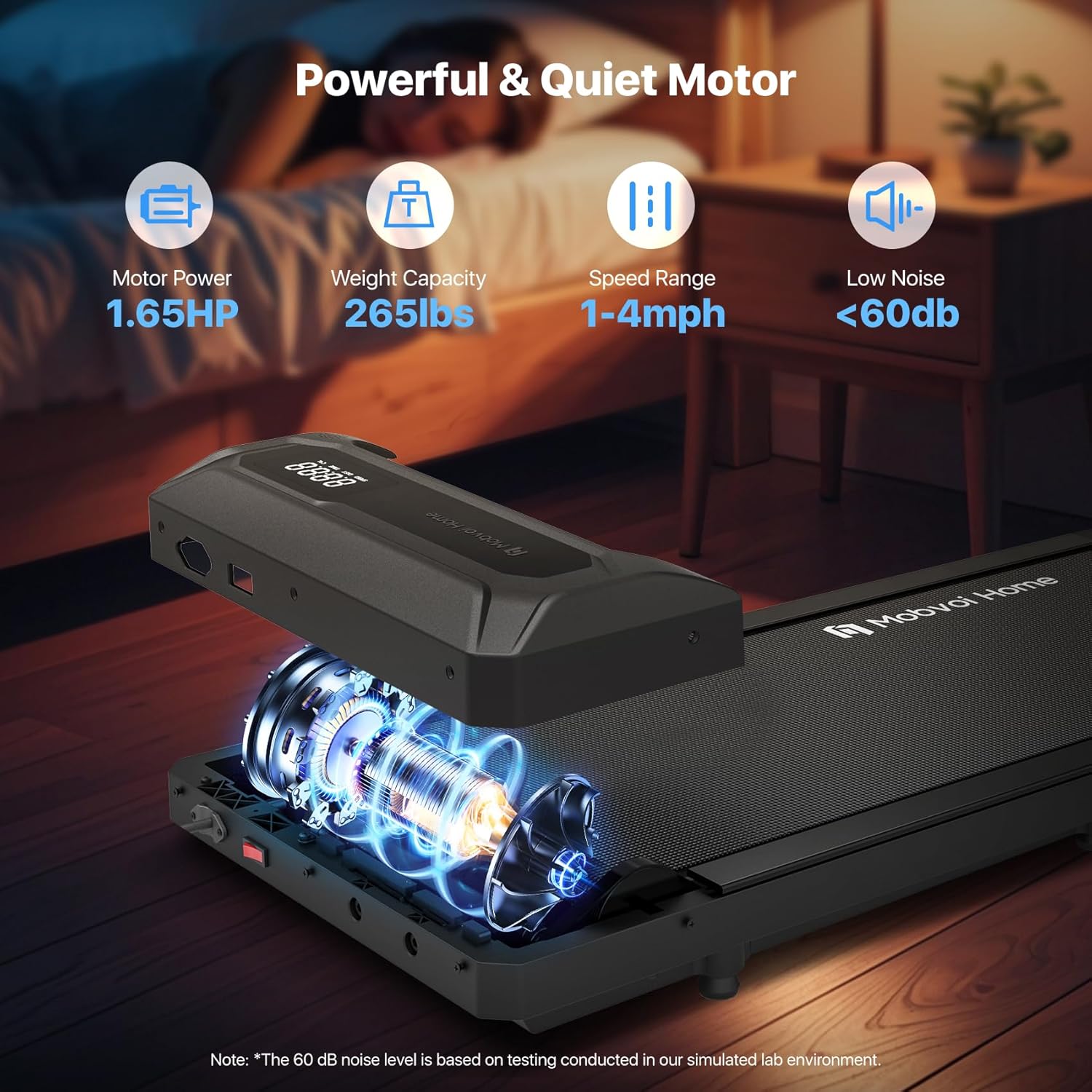

Figure 5: Illustration of the treadmill's motor power and low noise operation.
- 5-Layer Anti-Slip Shock Absorption Running Belt: Designed for comfort and joint protection, the multi-layer belt (38x90cm area) provides effective cushioning and reduces noise.

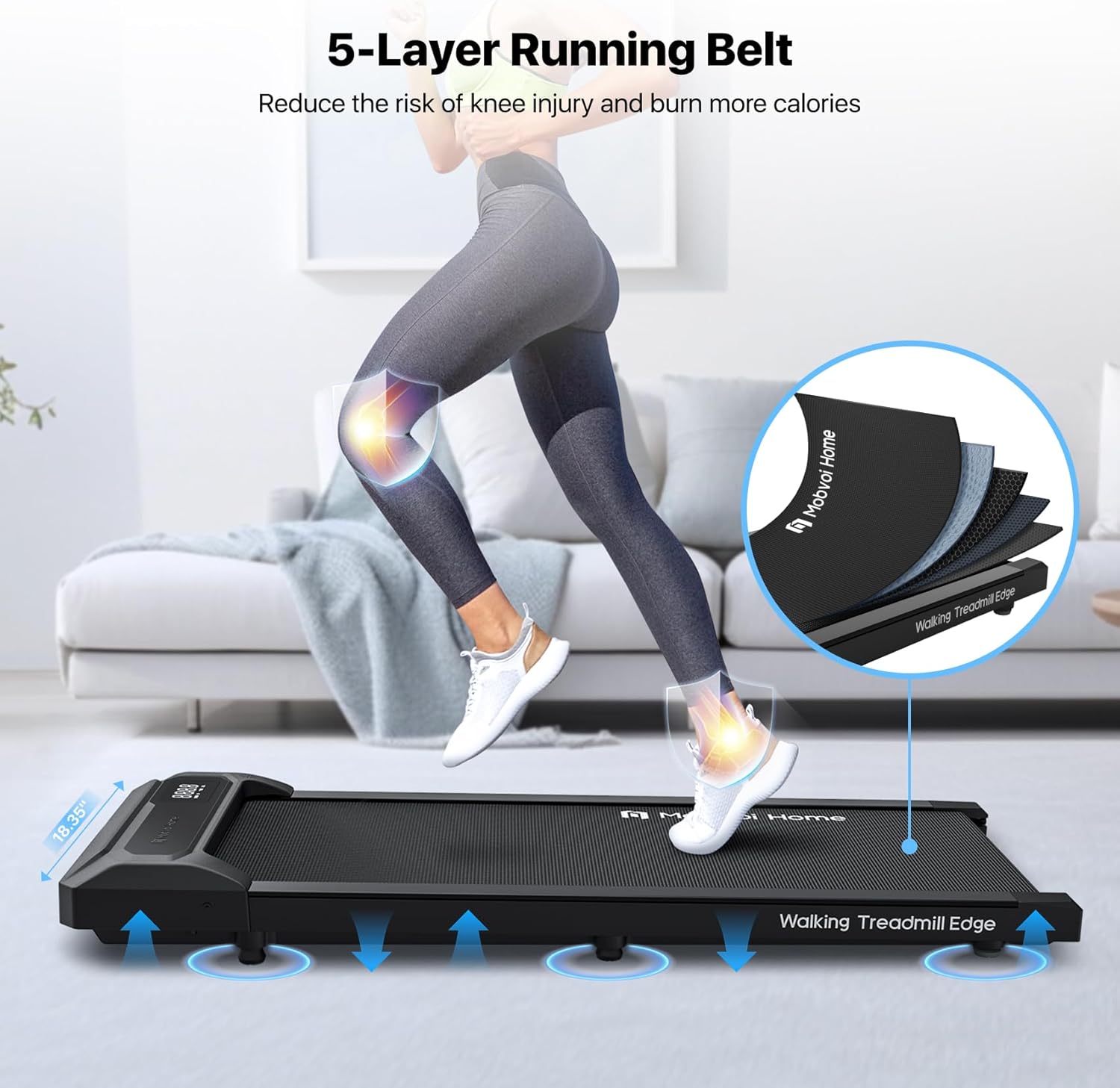

شکل 6: تفصیلی view of the 5-layer running belt for enhanced comfort and safety.
- Smartwatch Connection: Seamlessly connect your Wear OS by Google-powered smartwatch to sync exercise data, including distance, speed, and duration. Integrate with heart rate, steps, and calories tracked by your smartwatch for a comprehensive overview.
Figure 7: Smartwatch connectivity for integrated fitness tracking.
- Virtual Training Experience: Enhance indoor workouts by connecting to virtual trails for real-time walking and jogging games, transforming your routine into an immersive journey.
- منتقل اور ذخیرہ کرنے میں آسان: Its compact design (4.63 inches height, 18.4 inches width, 43 inches length) and light weight (28.7 lbs) make it easy to move and store, saving valuable home space.

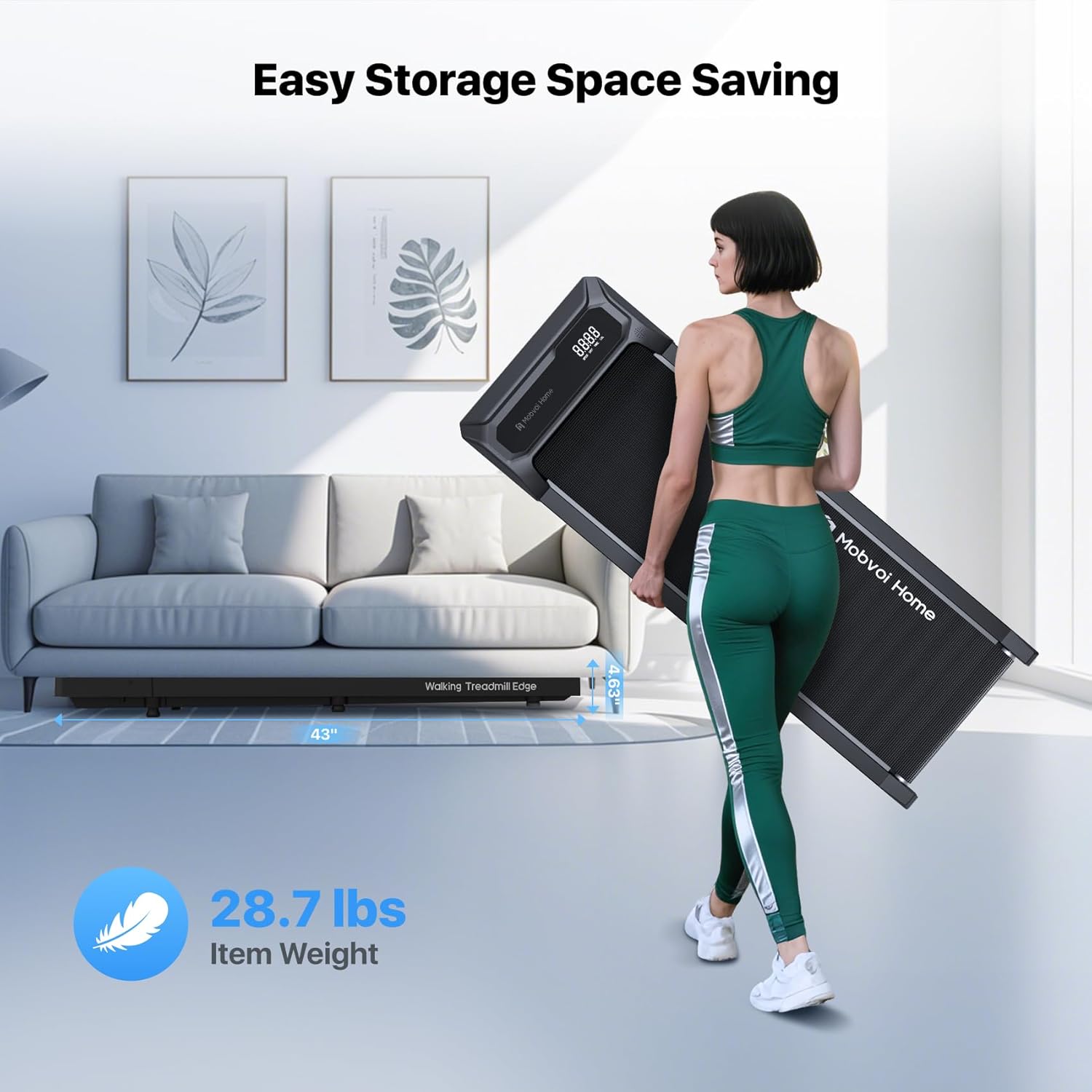

Figure 8: The treadmill's compact size and light weight allow for easy storage.
دیکھ بھال
باقاعدگی سے دیکھ بھال آپ کی ٹریڈمل کی لمبی عمر اور بہترین کارکردگی کو یقینی بناتی ہے۔
- صفائی: اشتہار کے ساتھ ٹریڈمل کو صاف کریں۔amp پسینے اور دھول کو دور کرنے کے لیے ہر استعمال کے بعد کپڑا۔ کھرچنے والے کلینر کا استعمال نہ کریں۔
- بیلٹ چکنا: The running belt requires periodic lubrication to reduce friction and extend its lifespan. Use the provided lubricant oil. Refer to the specific instructions in the included manual for frequency and application method.
- بیلٹ کی کشیدگی اور سیدھ: Periodically check the tension and alignment of the running belt. Adjust as needed using the included wrenches, following the detailed instructions in the main manual.
- ذخیرہ: When not in use, store the treadmill in a dry, cool place, away from direct sunlight and extreme temperatures. Its compact design allows for storage under furniture or upright against a wall.
خرابی کا سراغ لگانا
If you encounter any issues with your Mobvoi Walking Pad Treadmill Edge, refer to the following common problems and solutions:
| مسئلہ | ممکنہ وجہ | حل |
|---|---|---|
| ٹریڈمل آن نہیں ہے۔ | Power cord not properly connected; power switch off; circuit breaker tripped. | Ensure power cord is securely plugged in. Check if the main power switch is ON. Reset the circuit breaker if necessary. |
| رننگ بیلٹ رک جاتا ہے یا پھسل جاتا ہے۔ | Belt too loose; insufficient lubrication; motor overload. | Adjust belt tension (refer to manual). Apply lubricant oil. Reduce user weight or intensity. |
| آپریشن کے دوران غیر معمولی شور۔ | Loose components; belt misalignment; motor issue. | Check for loose screws and tighten. Adjust belt alignment. If noise persists, contact customer support. |
| ریموٹ کنٹرول جواب نہیں دے رہا ہے۔ | مردہ بیٹریاں؛ ریموٹ جوڑا نہیں ہے۔ | Replace remote control batteries. Refer to manual for remote pairing instructions. |
For issues not listed here, or if troubleshooting steps do not resolve the problem, please contact Mobvoi customer support.
وضاحتیں
| فیچر | تفصیل |
|---|---|
| برانڈ | موبوئی |
| ماڈل کا نام | Mobvoi Home Walking Treadmill Edge |
| رنگ | سیاہ |
| مصنوعات کے طول و عرض | 43"D x 18.4"W x 4.63"H |
| شے کا وزن | 13.4 کلوگرام (29.5 پونڈ) |
| مواد | Acrylonitrile Butadiene Styrene (ABS) |
| زیادہ سے زیادہ رفتار | 4 میل فی گھنٹہ |
| کم سے کم رفتار | 1 میل فی گھنٹہ |
| زیادہ سے زیادہ ہارس پاور | 1.65 ہارس پاور |
| زیادہ سے زیادہ وزن کی سفارش | 120 کلوگرام (265 پونڈ) |
| Running Area (Deck Length x Width) | 35.4 انچ x 15 انچ |
| ڈسپلے کی قسم | ایل ای ڈی |
| پیمائش شدہ میٹرکس | Speed, Calories Burned, Time, Distance |
| کنیکٹوٹی ٹیکنالوجی | بلوٹوتھ |
| طاقت کا منبع | کورڈڈ الیکٹرک |
| اسمبلی کی ضرورت ہے۔ | نہیں (کم سے کم سیٹ اپ) |
وارنٹی اور سپورٹ
وارنٹی تفصیل: The Mobvoi Walking Pad Treadmill Edge comes with a 1-year warranty.
For technical support, warranty claims, or any other inquiries, please visit the official Mobvoi website or contact their customer service department. Refer to the contact information provided on the product packaging or the Mobvoi official webسائٹ
آن لائن وسائل:
- Mobvoi Official Webسائٹ: www.mobvoi.com
- Mobvoi Store on Amazon: Mobvoi Store
