FTYHFEFH Carburetor Instruction Manual for Ryobi RY802900 2900PSI Pressure Washer

1. تعارف

This instruction manual provides essential information for the proper installation, operation, and maintenance of your new FTYHFEFH carburetor, designed as a direct replacement part for Ryobi RY802900 2900PSI pressure washers. Please read this manual thoroughly before attempting any installation or service to ensure safe and effective use.

2. پروڈکٹ ختمview

The FTYHFEFH carburetor is a critical component for your Ryobi RY802900 pressure washer's engine, responsible for mixing air and fuel in the correct proportions for combustion. This replacement carburetor is manufactured from high-strength components to ensure durability and reliable performance, contributing to consistent power output for your pressure washer.

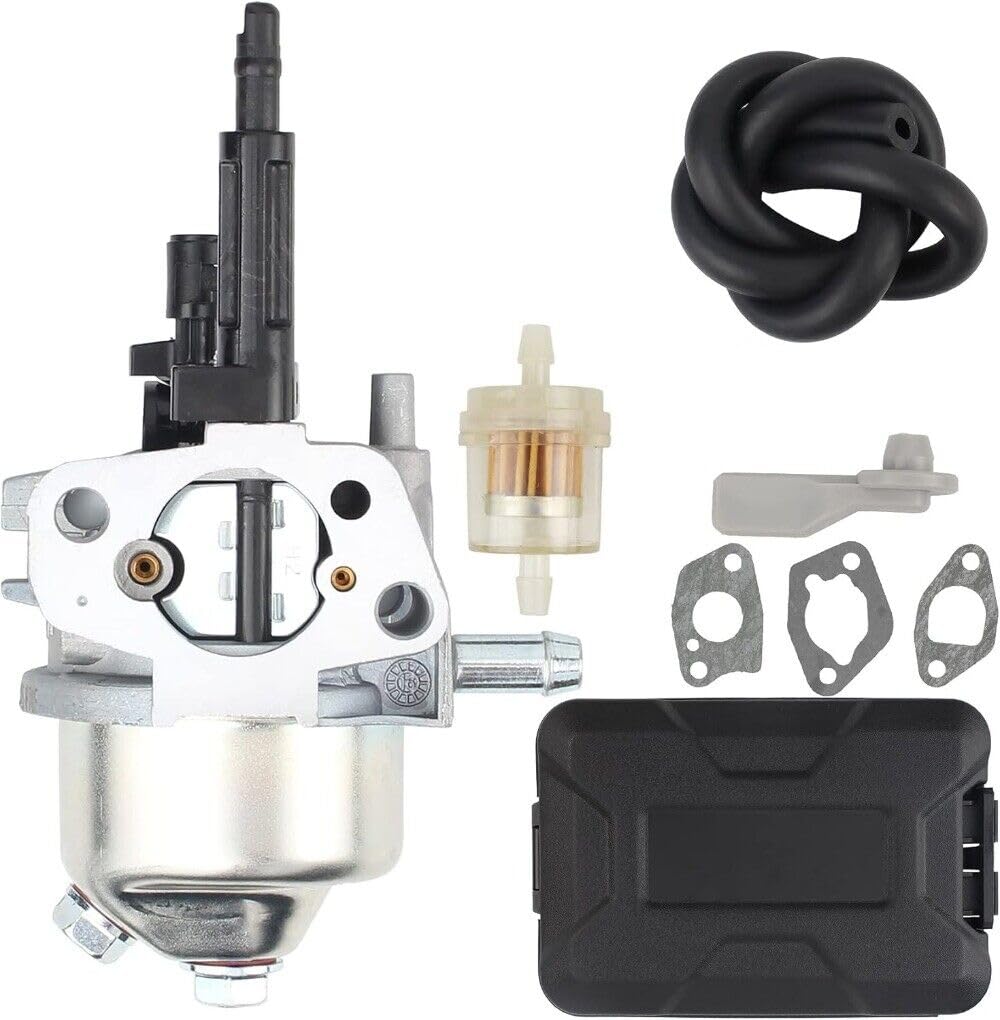

تصویر 2.1: سامنے والا view of the FTYHFEFH Carburetor. This image shows the general appearance of the carburetor, including the fuel bowl at the bottom and the throttle linkage at the top.

3. حفاظتی معلومات

Always prioritize safety when working with fuel systems and power equipment. Failure to follow these safety guidelines may result in serious injury or property damage.

• Disconnect Spark Plug: Before beginning any work, always disconnect the spark plug wire to prevent accidental engine startup.
• ایندھن کی ہینڈلنگ: Work in a well-ventilated area. Fuel is highly flammable. Avoid open flames, sparks, or smoking. Use an approved fuel container.
• آنکھوں کی حفاظت: Wear safety glasses or goggles to protect your eyes from fuel splashes or debris.
• دستانے: Wear appropriate gloves to protect your hands from fuel and other chemicals.
• انجن کولڈ ڈاؤن: Allow the engine to cool completely before servicing to prevent burns.
• مناسب اوزار: نقصان دہ اجزاء سے بچنے کے لیے کام کے لیے صحیح ٹولز استعمال کریں۔

4. پیکیج کے مشمولات

Upon opening the package, verify that all components are present and undamaged. You should receive:

• 1 x FTYHFEFH Carburetor (as shown in product images)
• Any associated gaskets or mounting hardware (if included with your specific kit)

If any parts are missing or damaged, please contact your seller immediately.

5. تنصیب کی ہدایات

This carburetor is designed for direct replacement. While no complex adjustments are typically needed, careful installation is crucial for optimal performance. Refer to your Ryobi RY802900 pressure washer's original service manual for specific engine disassembly and reassembly procedures if needed.

1. تیاری:
   • Ensure the engine is cool and the spark plug wire is disconnected.
   • Turn off the fuel supply valve and drain any fuel from the fuel tank and fuel lines.
   • Place absorbent rags under the carburetor area to catch any spilled fuel.
2. ایئر فلٹر اسمبلی کو ہٹا دیں: Carefully remove the air filter housing and air filter to gain access to the carburetor.
3. Disconnect Fuel Line: Disconnect the fuel line from the old carburetor. Be prepared for residual fuel to leak out.
4. رابطہ منقطع کریں: Disconnect the throttle and choke linkages from the old carburetor. Note their positions for reassembly.
5. پرانے کاربوریٹر کو ہٹا دیں: Unbolt the old carburetor from the engine. Remove any old gaskets.
6. نیا کاربوریٹر انسٹال کریں:
   • Ensure mating surfaces are clean. Install new gaskets (if provided) between the engine, carburetor, and air filter housing.
   • Mount the new FTYHFEFH carburetor onto the engine, ensuring it is seated correctly.
   • Secure the carburetor with the mounting bolts, tightening them evenly to prevent air leaks.
7. روابط دوبارہ جوڑیں: Reconnect the throttle and choke linkages to the new carburetor in their original positions. Ensure they move freely without binding.
8. فیول لائن کو دوبارہ جوڑیں: Reconnect the fuel line to the new carburetor. Ensure a secure connection to prevent leaks.
9. ایئر فلٹر اسمبلی کو دوبارہ انسٹال کریں: Reinstall the air filter and its housing.
10. حتمی جانچ پڑتال:
    • Double-check all connections for tightness and proper routing.
    • Ensure no tools or debris are left in the engine area.
    • چنگاری پلگ تار دوبارہ منسلک کریں۔

تصویر 5.1: طرف view of the FTYHFEFH Carburetor, highlighting the choke plate and fuel inlet. Ensure all linkages are correctly attached to these points during installation.

6. آپریٹنگ ہدایات (پوسٹ انسٹالیشن)

After installing the new carburetor, follow these steps before operating your pressure washer:

1. ایندھن شامل کریں: Fill the fuel tank with fresh, appropriate fuel for your pressure washer engine.
2. ایندھن والو کھولیں: Turn the fuel supply valve to the "ON" position.
3. Prime Carburetor (if applicable): Some carburetors may have a primer bulb. If present, press it several times until fuel is visible.
4. Choke Setting: Set the choke lever to the "CHOKE" or "START" position for a cold engine. For a warm engine, set it to "RUN" or "OFF".
5. انجن شروع کریں: Follow your pressure washer's manufacturer instructions for starting the engine.
6. چوک کو ایڈجسٹ کریں: Once the engine starts, gradually move the choke lever to the "RUN" or "OFF" position as the engine warms up.

If the engine does not start or runs poorly, refer to the Troubleshooting section.

7 دیکھ بھال

Regular maintenance of your carburetor ensures long-term reliability and optimal engine performance. This carburetor is designed for simple maintenance.

• ایندھن کا معیار: Always use fresh, clean fuel. Stale or contaminated fuel is the most common cause of carburetor issues. Consider using a fuel stabilizer if the pressure washer will be stored for extended periods.
• ایندھن کا فلٹر: Regularly check and replace the fuel filter (if present in your pressure washer's fuel system) to prevent debris from reaching the carburetor.
• صفائی: If the carburetor becomes clogged, it may require cleaning. This typically involves disassembling the fuel bowl and jets, and cleaning them with carburetor cleaner. This procedure should only be performed by individuals with mechanical experience.
• ذخیرہ: Before long-term storage, drain the fuel system or run the engine until it runs out of fuel to prevent fuel degradation and carburetor gumming.

8 خرابیوں کا سراغ لگانا

If you encounter issues after installing the new carburetor, consult the following table for common problems and solutions.

If these steps do not resolve the issue, it is recommended to consult a qualified service technician or refer to your pressure washer's comprehensive service manual.

9. وضاحتیں

• مصنوعات کی قسم: Replacement Carburetor
• مطابقت: Ryobi RY802900 2900PSI Pressure Washer
• Replaces Part Number: 099981133027
• برانڈ: FTYHFEFH
• شے کا تخمینہ وزن: 1 پاؤنڈ
• Approximate Product Dimensions: 1 x 1 x 1 inches (Note: These dimensions are often generic and may not reflect exact carburetor size.)
• مواد: High-strength components

10. وارنٹی اور سپورٹ

For warranty information and customer support regarding this FTYHFEFH carburetor, please refer to the specific terms provided by your seller at the time of purchase. Keep your purchase receipt as proof of purchase.

For technical assistance or further inquiries, please contact the seller directly through the platform where the purchase was made.
