1. تعارف
This manual provides essential information for the installation, operation, and maintenance of your new FTYHFEFH carburetor. This carburetor is designed as a direct replacement for specific Briggs & Stratton engines. Please read these instructions carefully before proceeding with installation to ensure proper function and safety.
1.1 پیکیج کے مشمولات
Verify that all components listed below and shown in the image are present in your package:
- 1x Carburetor Assembly
- 1x بڑھتے ہوئے گاسکیٹ
- 1x Fuel Filter (Red)
- 1x Fuel Shut-off Valve (Black)
Image 1.1: Complete package contents including the carburetor, gasket, fuel filter, and shut-off valve.
2 مطابقت
This FTYHFEFH carburetor is specifically designed to be compatible with the following Briggs & Stratton engine models:
- بریگز اینڈ اسٹریٹن 170402
- بریگز اینڈ اسٹریٹن 390323
- بریگز اینڈ اسٹریٹن 394228
It is suitable for 7HP, 8HP, and 9HP engines that utilize these carburetor part numbers. Always verify your engine's specific part requirements before installation.
3. سیٹ اپ اور انسٹالیشن
سب سے پہلے حفاظت: Before beginning any work, ensure the engine is turned off, cooled down, and the spark plug wire is disconnected to prevent accidental starting. Work in a well-ventilated area.
3.1 ٹولز درکار ہیں۔
- ساکٹ/رینچ سیٹ
- سکریو ڈرایور سیٹ
- چمٹا
- فیول لائن Clamps (optional, for preventing fuel leaks)
3.2 تنصیب کے مراحل
- ڈرین ایندھن: If necessary, drain the fuel tank or clamp the fuel line to prevent spillage.
- ایئر فلٹر اسمبلی کو ہٹا دیں: Carefully detach the air filter housing and any associated components to gain access to the carburetor.
- Disconnect Linkages and Fuel Line: Disconnect the throttle and choke linkages from the old carburetor. Use pliers if necessary. Detach the fuel line from the carburetor. Be prepared for minor fuel leakage.
- پرانے کاربوریٹر کو ہٹا دیں: Unscrew the mounting bolts that secure the carburetor to the engine intake manifold. Remove the old carburetor and gasket.
- نئی گسکیٹ انسٹال کریں: Place the new mounting gasket onto the intake manifold. Ensure it is correctly oriented.
- ماؤنٹ نیو کاربوریٹر: Position the new FTYHFEFH carburetor onto the mounting studs, aligning it with the gasket. Secure it with the mounting bolts, tightening them evenly.
- Connect Linkages and Fuel Line: Reattach the throttle and choke linkages to the new carburetor. Connect the fuel line. If replacing the fuel filter and shut-off valve, install them in the fuel line between the tank and the carburetor, ensuring correct flow direction.
- ایئر فلٹر اسمبلی کو دوبارہ انسٹال کریں: Reattach the air filter housing and any other components removed earlier.
- اسپارک پلگ کو دوبارہ جوڑیں: چنگاری پلگ تار دوبارہ منسلک کریں۔
تصویر 3.1: سائیڈ view of the carburetor, highlighting the mounting flange and fuel inlet connection.

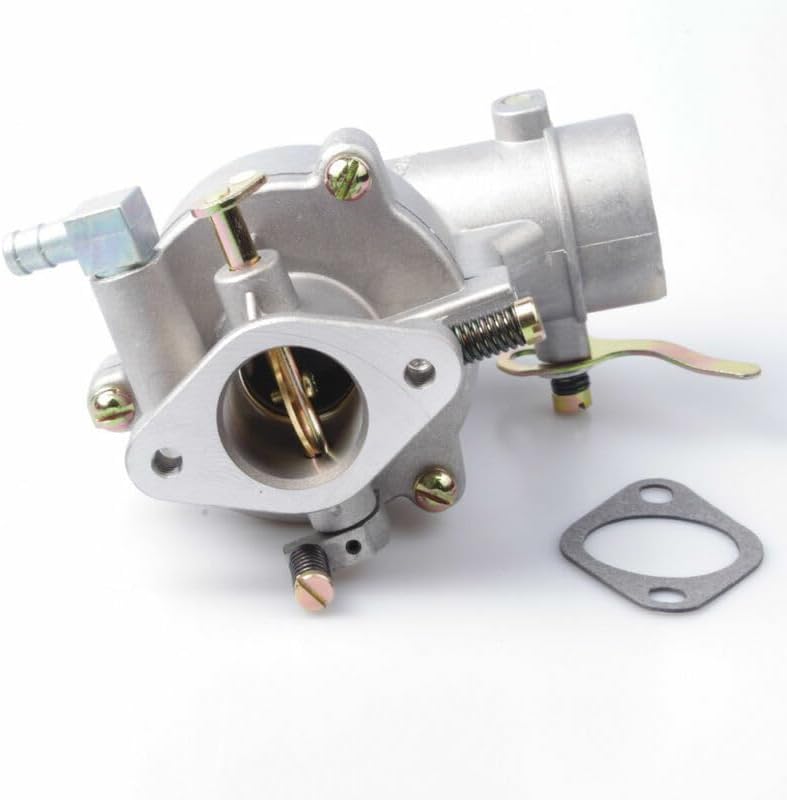

تصویر 3.2: سامنے view of the carburetor, showing the throttle and choke linkage points.
4. آپریٹنگ اصول
The carburetor's primary function is to mix air and fuel in the correct ratio for combustion in the engine. Once installed, the carburetor operates automatically based on engine demand, controlled by the throttle and choke linkages. Ensure the fuel shut-off valve (if installed) is in the 'ON' position before attempting to start the engine.
After installation, it is recommended to start the engine and allow it to warm up. Check for any fuel leaks around the carburetor and fuel lines. Minor adjustments to the idle speed screw may be necessary for optimal performance, referring to your engine's service manual for specific settings.
5 دیکھ بھال
باقاعدگی سے دیکھ بھال آپ کے کاربوریٹر اور انجن کی لمبی عمر اور بہترین کارکردگی کو یقینی بناتی ہے۔
5.1 صفائی
- بیرونی صفائی: Periodically clean the exterior of the carburetor to remove dirt, dust, and debris. Use a soft brush and carburetor cleaner if necessary, avoiding contact with rubber or plastic components.
- اندرونی صفائی: If performance issues arise, internal cleaning may be required. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with appropriate mechanical knowledge.
5.2 Fuel Filter Replacement
The included fuel filter helps prevent contaminants from reaching the carburetor. Inspect the fuel filter regularly for discoloration or debris. Replace it annually or more frequently if operating in dusty conditions or with questionable fuel quality.
تصویر 5.1: اوپر view of the carburetor, illustrating potential adjustment screw locations and the fuel bowl area.
6 خرابیوں کا سراغ لگانا
اگر آپ کو نیا کاربوریٹر انسٹال کرنے کے بعد مسائل کا سامنا کرنا پڑتا ہے، تو درج ذیل عام مسائل اور حل پر غور کریں:
| مسئلہ | ممکنہ وجہ | حل |
|---|---|---|
| انجن شروع نہیں ہوگا۔ | No fuel, clogged fuel filter, incorrect choke position, improper installation. | Check fuel level, replace fuel filter, ensure choke is set correctly, re-check all connections. |
| انجن کھردری یا سٹال چلتا ہے | Clogged carburetor jets, air leak, old fuel, incorrect idle adjustment. | Clean carburetor, check for air leaks around gaskets, use fresh fuel, adjust idle screw. |
| کاربوریٹر سے ایندھن کا اخراج | Improperly seated gasket, loose bolts, damaged fuel line. | Ensure gasket is correctly installed, tighten mounting bolts, inspect fuel lines for damage. |
7. وضاحتیں
- برانڈ:
- FTYHFEFH
- Compatible Engine Models:
- Briggs & Stratton 170402, 390323, 394228 (7HP, 8HP, 9HP)
- آئٹم کا وزن:
- تقریباً 1 پاؤنڈ
- مصنوعات کے طول و عرض:
- تقریباً 1 x 1 x 1 انچ (پیکیجنگ کے طول و عرض)
- مینوفیکچرر پارٹ نمبر:
- 1
- UPC:
- 779603349754
8. وارنٹی اور سپورٹ
For any questions regarding the FTYHFEFH carburetor, including installation assistance or troubleshooting, please contact the seller or manufacturer directly through your purchase platform. Please refer to your purchase documentation for specific warranty terms and conditions.
