Instruction Manual for FTYHFEFH Carburetor Filter Kit

1. تعارف

This manual provides essential information for the installation, maintenance, and troubleshooting of your FTYHFEFH Carburetor Filter Kit, model FTYHFEFH, designed for the Campbell Hausfield 11 GN602300AC Generator. This kit is a direct replacement component, manufactured to factory specifications to ensure proper fit and function. Please read these instructions carefully before proceeding with installation or maintenance.

2. حفاظتی معلومات

انتباہ: Always prioritize safety when working with fuel systems and power equipment. Failure to follow these safety guidelines may result in serious injury or property damage.

• Ensure the generator is completely shut off, cooled down, and disconnected from any power source (e.g., spark plug wire removed) before beginning any work.
• ایندھن کے دھوئیں کو سانس لینے سے بچنے کے لیے ہوادار جگہ پر کام کریں۔
• حفاظتی شیشے اور دستانے سمیت مناسب ذاتی حفاظتی سامان (PPE) پہنیں۔
• Handle fuel with extreme care. Fuel is highly flammable. Do not smoke or use open flames near fuel.
• Dispose of old fuel and parts responsibly according to local regulations.
• اگر آپ کو کسی بھی قدم کے بارے میں یقین نہیں ہے تو، ایک قابل ٹیکنیشن سے مشورہ کریں.

3. پیکیج کے مشمولات

Your FTYHFEFH Carburetor Filter Kit includes the following components:

• 1x Carburetor assembly
• 1x Fuel filter (if included in the specific kit variant)
• Gaskets and mounting hardware (as pictured)

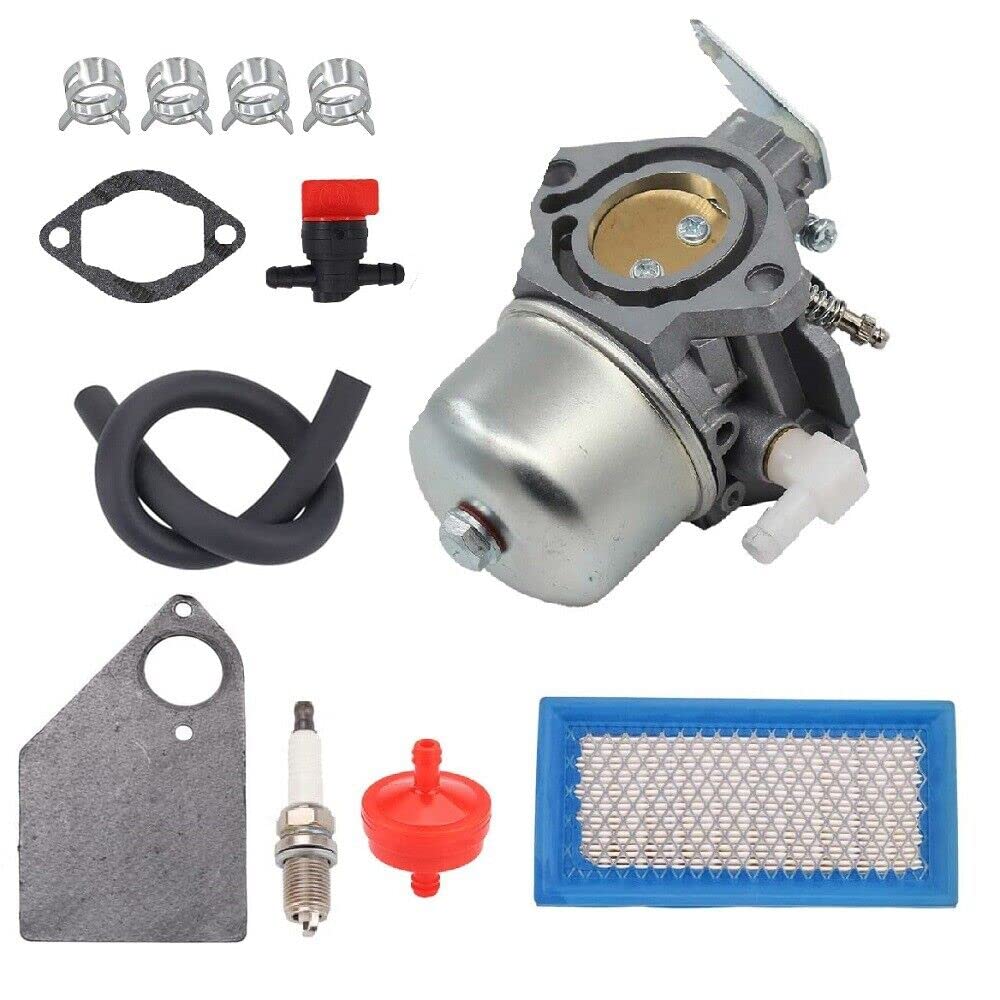

شکل 3.1: سامنے view of the carburetor assembly, showing the air intake and fuel bowl.

4. تنصیب (سیٹ اپ)

This section outlines the general steps for replacing the carburetor and filter. Specific generator models may have slight variations. Refer to your generator's service manual for detailed instructions.

1. تیاری:
   • Ensure the generator is off and cool. Disconnect the spark plug wire.
   • Drain the fuel tank or clamp the fuel line to prevent fuel leakage.
   • Gather necessary tools (wrenches, screwdrivers, pliers, fuel-resistant rags).
2. ایئر فلٹر اسمبلی کو ہٹا دیں:

   Locate and remove the air filter housing and air filter element to gain access to the carburetor.
3. Disconnect Fuel Line and Linkages:

   Carefully disconnect the fuel line from the carburetor. Be prepared for residual fuel. Disconnect any throttle linkages, choke linkages, and electrical connections attached to the carburetor.

4. پرانے کاربوریٹر کو ہٹا دیں:

   Unbolt the old carburetor from the engine manifold. Note the position of any gaskets. Remove the old carburetor.



   شکل 4.1: طرف view of the carburetor, highlighting the fuel inlet and mounting flange.
5. نیا کاربوریٹر انسٹال کریں:

   Place new gaskets (if supplied) in their correct positions. Mount the new FTYHFEFH carburetor onto the engine manifold and secure it with the bolts. Do not overtighten.

6. اجزاء کو دوبارہ جوڑیں:

   Reconnect the fuel line, ensuring a secure fit. Reattach all throttle and choke linkages, and any electrical connections, ensuring they move freely and correctly.



   شکل 4.2: پیچھے view of the carburetor, illustrating the choke mechanism.
7. Install New Fuel Filter (if applicable):

   If your kit includes a new fuel filter, replace the old one in the fuel line. Ensure the flow direction is correct.

8. ایئر فلٹر اسمبلی کو دوبارہ انسٹال کریں:

   Reassemble the air filter housing and install a clean air filter element.

9. حتمی جانچ پڑتال:

   Check all connections for tightness and ensure there are no fuel leaks. Reconnect the spark plug wire.

5. آپریشن

The carburetor is a critical component of your generator's fuel system, responsible for mixing air and fuel in the correct proportions for combustion. The fuel filter ensures that clean fuel reaches the carburetor, preventing blockages and damage.

After installation, the generator should start and run smoothly. If you experience issues, refer to the Troubleshooting section or your generator's owner's manual.

6 دیکھ بھال

Proper maintenance extends the life of your generator and its components.

• ایندھن کا فلٹر: Inspect the fuel filter regularly (e.g., every 50 hours of operation or annually). Replace it if it appears dirty, clogged, or damaged. A clogged fuel filter can restrict fuel flow and cause engine performance issues.
• کاربوریٹر کی صفائی: While this kit provides a new carburetor, over time, fuel deposits can build up. If the generator experiences rough idling, stalling, or difficulty starting, the carburetor may require cleaning. This typically involves disassembling the carburetor and cleaning its jets and passages with a carburetor cleaner. This is an advanced maintenance task and should only be performed by experienced individuals or a qualified technician.
• ایندھن کا معیار: Always use fresh, clean, unleaded gasoline. Stale fuel or fuel containing ethanol can cause deposits and corrosion in the carburetor. Consider using a fuel stabilizer if the generator will be stored for extended periods.

7 خرابیوں کا سراغ لگانا

If your generator experiences issues after installing the FTYHFEFH Carburetor Filter Kit, consider the following common problems and solutions:

If these steps do not resolve the issue, consult a qualified generator service technician.

8. وضاحتیں

• پروڈکٹ کا نام: Carburetor Filter Kit
• برانڈ: FTYHFEFH
• Compatible Generator Model: Campbell Hausfield 11 GN602300AC
• آئٹم ماڈل نمبر: FTYHFEFH
• مصنوعات کے طول و عرض: 1 x 1 x 1 انچ
• آئٹم کا وزن: 1 پاؤنڈ
• مینوفیکچرر: FTYHFEFH
• UPC: 779603357742

9. وارنٹی کی معلومات

Specific warranty details for this FTYHFEFH product are not provided in the available information. Please refer to the seller or manufacturer's official webکسی بھی قابل اطلاق وارنٹی شرائط و ضوابط کے لیے سائٹ۔

10. کسٹمر سپورٹ

For technical assistance or inquiries regarding your FTYHFEFH Carburetor Filter Kit, please contact the seller directly through the platform where the purchase was made. For general generator maintenance or repair, consult a certified service center for Campbell Hausfield products.
