LUMINTOP GT Nano 3.0 Keychain Flashlight Instruction Manual

پروڈکٹ ختمview

The LUMINTOP GT Nano 3.0 is a compact and powerful keychain flashlight designed for everyday carry and various lighting needs. It features exceptional brightness, a long beam distance, and convenient USB-C charging.

پیکیج کے مشمولات

• LUMINTOP GT Nano 3.0 Flashlight
• 10280 لی آئن بیٹری
• USB-C چارجنگ کیبل
• کیچین
• لانیارڈ
• O-ring کو چھوڑیں
• صارف دستی

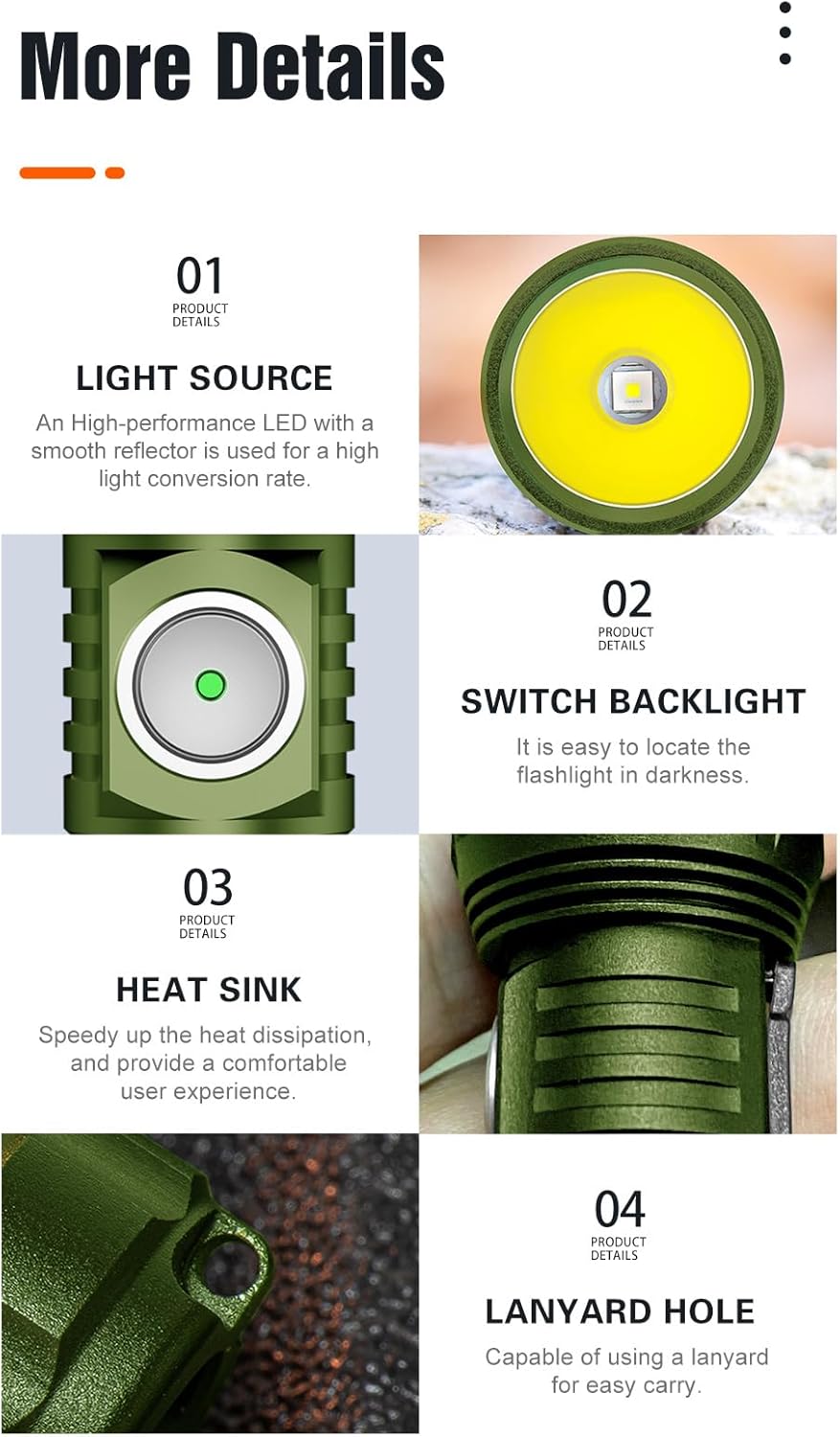

Product Features & Design

The GT Nano 3.0 is crafted from durable aluminum, ensuring reliability in various conditions. Its compact design makes it ideal for portability.

• مواد: Durable Aluminum construction.
• طول و عرض: 67mm (length) x 24mm (head diameter) x 14mm (body diameter).
• وزن: Approximately 27 grams (with battery).
• روشنی کا ذریعہ: High-performance Osram LED with a lifespan of up to 50,000 hours.
• پانی کی مزاحمت: IPX-8 rated, ensuring reliability in wet conditions.
• سائیڈ سوئچ: Stainless steel side switch button for easy operation.
• ہیٹ سنک: Designed for speedy heat dissipation and comfortable use.
• Lanyard سوراخ: Integrated for convenient carrying options.

سیٹ اپ اور چارجنگ

The GT Nano 3.0 is powered by a 10280 Li-ion battery, which is included. It features a built-in USB-C charging port for convenience.

بیٹری کی تنصیب

Unscrew the tail cap of the flashlight. Insert the 10280 Li-ion battery with the positive (+) end facing towards the head of the flashlight. Screw the tail cap back on securely.

چارج کرنے کی ہدایات

To charge the flashlight, simply plug the included USB-C cable into the charging port located on the flashlight body. Connect the other end of the cable to a USB power source.

• اشارے کی روشنی دکھائی دے گی۔ سرخ چارج کرتے وقت.
• The indicator light will turn سبز مکمل چارج ہونے پر۔

آپریٹنگ ہدایات

The GT Nano 3.0 features an easy-to-use interface with multiple lighting modes to suit various situations.

Basic Operation (from OFF)

• 1 کلک کریں: چلاؤ.
• 2 کلکس: Activate Turbo mode.
• 3 کلکس: Activate Blinking mode.
• 4 کلکس: Lock-out or Unlock the flashlight to prevent accidental activation.
• 7 کلکس: Switch the back-lit light (indicator light on the side switch).

Basic Operation (from ON)

• 1 کلک کریں: بجلی بند.
• 2 کلکس: Activate Turbo mode.
• 3 کلکس: Activate Blinking mode.
• دبائیں اور تھامیں: Cycle through the main lighting outputs (Moonlight, Low, Med, High). Release to select the desired brightness.

Lighting Modes & Output

• چاندنی: 1 لیمن
• کم: 31 لیمن
• میڈ: 180 لیمن
• اعلی: 400 لیمن
• ٹربو: 700 lumens (up to 800 lumens with optional 10750 battery and tube)

دیکھ بھال

• Keep all threads clean and lubricated with silicone grease to ensure smooth operation and maintain waterproof integrity.
• Replace O-rings periodically to ensure the IPX-8 waterproof rating is maintained.
• Store the flashlight and battery in a cool, dry place when not in use for extended periods.
• Avoid exposing the flashlight to extreme temperatures or corrosive substances.

خرابی کا سراغ لگانا

• ٹارچ آن نہیں ہوتی: Check if the battery is inserted correctly with the positive (+) end facing the head. Ensure the battery is charged. If in lockout mode, perform 4 clicks to unlock.
• Low light output: Recharge the battery. The output may decrease as the battery level gets low.
• وقفے وقفے سے آپریشن: Clean the battery contacts and threads. Ensure the tail cap is screwed on tightly.

وضاحتیں

وارنٹی اور سپورٹ

Every LUMINTOP GT Nano 3.0 comes with a 2-year no-questions-asked warranty. For any inquiries or support needs, please contact LUMINTOP customer service for fast assistance. Your satisfaction is our priority.
