Riflewell 7.0 Cu Ft Large Fingerprint Safe Box Instruction Manual

1. تعارف

Thank you for choosing the Riflewell 7.0 Cu Ft Large Fingerprint Safe Box. This manual provides essential information for the safe and efficient operation of your new security safe. Please read these instructions carefully before use and retain them for future reference.

This safe is designed to protect your valuables, including documents, cash, pistols, and jewelry, with advanced fingerprint and password locking mechanisms, dual alarm systems, and robust construction.

2. کیا شامل ہے۔

پیک کھولنے پر، براہ کرم تصدیق کریں کہ درج ذیل تمام اجزاء موجود ہیں:

• 1 x Riflewell 7.0 Cu Ft Safe Box
• 4 ایکس ایمرجنسی کیز
• 1 x USB Type-C کیبل (بیرونی طاقت کے لیے)
• 4 x Anti-slip Foot Pads
• 6 ایکس توسیعی پیچ (بڑھنے کے لیے)
• 1 ایکس یوزر مینوئل (یہ دستاویز)

3. مصنوعات کی خصوصیات

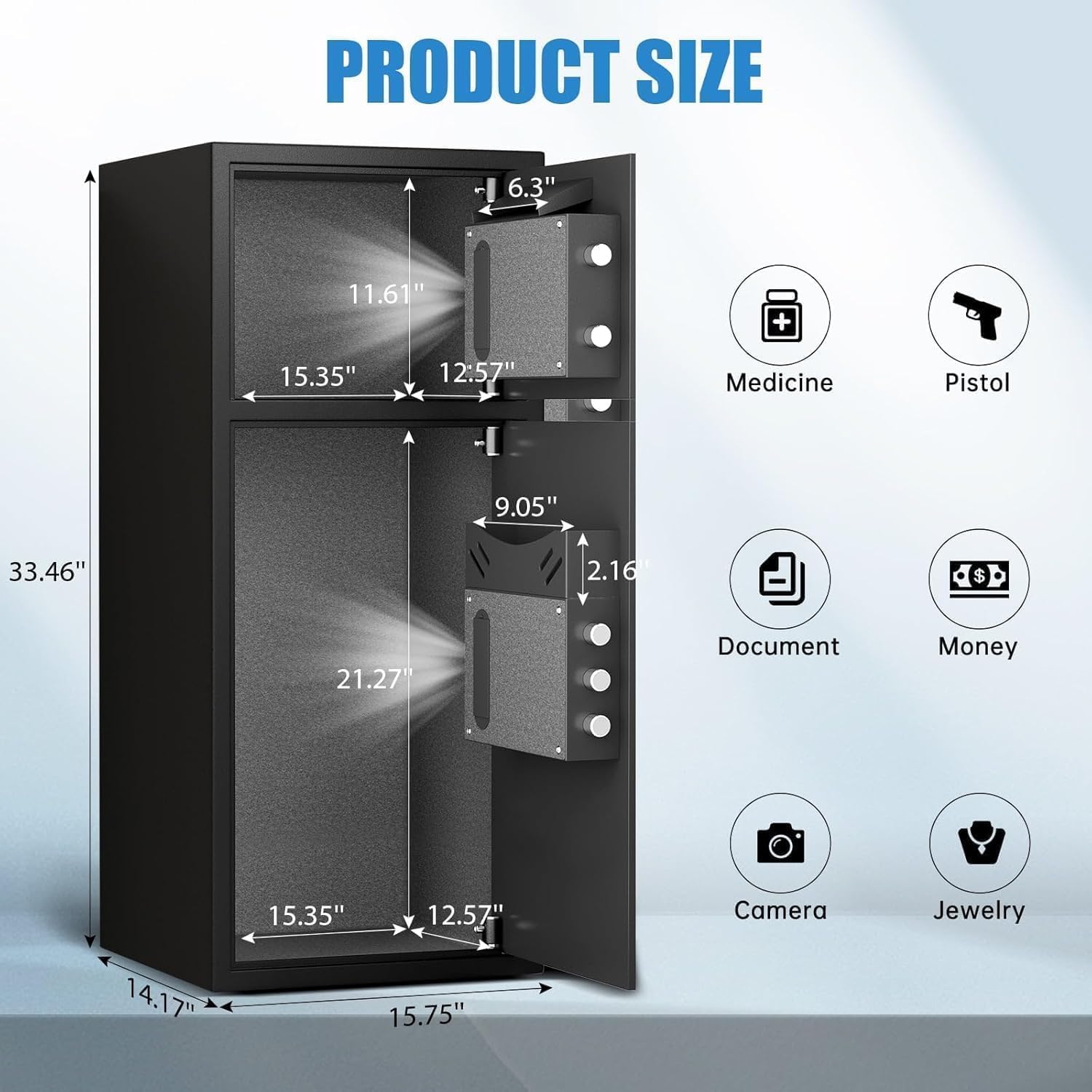

• اضافی بڑی صلاحیت: External size 14.17"D x 15.75"W x 33.5"H, with a 7.0 cubic feet capacity. Features a double-door design for separate access.
• بہتر سیکورٹی: Equipped with a fingerprint and password lock system. Features 3D glowing digital buttons and a unique embedded fingerprint design (US appearance patent).
• Deposit Slot: A convenient front slot allows for easy deposit of money or coins without opening the main door.
• اندرونی تنظیم: Includes a metal storage box for smaller items and soft flannel lining to protect valuables from scratches. Internal LED lights illuminate the interior.
• Anti-Theft Construction: Made of reinforced low carbon alloy steel with micro-slit laser cutting precision. Features a pry-resistant thickened door and five solid live bolts.
• دوہری الارم سسٹم: Activates an alarm (up to 70 decibels) after three consecutive incorrect password attempts or violent vibrations. Includes a mute function for silent operation.
• ایمرجنسی پاور: Universal emergency power jack (USB Type-C) ensures access even if internal batteries are depleted.

4. سیٹ اپ

4.1 First Time Opening (Using Emergency Key)

Before initial use, you must open the safe using the emergency key to install batteries and set up your access methods.

1. ہنگامی کی ہول کا پتہ لگائیں، جو عام طور پر کی پیڈ پینل پر ایک کور کے پیچھے چھپا ہوتا ہے۔
2. Insert an emergency key and turn it counter-clockwise to its limit.
3. دروازہ کھولنے کے لیے نوب کو گھڑی کی سمت گھمائیں۔

4.2 بیٹری کی تنصیب

The electronic lock requires 4 AA alkaline batteries (not included). Do not use lithium or rechargeable batteries.

1. محفوظ دروازہ کھلنے کے ساتھ، دروازے کے اندر بیٹری کے ٹوکرے کو تلاش کریں۔
2. بیٹری کور کو ہٹا دیں۔
3. درست قطبیت کو یقینی بناتے ہوئے 4 AA الکلائن بیٹریاں داخل کریں۔
4. بیٹری کور کو تبدیل کریں۔

4.3 Setting Up Fingerprint

You can program multiple fingerprints for convenient access.

1. With the safe door open, short press the red 'SETTING BUTTON' located inside the door.
2. Place your finger on the fingerprint collector. When you hear a short beep, remove your finger.
3. Repeat placing and removing your finger four times until the safe confirms successful registration.

4.4 Setting Up Password

You can set a 3-8 digit user password.

1. With the safe door open, short press the red 'SETTING BUTTON' located inside the door.
2. Input your desired 3-8 digit user code on the keypad.
3. Press '#' to confirm your password.

4.5 سیف کو لگانا

For added security, the safe can be mounted to a wall or floor using the provided expansion screws.

1. Identify a suitable location for mounting. The safe has 4 pre-drilled holes on the back and 2 on the bottom.
2. دیوار یا فرش پر ڈرلنگ پوائنٹس کو پہلے سے ڈرل شدہ سوراخوں کے ذریعے نشان زد کریں۔
3. نشان زدہ جگہوں پر سوراخ کریں۔
4. Align the safe with the drilled holes and secure it using the expansion screws.

5. محفوظ آپریٹنگ

5.1 Opening with Fingerprint or Password

1. To open with fingerprint: Place your registered finger on the fingerprint collector until the lock disengages.
2. To open with password: Input your 3-8 digit user code and press '#'. The lock will disengage.
3. دروازہ کھولنے کے لیے نوب کو گھڑی کی سمت گھمائیں۔

5.2 ایمرجنسی کلید کے ساتھ کھولنا

The emergency key provides manual access in case of forgotten codes or battery failure.

1. Locate the emergency keyhole.
2. Insert an emergency key and turn it counter-clockwise to its limit.
3. دروازہ کھولنے کے لیے نوب کو گھڑی کی سمت گھمائیں۔

5.3 Opening with USB Cable (External Power)

If the internal batteries are dead and you don't have the emergency key, you can use a USB Type-C cable for temporary external power.

1. Connect the USB Type-C cable to the port on the keypad panel and to an external power source (e.g., power bank).
2. Once powered, use your registered fingerprint or password to open the safe as usual.
3. دروازہ کھولنے کے لیے نوب کو گھڑی کی سمت گھمائیں۔

6. حفاظتی خصوصیات

6.1 Dual Alarm Function

The safe is equipped with a dual alarm system to deter unauthorized access:

• Incorrect Password Alarm: If three consecutive incorrect passwords are entered, the alarm will sound for 20 seconds.
• وائبریشن الارم: In standby mode, press and hold "4" until you hear two beeps to activate the vibration alarm. If the safe is shaken or hit violently, the alarm will sound for 20 seconds.

The alarm can only be deactivated by removing the batteries.

6.2 خاموش فنکشن

The safe features an upgraded mute function, suitable for various scenarios where silent operation is preferred. Refer to the quick start guide for specific instructions on activating/deactivating the mute mode.

7 دیکھ بھال

• بیٹری کی تبدیلی: بیٹریوں کو فوری طور پر تبدیل کریں جب بیٹری کا کم اشارے مسلسل فعالیت کو یقینی بنانے کے لیے ظاہر ہو۔
• صفائی: سیف کے بیرونی حصے کو نرم سے صاف کریں۔amp کپڑا کھرچنے والے کلینر یا سالوینٹس سے پرہیز کریں جو ختم کو نقصان پہنچا سکتے ہیں۔
• کلیدی ذخیرہ: Store emergency keys in a secure location away from the safe, but easily accessible to you.

8 خرابیوں کا سراغ لگانا

• Safe not opening: Ensure batteries are correctly installed and charged. Try using the emergency key or external USB power. Verify the correct password or fingerprint is being used.
• Alarm sounding unexpectedly: Check if the vibration alarm is activated. Ensure no unauthorized attempts have been made to open the safe. Deactivate by removing batteries.
• کی پیڈ غیر جوابدہ: Replace batteries. If using external power, ensure the USB cable is securely connected and the power source is active.

9. وضاحتیں

10. وارنٹی اور سپورٹ

Riflewell is committed to customer satisfaction. If you encounter any problems with your safe, please contact us directly. We offer:

• لائف ٹائم وارنٹی
• 24-Hour Online Customer Service
• 90-Day Unconditional Returns
• لائف ٹائم کلیدی میچنگ سروس

To find seller support on Amazon:

1. اپنے ایمیزون خریدار کے اکاؤنٹ میں لاگ ان کریں۔
2. اپنا آرڈر تلاش کریں۔
3. Click "Get help" to contact the seller for product support.
