1. تعارف
This manual provides essential information for the safe and efficient operation of your Midea Pro Steel Upright Freezer, Model MDRU793FGF46R. Please read these instructions thoroughly before installation and use, and retain them for future reference.
اہم حفاظتی معلومات
- یقینی بنائیں کہ آلات مناسب طریقے سے گراؤنڈ ہے۔
- ریفریجرینٹ سرکٹ کو نقصان نہ پہنچائیں۔
- وینٹیلیشن کے سوراخوں کو رکاوٹ سے پاک رکھیں۔
- ڈیفروسٹنگ کے عمل کو تیز کرنے کے لیے مکینیکل آلات یا دیگر ذرائع استعمال نہ کریں، سوائے مینوفیکچرر کے تجویز کردہ۔
- یہ آلات کم جسمانی، حسی یا دماغی صلاحیتوں، یا تجربے اور علم کی کمی والے افراد (بشمول بچوں) کے استعمال کے لیے نہیں ہے، جب تک کہ ان کی حفاظت کے لیے ذمہ دار کسی فرد کی جانب سے آلات کے استعمال سے متعلق نگرانی یا ہدایات نہ دی گئی ہوں۔
2. سیٹ اپ اور انسٹالیشن
2.1 پیک کھولنا
Carefully remove all packaging materials, including foam and adhesive tape. Inspect the freezer for any signs of shipping damage. Report any damage immediately to your retailer.

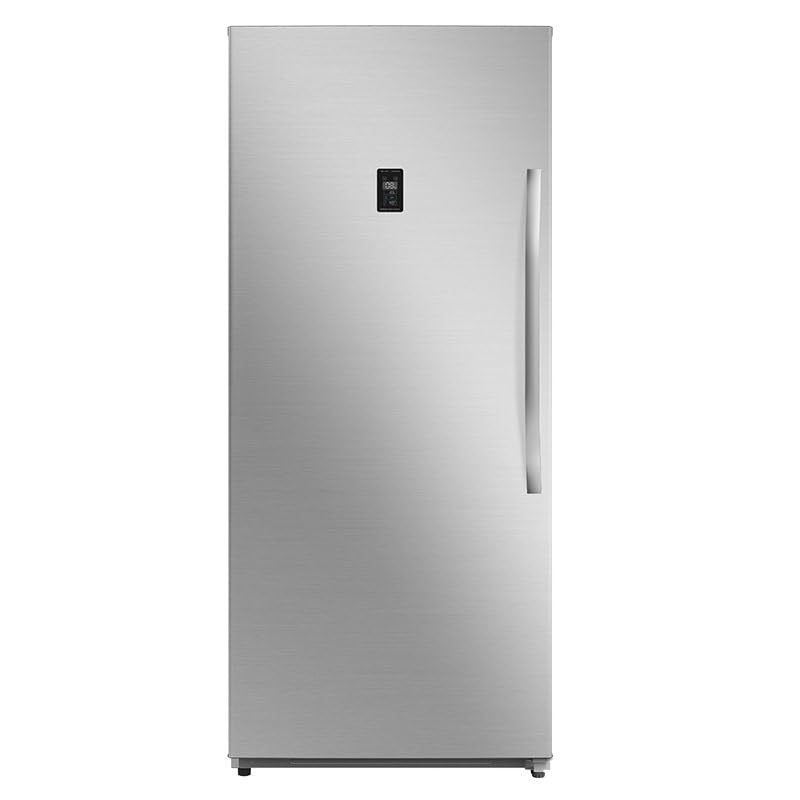

This image displays the exterior of the Midea Pro Steel Upright Freezer. It features a sleek, polished steel finish and a single door design, indicating its upright configuration.
2.2 جگہ کا تعین
- Place the freezer on a firm, level surface to prevent vibrations.
- Allow at least 10 cm (4 inches) of space around the back and sides for proper air circulation.
- براہ راست سورج کی روشنی اور گرمی کے ذرائع جیسے چولہے یا ہیٹر کی قربت سے پرہیز کریں۔
- Ensure the ambient temperature is suitable for the appliance's climate class.
2.3 الیکٹریکل کنکشن
Connect the freezer to a dedicated, grounded electrical outlet with the correct voltage (220/240V ~ 60Hz). Do not use extension cords or adapter plugs. Allow the appliance to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.
3. آپریشن
3.1 ابتدائی آغاز
After plugging in the appliance, the internal temperature will gradually decrease. It may take several hours for the freezer to reach its set temperature. Avoid placing food inside during the first 2-4 hours of operation.
3.2 درجہ حرارت کنٹرول
The temperature is controlled via an electronic panel, typically located on the door or inside the appliance. Refer to the specific controls on your unit to adjust the temperature. For optimal freezing, a temperature of -18°C (0°F) or lower is recommended.
3.3 Convertible Mode
Your Midea MDRU793FGF46R freezer features a convertible mode, allowing it to function as either a freezer or a refrigerator. To switch modes, follow the instructions on the control panel. Ensure the appliance is empty before changing modes to prevent food spoilage.
3.4 Multi-Air Flow System
The Multi-Air Flow system ensures even cooling throughout the compartment by circulating cold air to every shelf level. This helps maintain a stable temperature and preserves food quality.
3.5 کوئی فراسٹ ٹیکنالوجی نہیں۔
This appliance is equipped with No Frost technology, which prevents ice buildup inside the freezer compartment. This eliminates the need for manual defrosting, making maintenance easier.
3.6 Fast Freeze and Cool Functions
Activate the Fast Freeze function to rapidly lower the temperature for freezing large quantities of fresh food, preserving their quality. The Fast Cool function can be used when operating in refrigerator mode to quickly chill newly added items.
4. دیکھ بھال اور دیکھ بھال
4.1 صفائی
- صفائی سے پہلے ہمیشہ آلے کو ان پلگ کریں۔
- Clean the interior with a soft cloth and a mild, non-abrasive detergent. Rinse with clean water and dry thoroughly.
- ایک نرم کے ساتھ بیرونی مسح کریں، ڈیamp کپڑا سٹینلیس سٹیل کی سطحوں کے لیے، ایک خصوصی سٹینلیس سٹیل کلینر استعمال کریں۔
- Clean the condenser coils at the back of the unit periodically (at least twice a year) to ensure efficient operation.
4.2 پاور اوtage
ایک طاقت ou کی صورت میںtage, keep the freezer door closed to maintain the internal temperature for as long as possible. Food should remain frozen for several hours depending on the ambient temperature and how full the freezer is.
4.3 تعطیلات کی دیکھ بھال
- مختصر تعطیلات: Leave the freezer operating.
- لمبی تعطیلات: If you will be away for an extended period, remove all food, unplug the appliance, clean it thoroughly, and leave the door slightly ajar to prevent odors and mold growth.
5 خرابیوں کا سراغ لگانا
سروس سے رابطہ کرنے سے پہلے، دوبارہview درج ذیل عام مسائل اور حل:
| مسئلہ | ممکنہ وجہ | حل |
|---|---|---|
| فریزر کام نہیں کرتا۔ | بجلی کی فراہمی نہیں؛ بجلی کی تار ان پلگ سرکٹ بریکر پھٹ گیا۔ | بجلی کا کنکشن چیک کریں؛ سرکٹ بریکر کو دوبارہ ترتیب دیں۔ |
| درجہ حرارت کافی ٹھنڈا نہیں ہے۔ | Door not closed properly; excessive door opening; warm food added recently; temperature setting too high. | Ensure door is sealed; reduce door openings; allow time for new food to cool; adjust temperature setting lower. |
| غیر معمولی شور۔ | آلات سطح نہیں؛ پیٹھ کو چھونے والی اشیاء؛ عام آپریٹنگ آوازیں | Level the appliance; move objects away; gurgling/hissing sounds are normal refrigerant flow. |
| دروازہ مکمل طور پر بند نہیں ہوتا۔ | Gasket obstructed or dirty; shelves/baskets out of place; appliance not level. | Clean gasket; rearrange contents; level the appliance. |
اگر ان پوائنٹس کو چیک کرنے کے بعد بھی مسئلہ برقرار رہتا ہے، تو براہ کرم اہل سروس اہلکاروں سے رابطہ کریں۔
6. وضاحتیں
| فیچر | تفصیل |
|---|---|
| ماڈل نمبر | MDRU793FGF46R |
| صلاحیت | 21 کیوبک فٹ |
| ابعاد (D x W x H) | 83.2 سینٹی میٹر x 73.5 سینٹی میٹر x 195 سینٹی میٹر |
| وزن | 88 کلوگرام |
| رنگ | Pro Steel |
| مواد | سٹینلیس سٹیل |
| تنصیب کی قسم | آزاد خیال |
| بجلی کی فراہمی | 220/240V ~ 60Hz |
| کلیدی خصوصیات | Convertible to Refrigerator, Multi-Air Flow, No Frost Technology, Fast Freeze and Cool Functions, Left-hand door opening. |
7. وارنٹی اور کسٹمر سپورٹ
7.1 وارنٹی کی معلومات
Your Midea Pro Steel Upright Freezer is covered by a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms, conditions, and duration of coverage. Keep your purchase receipt as proof of purchase for warranty claims.
7.2 کسٹمر سپورٹ
For technical assistance, service requests, or questions regarding your appliance, please contact Midea customer support. Contact details can typically be found on the warranty card, the Midea official website, or by contacting your local retailer.
