LUMINTOP F01 Pro EDC Flashlight User Manual

تعارف

Thank you for choosing the LUMINTOP F01 Pro EDC Flashlight. This compact and versatile flashlight is designed for everyday carry, offering multiple lighting modes, convenient Type-C charging, and a magnetic base for hands-free use. Please read this manual carefully to ensure proper operation and maintenance of your device.

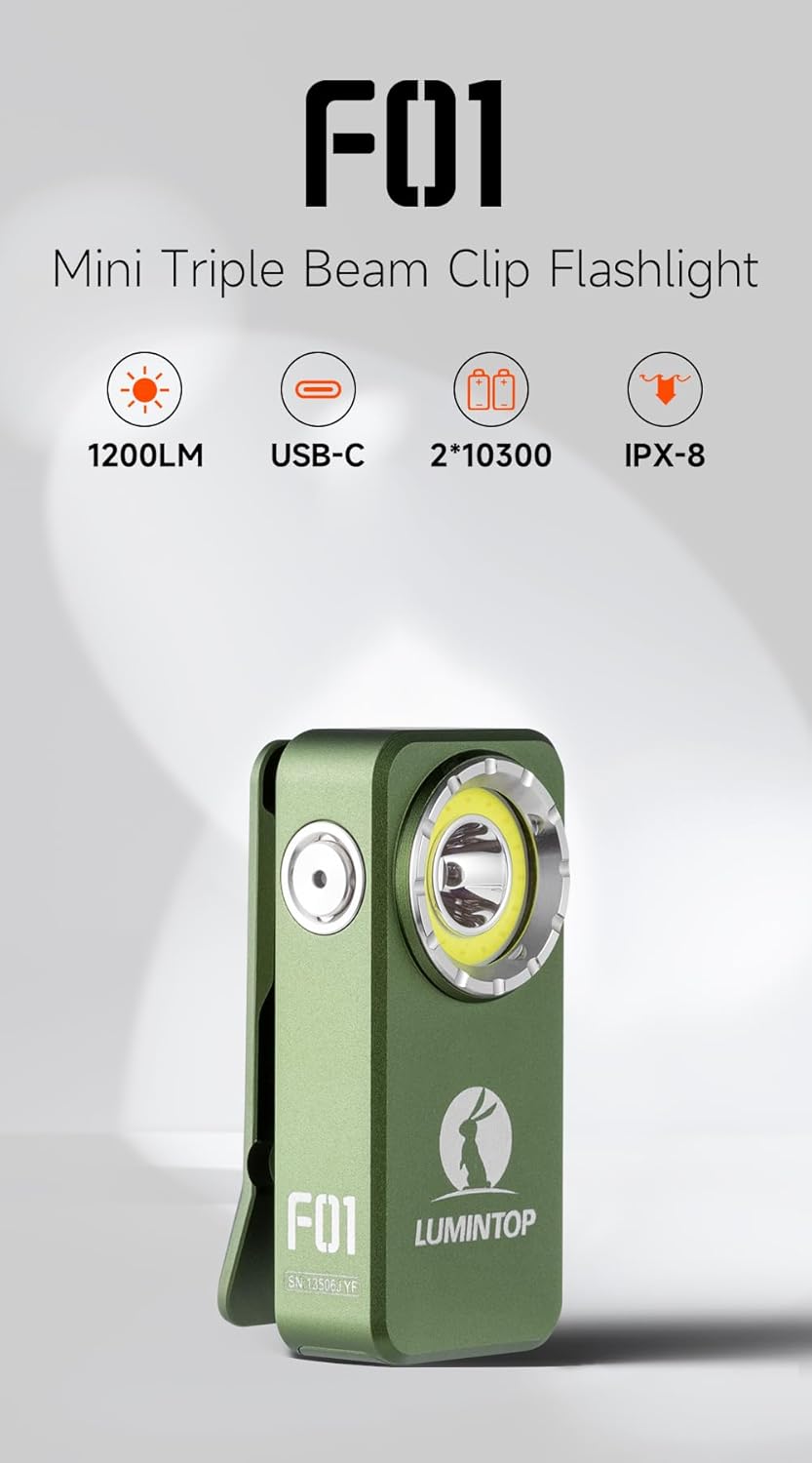

Image: LUMINTOP F01 Pro EDC Flashlight, highlighting its compact form factor.

پیکیج کے مشمولات

• LUMINTOP F01 Pro EDC Flashlight
• بلٹ ان لتیم آئن بیٹری
• USB ٹائپ سی چارجنگ کیبل
• صارف دستی (یہ دستاویز)

سیٹ اپ

1. Initial Use & Unlocking

For first-time use, the flashlight is in a locked state to prevent accidental activation during shipping. To unlock the device, press the side button 5 بار rapidly. The indicator light will confirm the unlock status.

2. بیٹری چارج کرنا

The F01 Pro features a built-in rechargeable Lithium Ion battery and supports Type-C charging.

1. Locate the USB Type-C charging port on the side of the flashlight.
2. چارجنگ پورٹ کا حفاظتی کور کھولیں۔
3. Connect the provided USB Type-C cable to the flashlight and a compatible USB power source (e.g., wall adapter, computer USB port).
4. انڈیکیٹر لائٹ چارجنگ سٹیٹس دکھائے گی (مثال کے طور پر، چارج کرنے کے لیے سرخ، مکمل چارج ہونے کے لیے سبز)۔
5. چارجنگ مکمل ہونے کے بعد، پانی کی مزاحمت کو برقرار رکھنے کے لیے کیبل کو منقطع کریں اور حفاظتی کور کو محفوظ طریقے سے بند کریں۔

تصویر: سائیڈ view of the flashlight, illustrating the side button and USB-C charging port.

آپریٹنگ ہدایات

The LUMINTOP F01 Pro utilizes a single side-mounted stainless steel switch for all operations.

بنیادی آپریشنز:

• 1x Click (from OFF): Turns the flashlight ON.
• 1x Click (from ON): Turns the flashlight OFF.
• Press & Hold (from ON): Cycles through Flood modes (Eco, Low, High) or switches between Flood and Red light modes. The flashlight has mode memory for the last used Flood mode.

Advanced Modes:

• 2x Click (from ON): Toggles between Spot Light and Flood Light modes.
• 3x Click (from ON/OFF): Activates Strobe mode.
• 4x Click (from ON/OFF): Activates Combo Light mode (Flood and Spot simultaneously).
• 5x Click (from ON/OFF): Locks or Unlocks the flashlight. (As mentioned in Setup, 5 clicks unlocks for first use).
• 7x Click (from ON/OFF): Toggles the Indicator Light ON/OFF.

تصویر: تفصیلی view of the side button, illustrating its functions.

خصوصیات

• Triple Beam System: Offers a 500lm floodlight, a 120-meter spotlight, and dual-mode red light (40/6lm) for various applications.
• Durable Pocket Clip: Allows secure attachment to pockets, straps, or other gear for flexible everyday carry. Features anti-slip texture and an integrated lanyard hole.
• مقناطیسی بنیاد: Provides hands-free lighting by attaching to metallic surfaces.
• USB Type-C ریچارج ایبل: آسان اور تیز چارجنگ۔
• واٹر پروف (IPX8): Designed to withstand immersion in water up to 2 meters.
• مضبوط تعمیر: Machined from high-strength aluminum alloy for durability.

Image: Floodlight beam for wide-angle illumination.

Image: Pocket clip and lanyard hole for secure carrying.

دیکھ بھال

• صفائی: باقاعدگی سے ٹارچ کے جسم کو نرم سے صاف کریں، ڈیamp cloth. Keep the lens free of dust and debris for optimal light output.
• چارجنگ پورٹ: Ensure the Type-C charging port is clean and dry before charging. Always close the protective cover after charging to prevent water and dust ingress.
• بیٹری: The F01 Pro uses a built-in Lithium Ion battery. While accessible for replacement if needed, it is generally not user-serviceable. If battery issues arise, contact customer support.
• ذخیرہ: Store the flashlight in a cool, dry place when not in use for extended periods. Charge the battery every 3-6 months to maintain its lifespan.

خرابی کا سراغ لگانا

• Flashlight not turning ON:
  • Ensure the flashlight is unlocked (press 5 times rapidly).
  • Check battery charge level. Recharge if necessary.
• روشنی کی پیداوار مدھم ہے:
  • Battery may be low. Recharge the flashlight.
  • Lens may be dirty. Clean the lens carefully.
• چارجنگ کے مسائل:
  • یقینی بنائیں کہ USB Type-C کیبل مناسب طریقے سے جڑی ہوئی ہے۔
  • ایک مختلف USB پاور سورس یا کیبل آزمائیں۔
  • چیک کریں کہ آیا چارجنگ پورٹ صاف اور رکاوٹوں سے پاک ہے۔
• Flashlight gets warm during use:
  • This is normal, especially on higher brightness modes, due to thermal regulation. The flashlight may automatically reduce brightness to prevent overheating.

وضاحتیں

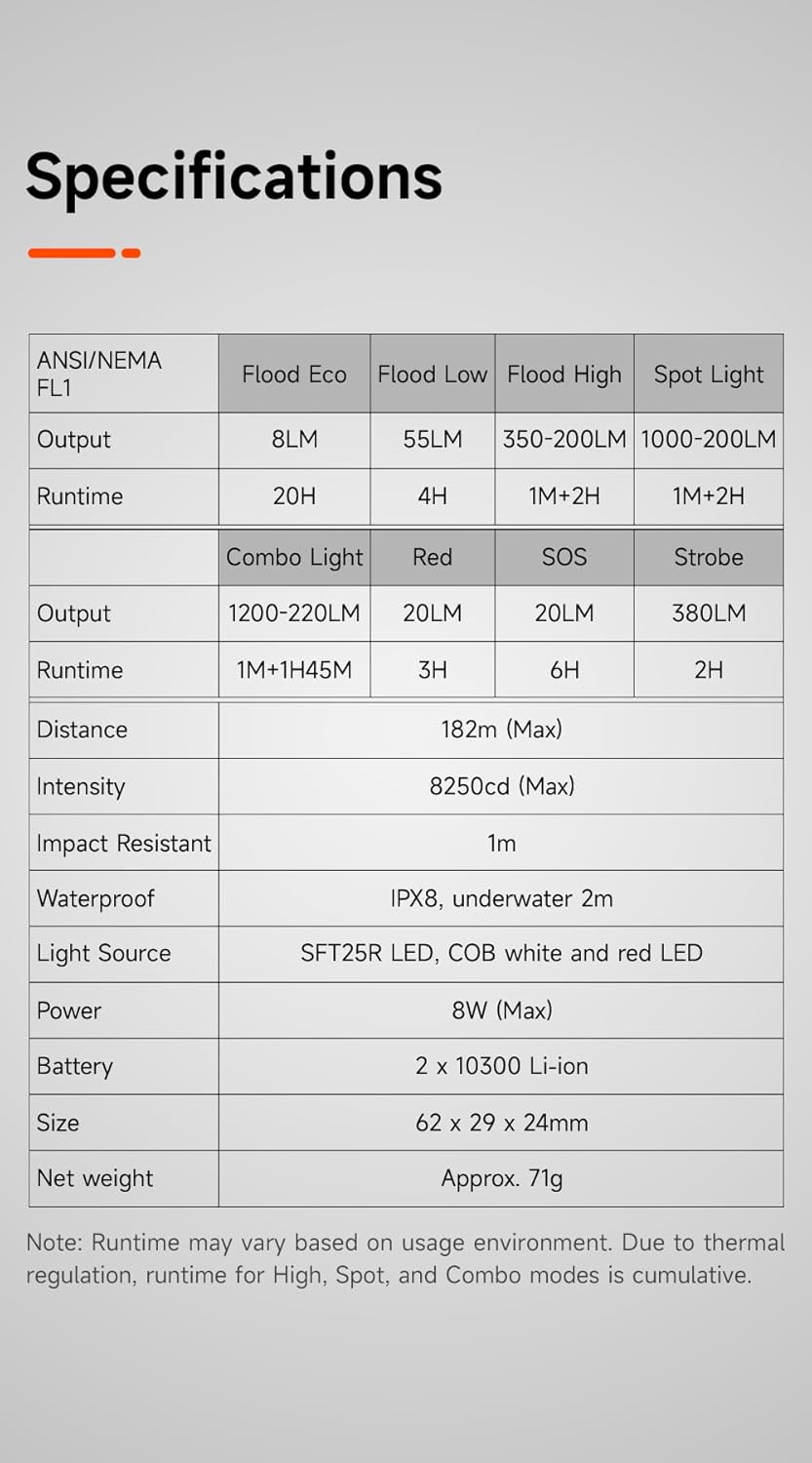

Image: Detailed specifications table for the F01 Pro flashlight.

وارنٹی اور سپورٹ

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official LUMINTOP webسائٹ خریداری کے ثبوت کے طور پر اپنی خریداری کی رسید اپنے پاس رکھیں۔

مینوفیکچرر: LUMINTOP
