Phanteks Eclipse G400A ATX Mid-Tower Computer Case User Manual

تعارف

The Phanteks Eclipse G400A is a high-performance ATX Mid-Tower computer case designed for optimal airflow and component compatibility. Featuring a tempered glass side panel and pre-installed D-RGB fans, it offers both aesthetic appeal and efficient cooling. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your Eclipse G400A case.

Figure 1: Phanteks Eclipse G400A ATX Mid-Tower Computer Case (White)

سیٹ اپ گائیڈ

1 پیک کھولنا اور معائنہ

Carefully remove the computer case from its packaging. Inspect the case for any signs of damage during transit. Ensure all accessories, including screws, cable ties, and the user manual, are present.

2. اجزاء کی تنصیب

The Eclipse G400A is designed for easy installation of your PC components. Follow these general steps:

• مدر بورڈ کی تنصیب: Install your ATX motherboard onto the pre-installed standoffs. Ensure proper alignment and secure it with screws. The case supports rear-side connector mainboards for a cleaner build.
• پاور سپلائی یونٹ (PSU) کی تنصیب: Install your PSU into the dedicated compartment at the bottom rear of the case. The case supports PSUs up to 270mm in length.
• سٹوریج ڈرائیو کی تنصیب: The case supports 2x 2.5" SSDs and 2x 3.5" HDDs. Utilize the dedicated storage brackets and cable management tray for a clean setup.

Figure 2: Internal layout with highlighted storage and cable management areas

• گرافکس کارڈ (GPU) کی تنصیب: Install your graphics card into the appropriate PCIe slot. The case supports large GPU cards and includes triple mid-plate 120mm fan locations for direct GPU cooling.
• ریڈی ایٹر اور پنکھے کی تنصیب: The case comes with 4x M25-140 Gen2 D-RGB fans pre-installed. It offers dedicated 360mm radiator support in the top without restrictions.

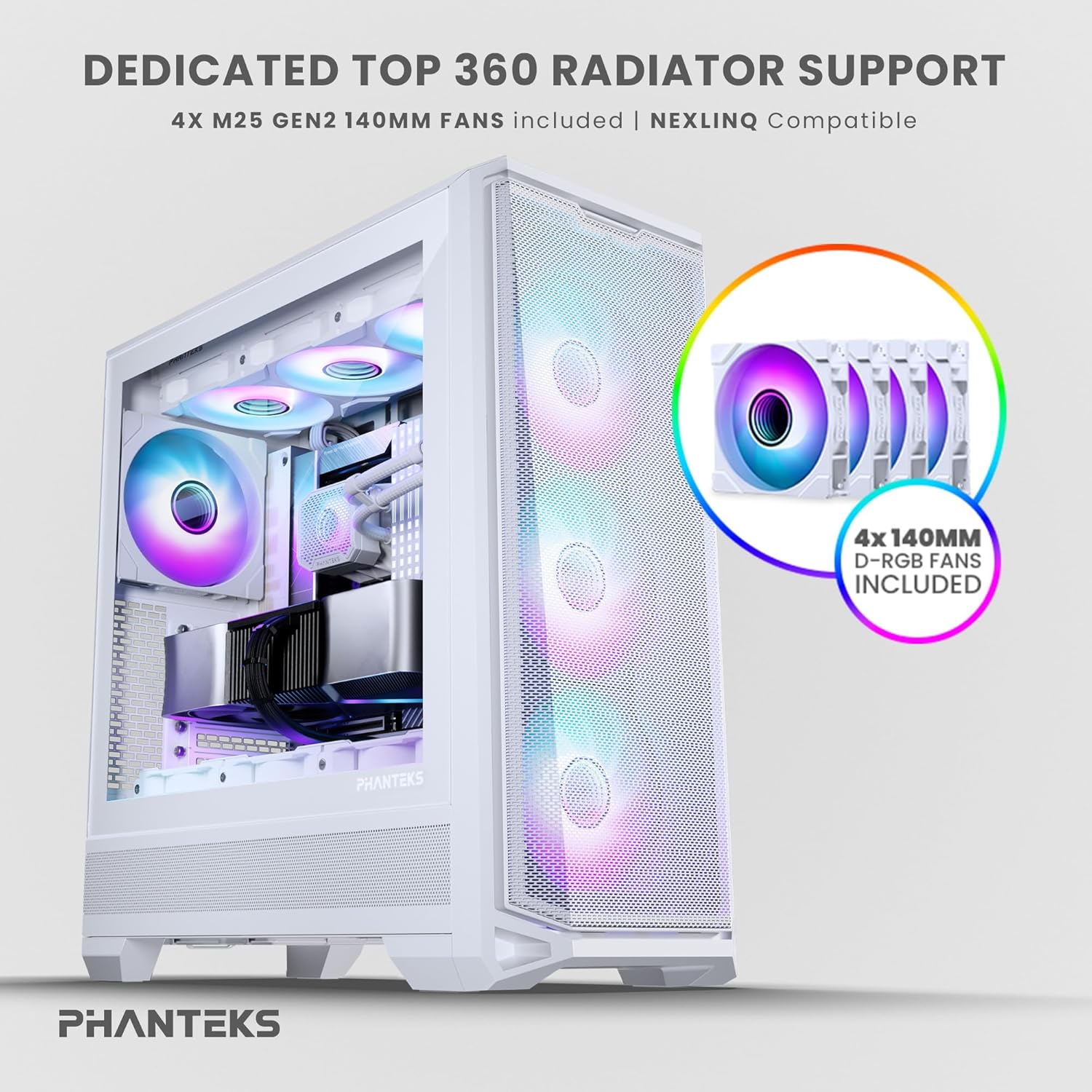

Figure 3: Top radiator support and pre-installed 140mm D-RGB fans

Figure 4: Dedicated 120mm fan positions for direct GPU cooling

3. کیبل کا انتظام

Utilize the dedicated cable management tool and Velcro ties provided to route and secure cables behind the motherboard tray. This ensures optimal airflow and a clean interior.

آپریٹنگ ہدایات

1. پاورنگ آن۔

After connecting all internal components and external peripherals, connect the power cable to your PSU and a wall outlet. Press the power button located on the top I/O panel of the case to power on your system.

Figure 5: Front I/O Panel Layout

2 آر جی بی لائٹنگ کنٹرول

The pre-installed M25-140 Gen2 D-RGB fans feature addressable RGB lighting. Control the lighting effects through your motherboard's RGB software (if compatible with D-RGB/ARGB) or a dedicated Phanteks RGB controller (sold separately).

دیکھ بھال

1. صفائی

Regular cleaning helps maintain optimal performance and extends the lifespan of your components.

• ڈسٹ فلٹرز: The Eclipse G400A features ultra-fine performance mesh panels on the top, left, and right sides, acting as dust filters. Regularly remove and clean these filters using compressed air or a soft brush to prevent dust buildup.
• بیرونی: بیرونی سطحوں کو نرم سے صاف کریں، ڈیamp کپڑا کھرچنے والے کلینر یا سالوینٹس سے پرہیز کریں۔

Figure 6: Removable front mesh panel and dust filter for easy cleaning

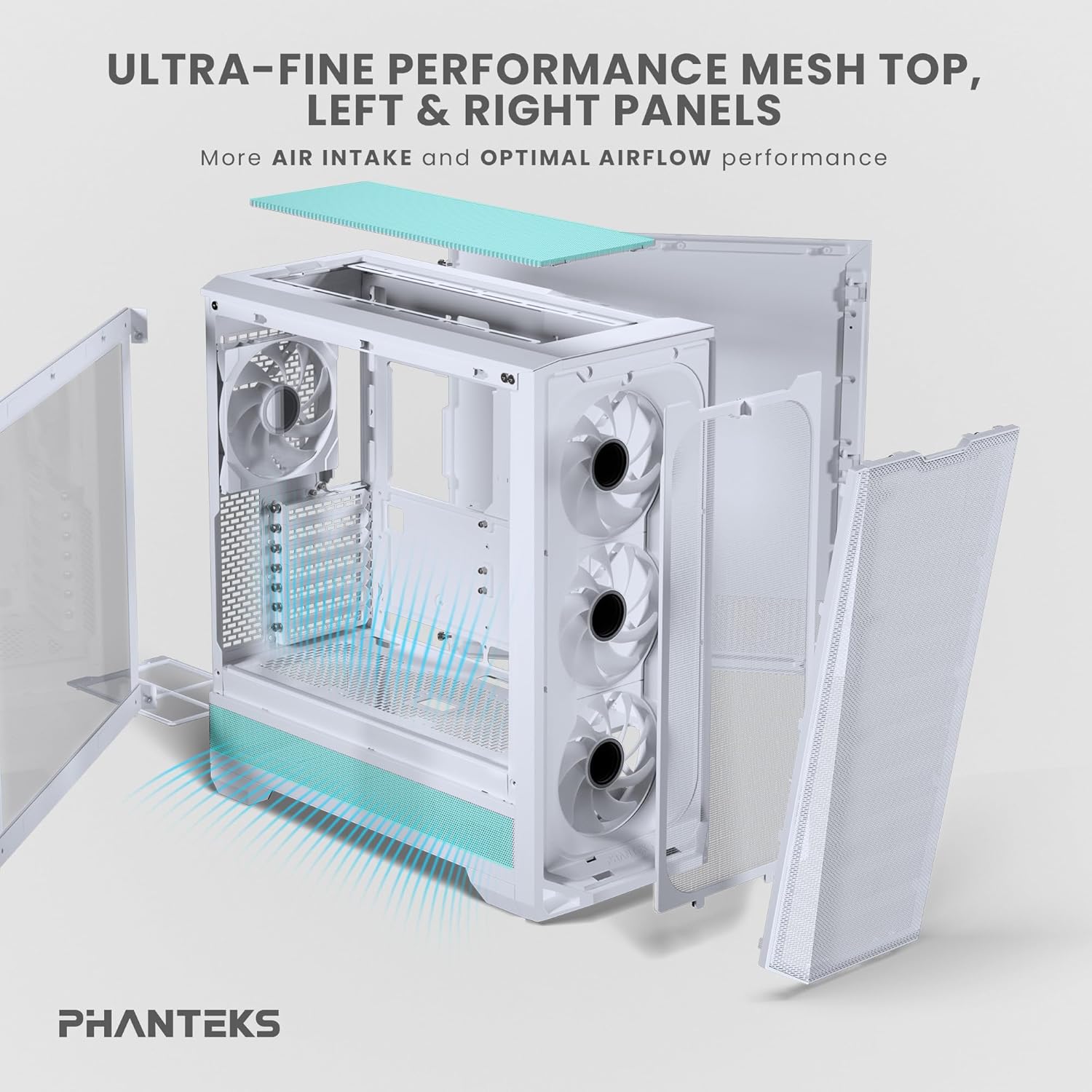

Figure 7: Disassembled panels demonstrating airflow and access for cleaning

2. ایئر فلو کی اصلاح

Ensure cables are neatly managed to avoid obstructing airflow. Periodically check fan operation to ensure they are spinning freely and quietly.

خرابی کا سراغ لگانا

• سسٹم آن نہیں ہوتا:
  • Check all power connections, including the PSU to wall outlet, PSU to motherboard (24-pin and CPU 8-pin), and front panel power switch header.
  • یقینی بنائیں کہ PSU سوئچ 'آن' پوزیشن میں ہے۔
• پنکھے نہیں گھومتے / آر جی بی روشنی نہیں کرتے:
  • Verify fan and RGB cables are correctly connected to the motherboard headers or a dedicated RGB controller.
  • فین کنٹرول اور آر جی بی سیٹنگز کے لیے مدر بورڈ BIOS/UEFI سیٹنگز چیک کریں۔
• خراب ہوا کا بہاؤ / اعلی درجہ حرارت:
  • Clean all dust filters and fans.
  • Ensure proper cable management to avoid airflow obstruction.
  • Verify fan orientation (intake/exhaust) for optimal airflow path.

تکنیکی وضاحتیں

وارنٹی اور سپورٹ

Phanteks products are manufactured to the highest quality standards. For warranty information and technical support, please refer to the official Phanteks webسائٹ یا ان کی کسٹمر سروس سے براہ راست رابطہ کریں۔ وارنٹی کے دعووں کے لیے اپنی خریداری کا ثبوت رکھیں۔

For further assistance, visit the official Phanteks support page: www.phanteks.com/support.html
