1. تعارف اور پروڈکٹ ختمview
Thank you for choosing the SONGMICS Pull-Out Recycling Bin, Model LTB950GZ01. This product is designed to offer an efficient and discreet waste management solution for your kitchen. It features two removable 15-liter compartments, a smooth-gliding mechanism, a robust steel frame, and a durable ABS lid, all intended for convenient under-cabinet installation.
This manual provides essential information for the safe installation, proper operation, and effective maintenance of your recycling bin. Please read it thoroughly before use and retain it for future reference.

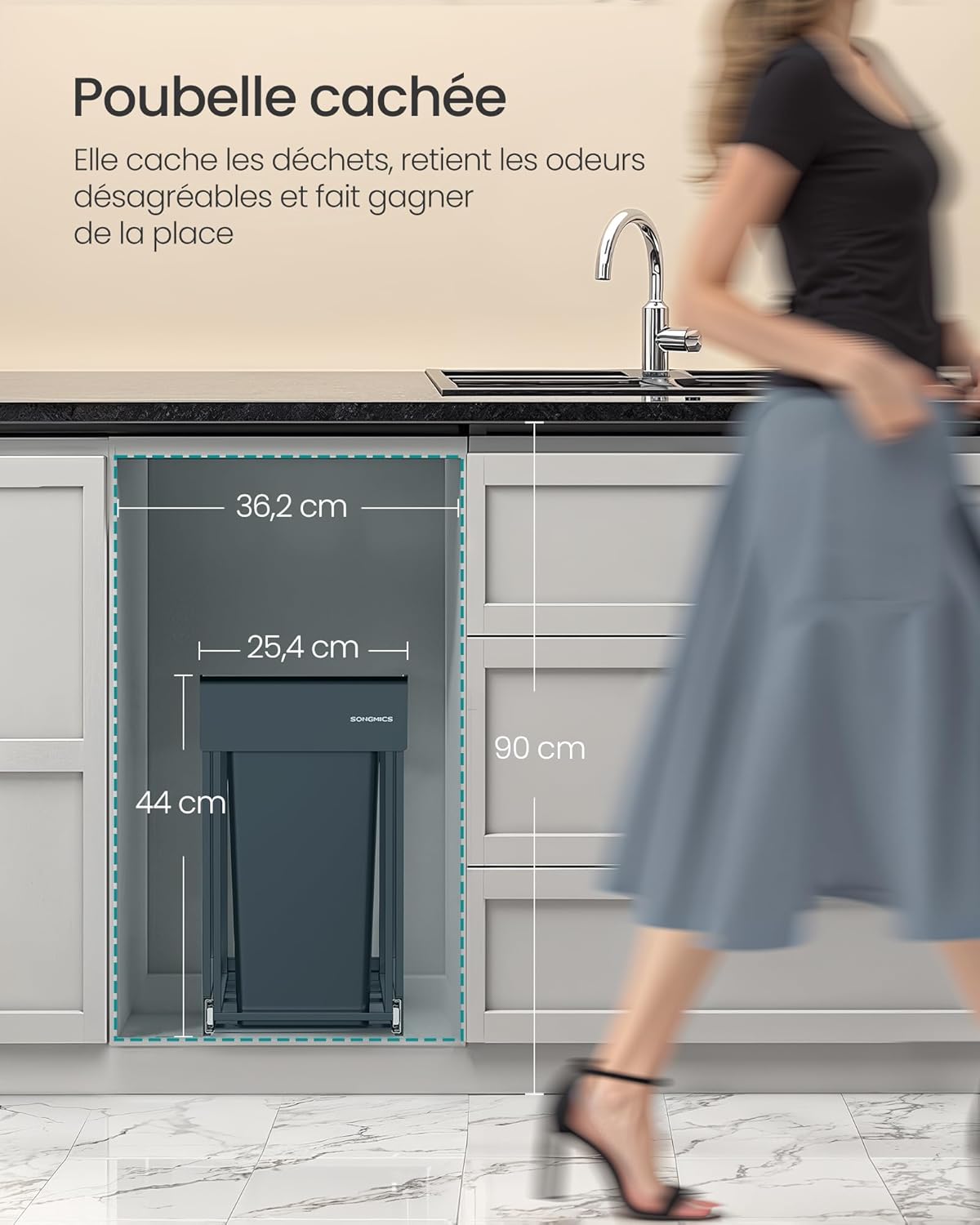

Image 1.1: The SONGMICS pull-out recycling bin discreetly installed under a kitchen counter, illustrating its space-saving design and general dimensions.
2. حفاظتی ہدایات
- اس بات کو یقینی بنائیں کہ اسمبلی سے پہلے تمام اجزاء موجود ہیں اور بغیر کسی نقصان کے ہیں۔ اگر کوئی پرزہ غائب یا ٹوٹا ہوا ہے تو استعمال نہ کریں۔
- دم گھٹنے کے خطرات سے بچنے کے لیے چھوٹے پرزے اور پیکیجنگ مواد کو بچوں سے دور رکھیں۔
- Install the unit securely according to the instructions to prevent tipping or instability.
- Do not overload the bins. The maximum static load capacity per bucket is 10 kg.
- Avoid placing hot ashes or flammable materials directly into the bins.
- Use appropriate personal protective equipment (e.g., gloves) during installation if necessary.
- Regularly check the mounting screws and runners for tightness and smooth operation.
3. پیکیج کے مشمولات
براہ کرم تصدیق کریں کہ درج ذیل تمام اشیاء آپ کے پیکیج میں شامل ہیں:
- 1 x Pull-Out Frame with Runners
- 2 x 15L Inner Buckets
- 1 x ABS Lid
- 1 x Set of Mounting Screws (4 screws)
- 1 ایکس انسٹرکشن دستی
4. سیٹ اپ اور انسٹالیشن
The SONGMICS Pull-Out Recycling Bin is designed for easy installation. The unit comes pre-assembled, requiring only 4 screws to secure it inside your cabinet.
4.1 کابینہ کے تقاضے
Before installation, ensure your cabinet meets the minimum internal dimensions:
- گہرائی: کم از کم 48.6 سینٹی میٹر (19.1 انچ)
- چوڑائی: کم از کم 30.4 سینٹی میٹر (12 انچ)
- اونچائی: کم از کم 49 سینٹی میٹر (19.3 انچ)
Image 4.1: Minimum internal cabinet dimensions for proper fit.
4.2 تنصیب کے مراحل
- Open your cabinet door and clear the installation area.
- Place the pre-assembled recycling bin unit inside the cabinet, positioning it where you intend to secure it. Ensure the pull-out mechanism faces the cabinet opening.
- Using the provided screws, secure the base of the unit to the cabinet floor. There are typically four designated screw holes on the frame.
- Test the pull-out mechanism to ensure it slides smoothly and is firmly attached.
- Insert the two 15L inner buckets into the frame.
Image 4.2: Securing the bin frame to the cabinet floor with screws.
5. آپریشن
Operating your SONGMICS recycling bin is straightforward:
- Pull-Out Function: Gently pull the front of the bin unit to slide it out of the cabinet. The smooth-gliding metal runners ensure effortless access.
- Waste Separation: Utilize the two separate 15L inner buckets for efficient waste sorting. Typically, one bucket can be used for recyclables and the other for general waste or organic waste.
- ڈھکن: The integrated ABS lid helps contain odors and keeps the contents out of sight when the bin is retracted into the cabinet.
- رجوع کرنا: Push the unit back into the cabinet until it is fully closed.

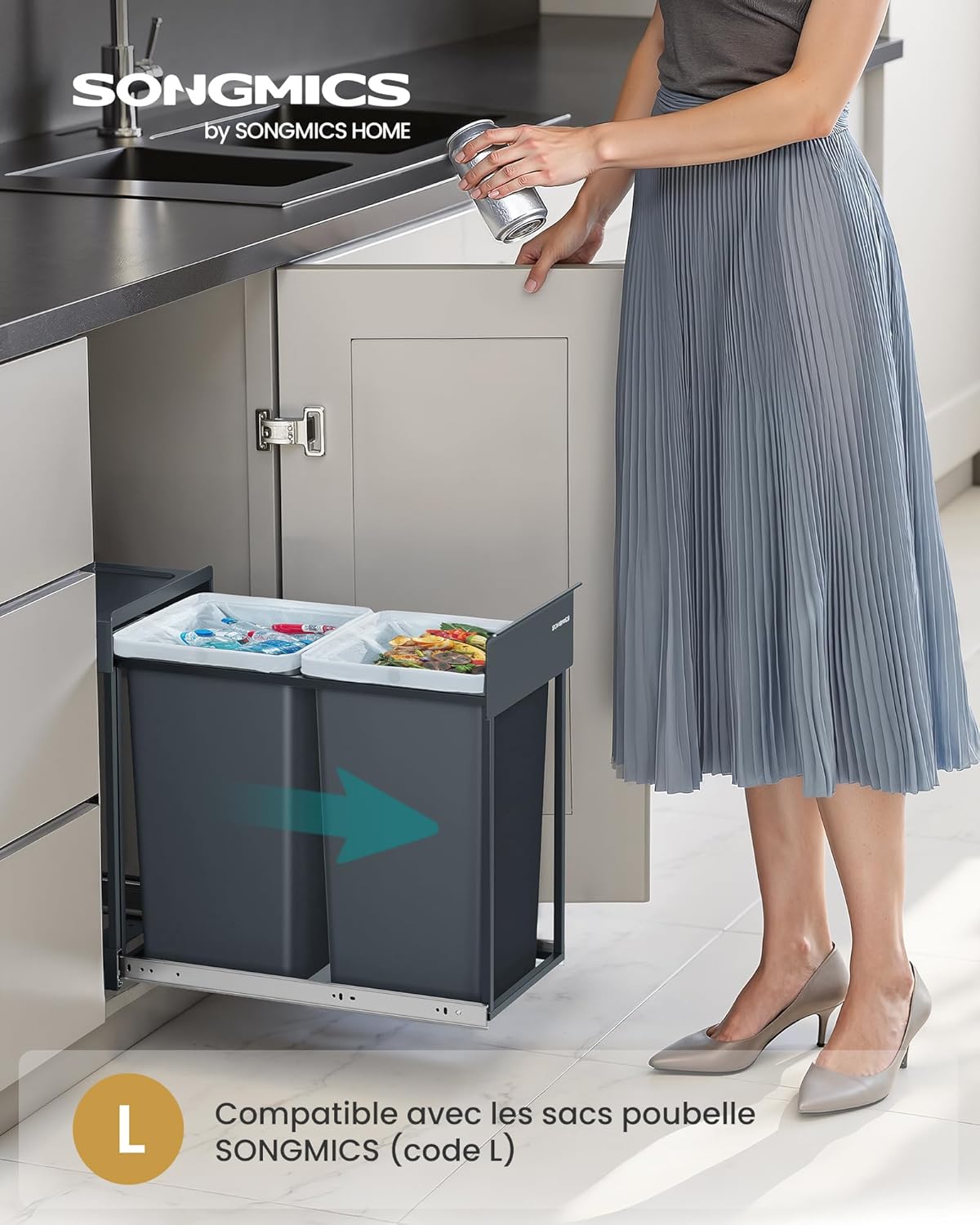

Image 5.1: Demonstrating the pull-out function and waste disposal.

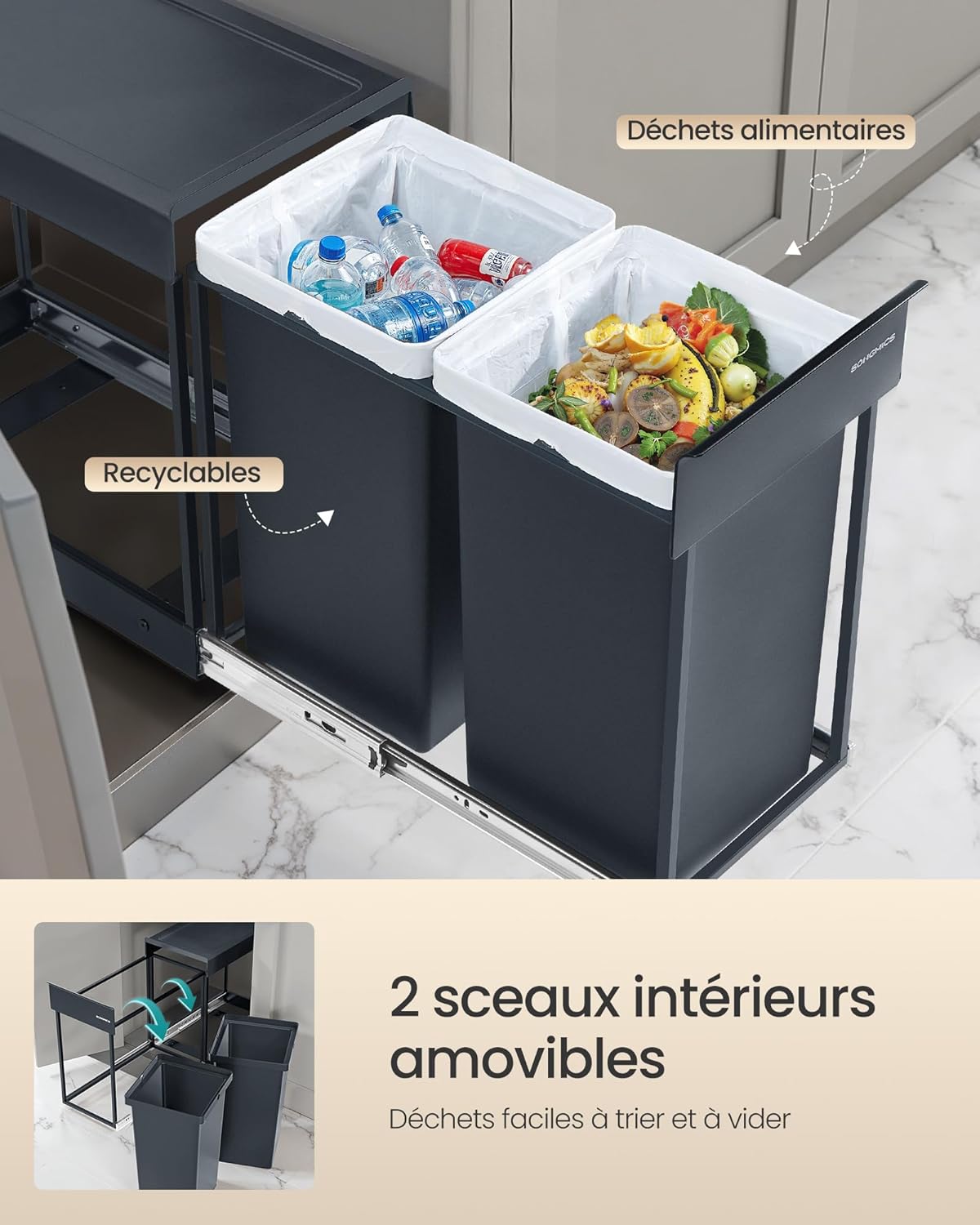

Image 5.2: The two inner buckets for separating recyclables and food waste.
6. دیکھ بھال اور صفائی
Regular cleaning and maintenance will ensure the longevity and hygiene of your recycling bin.
- Inner Buckets: The 15L inner buckets are removable for easy emptying and cleaning. Wash them with warm soapy water and a soft cloth or sponge. Rinse thoroughly and dry completely before returning them to the frame.
- ڈھکن: The durable ABS lid can be wiped clean with a damp cloth and mild detergent. Avoid abrasive cleaners that may scratch the surface.
- Frame and Runners: Wipe the steel frame and metal runners with a damp cloth. For the runners, ensure they remain free of debris to maintain smooth operation. A small amount of silicone spray can be applied to the runners if they become stiff, but avoid excessive lubrication.
- عمومی: وقتاً فوقتاً تمام پیچ اور کنکشن چیک کریں تاکہ یہ یقینی بنایا جا سکے کہ وہ سخت ہیں۔
Image 6.1: Removable inner buckets for easy cleaning.
7 خرابیوں کا سراغ لگانا
| مسئلہ | ممکنہ وجہ | حل |
|---|---|---|
| بن آسانی سے نہیں پھسلتا۔ | Debris on runners, loose screws, or runners need lubrication. | Clean runners of any obstructions. Tighten mounting screws. Apply a small amount of silicone spray to the runners. |
| Bin unit feels wobbly. | بڑھتے ہوئے پیچ ڈھیلے ہیں۔ | Ensure all four mounting screws are securely tightened to the cabinet floor. |
| Lid does not sit properly. | Inner buckets are not correctly seated or are overfilled. | Ensure inner buckets are fully pushed down into the frame. Do not overfill the buckets. |
8. وضاحتیں
| فیچر | تفصیل |
|---|---|
| ماڈل نمبر | LTB950GZ01 |
| برانڈ | سونگمکس |
| مجموعی ابعاد (L x W x H) | 48.6 x 25.4 x 44 سینٹی میٹر (19.1 x 10 x 17.3 انچ) |
| Inner Bucket Capacity | 2 x 15 لیٹر (کل 30 لیٹر) |
| مواد | Alloy Steel (Frame), ABS (Lid), Plastic (Buckets) |
| رنگ | گرے |
| شے کا وزن | 7.4 کلوگرام (16.3 پونڈ) |
| Max. Static Load Capacity (per bucket) | 10 کلوگرام (22 پونڈ) |

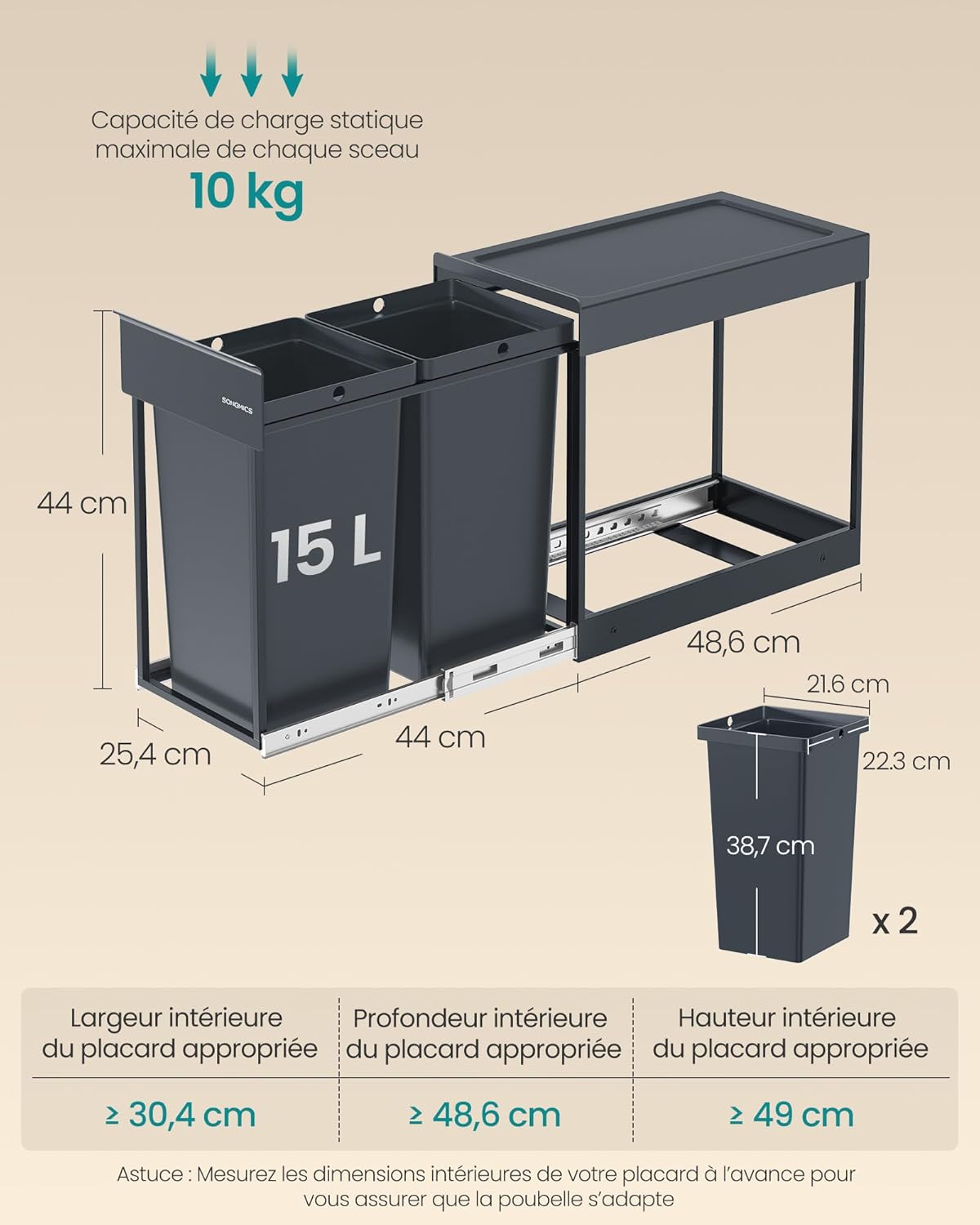

Image 8.1: Product dimensions and capacity details.
9. وارنٹی اور سپورٹ
SONGMICS products are designed for quality and durability. This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation provided at the time of purchase or visit the official SONGMICS webسائٹ
If you encounter any issues, have questions about installation, or require technical support, please contact SONGMICS customer service. You can typically find contact information on the product packaging, the official SONGMICS webسائٹ، یا اپنے خوردہ فروش کے ذریعے۔
Please have your model number (LTB950GZ01) and purchase information ready when contacting support.
