AODELAN Wireless & Wired Remote Control for Nikon Cameras User Manual

تعارف

Thank you for choosing the AODELAN Wireless & Wired Remote Control. This device is designed to provide versatile shutter release options for compatible Nikon cameras, enhancing your photography experience with features like wireless operation, delayed shooting, continuous shooting, and bulb mode. Please read this manual carefully to ensure proper use and optimal performance of your remote control.

باکس میں کیا ہے۔

تمام اشیاء موجود ہیں کو یقینی بنانے کے لیے براہ کرم اپنے پیکج کے مواد کو چیک کریں:

• Transmitter (1 unit)
• Receiver (1 unit)
• Lanyard (2 units)
• 60cm Type-C Cable (1 unit)
• Shutter Release Cable (2 units, compatible with MC-DC2 and MC-30 ports)
• یوزر مینوئل (1 یونٹ)

Image: Contents of the AODELAN remote control package.

پروڈکٹ ختمview

Familiarize yourself with the components of your AODELAN remote control:

Image: Labeled components of the Transmitter and Receiver.

مطابقت

The AODELAN Wireless & Wired Remote Control is compatible with a wide range of Nikon cameras. Please identify the correct shutter release cable for your camera's port type:

• N8 (MC-30 Type): Compatible with Nikon cameras featuring a 10-Pin Terminal, including: Z8, Z9, D6, D5, D4s, D4, D3x, D3s, D3, D2Xs, D2X, D2Hs, D2H, D2, D1X, D1H, D1, D850, D810, D800, D800e, D700, D500, D300s, D300, D200. Also compatible with Fujifilm S5 Pro, S5, S3 and Kodak DCS-14N.
• N10 (MC-DC2 Type): Compatible with Nikon cameras featuring a DC-2 Terminal, including: Z5, Z7 II, Z7, Z6 III, Z6 II, Z6, D780, D7500, D750, D7200, D7100, D7000, D610, D600, D5600, D5500, D5300, D5200, D5100, D5000, D3300, D3200, D3100, D90, Df, Coolpix A, P950, P1100, P1000, P7800, P7700.

Image: N8 (MC-30) and N10 (MC-DC2) connector types.

سیٹ اپ

1. ریموٹ کنٹرول کو چارج کرنا

Both the transmitter and receiver are powered by built-in rechargeable batteries. Use the provided USB-C cable to charge them.

• ٹرانسمیٹر: Continuous usage time up to 72 hours. Full charge time approximately 1.5 hours.
• وصول کنندہ: Continuous usage time up to 200 hours. Full charge time approximately 2 hours.

The USB-C port on the receiver also supports firmware updates to maintain compatibility with newer cameras.

Image: Charging and battery specifications for Transmitter and Receiver.

2. اپنے کیمرہ سے جڑنا

The remote control offers both wireless and wired connection options.

• وائرلیس موڈ: Attach the receiver to your camera's hot shoe (optional, for convenience) and connect the appropriate shutter release cable from the receiver's Ø2.5mm port to your camera's remote terminal. The transmitter communicates with the receiver wirelessly.
• Wired Mode (Receiver as a wired remote): Connect the appropriate shutter release cable directly from the receiver's Ø2.5mm port to your camera's remote terminal. The receiver can function as a wired remote even if its battery is depleted.

Image: Wireless and Wired connection methods.

آپریٹنگ ہدایات

The AODELAN remote control supports various shooting functions:

• پاور آن/آف: Press and hold the power button on the receiver to turn it on or off. The transmitter typically powers on when a button is pressed and enters standby when idle.
• Autofocus (Half-Press): Gently press the shutter button halfway down on either the transmitter or receiver to activate your camera's autofocus system.
• Single Shot (Full Press): Press the shutter button fully down to take a single photograph.
• 2-Second Delayed Release: Press the '2S' delay button on the transmitter, then press the shutter button fully. The camera will trigger after a 2-second delay.
• مسلسل شوٹنگ: If your camera is set to continuous shooting mode, pressing and holding the shutter button on the remote will trigger continuous shots until released.
• Bulb Mode (Long Exposure): For long exposures, set your camera to Bulb mode. Press the shutter button on the remote once to open the shutter, and press it again to close the shutter.
• اینٹی شیک: Using a remote control minimizes camera shake caused by pressing the camera's shutter button directly, resulting in sharper images, especially in low light or with long lenses.

Image: Multi-function capabilities of the remote control.

تصویر: سابقamples of various shooting modes in use.

دیکھ بھال

• چارج کرنا: Recharge the remote control regularly, especially before extended use, to ensure optimal performance. Avoid completely draining the battery frequently.
• صفائی: Use a soft, dry cloth to clean the remote control. Do not use liquid cleaners or solvents.
• ذخیرہ: ریموٹ کنٹرول کو کسی ٹھنڈی، خشک جگہ پر براہ راست سورج کی روشنی اور انتہائی درجہ حرارت سے دور رکھیں۔
• فرم ویئر اپ ڈیٹس: Periodically check the AODELAN website for any available firmware updates for the receiver to ensure continued compatibility and performance.

خرابی کا سراغ لگانا

• ریموٹ جواب نہیں دے رہا ہے: Ensure both the transmitter and receiver are charged and powered on. Check that the shutter release cable is securely connected to both the receiver and the camera.
• Camera not firing: Verify your camera's settings (e.g., focus mode, shooting mode). Ensure the camera is compatible with the remote control and the correct cable is used.
• محدود رینج: Ensure there are no significant obstructions between the transmitter and receiver. The 2.4GHz digital radio technology provides up to 60m (200ft) stable working distance in open areas.
• Receiver battery dead (Emergency Wired Mode): If the receiver's battery is depleted, you can still use it as a wired shutter release by connecting it directly to your camera with the appropriate cable.

وضاحتیں

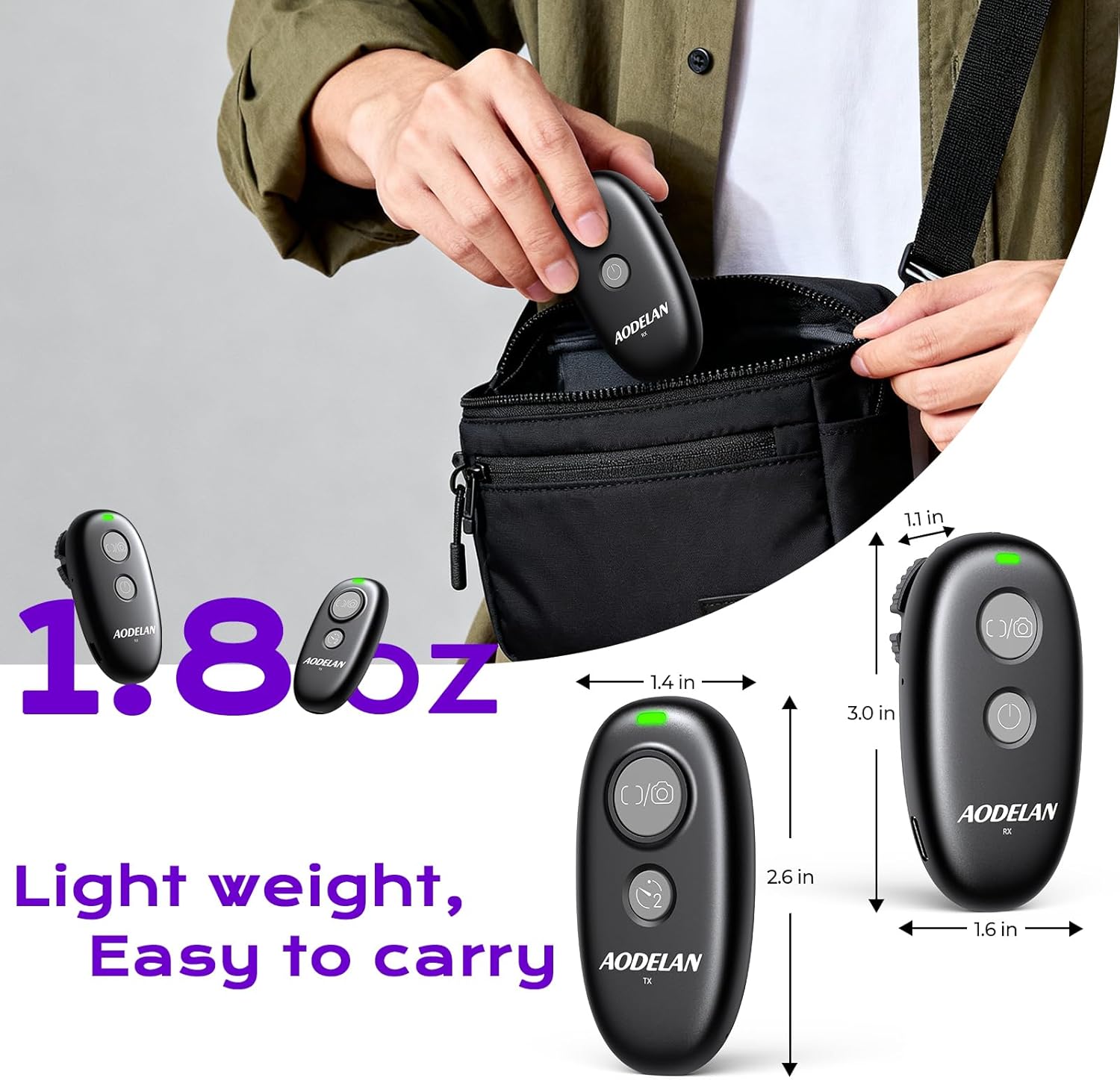

Image: Dimensions and weight of the remote control components.

وارنٹی اور سپورٹ

AODELAN products are manufactured with quality and reliability in mind. For warranty information, technical support, or any inquiries regarding your remote control, please refer to the warranty card included in your package or visit the official AODELAN webسائٹ وارنٹی دعووں کے لیے خریداری کے ثبوت کے طور پر اپنی خریداری کی رسید رکھیں۔
